USFULL 8 струнный PV DC комбайнер водонепроницаемый
- Категория: Другие соответствующие товары в области солнечной энергии >>>
- Поставщик: Zhejiang,Fullwill,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 95.87 $* | 97.36 $* |
| Jul-15-2025 | 77.3 $* | 79.62 $* |
| Jun-15-2025 | 94.36 $* | 96.99 $* |
| May-15-2025 | 93.67 $* | 95.45 $* |
| Apr-15-2025 | 74.70 $* | 75.28 $* |
| Mar-15-2025 | 92.76 $* | 94.86 $* |
| Feb-15-2025 | 91.38 $* | 93.85 $* |
| Jan-15-2025 | 90.62 $* | 92.14 $* |
Характеристики

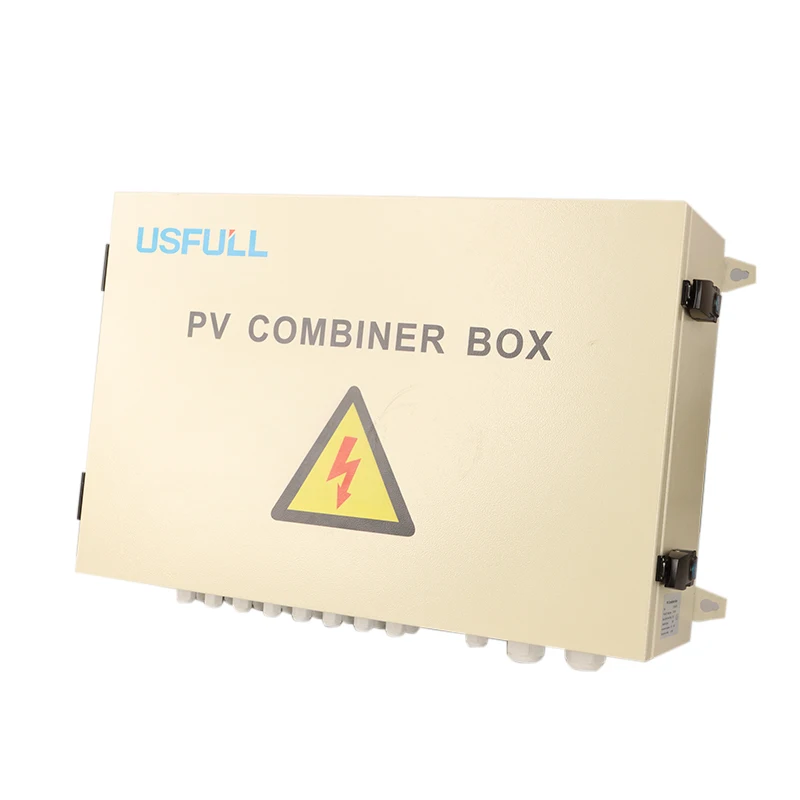

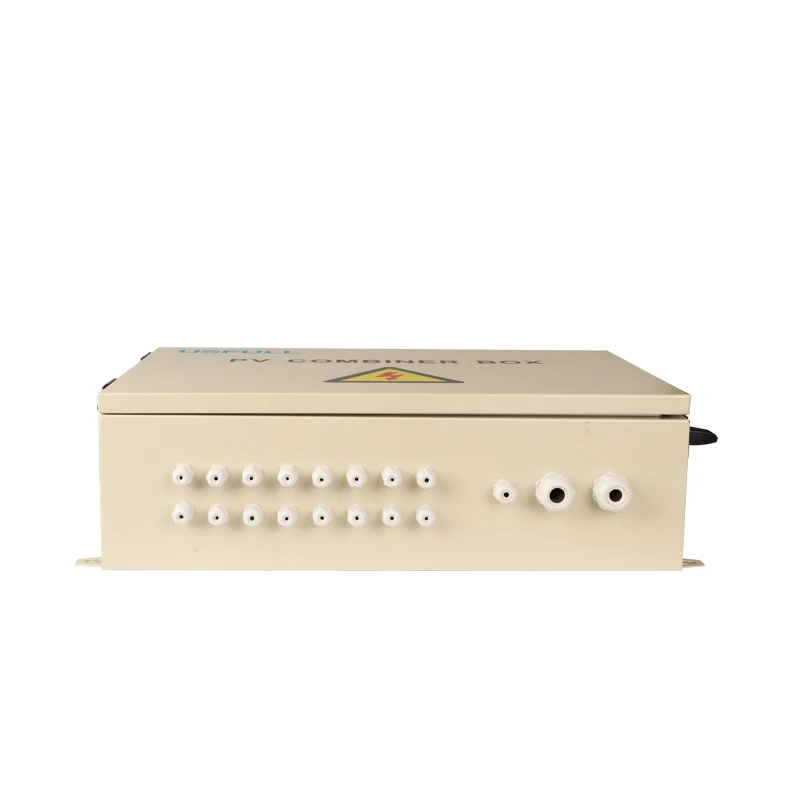

8 String PV DC Combiner Box Waterproof IP65
| SPECIFICATION | ||||||||||||
| Type | FU-CB8 | FU-CB10 | FU-CB12 | FU-CB16 | ||||||||
| IP Protection Class(IEC60529) | IP65 | |||||||||||
| IK Impact Resisstance Classe(IEC62262) | IK08 | |||||||||||
| Max Rated Voltage DC | 1000V | |||||||||||
| Fuse Holder | 1000V DC 30A | |||||||||||
| Surge Protection DC | Type Ⅱ/In=20KA, Imax=40KA, Ucpv=1000V DC | |||||||||||
| Number of DC Inputs | 8 | 10 | 12 | 16 | ||||||||
| Connection Type DC Input | PG09, IP68 | |||||||||||
| Input Fuse | 15A | |||||||||||
| Number of DC Outputs | 1 | |||||||||||
| Shell material | Iron with spray coated | |||||||||||
| Connection Type DC Output | PG36, IP68, Φ22~32mm(Be Customized) | |||||||||||
| Gland Connectors | Material: Nylon Plastic, Seals: Nitrile Rubber Buna, IP68 | |||||||||||
| Connection DC Earth Protection | PG16, IP68,Φ10~14mm | |||||||||||
| Operating Temperature | -25℃~+60℃ | |||||||||||
| Permissible relative humidity | 0-99%, no condensation | |||||||||||
| Altitude | ≤2000m,2000m,Derating | |||||||||||
| Installation | Wall mounting | |||||||||||
| Width(mm) | 600 | 600 | 600 | 600 | ||||||||
| height(mm) | 400 | 400 | 550 | 550 | ||||||||
| depth(mm) | 180 | 180 | 180 | 180 | ||||||||
ABOUT US
FAQ
1. what's the payment term?
We accept T/T, L/C, D/P, WEST UNION, PAYPAL, CASH
2. What's the production ability?
4HQ containers monthly and rush order for any quantity.
3. What is the standard of package?
Export standard package or special package with requirement
4. Do you accept OEM business?
We accept OEM with your authorization.
5.How is the after-sale service?
We offer spare parts accordingly and English-speaking engineer offer online service.
6.Which market do you already sell?
We already ship to many South America, African countries, Middle East, Southeast Asia etc.
7. what kind of certificate you have?
We have CE, CB, INMETRO, ISO90001 etc.
8. How to control quality?
Our production strictly follow ISO9001 quality control system, after four time qulatiy inspect and high temperature testing we will print "QA"pass, also we have ERP system for more convinent.
