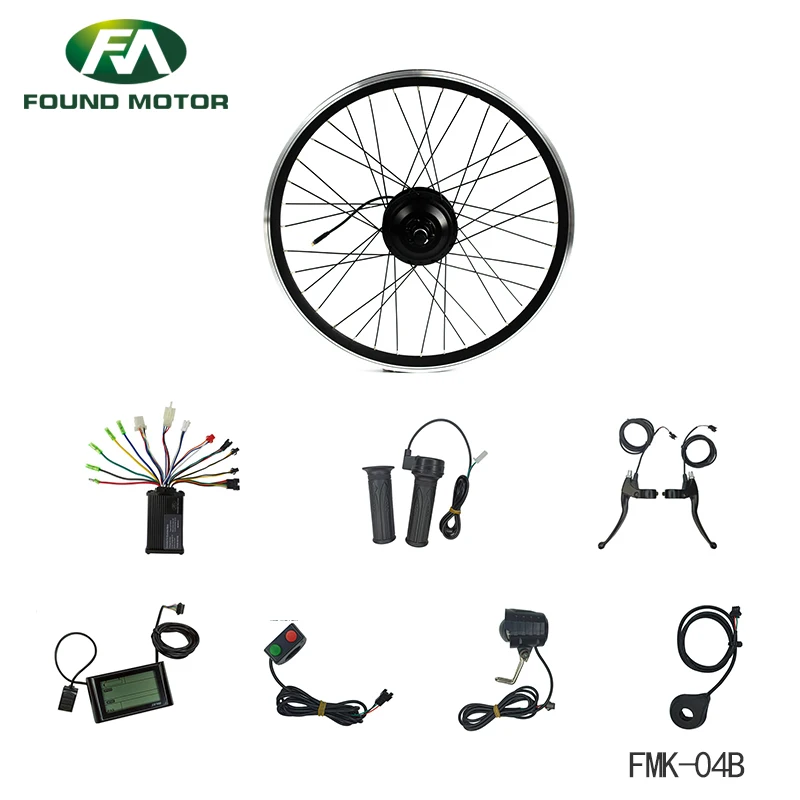

26''36V 250W Rear drive 6-9S speed motor kit with SW900 LCD display



NO	Product name	Product Code	Specifications

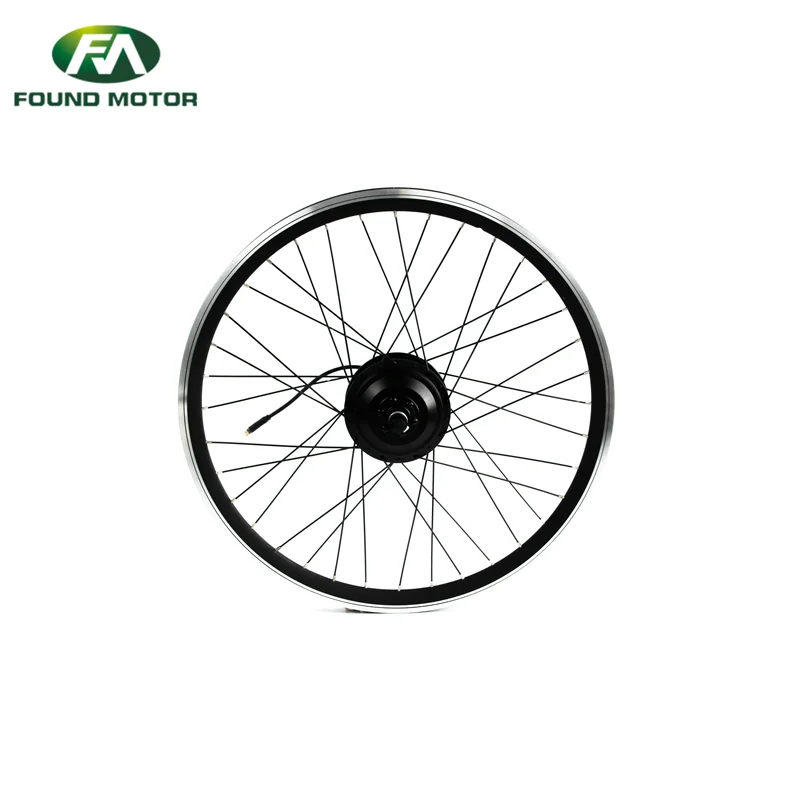

1	Motor	FM-01-01-92H	1.26"36V 250W BLDC Geared rear drive spoke motor   2.Dropout - 135mm(open size),6-9 speed   3.Waterproof cable with connector 200mm   extension cable with normal connnector 500mm   4.Disk brake cover left,motor cable right   5.Color:black/silver   6.Customized LOGO available   7.26*1.75/1.95 double layers rim with spokes.   8.Standard carton and foams.

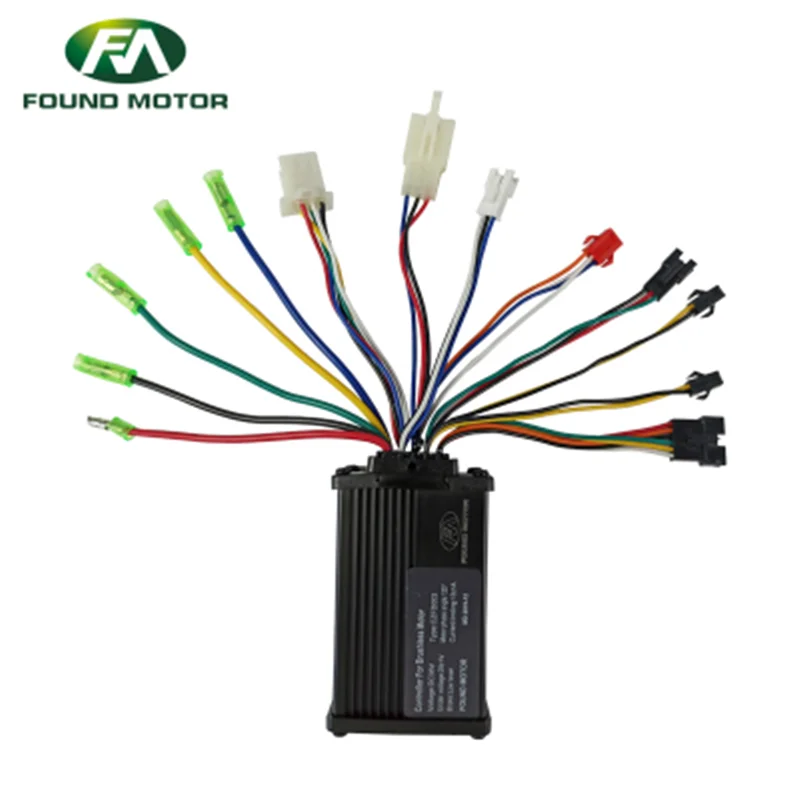

2	Controller	CZFD003	1.DC 36V, Sinewave controller.   2.Current-limiting 13A.   3.Normal connector:Motor,power,throttle,brakelever,LCD display,switch,front light,PAS.

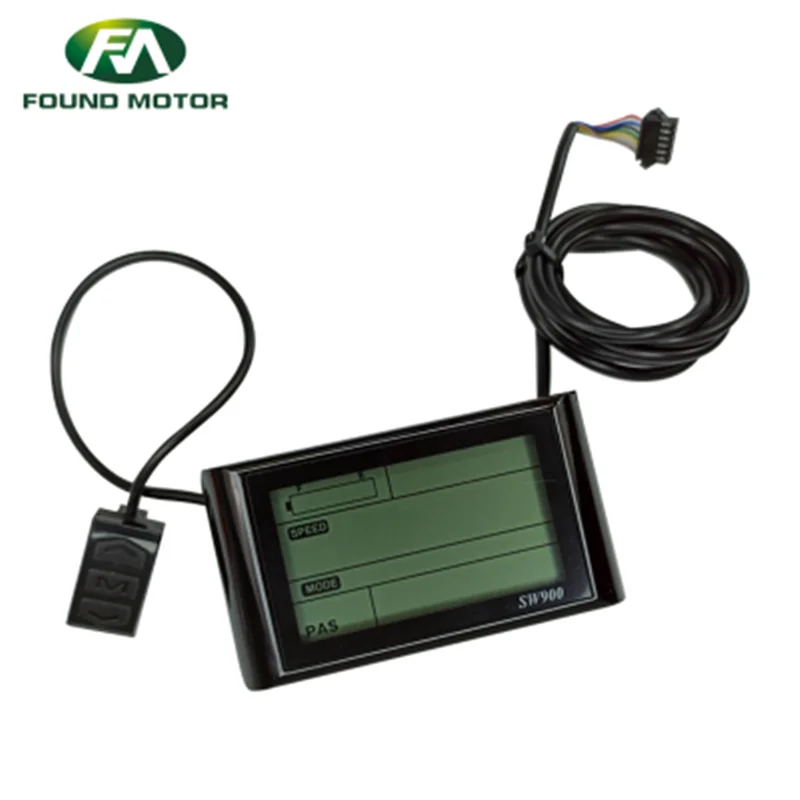

3	LCD diaplay	SW900	1. SW900 LCD display with normal connector.   2.Cable length 1.5m   3.Speed,5 level PAS,walk speed 6kmh,trip,etc.   4.SW02 protocol. 5.LCD displays optional

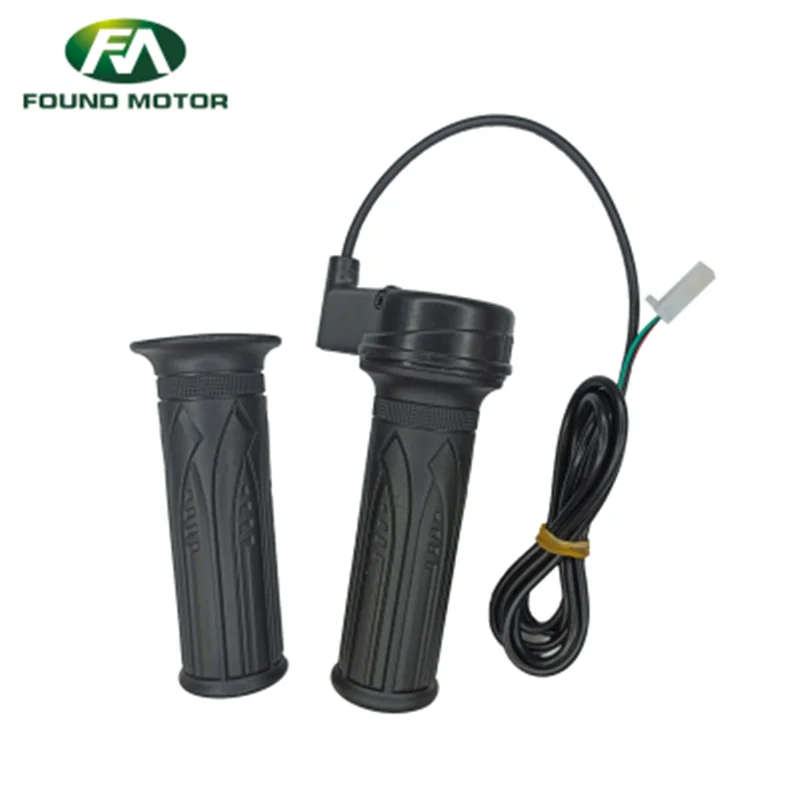

4	Throttle	DS1511/054	1.Full twist throttle with normal connector   2.Cable length 1.5m   3.Full twist throttle,half twist throttle,thumb throttle optional   4.Different kinds grips optional

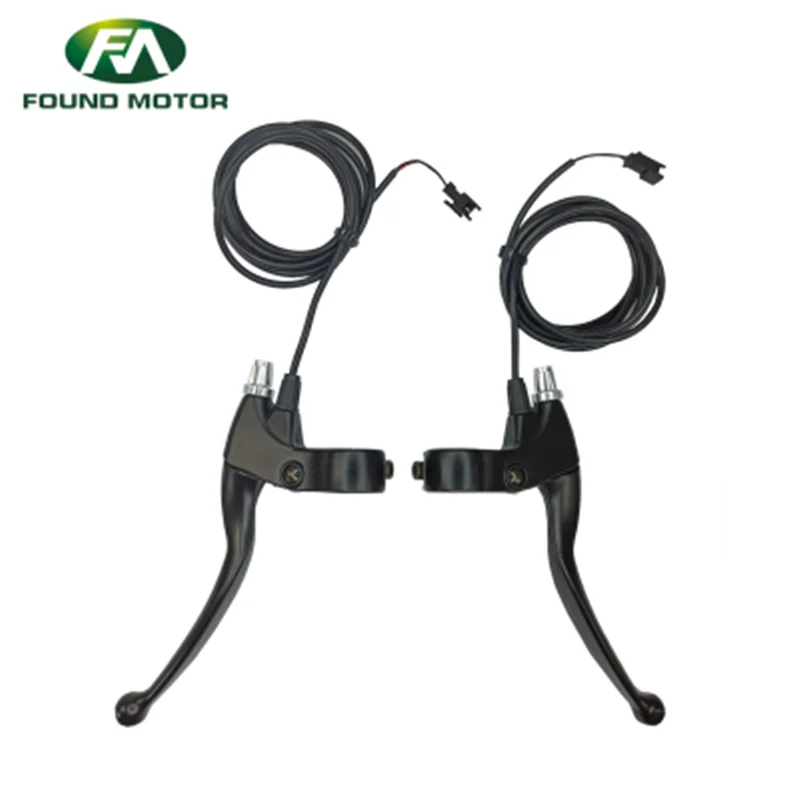

5	Brake lever	19S07	1.Brake lever with normal connector   2.Cable length 1.5m   3.Brake levers optional
6	Switch	DK21	1.Light/horn switch with normal connector   2.Cable length 1.5m   3.Switches optional
7	Front light	XHL-01	1.Front light and horn with normal connector   2.Cable length 1.5m   3.Lights optional
8	PAS	SW003	1.Double sensors,12 magnets, Left side   2.Cable length 60cm,normal connector   3.PAS SW001,SW002,SW003 optional









ABOUT GEEK INNOVATION WORKSHOP

2019,In order to better realize the company's development, we had established an Electric Bike&Scooter Industrial Park together with our partners.

We can provide customers with one-stop service for the following products:

(1)Motor

(2)Controller

(3)Throttle&Brake lever&Switch

(4)LCD &LED display&Front light&PAS

(5)Front fork&Electric bike frame

(6)Electric Bike&Scooter





FOUND defines an OEM (Original Equipment Manufacturer) as an entity or organization that integrates a customized or embedded Found product in its own unique solution for sale to its customers. The proof of this concept is that the Found product must be significantly transformed. The OEM The firm side uses its own company logo and brand name on its solution and it markets, sells and providing technical and warranty support directly to its customers.

1.Q: Is it available for sample?

    A:Yes. We offer sample, but free sample are not available at beginning.

2.Q: What's your warranty for products?

    A: a.) If you import goods from us, we will be full refunds protection if goods itself has quality problems.

        b.) We can return your money if you are not satisfied with our product within 7 days after you get the goods, you only need take the freight.

        c.) We promise to replace the goods freely if there are some problems within 6months.

        d.) We promise 2 years' warranty. First year, exchanging products for free and second year, maintenance free. You only need to do is pay the freight.

3.Q:What our motors’ max rotaing speed?

    A:350RPM—1200RPM

4.Q:How much voltage we can do for motors?

   A:24V,36V,48V,60V,72V,96V as your required.

5.Q:How much power we can do for motors?

    A: Electric bike motor 180W-5000W.

   Switched reluctance motor 1200W-10.5KW

6.Q:How much speed we can do for motors?

    A:For normal electric bike motor,25-60km/h as your bike wheel size.

       For switched reluctance motor,10-60km/h.

       For electric motorcycle motor,60-120km/h.

       For customized motor,6-120km/h,depend on your demands&requirements.

 7.Q:Special order as your required?

   A:Products can be ordered as you need. Technical department can provide you with professional solutions.
