SDLG RD730 дорожной техники дорожный каток машина с двумя барабанами асфальт уплотнитель 3 тонны
- Категория: >>>
- Поставщик: Shandong,Lingong,Construction,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.22 $* | 0.97 $* |
| Aug-16-2025 | 0.37 $* | 0.71 $* |
| Jul-16-2025 | 0.92 $* | 0.86 $* |
| Jun-16-2025 | 0.40 $* | 0.91 $* |
| May-16-2025 | 0.87 $* | 0.14 $* |
| Apr-16-2025 | 0.96 $* | 0.42 $* |
| Mar-16-2025 | 0.90 $* | 0.55 $* |
| Feb-16-2025 | 0.23 $* | 0.35 $* |
| Jan-16-2025 | 0.12 $* | 0.26 $* |
Характеристики
Product Description
SDLG RD730 road machinery road roller machine double drum asphalt compactor 3 ton vibratory road roller for sale
RD730 is a new generation of hydraulic double-drum vibratory roller with high reliability,efficiency and comfort.It has a modern designed appearance and has good vibratory function,high torque,high operating functionality and easy to maintain.

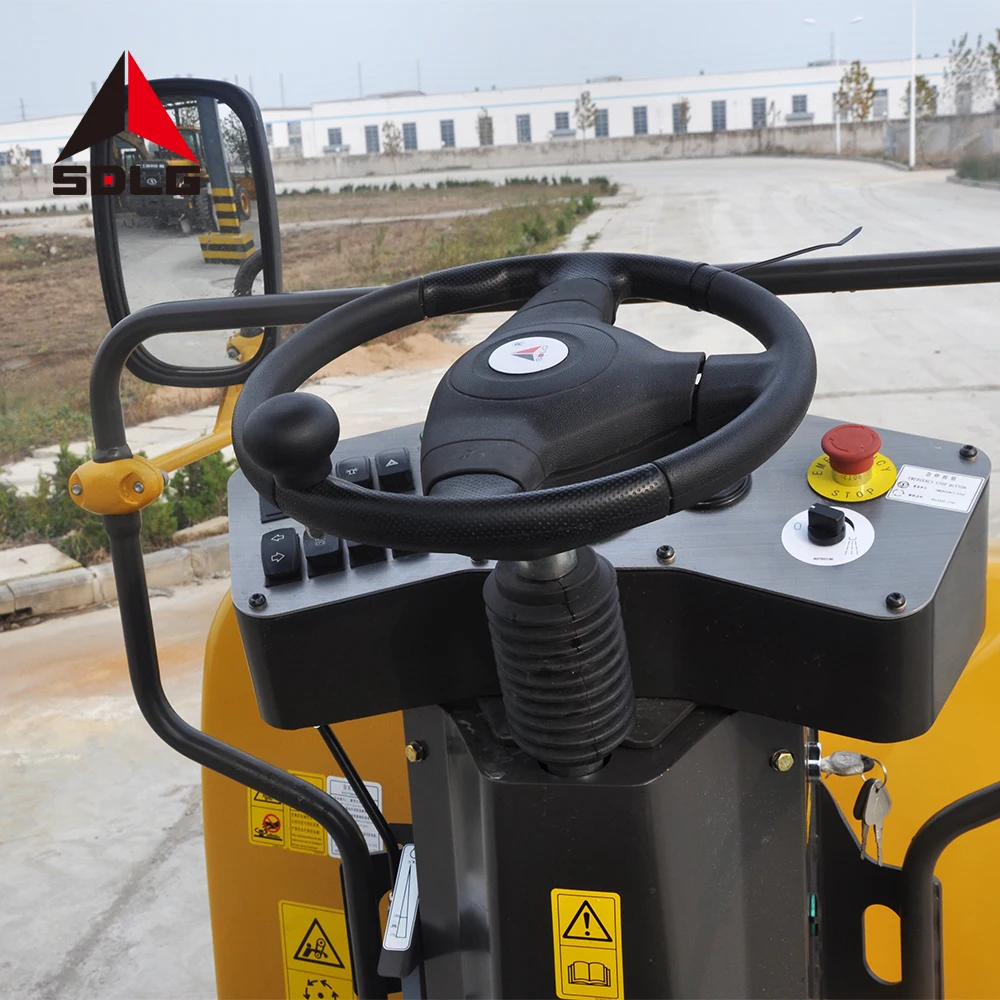

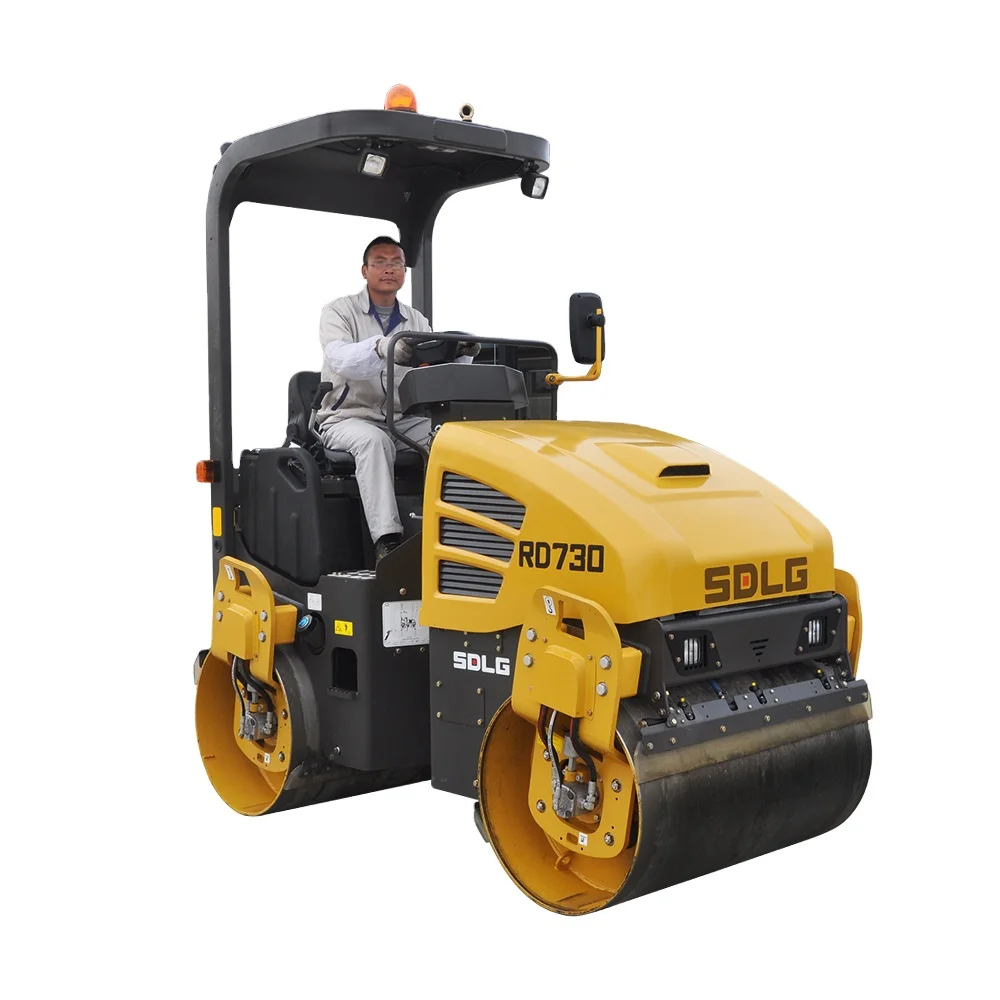

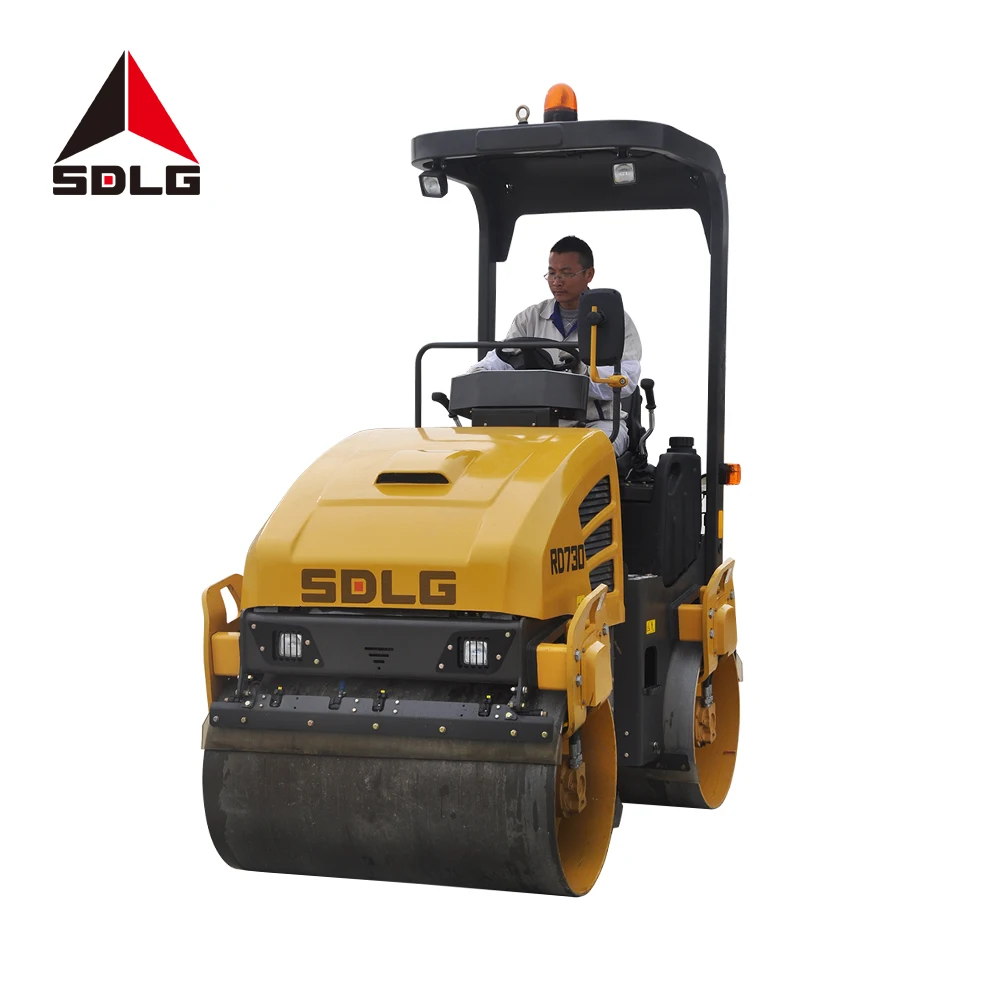

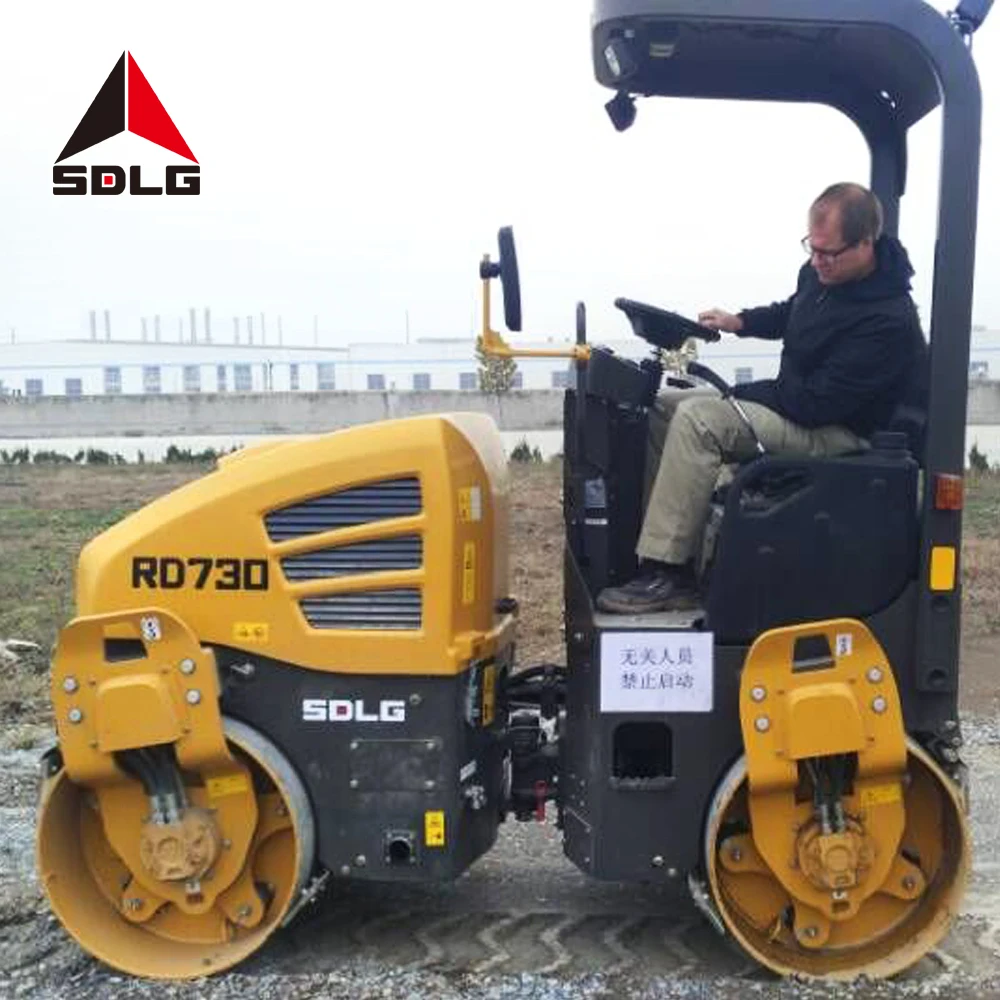

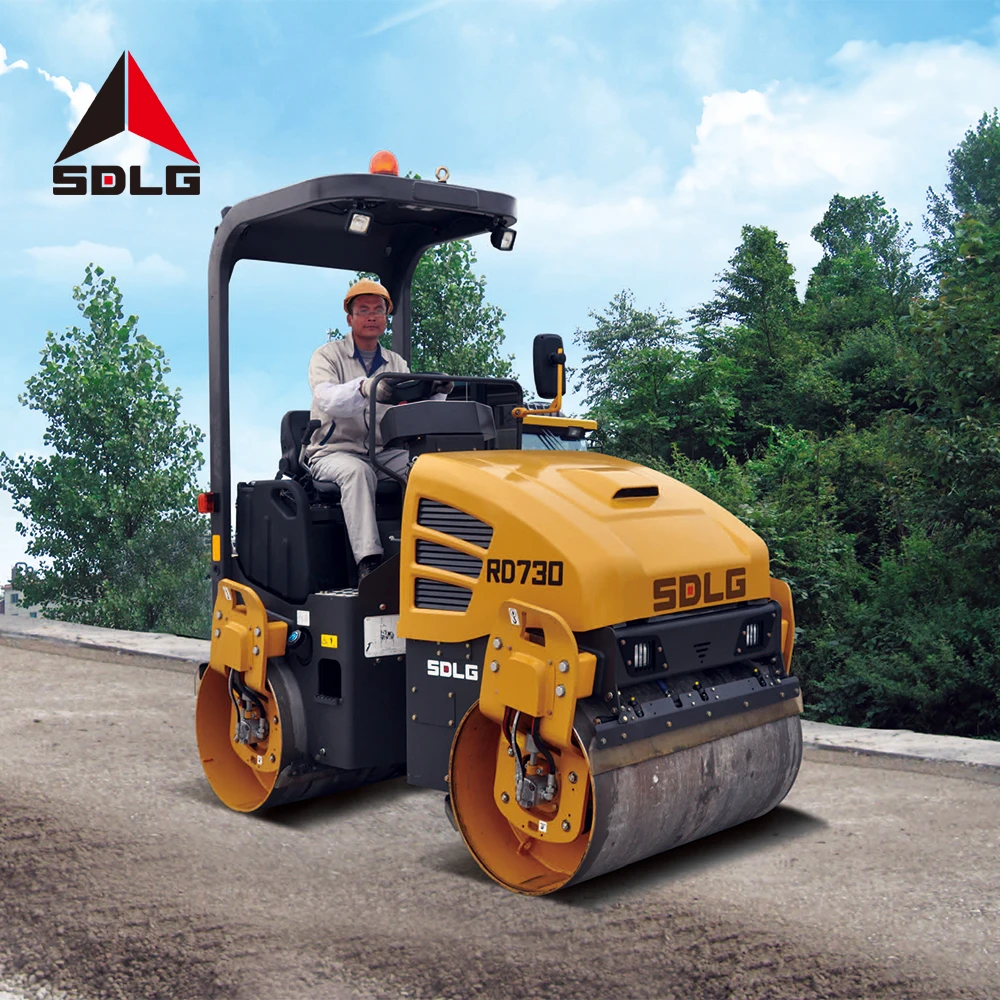

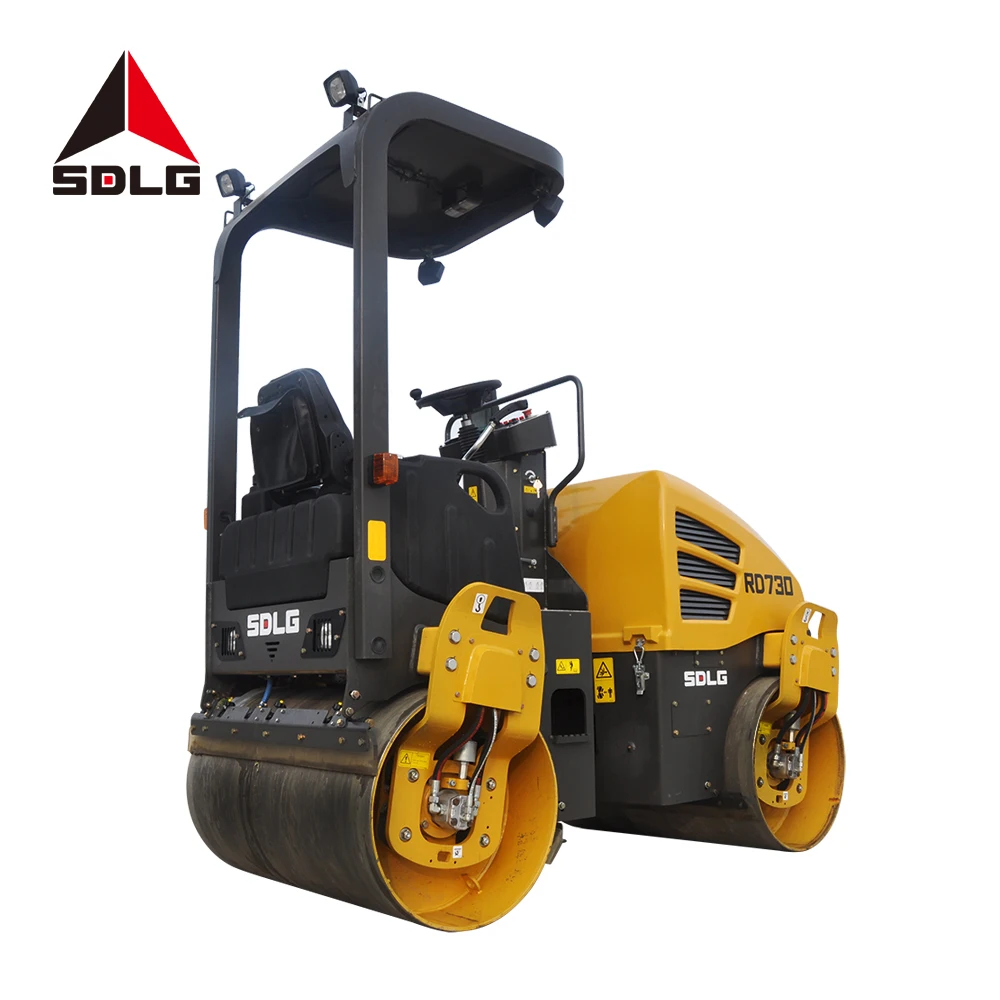

Detailed Images
Product Paramenters
Overall dimensions | ||||||||
AxBxC | 2424X1337X2831mm | |||||||
width of vibratory drum | 1200mm | |||||||
diameter of vibratory drum | 700mm | |||||||
wheelbase | 1724mm | |||||||
Min.ground clearance | 260mm | |||||||
Min.turning radius | 3818mm | |||||||
compaction with | 1200mm | |||||||
Theoretical Gradeability | 30% | |||||||
swing angle | ± 10º | |||||||
Turning angle | 30º | |||||||
overall performance | ||||||||
operating weight | 3070kg | |||||||
front wheel distributed weight | 1470kg | |||||||
Rear wheel distributed weight | 1600kg | |||||||
nominal amplitude | 0.5mm | |||||||
frequency | 55/67HZ | |||||||
Excitation force | 46/31kN | |||||||
Static linear load | 120/131N/cm | |||||||
Engine | ||||||||
Engine model | D1803-M-DI-ET05 | |||||||
Engine type | In-line, water-cooled, four-stroke, direct injection | |||||||
Rated power/speed | 24.4kw/2400r/min | |||||||
Engine displacement | 1826ml | |||||||
cylinder bore/stroke | 87/102.4mm | |||||||
emission standard | Tier3 | |||||||
Min.fuel-consume ratio | 251g/kw.h | |||||||
Max.torque | 111.9N.M | |||||||
Transmission system | ||||||||
Gears | forward 1 reverse 1 | |||||||
Speed at forward gear I | 0~10.5km/h | |||||||
Speed at forward gear I | 0~10.5km/h | |||||||
brake system | ||||||||
service brake type | return control lever to neutral position | |||||||
parking brake type | press brake switch P | |||||||
Emergency braking | press the red emergency stop switch | |||||||
steering system | ||||||||
type | full hydraulic steering | |||||||
system pressure | 14Mpa | |||||||
vibratory system | ||||||||
type | open-type system | |||||||
system pressure | 21Mpa | |||||||
Fill capacity | ||||||||
fuel | 40L | |||||||
Hydraulic oil | 45L | |||||||
engine | 7L | |||||||
vibrating wheel | 2x14.5L | |||||||
Related Production To Choose
Online Service
Company Introduction
SDLG founded in 1972,is a world-famous manufacturer and service provider of loaders,excavators,rollers, backhoes and related parts in more than 130 countries and regions.
OUR SERVICES & STRENGTH
1、Develops,manufacutures and sells construction equipment
2、Broad range of products and services
4、Member of the Volvo Group
2、Broad range of products and services
3、Provide the product solutions,financing service and used equipment business
4、Member of the Volvo Group
Our Advantages
OUR CERTIFICATE
Packing&Shipping
FAQ
yes,we SDLG are an official leading manufacture in construction machinery in China.
2、What kind terms of payment can be accepted?
Normally we can work on T/T or L/C term.
3、What about the delivery time?
7-30 days after receving the deposit.
4、what about the warranty time?
12 months after shipment or 2000 working hours.
