Промышленный пылесос DW773P
US $180.00
Промышленный пылесос 3HP V2 с пылесборником и маленьким
- Категория: Industrial Vacuum Cleaner >>>
- Поставщик: Shanghai,Jiansong,Industry,And,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1642.5 $* | 1724.69 $* |
| Aug-16-2025 | 1628.27 $* | 1709.39 $* |
| Jul-16-2025 | 1366.3 $* | 1434.71 $* |
| Jun-16-2025 | 1601.44 $* | 1681.43 $* |
| May-16-2025 | 1394.20 $* | 1464.29 $* |
| Apr-16-2025 | 1573.58 $* | 1652.38 $* |
| Mar-16-2025 | 1559.76 $* | 1637.95 $* |
| Feb-16-2025 | 1546.90 $* | 1623.14 $* |
| Jan-16-2025 | 1532.30 $* | 1609.94 $* |
Характеристики
Product Overview

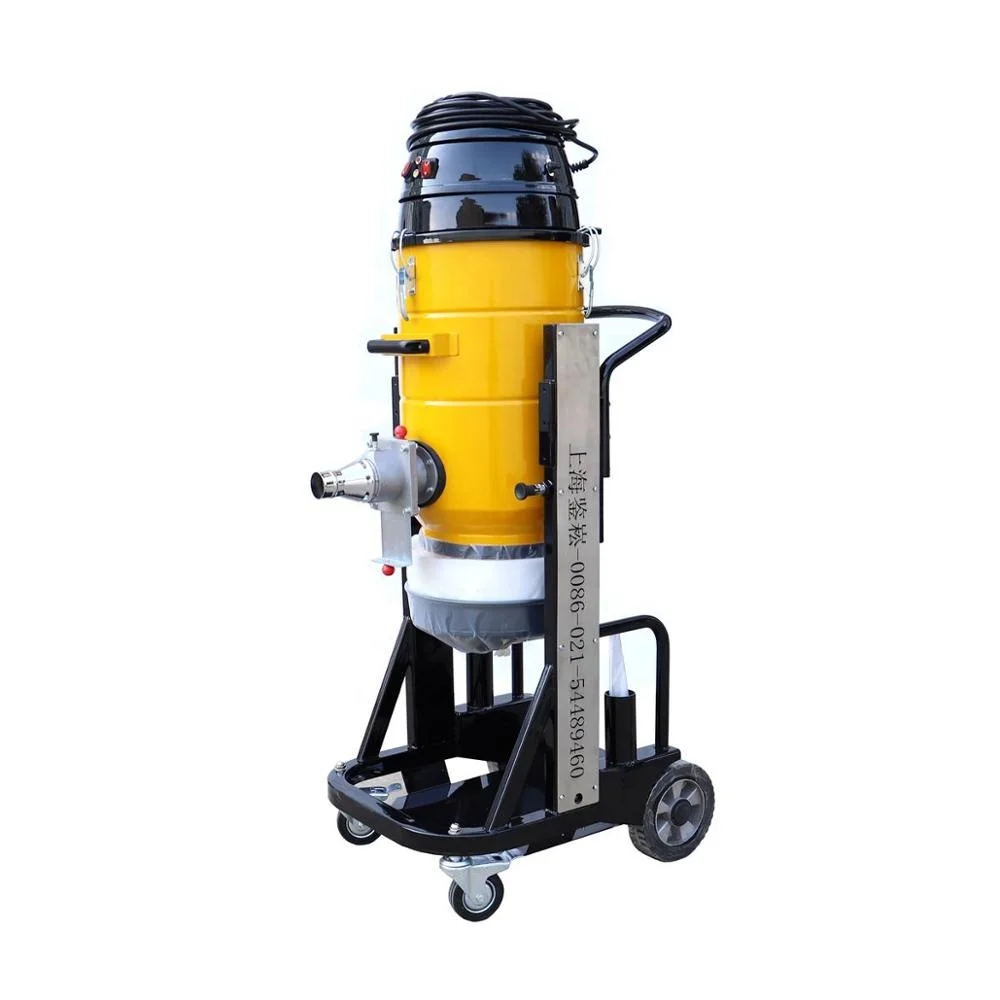

V2 3HP small HEPA back blow bag type vacuum cleaner
V2 is an industrial vacuum cleaner that is cyclone plus HEPA filter efficient industrial vacuum cleaner, disposable garbage bag, and negative pressure dust removal. It will be better to connect a pre-separator to use when needed.
Key Features:
Advanced technology for integrating the cyclone systems and bag collecting system; Dust collection efficiency reach to 99%;
Dust emission controlled below 30mg/Nm3;
High concentrations dust below 100g/Nm3 can be collected;
Less than 1% air leakage rate;
Equipped air compressor to provide ancillary air pressure;
Apply to floor grinding and polishing, building and construction site.
Dust emission controlled below 30mg/Nm3;
High concentrations dust below 100g/Nm3 can be collected;
Less than 1% air leakage rate;
Equipped air compressor to provide ancillary air pressure;
Apply to floor grinding and polishing, building and construction site.

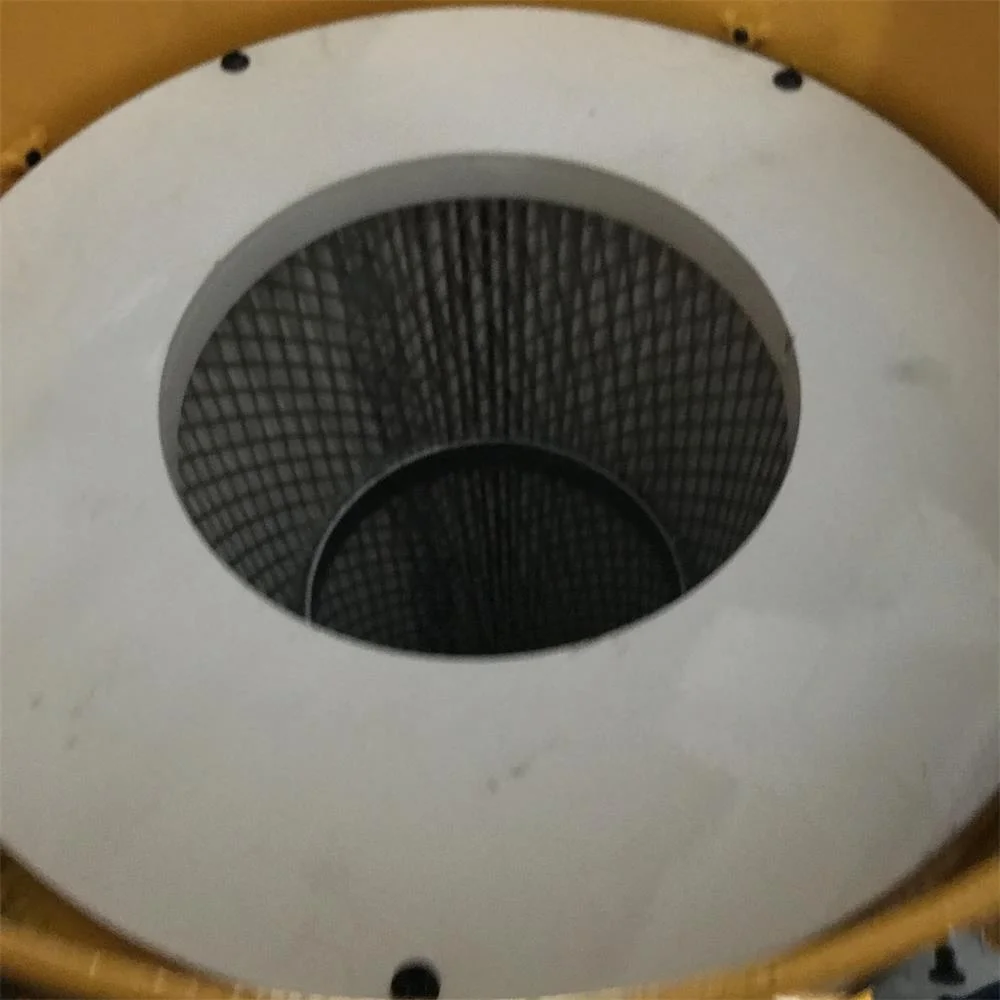

Inside Filter
Dust Port

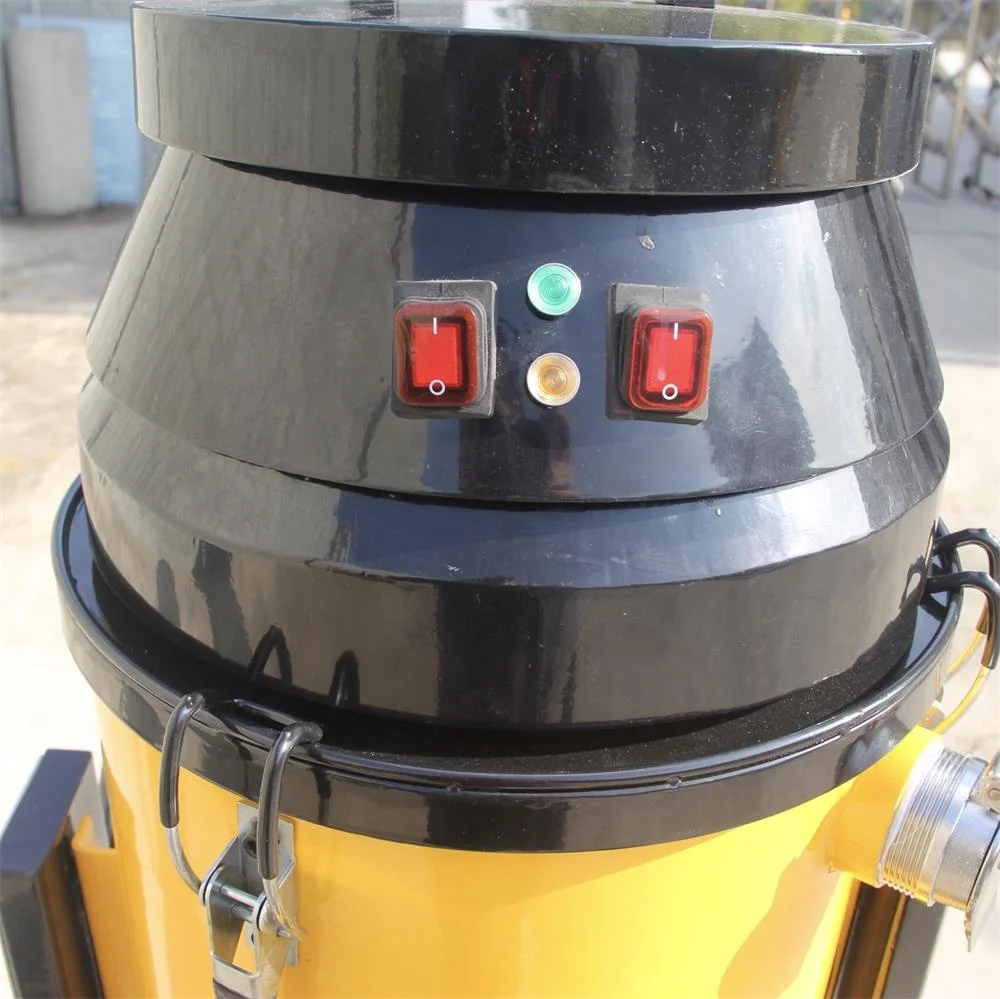

Control Button
Dedusting procedure (as above picture)
Soot cleaning steps: motor in the vacuum state, pull (1) vacuum plate, block dust, at the same time, dust collection plate is pulled , and the small bucket on the pressure gauge pointer is turn to the big direction, PTFE filter is in a contracting state, when the gauge pressure at the set range (filter contraction largest state), stir (2) valve, air goes into the barrel inside, gauge pressure corresponding to the pressure value decreased.Filter is from contracting to normal at this time, Because the filter core vibrates (4) ,dust attached to the filter will fall off(5), so repeatedly for three to five times, soot cleaning effect, soot cleaning is completed, (1) press the vacuum valve down, can continue to dust, when the dust is more, pull down the dust bag, cut and tie it again.
Contact Us
Mr. Jason
E-mail: jason@jiansongsh.com
Mobile/Wechat/Whatsapp: +86 18701842596
E-mail: jason@jiansongsh.com
Mobile/Wechat/Whatsapp: +86 18701842596
How to work with floor grinder
1. The boot
Before dry grinding starts, connect the vacuum cleaner, connect the vacuum tube to the machine, connect the safe grounding power supply, connect the corresponding power supply of the equipment, the power indicator light is on, stand on the side of the machine, turn the emergency stop switch on, press the start button, the machine starts working.
2. Turn off the machine When the grinding machine stops working, press the emergency stop switch and unplug the vacuum tube. Pull down the main power switch and pull out the power connector.
3. Dust removal during the grinding process Vacuum cleaner after using for a period of time, the suction will abate, this time to remove dust, pull the dust aspirant, pressure gauge to above 8 , form vacuum dust barrel, mesh contraction, then drives rocker, make the air in, the screen to relax, dust fall off, can repeat three to five times to clean up, at this time, the filter is clean, the machine operating, in order to get the best grinding dust collection effect.
Related sponsored items
You May Also Like
PRODUCT SPECIFICATIONS
Model | V2 | V3 |
Power | 1.1*2 KW | 1.1*3 kw |
Electricity | 8amps | 13amps |
Weight | 82KG | 110KG |
Filter area | 28000CM2 | 44000CM2 |
Vacuuming caliber | 2 inch | 2 inch |
Air volume | 290m3/h | 430m3/h |
Cubage | Self drawn dust bag | Self drawn dust bag |
Dedusting system | Manual negative pressure | Manual negative pressure |
Filter system | vortex+ HEPA filter screen | vortex+ HEPA filter screen |
Vacuum tube | 10m | 10m |
Size | 750*510*1200mm | 900*630*1520mm |
Optional single-phase voltage | 220V/110V | 220V/110V |
Packing&Shipping
How we pack machines and accessories
All the machines are well installed and packed with accessories in crate.
Wrapped with film internally and packed in wood box outside.
