Профессиональные PCBA OEM услуги micro sd карта памяти pcba
US $0.12-$1.00

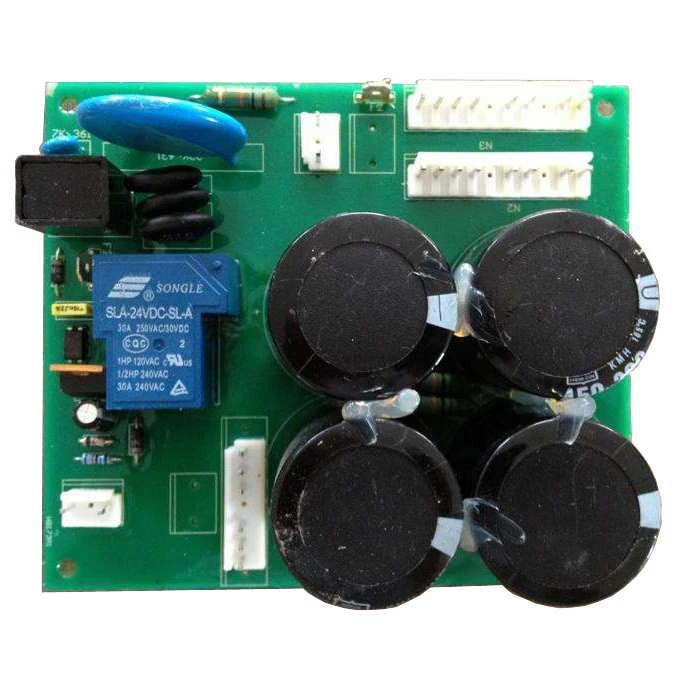

Промышленное управление блок питания сварочный аппарат печатная плата монтажная на заказ
- Категория: Блок печатных плат >>>
- Поставщик: King,Field,Electronic,Co.,Ltd.(Shenzhen),[Guangdong,China]King
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 107.76 $* | 112.99 $* |
| Aug-18-2025 | 106.61 $* | 111.12 $* |
| Jul-18-2025 | 89.15 $* | 93.2 $* |
| Jun-18-2025 | 104.91 $* | 109.50 $* |
| May-18-2025 | 91.28 $* | 96.94 $* |
| Apr-18-2025 | 103.19 $* | 108.20 $* |
| Mar-18-2025 | 102.81 $* | 107.31 $* |
| Feb-18-2025 | 101.46 $* | 106.52 $* |
| Jan-18-2025 | 100.51 $* | 105.85 $* |
Характеристики
Specification of Rigid-flex pcb circuit board manufacturing
| Product Name | Industrial Control Power supply backplane Ruiling welding machine circuit board PCBA Customize Multilayer Printed Circuit Board |
| Layers | 6L Rigid+1L Flexible board |
| Thickness | 1.6mm |
| Material | FR-4(Standard FR4,Mid-Tg,FR4,Hi-Tg,FR4,Lead free assembly material), |
| Halogan-Free,Ceramic filed,,Polyimide,BT,PPO,PPE,Hybrid,Partial hybrid,etc. | |
| Min.idth/Spacing | Inner layer:3mil/3mil(HOZ),Outer layer:4mil/4mil(1OZ) |
| Max Copper Thickness | UL certificated:6.0OZ/Pilot run:12OZ |
| Min.Hole Size | Mechanical drill:8mil(0.2mm) Laser drill:3mil(0.075mm) |
| Max.Panel Size | 1150mmX560mm |
| Aspect Ratio | 18:01:00 |
| Surface Finishing | ENIG |
| Special Process | Buried Hole,Blind Hole,Embedded Resistance,Embedded Capacity,Hybrid,Partial hybrid,Partial high density,Back drilling,and Resistance control. |
| Quality Grade | Standard IPC 2 |
| Board Size | Min 6mm*6mm, Max 400mm*500mm |
| Board Thickness | 0.6mm - 2.0mm |
| Copper Thickness | 0.5oz - 2.0oz |
| Solder Mask Sides | As per the file |
| Solder Mask Color | Green |
| Solder Stop Coating | PI and PET Film |
| Silkscreen Sides | As per the file |
| Silkscreen Color | White |
| Min Annular Ring | 4mil |
| Min Hole Diameter | 8mil |
| Tolerance Dimension | 0.05mm |
| Other Tech | Peelable Solder Mask, Stiffener |
One-Stop Service:
Now we have been a factory which can provide one-stop service,
from the PCB production, the components purchasing to the components assemble.
1. PCB Copy
2. PCB drawing / design according to your schematic diagram
3. PCB manufacturing
4. Component sourcing
5. PCB Assembly
6. PCBA 100% test
OEM/ODM/EMS Services For PCBA:
• PCBA, PCB Board assembly: SMT & PTH & BGA
• PCBA and enclosure design
• Components sourcing and purchasing
• Quick prototyping
• Plastic injection molding
• Metal sheet stamping
• Final assembly
• Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
• Custom clearance for material importing and product exporting
Rigid-flex Printed circuit board production Details
xbox one controller pcb casino pcb game board cem-1 94v0 pcb
Rigid-flex pcb circuit board Process
Our other Rigid-flex pcb board main product
Related Products
Our Advantage
Certification of Rigid-flex circuit board pcb
About US
Our Factory of Rigid-flex pcb board
Our Exhibition
Our Customer Feedback
Packaging&Shipping
Our company is not only trying to give customers a good product,
but also pay attention to offering a complete and safe package. And here we prepare some personalized services for all the orders.
Common packaging:
PCB: Sealed bag, Anti-static bags, Suitable carton.
PCBA: Antistatic foam bags, Anti-static bags, Suitable carton.
Regular Cartons Specification.
No. Dimension (L*W*H)
Small Size : 33cm*28.5cm*18.5cm
Medium Size: 44.5cm*30cm*15cm
Big Size: 51.5cm*32.5cm*17.5cm
Customized Cartons:
Carton outside according to the requirements
of customers printed the name of the customer address,
mark, the customer needs to specify the destination and other information.
FAQ
1.What does kingfiled need for a customized PCB order?
When you place a PCB order, you need to provide Gerber or pcb file.
If you do not have the file in the correct format, you can send all the details related to the products.
2.What does kingfield need for a customized PCBA order?
When you place a PCBA order, you need to provide Gerber or PCB file and the BOM list.
3.What is your quotation policy?
For the PCB order in large quantity, we will send you the quotation based on the MOQ of the products concerned.
4.What does Kingfield need for other services?
For PCB clone service, the customer needs to send us the printed circuit board concerned, and also the sharp photos of its front side and the back side.
5.How about the service kingfield offered to the customers?
If you have any questions about our products or company, do not hesitate to send us your inquiry to our customer service representatives. Your satisfaction is our
pursuits.
6.Do you have the capability of manufacturing high frequency materials? Like Rogers?
We can manufacture these, while expensive,pls just contact us for price prior to place the order.
