Химический стеклянный сосуд 50 л химический пилот завод
- Категория: Реакторы >>>
- Поставщик: Aibote,Henan,Science,And,Technology,Development,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2083.8 $* | 2187.33 $* |
| Aug-19-2025 | 2065.70 $* | 2168.31 $* |
| Jul-19-2025 | 1733.60 $* | 1820.34 $* |
| Jun-19-2025 | 2030.7 $* | 2132.63 $* |
| May-19-2025 | 1768.45 $* | 1856.57 $* |
| Apr-19-2025 | 1995.69 $* | 2095.14 $* |
| Mar-19-2025 | 1978.28 $* | 2077.18 $* |
| Feb-19-2025 | 1960.92 $* | 2058.98 $* |
| Jan-19-2025 | 1943.22 $* | 2040.85 $* |
Характеристики
Product Description

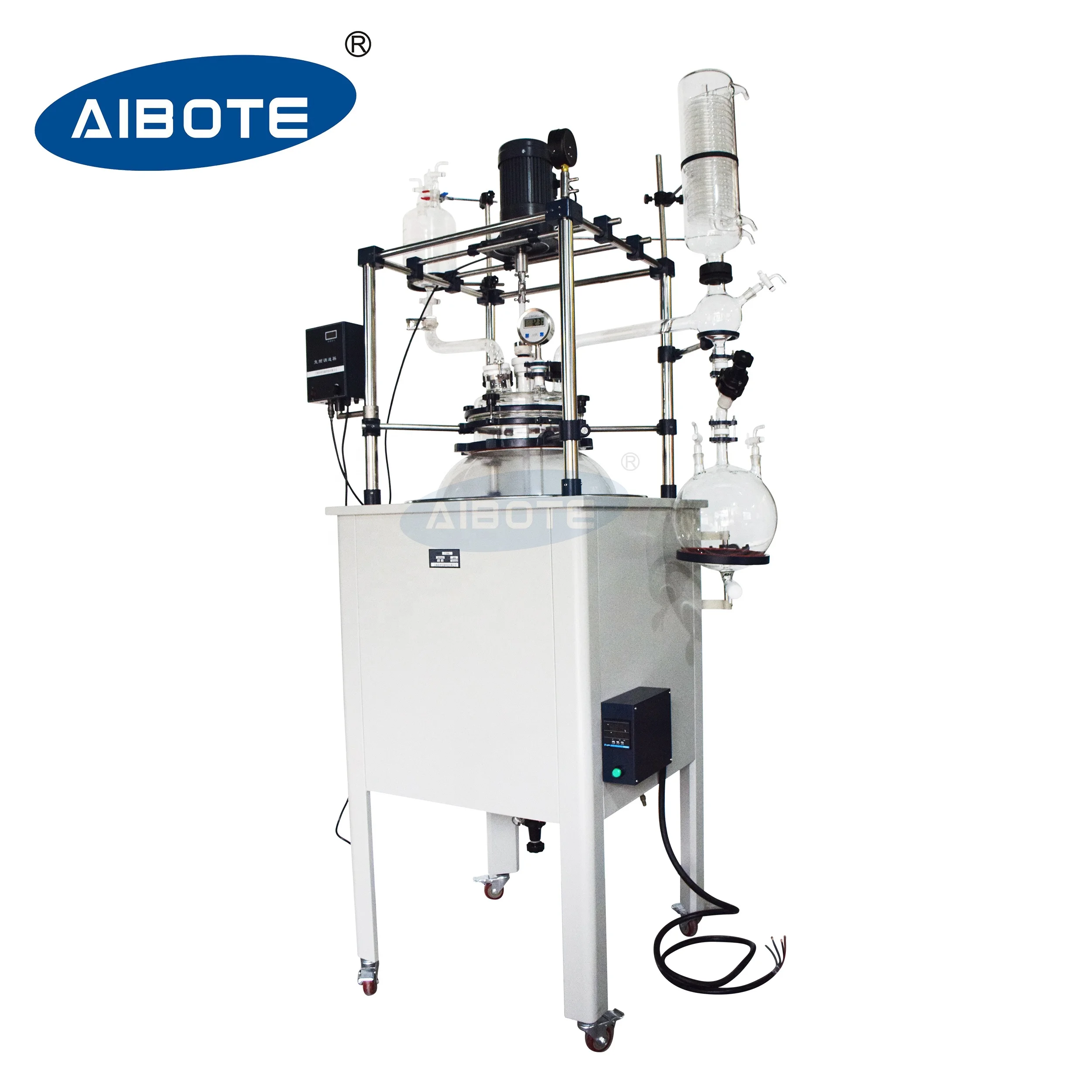

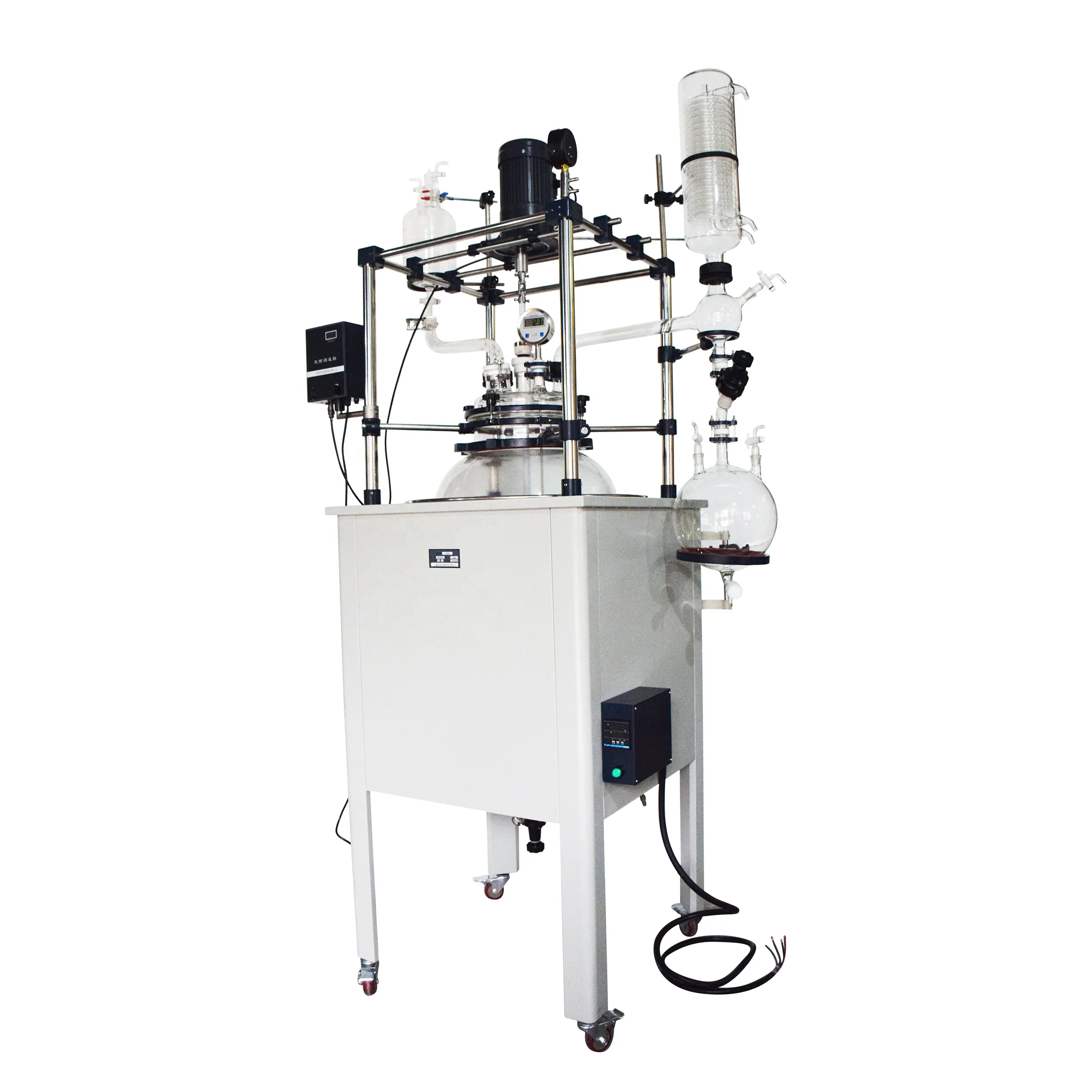

Chemistry Glassware Vessel 50 Liter Chemical Pilot Plant Glass Reactor
Basic parameters | Model | F-50L |
Glass Material | GG-17 | |
Bath Size | Spray anti-corrosion 740*640*960mm | |
Bath Material | Stainless Steel 550*320mm | |
Move Way | Brake type universal angle wheel | |
Reaction Volume | Ball shape 50L | |
Mixing Volume | Not less than10L,max40L | |
Reaction bottle Size | Seven size | |
Discharge port distance from the ground | 450mm | |
Kettle reaction temperature | -80-250 | |
Vocuum | 0.098Mpa | |
Stir Speed | 0-450rpm | |
Stir Rid Diameter | 12mm | |
Motor Power and Voltage | 120W1/3 220V/50Hz | |
Heating Power and Voltage | 8KW 380V/50Hz | |
Machine Size (mm*mm*mm) | 800*640*2200 | |
Packing Size (mm*mm*mm) | 1440*720*890 | |
Gross Weight (KG) | 105 | |
Functional configuration | Speed Mode | Electronic stepless speed regulation |
Motor | Low speed booster motor, speed ratio 3:1 | |
Stir Speed Display | LCD | |
Bath Temperature Display | Digital Display | |
Sealing method | PTFE assembly seal, ¢70 flange stirrer | |
Condenser | Vertical high efficiency double reflux condenser tube 120*640mm, 40# standard port | |
Reflux (distillation) unit | Reflow elbow with discharge switch, 50# ball mill | |
Drip device | 2L constant pressure funnel 34 # | |
Pressure reducing device | 34# standard pressure reducing valve | |
Temperature measuring tube | 24# | |
Solid feed (cleaning) port | 120 Flange port with PTFE cover | |

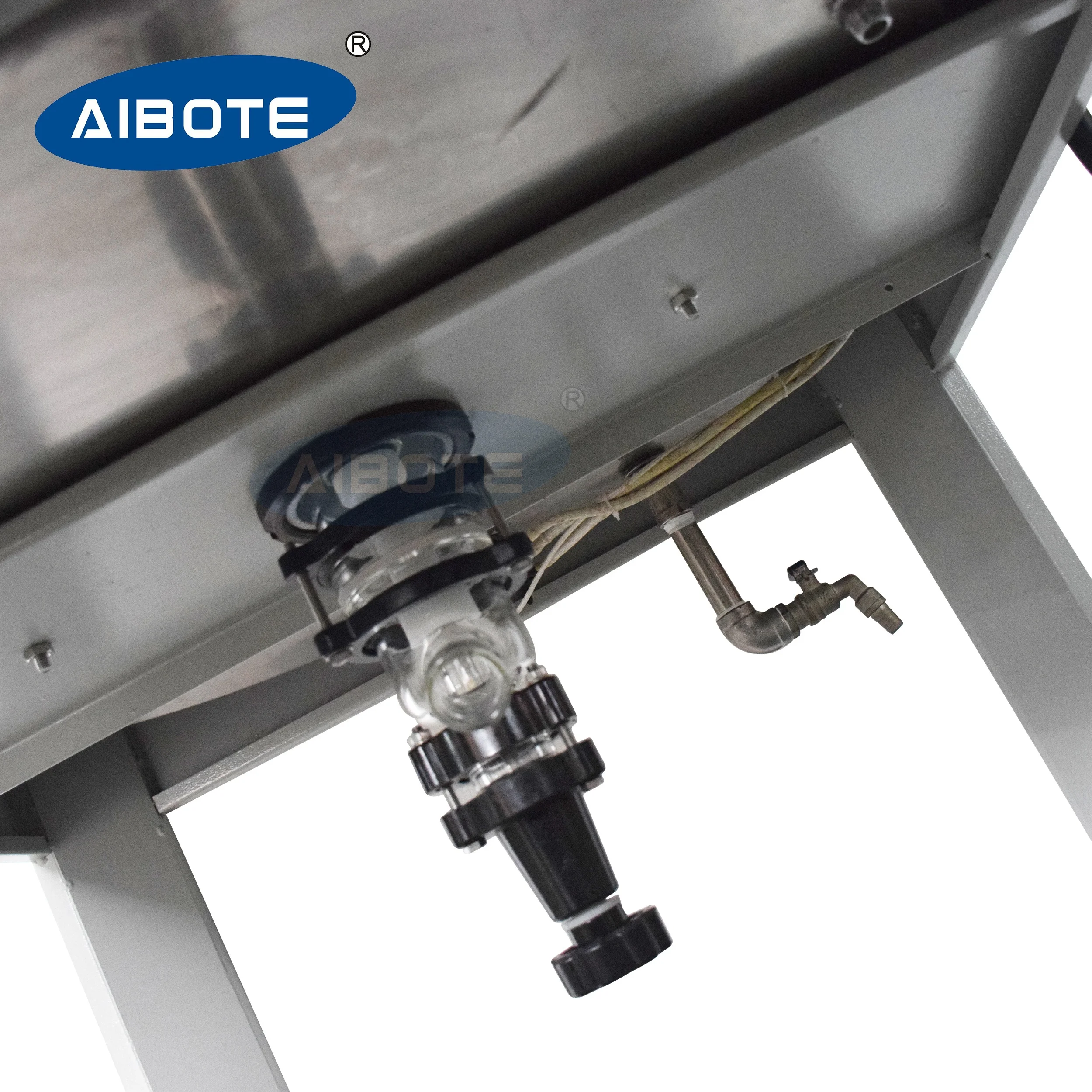

Discharge | Oblique discharge glass discharge valve, ¢80 flange mouth | |
Stirring connection | Universal joint connection | |
Stir Rod | Drawn stainless steel rod, outsourcing PTFE | |
Optional | Aluminum shell | Stainlless Steel 304 |
Collect Device | Collect flask | |
Temperature display in the kettle | PT100 thermocouple | |
Explosion proof | EX180W 0-1400 Explosion-proof inverter, explosion-proof motor EX180W 0-1400 rpm | |
Main Parts | Spray PTFE |
Special Discount
Company Information
FAQ
1. Are you a factory or trading company ?
A : We are a factory for short path,heating mantle,magnetic stirrer,evaporator and chiller in China.
2 .Where is your company location ? How can i visit there ?
A :Our factory is in zhengzhou city ,henan province , China , near XINZHENG INTERNATIONAL AIRPORT , you can fly to ZHENGZHOU AIRPORT to us , welcome to visit us !
3.What the material of your products ?
A: superfine ceramic for top plate for all of our stirrers ,metal shells , can be customized as your requests
4. How can i get some sample ?
A. We are honored to offer sample for your evaluation
5. How does your company do regarding to the products quality control ?
A : Quality is the most important. BV Intertek
Payment&Shipping
