Телескопический гусеничный кран с тремя колесами и меньшим радиусом
- Категория: Cranes >>>
- Поставщик: Jining,Luheng,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 16660.11 $* | 17493.17 $* |
| Aug-16-2025 | 16520.64 $* | 17346.4 $* |
| Jul-16-2025 | 13860.60 $* | 14553.44 $* |
| Jun-16-2025 | 16240.2 $* | 17052.25 $* |
| May-16-2025 | 14140.82 $* | 14847.22 $* |
| Apr-16-2025 | 15960.22 $* | 16758.39 $* |
| Mar-16-2025 | 15820.61 $* | 16611.96 $* |
| Feb-16-2025 | 15680.2 $* | 16464.62 $* |
| Jan-16-2025 | 15540.64 $* | 16317.7 $* |
Характеристики
Product Description
crawler chassis 3ton multi-function spider crane for underground parking construction
Main parameters:
Max. rated total lifting capacity: 12T
Fully extended boom:30M
Main configuration:
* YUCHAI engine,105kw
* Wire rope
*Heater
•Leading performance: Max. Lifting Height:Max. Lifting Height 30m, the performance leading in 5%. The grade ability is 30%,which make the machine have good road adaptability.
• Specialized boom of octagonal cross section has features of light dead weight, better strength and strong lifting capacity.
•Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.
•Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and guide pulley bearing are imported parts and have reliable performance.
•Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.
•Ferrule-type compression joints are used for pipeline, have features of reliable connection, better tightness and less leakage.
•The unique U boom and plug-in boom head make the load-carrying capacity more balanced, and lift more smoothly.
•The unique stretch and retract technique prevents the misoperation; the stretch and retract of the boom is safer and more
reliable.
•The control system is optimized by 8 patents; lifting, rotation, and luffing are easy and reliable.
•Six unique technologies supply the quality assurance, and make the products keep a high value.
Max. rated total lifting capacity: 12T
Fully extended boom:30M
Main configuration:
* YUCHAI engine,105kw
* Wire rope
*Heater
•Leading performance: Max. Lifting Height:Max. Lifting Height 30m, the performance leading in 5%. The grade ability is 30%,which make the machine have good road adaptability.
• Specialized boom of octagonal cross section has features of light dead weight, better strength and strong lifting capacity.
•Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.
•Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and guide pulley bearing are imported parts and have reliable performance.
•Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.
•Ferrule-type compression joints are used for pipeline, have features of reliable connection, better tightness and less leakage.
•The unique U boom and plug-in boom head make the load-carrying capacity more balanced, and lift more smoothly.
•The unique stretch and retract technique prevents the misoperation; the stretch and retract of the boom is safer and more
reliable.
•The control system is optimized by 8 patents; lifting, rotation, and luffing are easy and reliable.
•Six unique technologies supply the quality assurance, and make the products keep a high value.

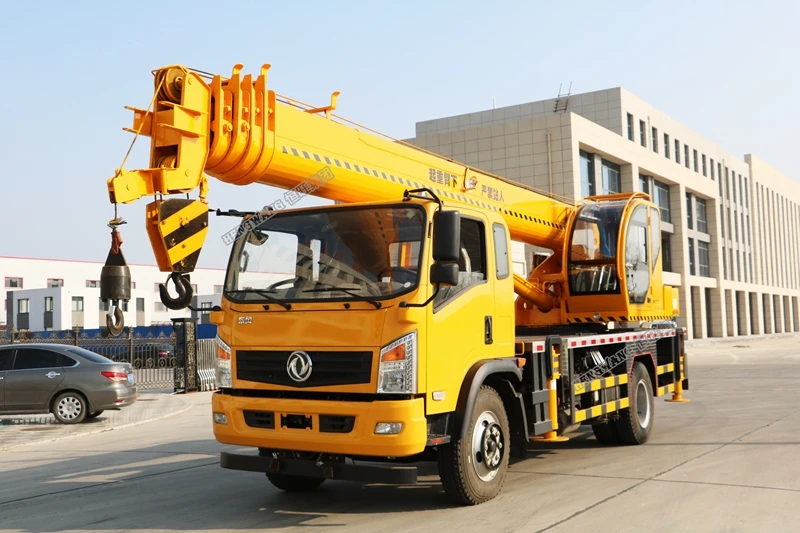

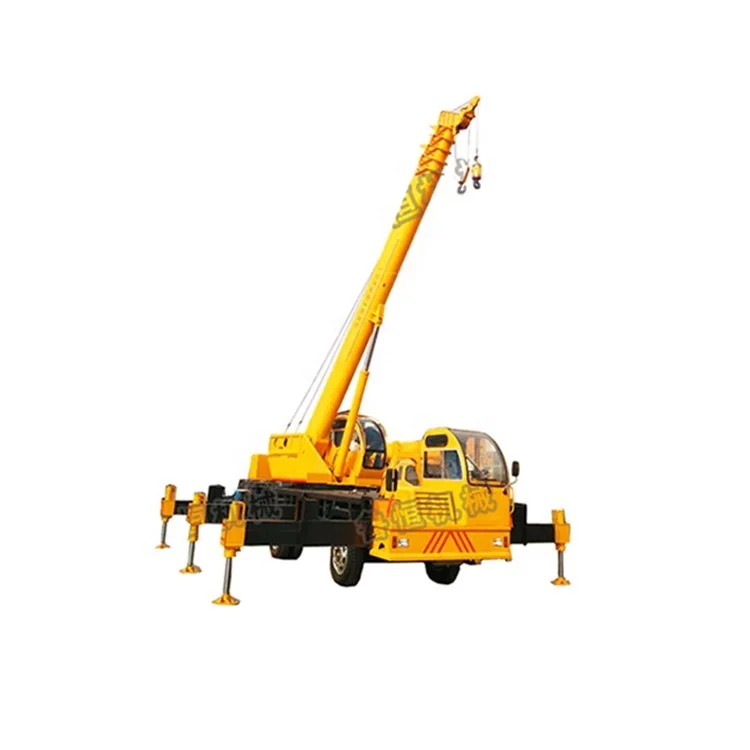

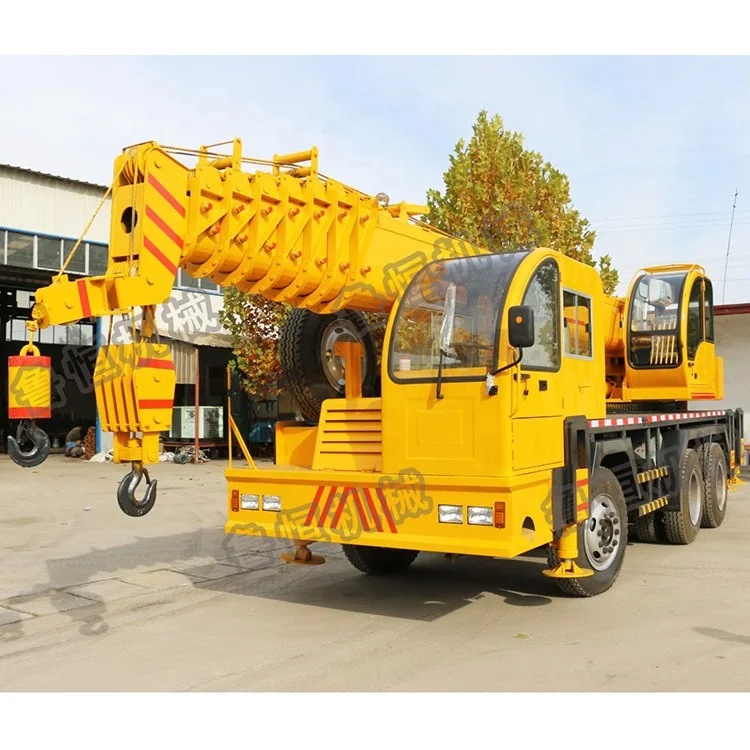

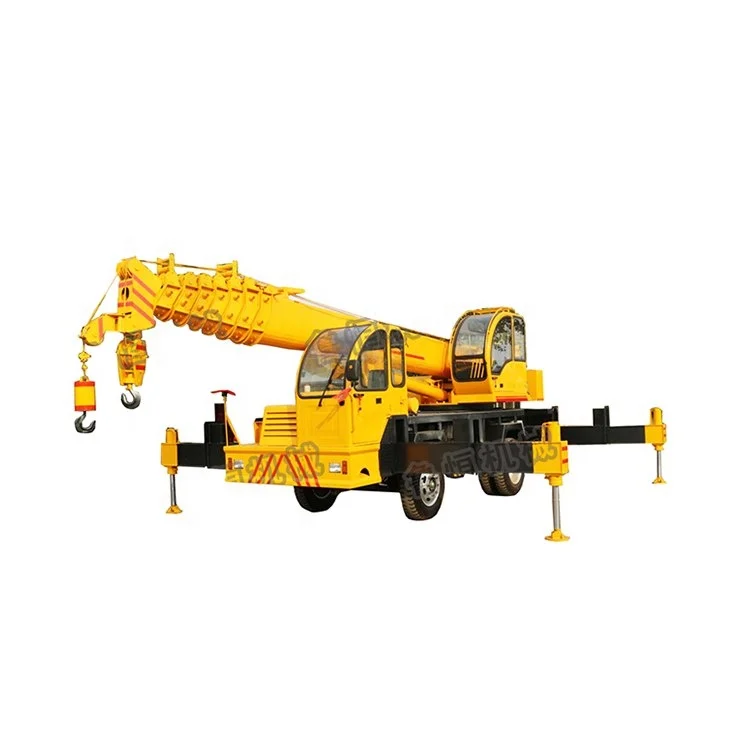

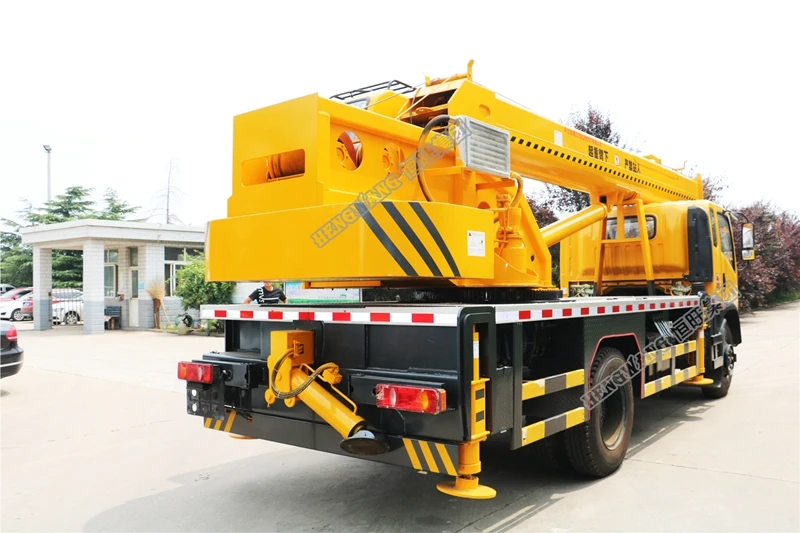

Detailed Images
The following is other type heavy lifting crane, truck mounted or multi-functional crane mixed with screw pile drilling equipment
crawler chassis 3ton multi-function spider crane for underground parking construction
Size Information
crawler chassis 3ton multi-function spider crane for underground parking construction
Description | Parameter value |
Rated max lift capacity | 12000kg |
Max lifting moment | 400kN.m |
Max lifting height | 30m |
Working radius of turntable | 2.48m |
Total vehicle mass in travel configuration | 14500kg |
Single wire max speed | 98m/min |
Boom lifting time | 78s |
Boom stretching time | 100s |
Rotation speed | 0-2.6r/min |
Max. travel speed | 90Km/h |
Min. turning radius | 15m |
Max. grade ability | 30% |
Approach angle/Departure angle | 2% |
Overall size(LxWxH) | 10110x2470x3350mm |
Crane leg longitudinal distance | 5.2m |
Crane leg transverse distance | 6.8m |
Wheel base | 4200mm |
Chassis brand | Dongfeng |
Diesel engine power | 105kw |
Company Introduction
Jining luheng machinery equipment co.ltd,as one branchof Shandogn Hengwang Group Co.Ltd. is the professional manufacturer of 4wheeled driven loader type forklift truck,road construction machine,and etc . With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. main clients are around Southeast Asia,Mid East and South America. Welcome visit our factory and sent inquiry to us.
crawler chassis 3ton multi-function spider crane for underground parking construction
crawler chassis 3ton multi-function spider crane for underground parking construction
FAQ
Q1.What is the main function of your truck mounted crane?
Ans.: It has different models used for all kinds of construction works.
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.
Q3. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.
Q6. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q7. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q8.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.
Q9: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits; 2. We respect every customer as our friend
and we sincerely do business and make friends with them,
no matter where they come from.
Q10.Do you have any certificates for your machine?
Ans.: All of our produ c ts coming with the certificates of CE, ISO9001.
For more information, welcome to click here
Ans.: It has different models used for all kinds of construction works.
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.
Q3. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.
Q6. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q7. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q8.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.
Q9: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits; 2. We respect every customer as our friend
and we sincerely do business and make friends with them,
no matter where they come from.
Q10.Do you have any certificates for your machine?
Ans.: All of our produ c ts coming with the certificates of CE, ISO9001.
For more information, welcome to click here
crawler chassis 3ton multi-function spider crane for underground parking construction
