OEM спринклер высокого давления сельское хозяйство мини шланг катушка ирригационное оборудование удаление пыли
- Категория: Система орошения для фермы >>>
- Поставщик: Jiangsu,Jitian,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2047.43 $* | 2149.89 $* |
| Aug-16-2025 | 2030.53 $* | 2132.90 $* |
| Jul-16-2025 | 1703.48 $* | 1788.90 $* |
| Jun-16-2025 | 1995.11 $* | 2095.14 $* |
| May-16-2025 | 1737.25 $* | 1824.32 $* |
| Apr-16-2025 | 1961.52 $* | 2059.55 $* |
| Mar-16-2025 | 1944.46 $* | 2041.97 $* |
| Feb-16-2025 | 1926.11 $* | 2022.93 $* |
| Jan-16-2025 | 1909.88 $* | 2004.91 $* |
Характеристики
Product Description

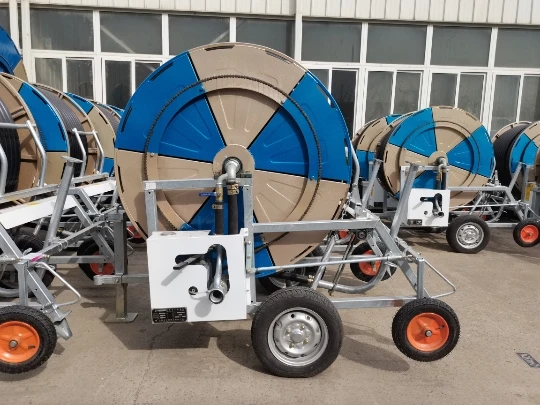

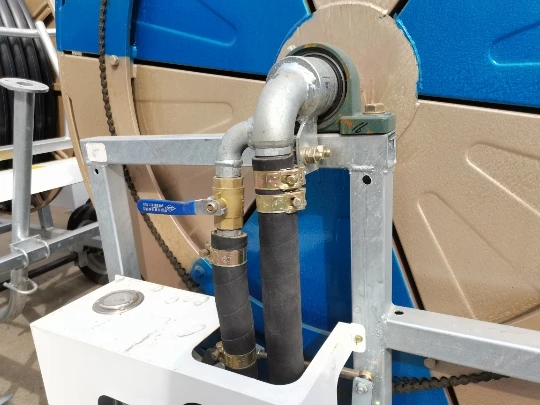

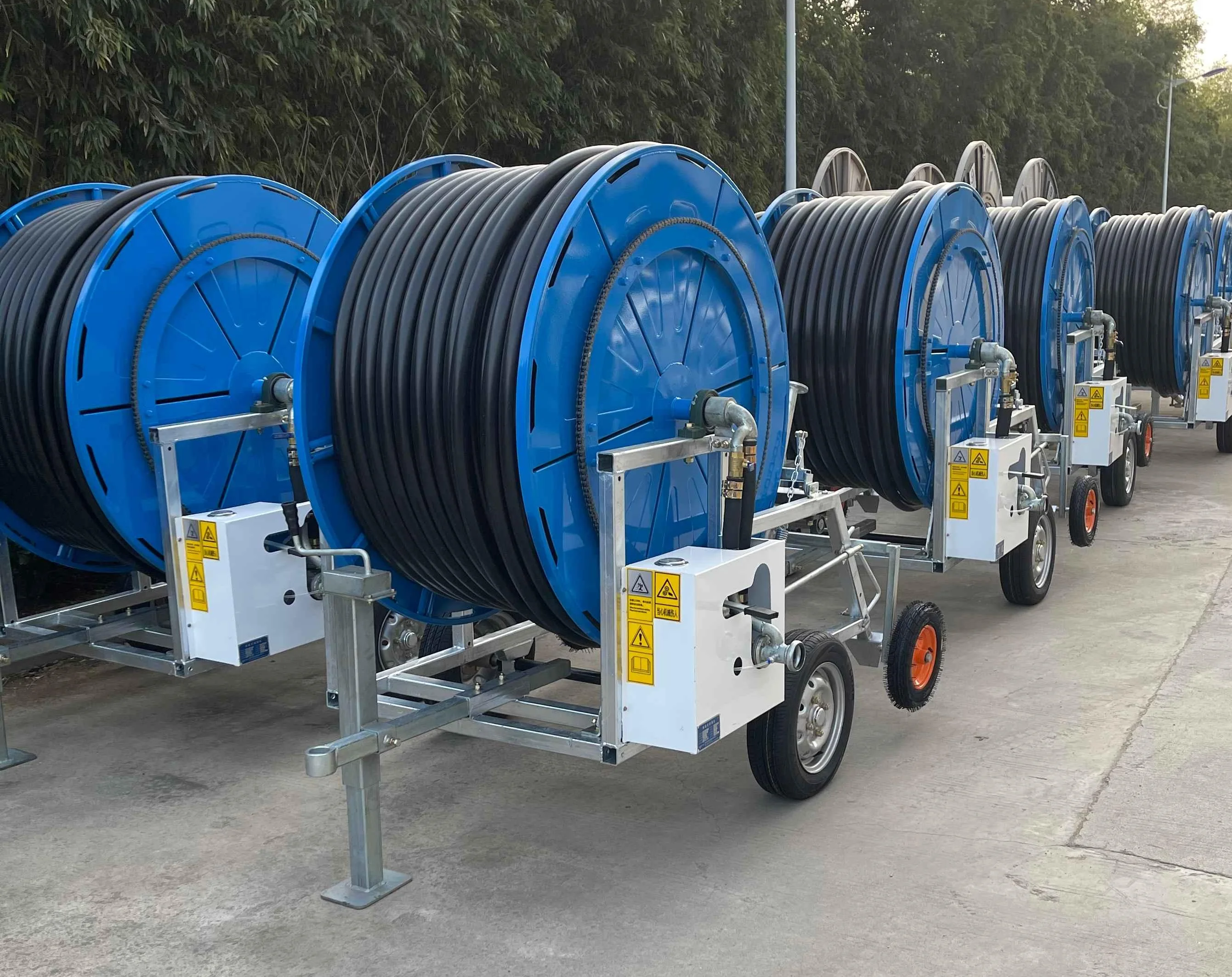

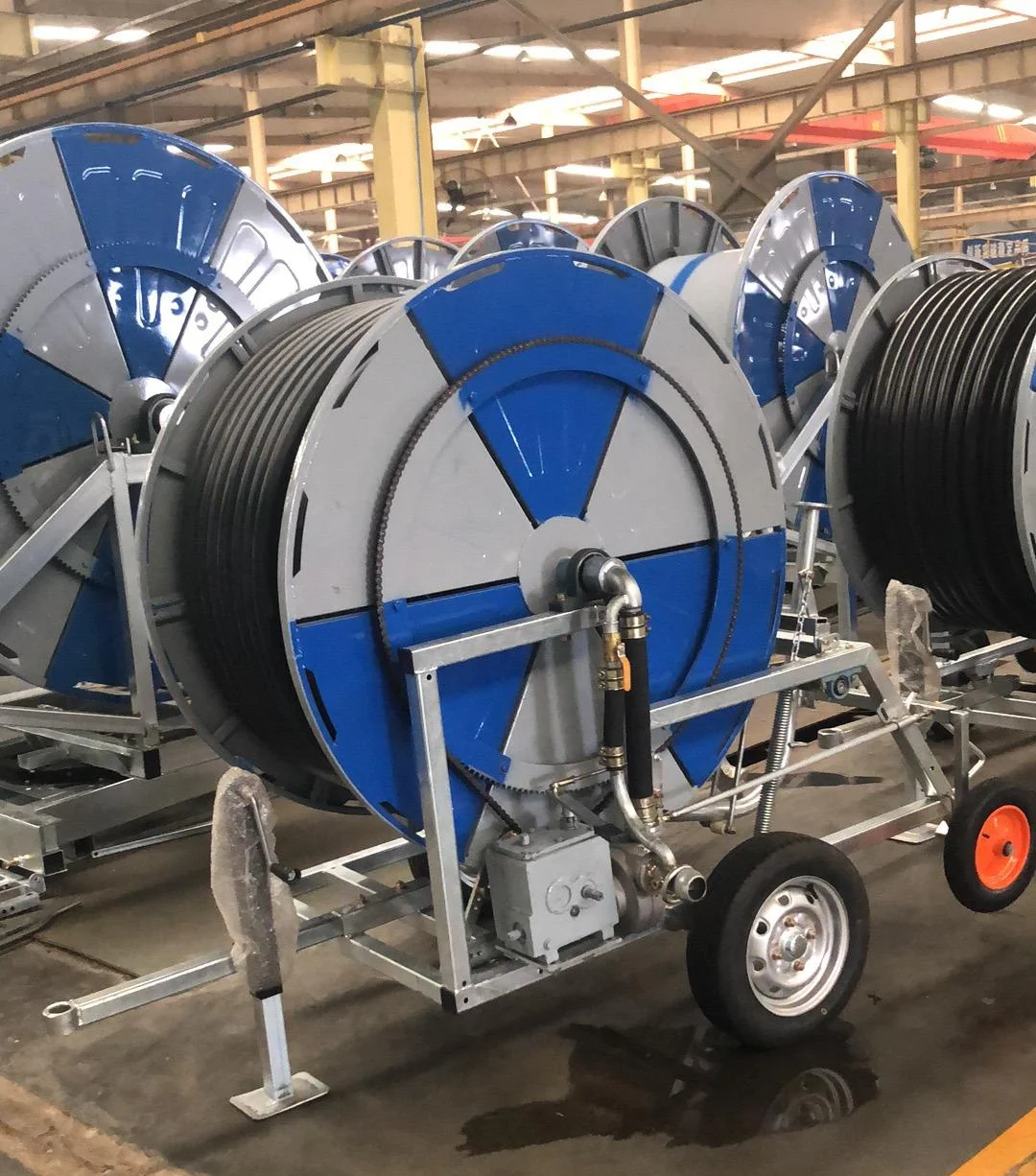

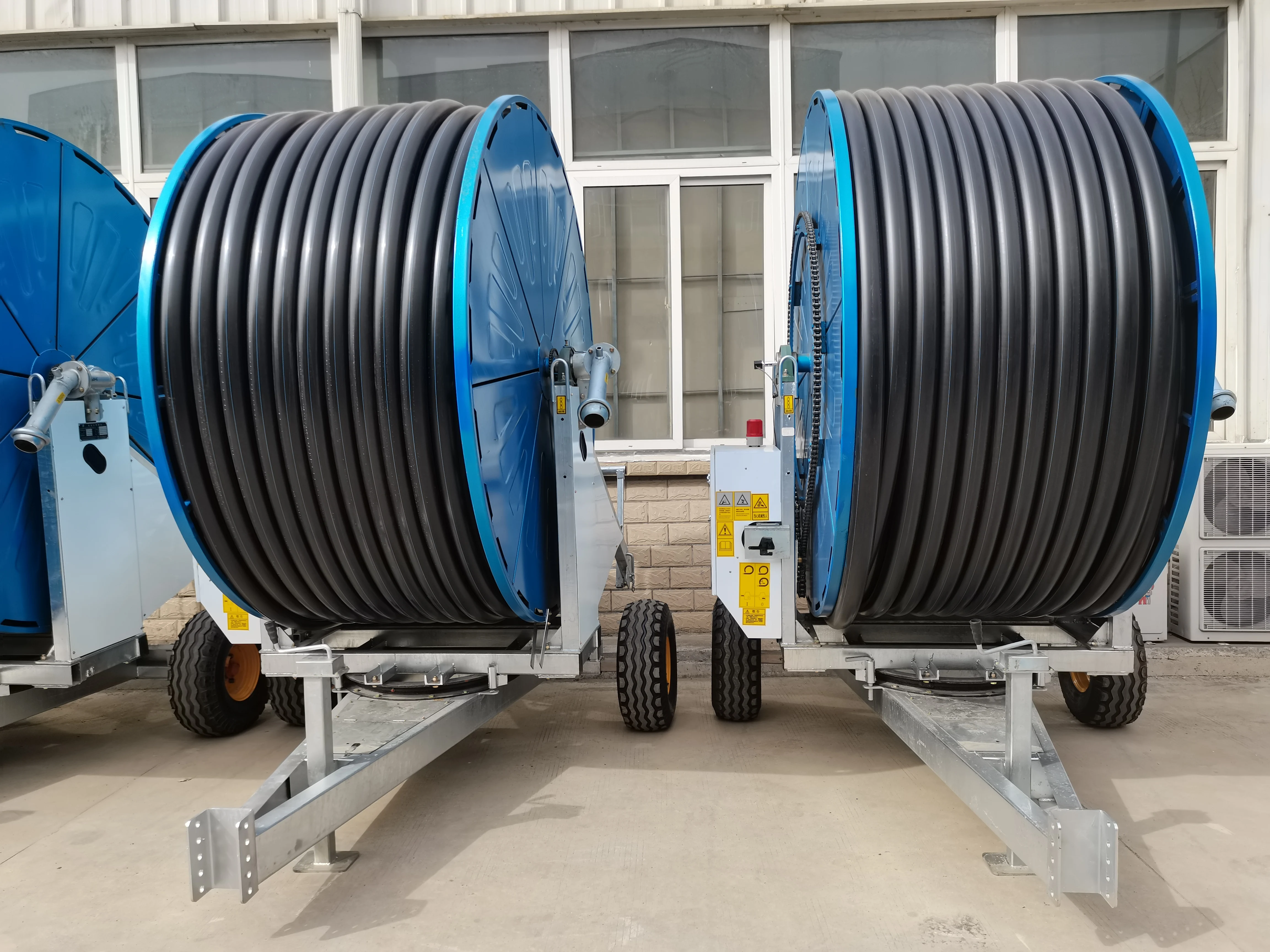

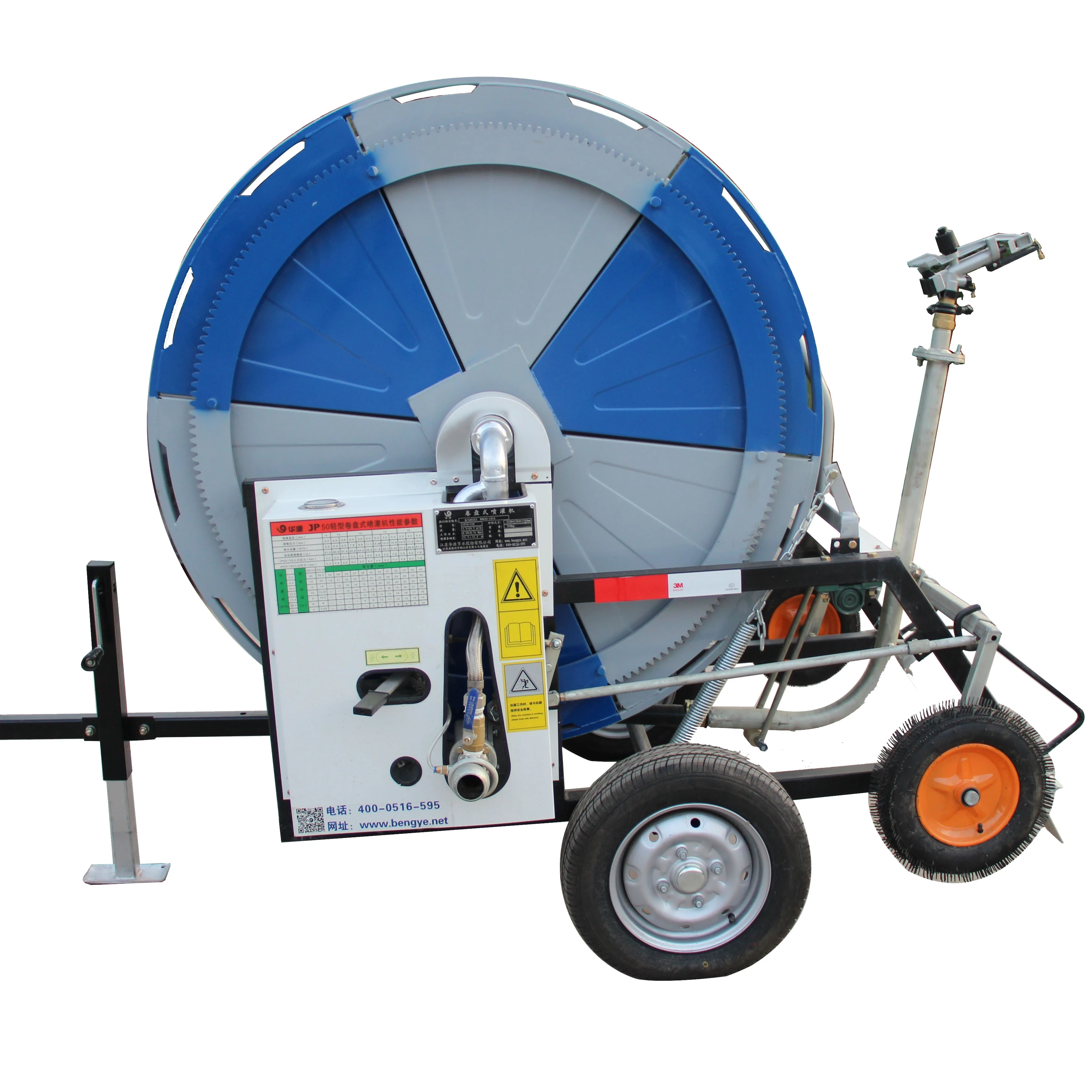

JP25, 32 series; This series of tools is a new generation of high-efficiency spraying tools, with novel design, compact structure, small size and light weight, convenient movement, simple operation, remote control operation, and obstacle avoidance track walking. It is widely used. It is used for irrigation of smaller plots such as greenhouses, nurseries, gardens, and small farms.
Project | Sseries Model | |||||||
unit | JP32 JP32/D | JP40 JP40/D | JP50 JP50/D | JP65 JP65/D | ||||
interlayer velocity difference | % | <20 D/<15 | <20 D/<15 | <20 D/<15 | <20 D/<15 | |||
precipitation | mm | 5-30 | 5-30 | 6-44 | 8-50 | |||
nozzle type | / | PYK20 | PYK30 | PYK40 | PYC50 | |||
nozzle height | mm | 800 | 800 | 1000-1800 | 1300- 2800 | |||
nozzle car track | mm | 300 | 500 | 600 | 1300 | |||
car climbing | % | 20 | 20 | 20 | 20 | |||
traction height | mm | / | / | 300 | 300- 500 | |||
ground clearance | mm | 200 | 200 | 300 | 300 | |||
chassis | / | 4.00-8 | 150-8 | 145-12 | 165/70 R-13 | |||
wheel tire rim maximum width | mm | 840 | 1030 | 1580 | 2000 | |||
Project | Uint | Series Model | ||||||
JP75 JP75/D | JP90 JP90/D | JP110 JP110/Y | JP125/Y | |||||
interlayer velocity difference | % | <20 D/<15 | <20 D/<15 | <20 Y/<15 N/<15 | <15 N/<15 | |||
precipitation | mm | 8-50 | 8-50 | 7.3-92 | 10-100 | |||
nozzle type | / | PYC50 | PYC50 | PYC75 | PYC75 | |||
nozzle height | mm | 1300- 2800 | 1300- 2800 | 2000- 3000 | 2000- 3000 | |||
nozzle car track | mm | 1300 | 1300 | 1300-1500 | 1300-1500 | |||
car climbing | % | 20 | 20 | 20 | 20 | |||
traction height | mm | 300- 500 | 300- 500 | 300- 500 | 300- 550 | |||
ground clearance | mm | 300 | 300 | 300 | 300 | |||
chassis | / | 185R 14c | 10.0/80 -12 | 10.0/75 -15.3 | 10.0/75 -15.3 | |||
wheel tire rim maximum width | mm | 2000 | 2310 | 2400 | 2510 | |||
Project | UnIt | Series Model | ||||||
JP32 JP32/D | JP40 JP40/D | JP50 JP50/D | JP65 JP65/D | |||||
PE pipe diameter | mm | 32 | 40 | 50 | 65 | |||
PE pipe length | m | 70-100 | 90-120 | 150-250 | 200-350 | |||
into the machine working pressure | MPa | 0.3-0.5D /0.2-0.4/ | 0.3-0.6D /0.25-0.5/ | 0.4-0.78D/ 0.35-0.68/ | 0.5-1.0D/ 0.4-0.9/ | |||
nozzle pressure | MPa | 0.15-0.3 | 0.15-0.3 | 0.2-0.4 | 0.2-0.6 | |||
nozzle diameter | mm | 6-10 | 8-12 | 9-16 | 14-18 | |||
flow rate | m7h | 3-6 | 5-9 | 5-19.7 | 11-31 | |||
range | m | 12-18 | 12-18 | 19-30 | 28-43 | |||
spray width | m | 20-30 | 20-30 | 32-51 | 47-74 | |||
combination uniformity coefficient | % | ≥85 | ≥85 | ≥85 | ≥85 | |||
Series Model | ||||||||
JP75 JP75/D | JP90 JP90/D | JP110 JP110/Y | JP125/Y | |||||
PE pipe diameter | mm | 75 | 90 | 110 | 125 | |||
PE pipe length | m | 250-450 | 300-450 | 300-500 | 200-330 | |||
into the machine working pressure | MPa | 0.5-1.0D/ 0.4-0.9/ | 0.5-1.0D/ 0.4-0.9/ | 0.55-1.25 Y/0.5-1.0 N/0.5-1.0 | 0.55-1.25 Y/0.5-1.0 N/0.5-1.0 | |||
nozzle pressure | MPa | 0.3-0.6 | 0.4-0.6 | 0.5-0.8 | 0.5-0.8 | |||
nozzle diameter | mm | 16-22 | 20-26 | 24-32 | 28-36 | |||
flow rate | m7h | 13-38 | 17-52 | 45-106 | 68-130 | |||
range | m | 28-43 | 35-52 | 45-68 | 55-72 | |||
spray width | m | 47-74 | 60-90 | 77-116 | 95-124 | |||
combination uniformity coefficient | % | ≥85 | ≥85 | ≥85 | ≥85 | |||
