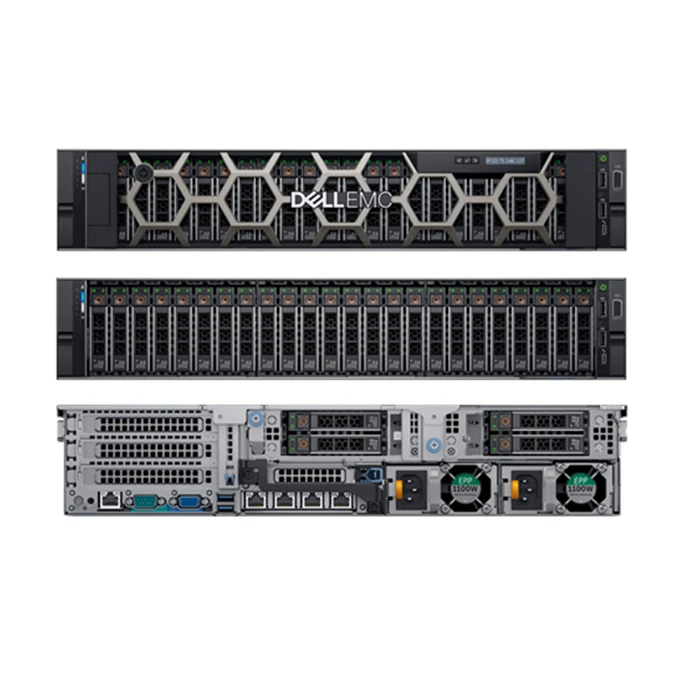

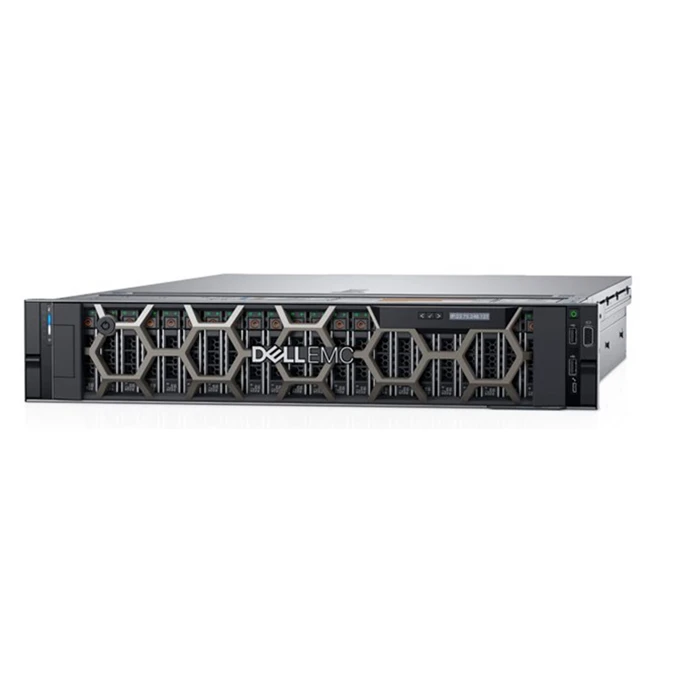

Top Rank Dell PowerEdge R740XD Rack Network Server Computers For Data Nas Storage Media Server Increase storage scalability and performance with up to 24 NVMe drives and a total of 32 x 2.5” or 18 x 3.5”drives in a 2U dual-socket platform.
Product Name
PowerEdge R740XD Rack Server
Processors
Up to two 2nd Generation Intel® Xeon®Scalable processors with up to 28 cores per processor
Memory
DIMM Speed Up to 2933MT/s
Memory Type RDIMM LRDIMM NVDIMM DCPMM (Intel® Optane™ DC persistent memory)
Memory Module Slots 24 DDR4 DIMM slots (12 NVDIMM or 12 DCPMM only) Supports registered ECC DDR4 DIMMs only
Maximum RAM RDIMM 1.53TB LRDIMM 3TB NVDIMM 192GB DCPMM 6.14TB (7.68TB with LRDIMM)
Drive bays
Front Bays

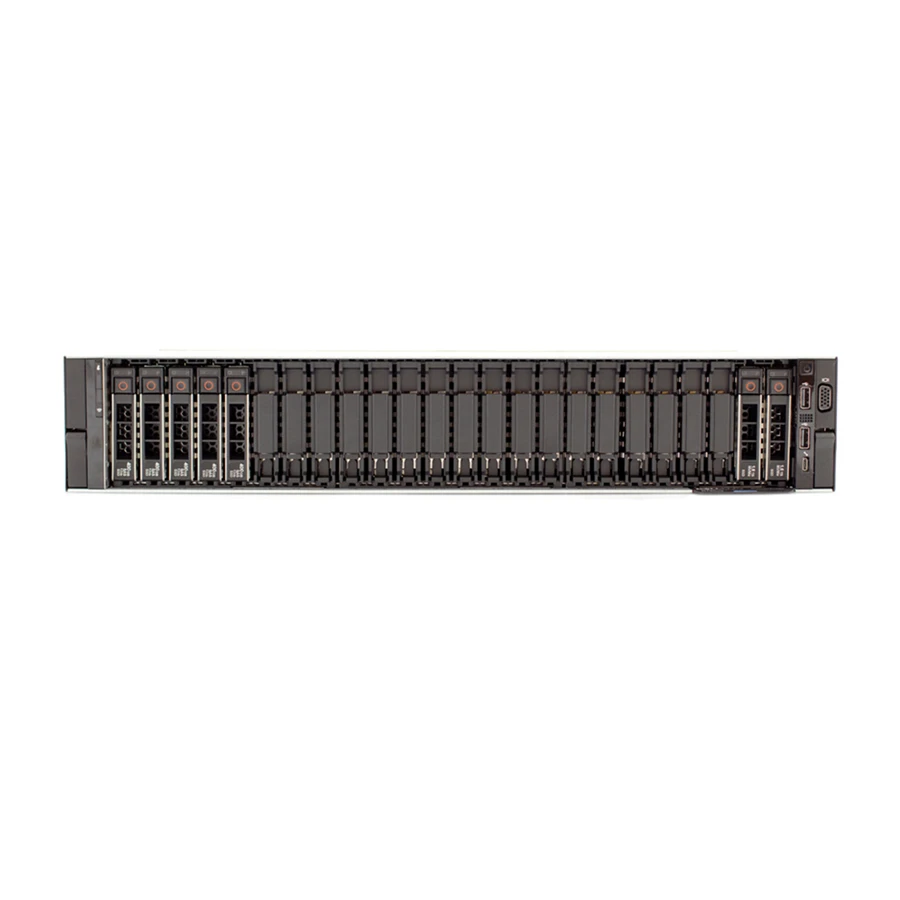

Up to 24 x 2.5” SAS/SSD/NVMe, max 184TB Up to 12 x 3.5” SAS, max 192TB
Mid Bay Up to 4 x 3.5” SAS, max 64TB Up to 4 x 2.5” SAS/SSD, max 30.72TB
Rear Bays Up to 4 x 2.5” SAS/SSD, max 30.72TB Up to 2 x 3.5” SAS, max 32TB
Storage controllers
STORAGE CONTROLLERS Internal Controllers: PERC H330, H730P, H740P, HBA330
External Controllers (RAID): H840, 12 Gbps SAS HBA
495W Platinum 750W Platinum 750W Titanium 750W 240VDC* 1100W Platinum 1100W 380VDC* 1600W Platinum 2000W Platinum 2400W Platinum 1100W -48VDC Gold Hot plug power supplies with full redundancy option Up to 6 hot plugs fans with full redundancy
Slots
Network Options 4 x 1GbE 2 x 10GbE + 2 x 1bGE 4 x 10GbE 2 x 25GbE
Front Ports 1 x Dedicated iDRAC direct USB 2 x USB 2.0 1 x USB 3.0 (optional) 1 x VGA
Rear Ports 1 x Dedicated iDRAC network port 1 x Serial 2 x USB 3.0 1 x VGA
Details Images
Packing&Shipping
Company Introduction
Certifications
FAQ
Q:How can I place order?
A:You can place order on line or contact us by E-mail.
Q:How can I pay?
A:T/T. Western Union, Alibaba, RMB and so on.
Q:How long is the warranty?
A:Original brand machine warranty for three years, used machine warranty for one year, other customized products can contact our staff.
Q:How to believe your quality and service?
A:We are agents of many brands with professional certificates. Focus on sales and production of various electronic equipment. Customer service is online 24 hours, you can contact anytime if you have any questions.
Q:Can I order samples?
A:Accept samples, you can order only one, samples are also under warranty.
Q:How about the delivery time?
A:Under normal circumstances, delivery within 2-5 days, you can choose the shipping method
