Double Acting China Hydraulic Cylinder Jack With CE Certificate
Product Description
High pressure hydraulic jack is powered by ZB series of high pressure electric oil pump, the function for oil pressure rebound, overflow, it is designed a safe protect pressurizer, it can protect emergent over pressure, especial construction can protect cylinder.
Tonnage: 50~1000Ton Stroke: 100~500mm
We also can customize tonnage, stroke, height according to client’s requirements.
Features of lifting hydraulic jack
Double acting design can highly improve the convenience.
Built-in safe valve can protect jack when over loading.
Cylinder can bear Max loading when Max stroke.
High quality seal ring make the jack’s life more long, no oil leakage.
Application
Double acting hydraulic jack can bear partial loading is 5% of rated pressure. High pressure alloy cylinder is very durable, especially in the larger project, it is easily to be operated and control. It can be used for lifting heavy machine, bridge project, hydraulic engineering, harbour construction and other equipment. It has large output, light weight, remote control and other advantages, it can match with our high pressure oil pump, it can reach jack, push,pull and extrusion and kinds of working.
Technical Parameters
Model | Tonnage T | Stroke mm | Own body height mm | Extend height mm | Outer diameter of oil cylinder mm | Dimension of plunger mm | Dimension of oil pump mm | Weight kg | Pressure |
STQ50-100 | 50 | 100 | 225 | 325 | 127 | 70 | 100 | 35 | 63MPA
|
STQ50-160 | 160 | 285 | 445 | 39 | |||||
STQ50-200 | 200 | 325 | 525 | 46 | |||||
STQ50-300 | 300 | 425 | 725 | 48 | |||||
STQ50-500 | 500 | 625 | 1125 | 63 | |||||
STQ100-100 | 100 | 100 | 250 | 350 | 180 | 100 | 140 | 58 | |
STQ100-160 | 160 | 310 | 470 | 63 | |||||
STQ100-200 | 200 | 350 | 550 | 78 | |||||
STQ100-300 | 300 | 450 | 750 | 96 | |||||
STQ100-500 | 500 | 650 | 1150 | 130 | |||||
STQ150-100 | 150 | 100 | 260 | 360 | 219 | 125 | 180 | 58 | |
STQ150-160 | 160 | 320 | 480 | 69 | |||||
STQ150-200 | 200 | 360 | 560 | 86 | |||||
STQ150-300 | 300 | 460 | 760 | 103 | |||||
STQ150-500 | 500 | 660 | 1160 | 255 | |||||
STQ200-100 | 200 | 100 | 285 | 385 | 240 | 150 | 200 | 96 | |
STQ200-160 | 160 | 345 | 505 | 103 | |||||
STQ200-200 | 200 | 385 | 585 | 116 | |||||
STQ200-300 | 300 | 485 | 785 | 161 | |||||
STQ200-500 | 500 | 685 | 1185 | 221 | |||||
STQ320-100 | 320 | 100 | 310 | 410 | 330 | 180 | 250 | 196 | |
STQ320-160 | 160 | 370 | 530 | 240 | |||||
STQ320-200 | 200 | 410 | 610 | 258 | |||||
STQ320-300 | 300 | 510 | 810 | 311 | |||||
STQ320-500 | 500 | 710 | 1210 | 456 | |||||
STQ400-100 | 400 | 100 | 355 | 455 | 380 | 200 | 290 | 198 | |
STQ400-160 | 160 | 415 | 575 | 231 | |||||
STQ400-200 | 200 | 460 | 660 | 264 | |||||
STQ400-300 | 300 | 555 | 855 | 367 | |||||
STQ400-500 | 500 | 755 | 1255 | 456 | |||||
STQ500-100 | 500 | 100 | 360 | 460 | 430 | 200 | 320 | 323 | |
STQ500-160 | 160 | 420 | 580 | 330 | |||||
STQ500-200 | 200 | 460 | 660 | 420 | |||||
STQ500-300 | 300 | 560 | 860 | 581 | |||||
STQ500-500 | 500 | 760 | 1260 | 599 | |||||
STQ630-100 | 630 | 100 | 417 | 517 | 500 | 250 | 360 | 560 | |
STQ630-160 | 160 | 477 | 637 | 633 | |||||
STQ630-200 | 200 | 517 | 717 | 696 | |||||
STQ630-300 | 300 | 617 | 917 | 898 | |||||
STQ630-500 | 500 | 817 | 1317 | 1250 | |||||
STQ800-100 | 800 | 100 | 488 | 588 | 560 | 300 | 400 | 896 | |
STQ800-200 | 200 | 598 | 798 | 1040 | |||||
STQ800-300 | 300 | 698 | 998 | 1380 | |||||
STQ800-500 | 500 | 898 | 1398 | 1520 | |||||
STQ1000-100 | 1000 | 100 | 530 | 630 | 600 | 320 | 450 | 1286 | |
STQ1000-200 | 200 | 630 | 830 | 1332 | |||||
STQ1000-300 | 300 | 760 | 1060 | 1663 |

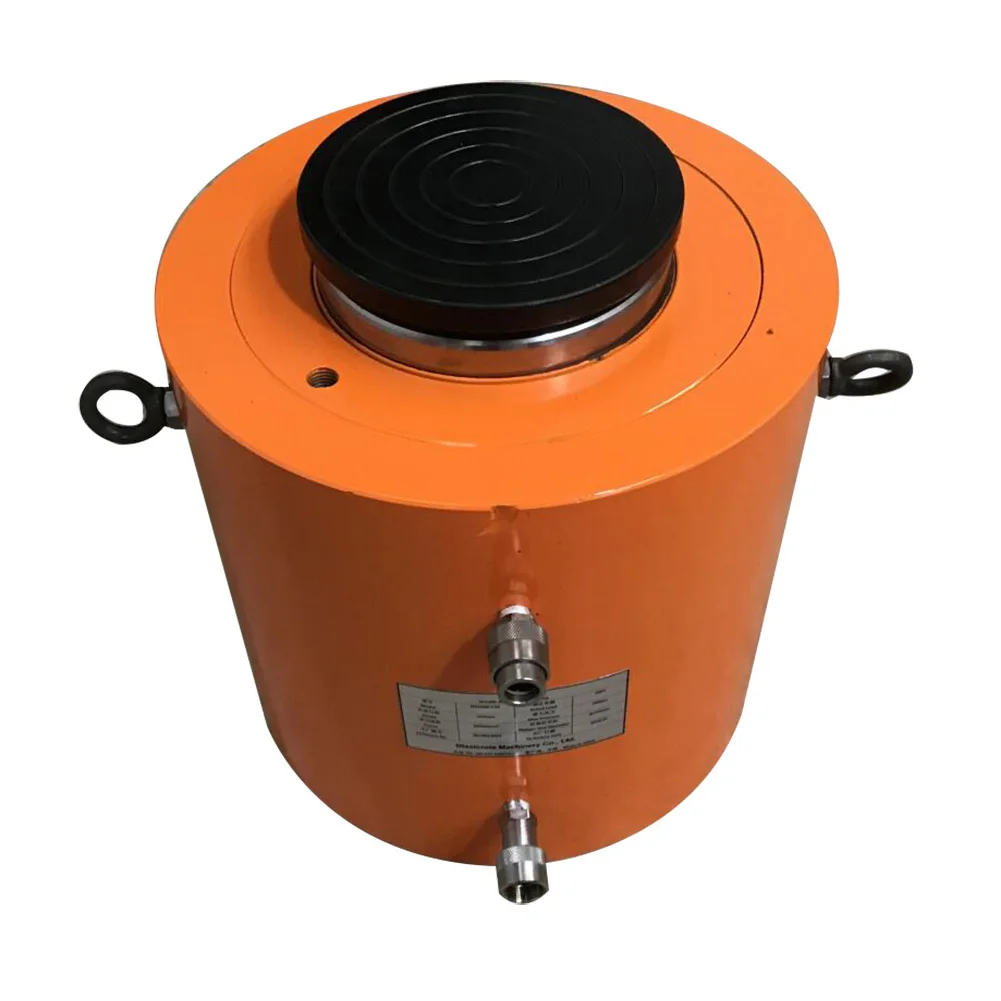

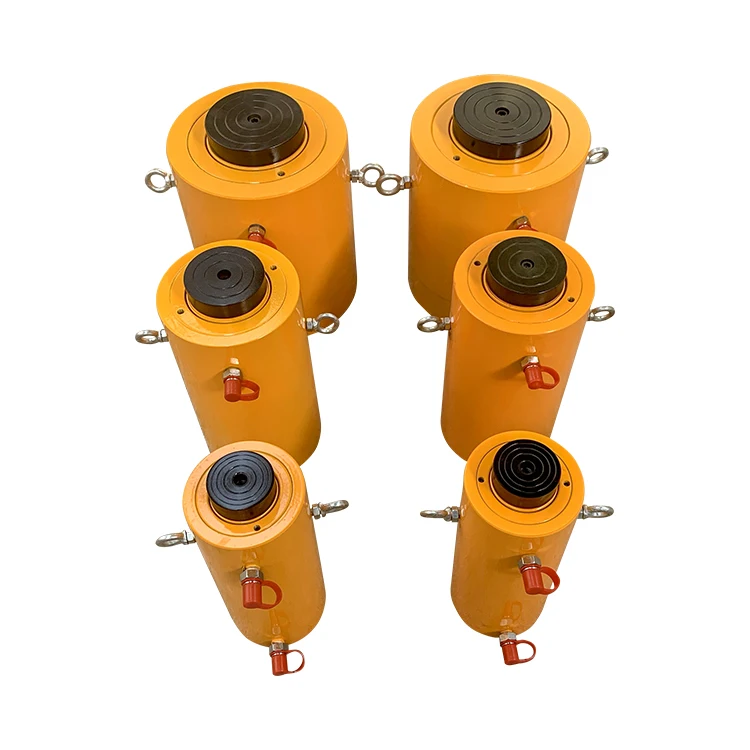

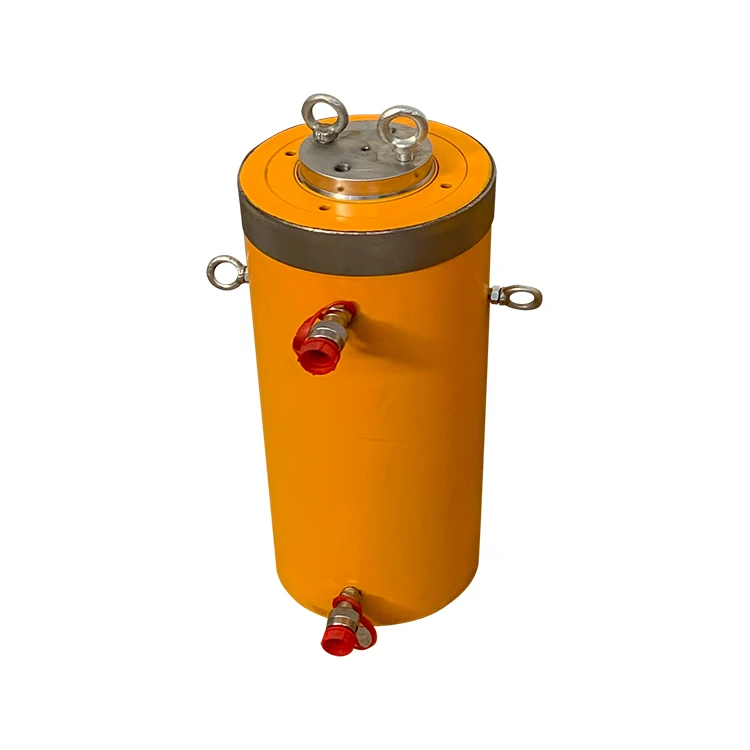

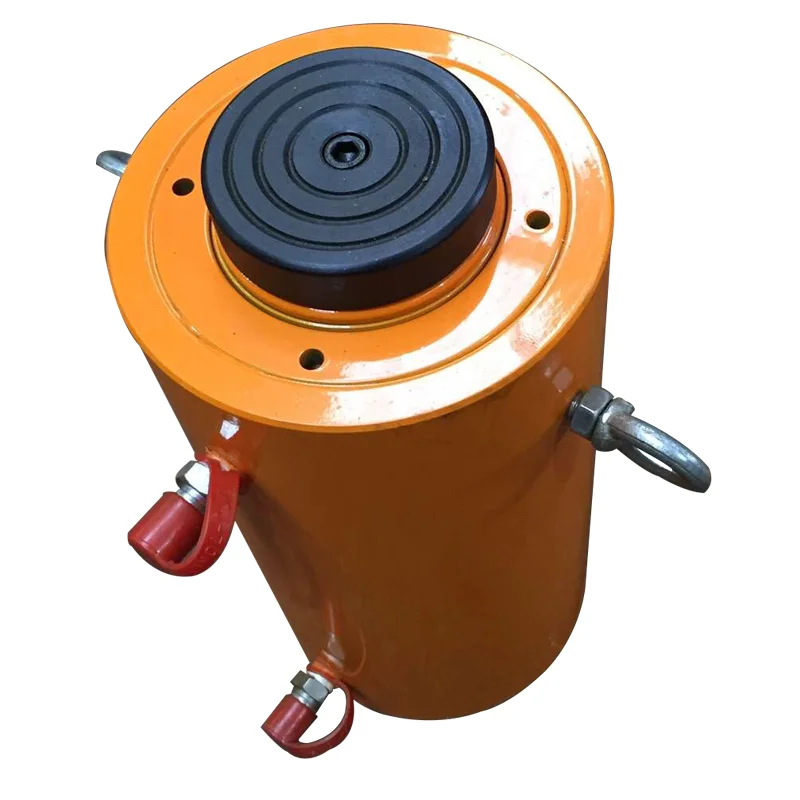

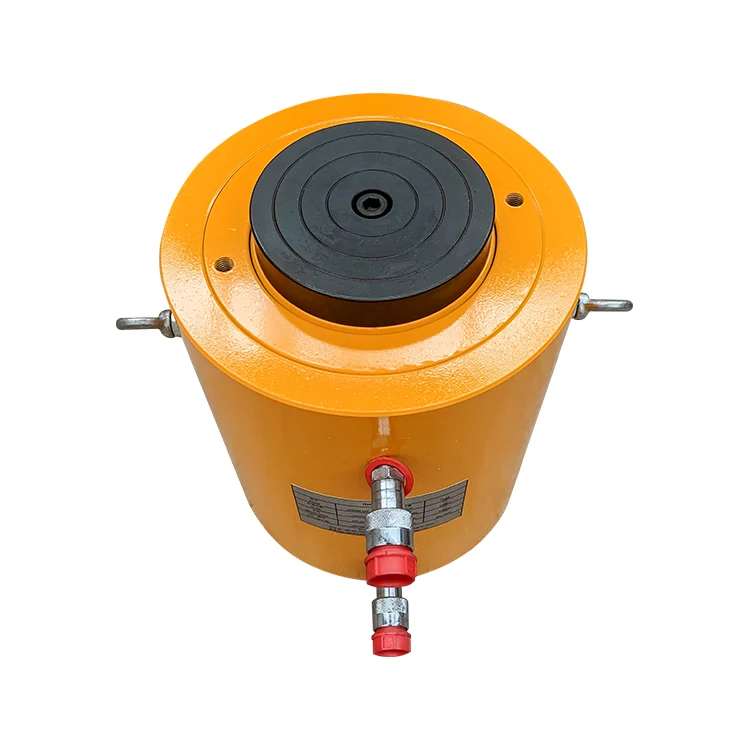

Detailed Images
Related Products
If you need large capacity works and piston return, you could choose large tonnage double acting hydraulic jack (50-2000 tons).
You could choose double acting hollow jack when you need to go through pc strand, steel wire or anchors (50-2000 tons).
If you want to install jack on the some working platforms, you need a flange type hydraulic jack (10-630 tons).
Single acting hydraulic jack is used for smaller tonnage and stroke works (10-100 tons).
Matching with special tool to go through cable or rabar, you could choose single acting hydraulic hollow jack (12-100 tons).
Single acting hydraulic jack with lock nut can be used for long time keep pressure work site (55-200 tons).
Ultra thin hydraulic jack is used for narrow work space (10-200 tons).

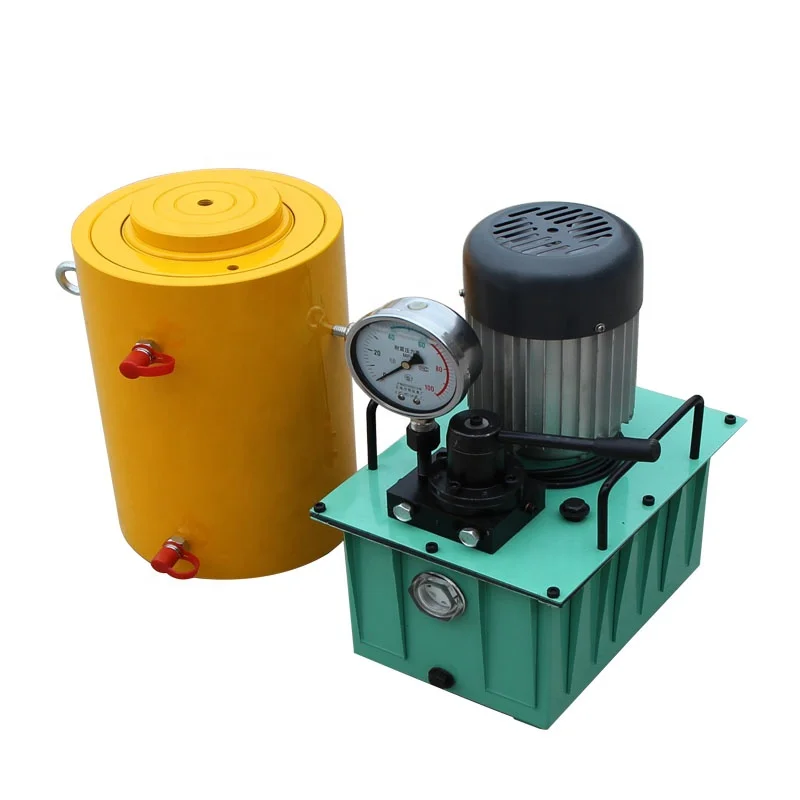

Electric oil pump is matched with kinds of hydraulic jacks, it has double acting and single acting for options.
Hydraulic hand pump is also used for matching with hydraulic jack, clients don’t have requirement for work efficiency.
All the tonnage, stroke, height can be customized according to client’s requirements, supply the best quality and serve. Our warranty is 2 years.
Packaging
1. First, hydraulic jack packaging is a bubble film packaging packaging.
2. The hydraulic jack packaging generally uses a square wooden box, which has better pressure resistance and impact resistance.
