Машина для экскаватора Rhinoceros XN08 windstorm 0.8ton легкая в эксплуатации небольшое
- Категория: Экскаваторы >>>
- Поставщик: Shandong,Kenstone,Heavy,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5117.57 $* | 5373.95 $* |
| Aug-16-2025 | 5074.56 $* | 5328.96 $* |
| Jul-16-2025 | 4257.9 $* | 4470.46 $* |
| Jun-16-2025 | 4988.10 $* | 5237.12 $* |
| May-16-2025 | 4343.19 $* | 4560.55 $* |
| Apr-16-2025 | 4902.83 $* | 5147.50 $* |
| Mar-16-2025 | 4859.73 $* | 5102.7 $* |
| Feb-16-2025 | 4816.46 $* | 5057.94 $* |
| Jan-16-2025 | 4773.21 $* | 5012.60 $* |
Характеристики
PARAMETER | ||
Model | XN08 | |
Operating Weight | 880kg | |
Digging bucket capacity | 0.025cbm/100kg | |
Rated power | 7.0kw/9.3hp/3000rpm(Euro 5) / 7.5 kw/1800r/min | |
Bucket width | 340mm | |
Engine | KOOP / CHANGCHAI | |
Displacement | 0.499 L | |
Main pump brand | CBK-F6.8 | |
Displacement | 6.8ml/r | |
Swing motor brand | EATON | |
Traveling motor brand | KERSEN | |
Travel speed | 1.5km/h | |
MAIN DIMENSIONS | ||
Overall dimension( LxWxH) | 1877x896x1990 mm | |
Wheelbase | 770 mm | |
Total length of track | 960mm | |
Platform ground clearance | 376 mm | |
Platform back turning radius | 664 mm | |
Track width | 180 mm | |
Chassis ground clearance | 132 mm | |
Track height | 320 mm | |
OPERATING RANGE | ||
Max. Digging depth | 1650 mm | |
Max. Vertical digging depth | 1376 mm | |
Max. Digging height | 2365 mm | |
Max. Dumping height | 1655 mm | |
Max. Digging radius on ground | 2560 mm | |
Min. Rotation radius | 1200 mm | |
Max. Upgrade height of bulldozer blade | 165 mm | |
Max. Digging depth of bulldozer blade | 170 mm | |

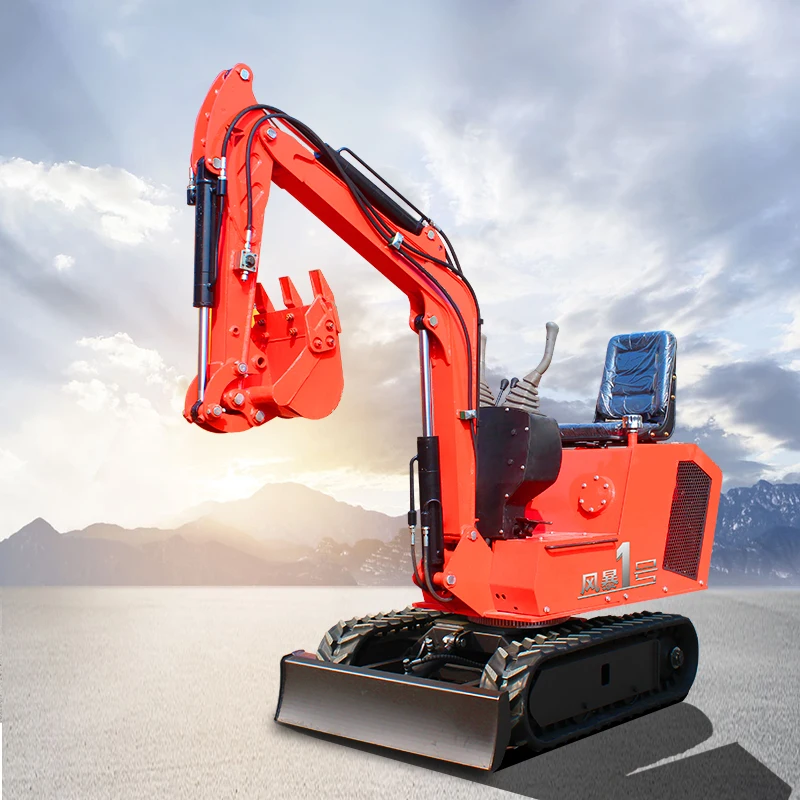

Appearance Picture
Attachment for XN08

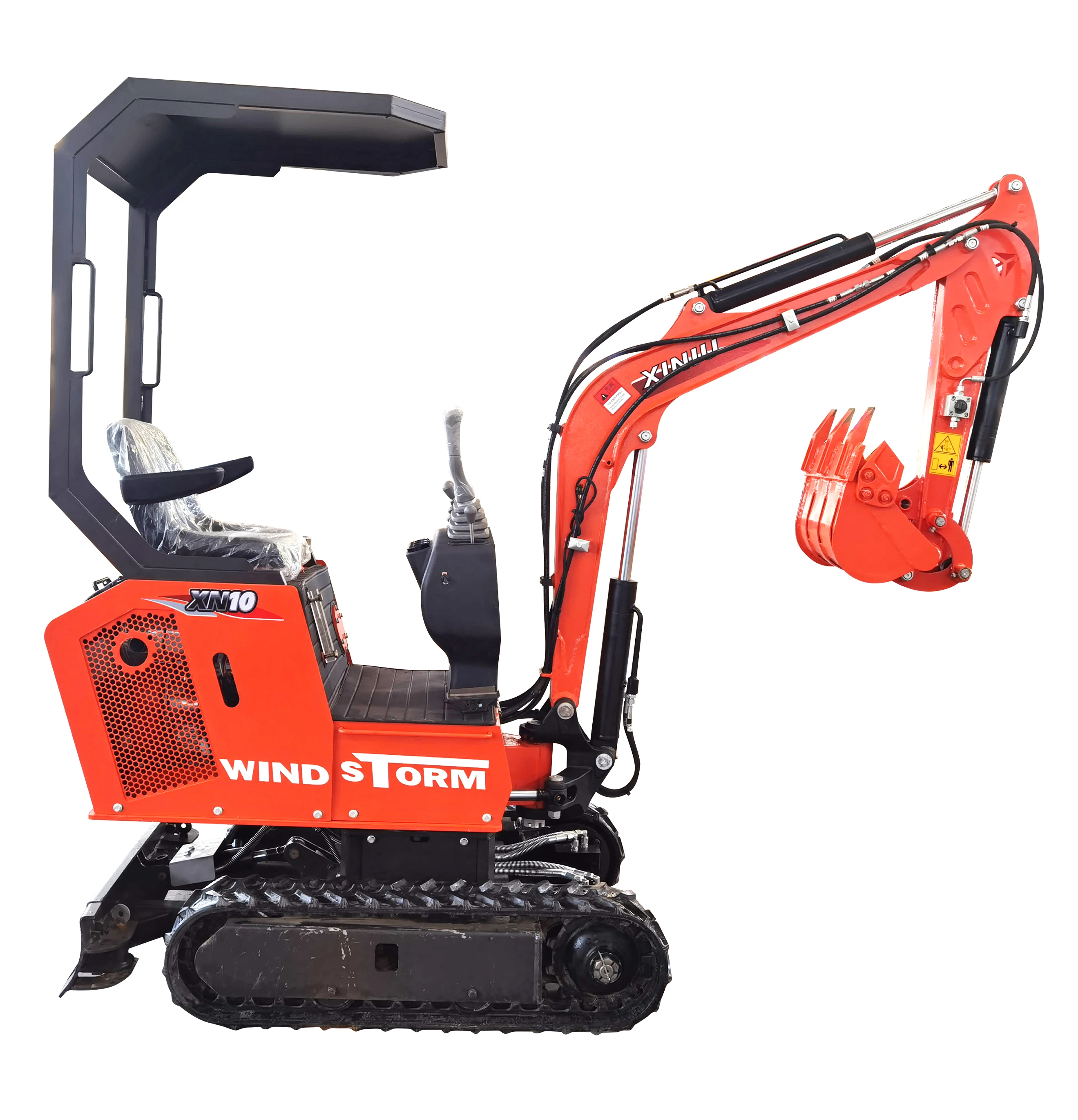

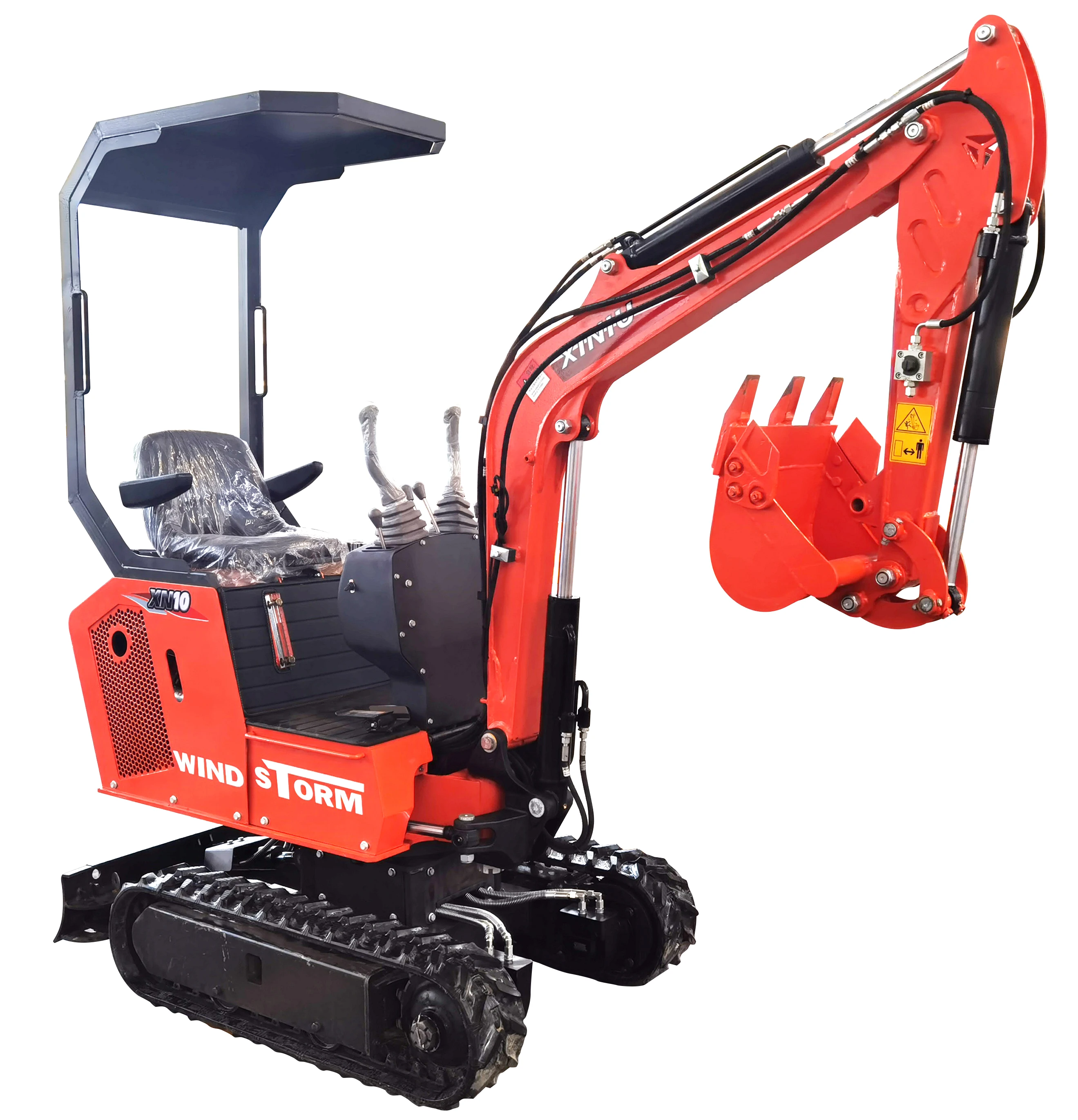

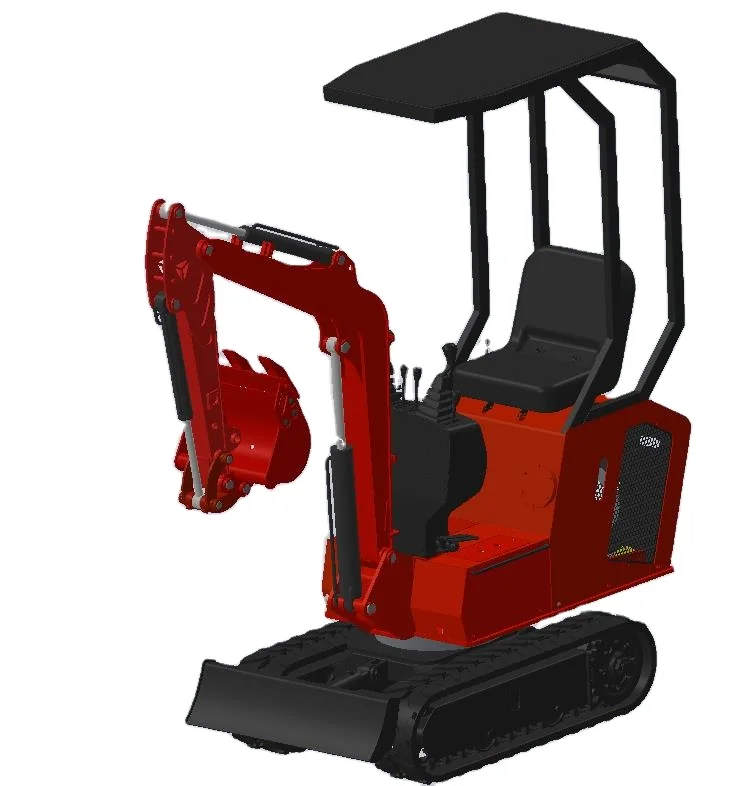

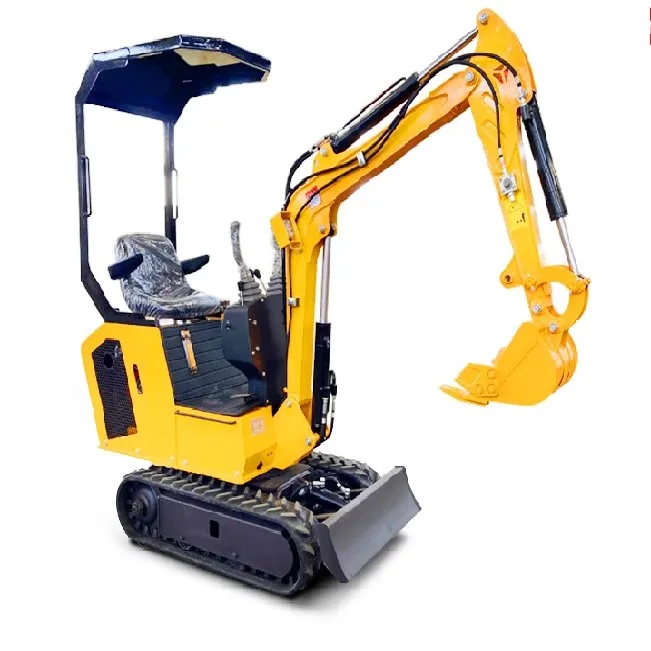

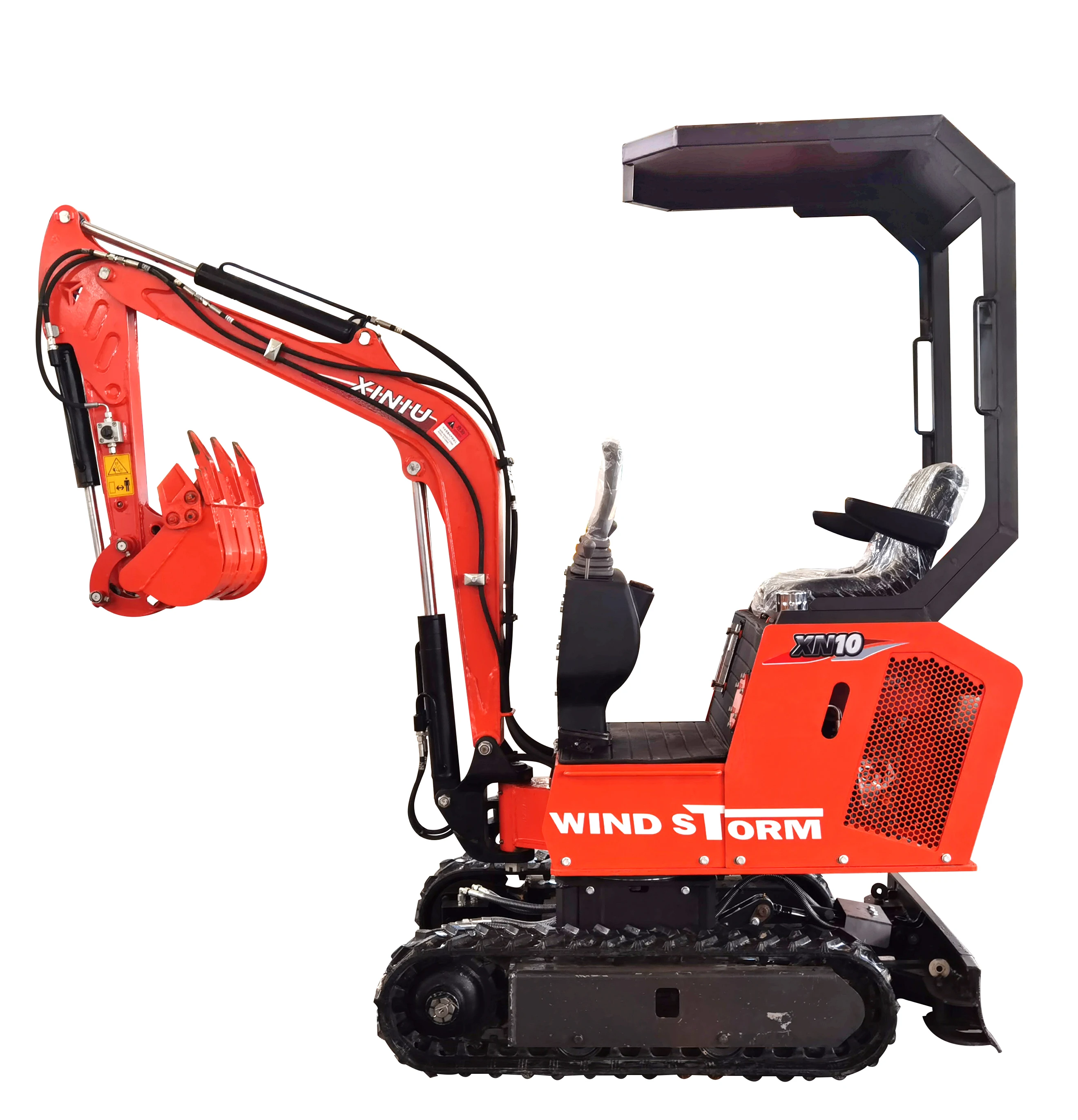

Details Images
Product packaging
1pc package | ||
Size | 2800(L)*1100(W)*1500(H) | |
package details | If you order 1-3 units, the package would be wooden box or according to customer's special request. | |
container loading:
20ft container, there will be 6units.
40ft container, there will be 13units.
Certifications
Exhibition
Our company
Our team
FAQ
What is the machine advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.
How many units can be put in container?
A: 6 units can be in a 20ft container, 13 units can be in a 40HQ container.
will be fixed with wire ropes.
Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?
A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
The warranty of the machine and how will you carry out the service?
A: Warranty period: 1 years or1200 working hours manufacturers warranty whichever comes first. One line service is provided 24 hours every day, there are technicians ready to serve for you, they are well trained, they can be assigned to your site and serve for you.
Spare parts supply:
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1 year.
There are also a spare parts list recommended for 2 years, you can choose and order some parts sent with machine in advance or we recommend the list for you.
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.
How many units can be put in container?
A: 6 units can be in a 20ft container, 13 units can be in a 40HQ container.
will be fixed with wire ropes.
Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?
A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL, wooden box; if 4 unit or more than 4 units suggest used 20ft container. If do not have trailer, the wooden box dimension is 2.8x1.12x1.4m , about 4.3m3; if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg.
The warranty of the machine and how will you carry out the service?
A: Warranty period: 1 years or1200 working hours manufacturers warranty whichever comes first. One line service is provided 24 hours every day, there are technicians ready to serve for you, they are well trained, they can be assigned to your site and serve for you.
Spare parts supply:
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1 year.
There are also a spare parts list recommended for 2 years, you can choose and order some parts sent with machine in advance or we recommend the list for you.
We are the factory!!!
The lowest price in the same quality!!!
Don't hesitate, contact us now!!!
↓ ↓ ↓
