250 разъемов красочный пружинный клеммный блок с 2 50 мм 3 Шаг Пружинные клеммные
- Категория: Terminal Blocks >>>
- Поставщик: Dongguan,Aosi,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.59 $* | 0.96 $* |
| Aug-19-2025 | 0.74 $* | 0.44 $* |
| Jul-19-2025 | 0.89 $* | 0.56 $* |
| Jun-19-2025 | 0.25 $* | 0.90 $* |
| May-19-2025 | 0.98 $* | 0.28 $* |
| Apr-19-2025 | 0.90 $* | 0.5 $* |
| Mar-19-2025 | 0.20 $* | 0.12 $* |
| Feb-19-2025 | 0.74 $* | 0.57 $* |
| Jan-19-2025 | 0.61 $* | 0.92 $* |
Характеристики

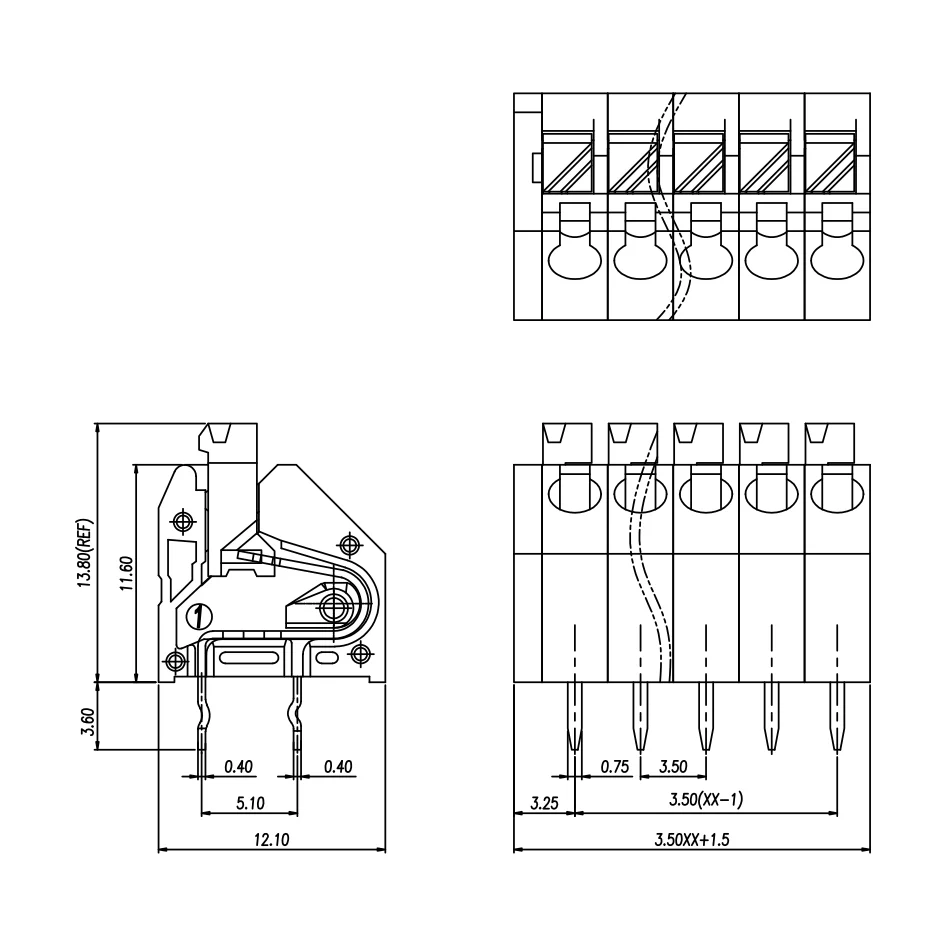

Products Description

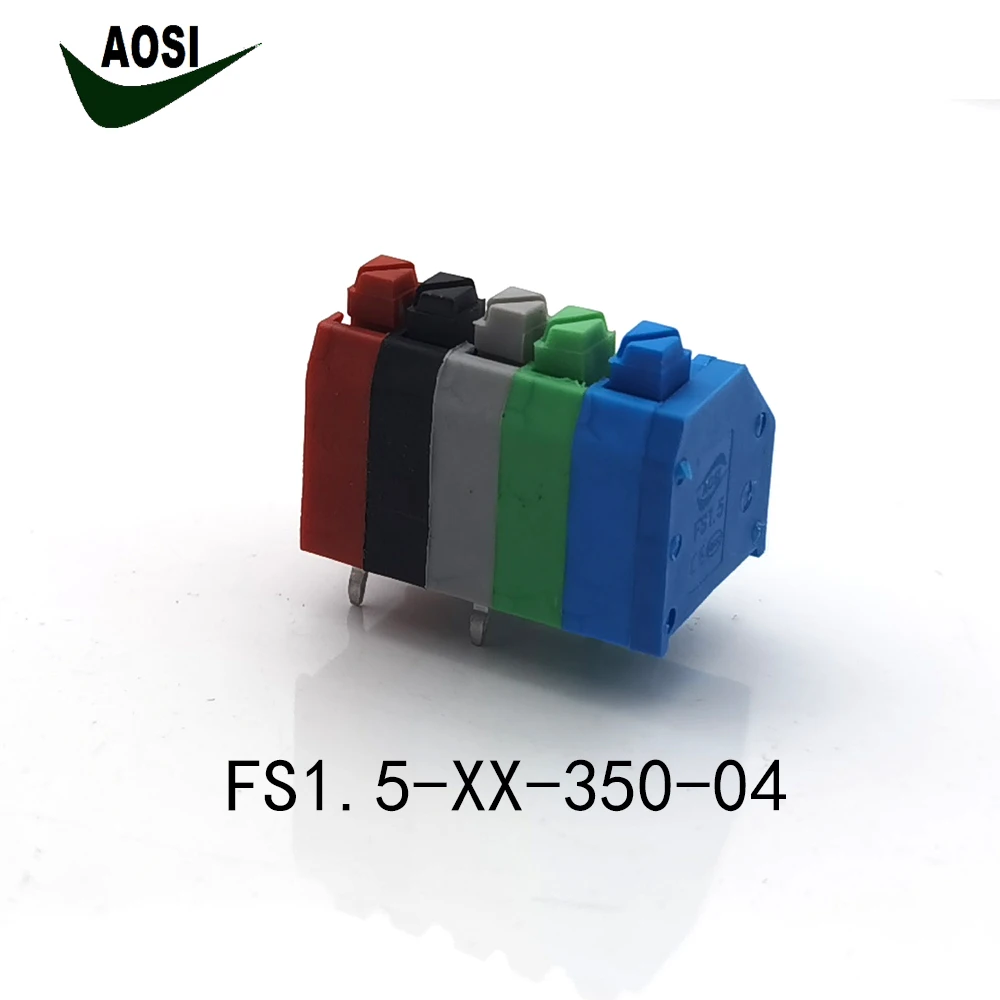

Model Number: | FS1.5-XX-3.5-04 | |||
Plastic material: | PA66 UL94V-0 | |||
Clamp: | Spring | |||
Reference standard: | UL | IEC | ||
Rated voltage | 300V | 320V | ||
Rated current | 8A | 8A | ||
Wire range | 22-18AWG | |||
Withstanding voltage: | AC1600V/1Min | |||
Temp: | -40°C~+105°C | |||
Max soldering: | 250℃~±10℃/5Sec | |||
Pole: | 1P-32P | |||
Packaging & Shipping
1. We will carefully check the quality of each piece to ensure 100% pass rate.
2. In order to prevent the goods from being damaged during transportation, we strictly control the packaging requirements.
3. There are several ways of transportation of goods:by air, by sea, by express and postal parcel etc. The transportation time range is about 3-30 days, and the specific time and freight are based on actual conditions.
4. Various transaction methods such as MasterCard, PayPal, VISA, Western Union, ESCROW, T/T, etc.
Company Information

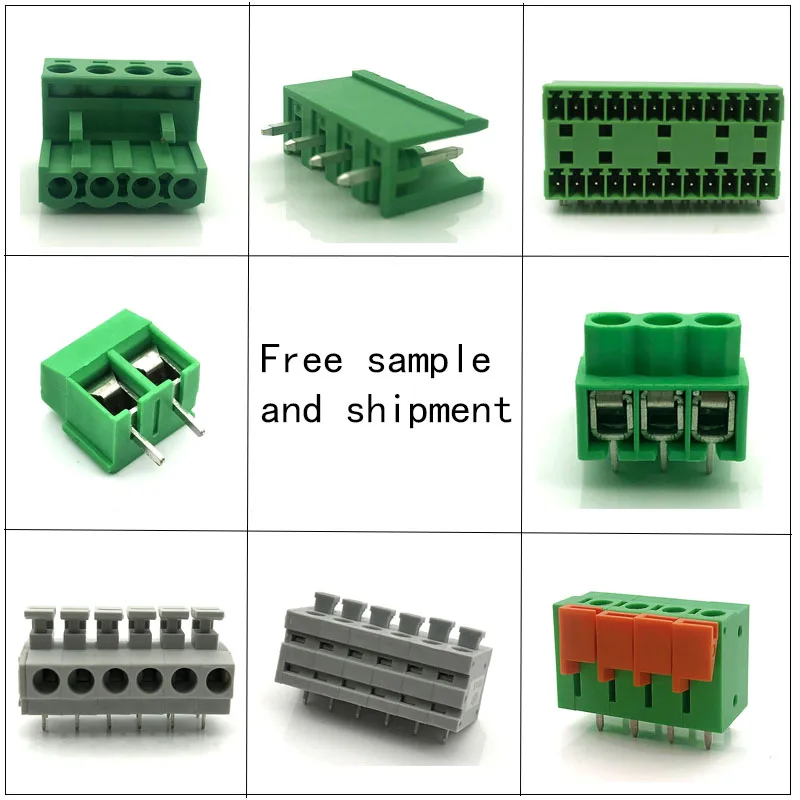

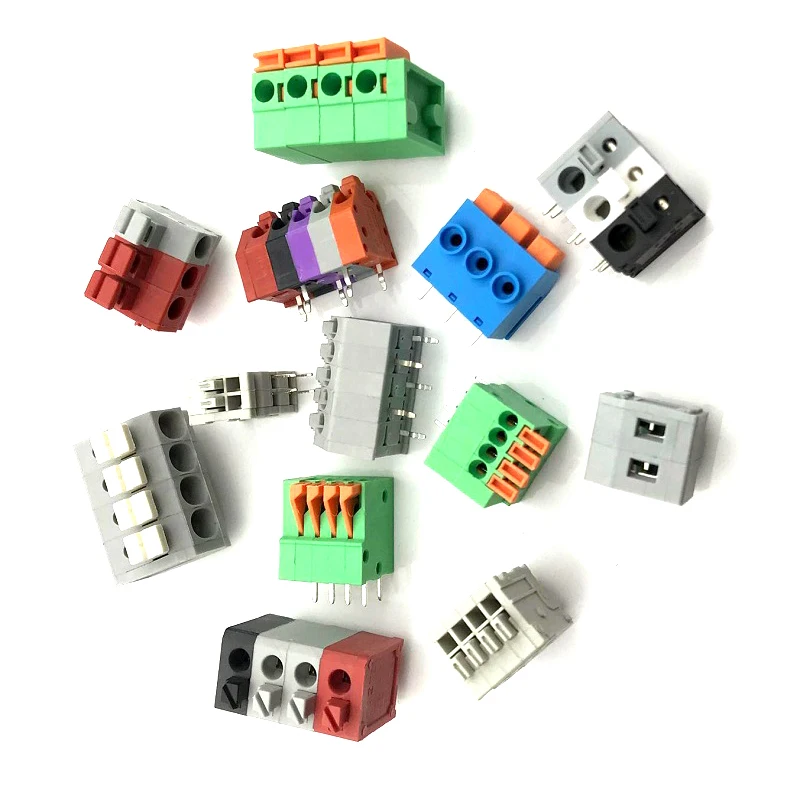

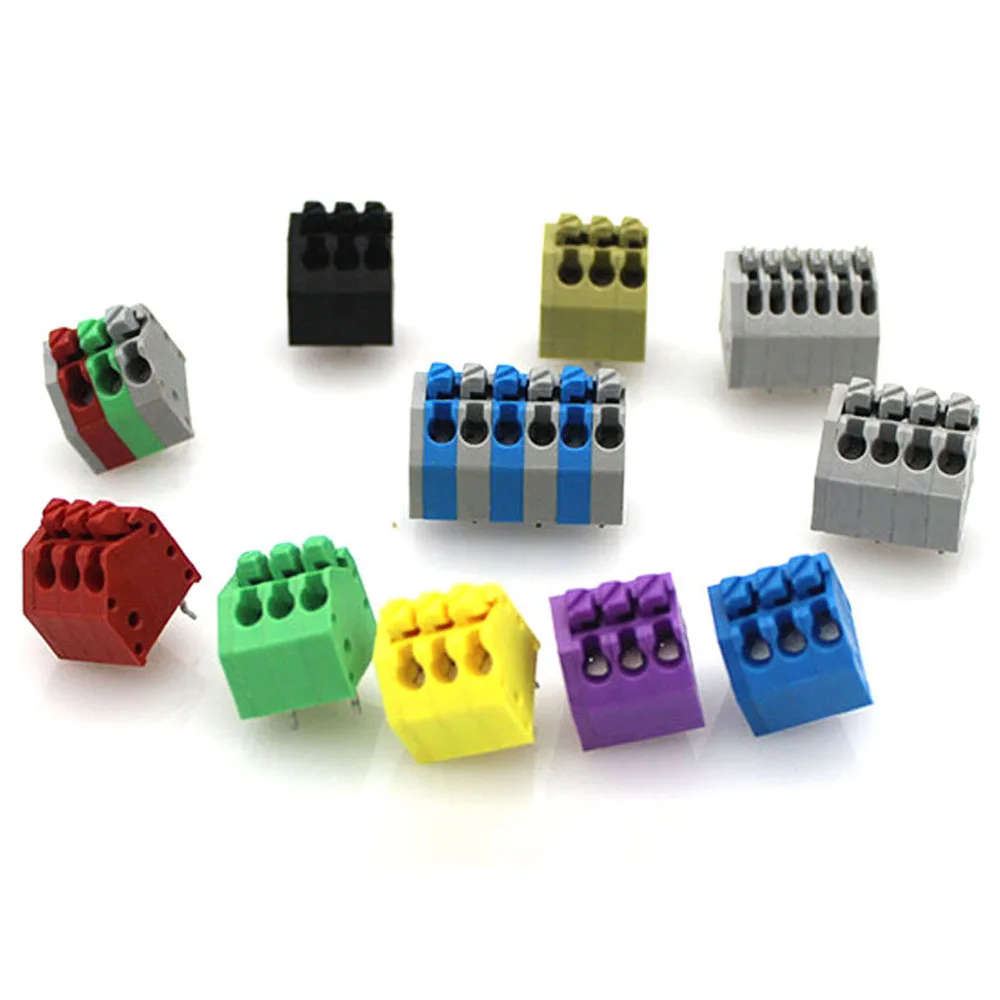

Dongguan AOSI Electronics Co.,Ltd is the collection development, production, sales in one of the specialized terminals, terminal,terminal, connector, connectors manufacturers, and has a number of high-quality management team and technical elite, through nearly ten years of careful management, products through the UL, VDE, CB, CQC, ROHS and other certification, the factory has passed ISO9001 : 2008 quality system certification. The main products are: CA series shrapnel type wiring terminal, CT series lifting type wiring terminal, CP series slide-in terminals, CS series screw free press buckle type connection terminal, CK series, CZ series fence type wiring terminal through type wiring terminal, a variety of single double pin and IC socket. Standing specifications have 2.54, 3.50, 3.81, 3.96, 5, 5.08, 6.35, 7.50, 7.62, 8.255, 9.525, 10, 10.16, 11, 13.00mm. | ||
FAQ
Q1. Can I have a sample order for Terminal blocks?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-2 days, mass production time needs 1-2 weeks for order quantity more than 100K pieces
Q3.About the payment?
A: The payment terms can be flexiable depend on the quantity and products. We firstly prefer Trade Assurance on alibaba,Another,
new customer we prefer the 100% T/T before shipping or 30%T/T advance before
producing large quantity.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5.About the delivery time:
A:For regular products, we keep them in stock. We can meet the quickest shipment according to customers’ requirement.
Q6.Do you offer guarantee for the products?
A: Yes.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-2 days, mass production time needs 1-2 weeks for order quantity more than 100K pieces
Q3.About the payment?
A: The payment terms can be flexiable depend on the quantity and products. We firstly prefer Trade Assurance on alibaba,Another,
new customer we prefer the 100% T/T before shipping or 30%T/T advance before
producing large quantity.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5.About the delivery time:
A:For regular products, we keep them in stock. We can meet the quickest shipment according to customers’ requirement.
Q6.Do you offer guarantee for the products?
A: Yes.
