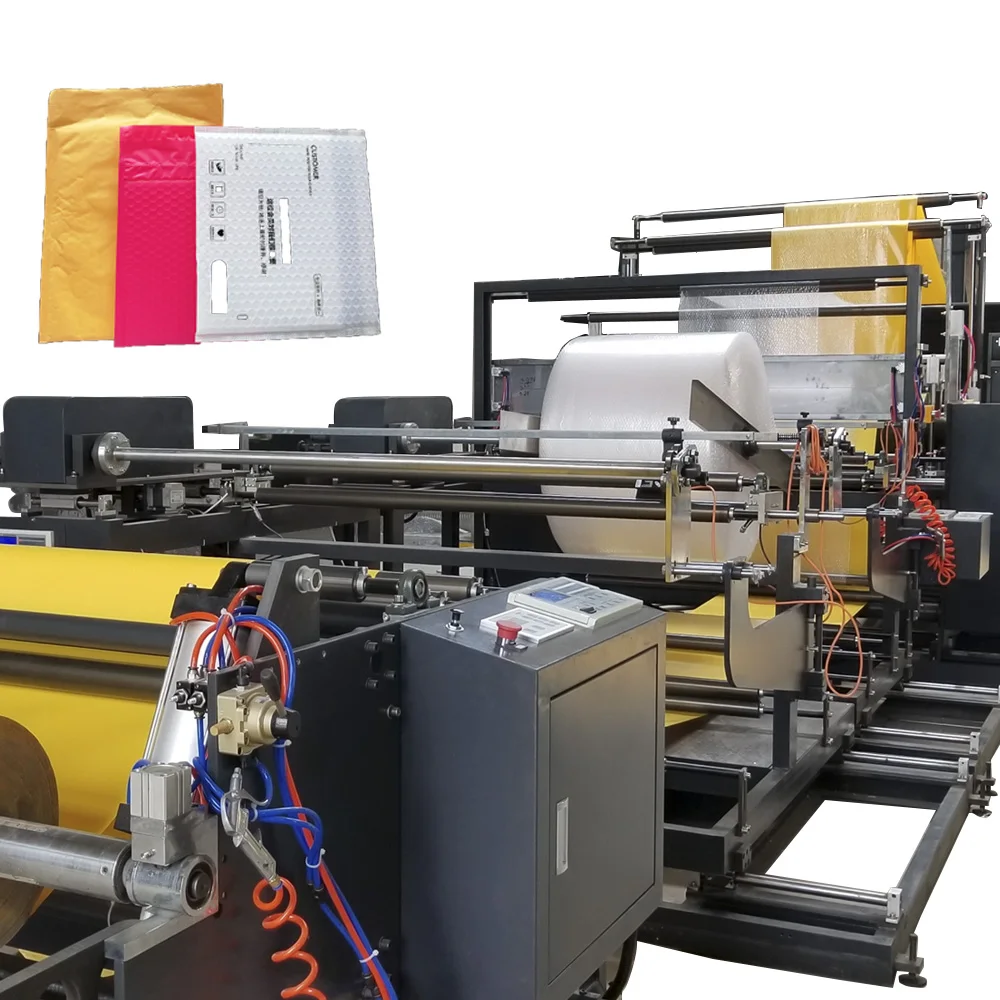

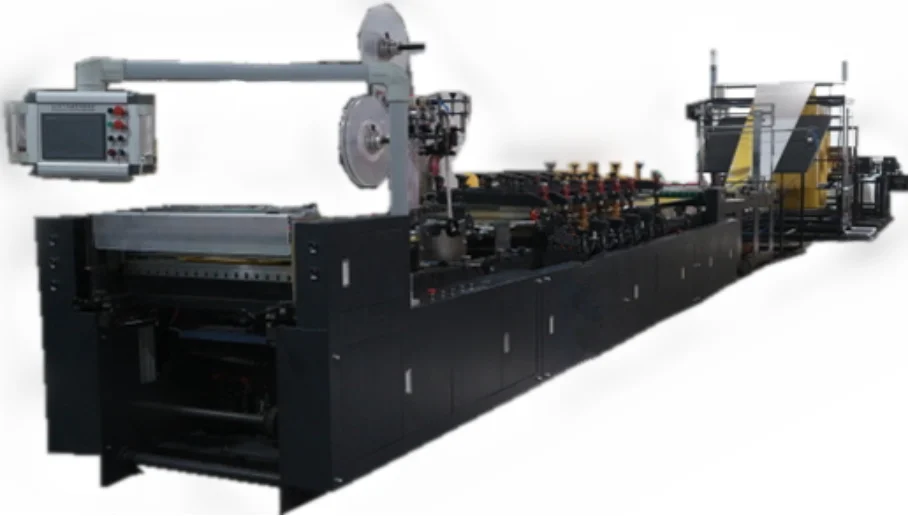

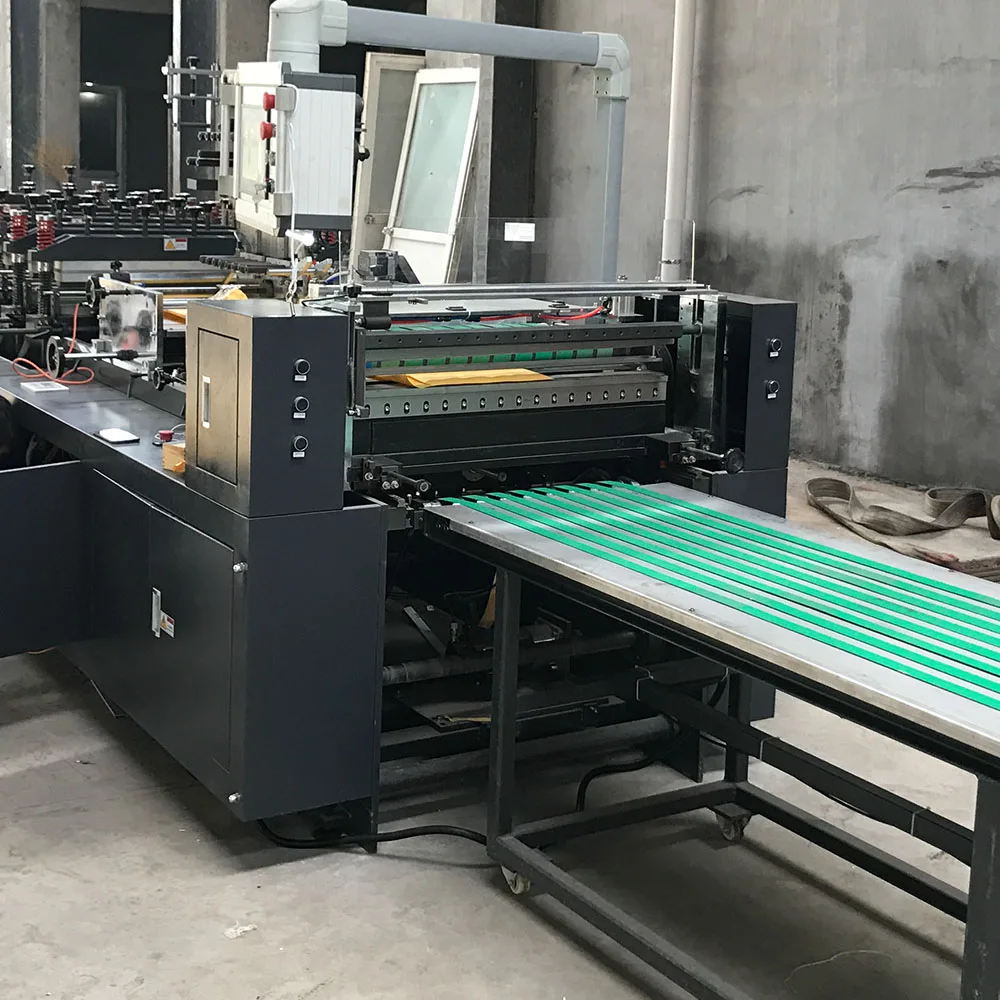

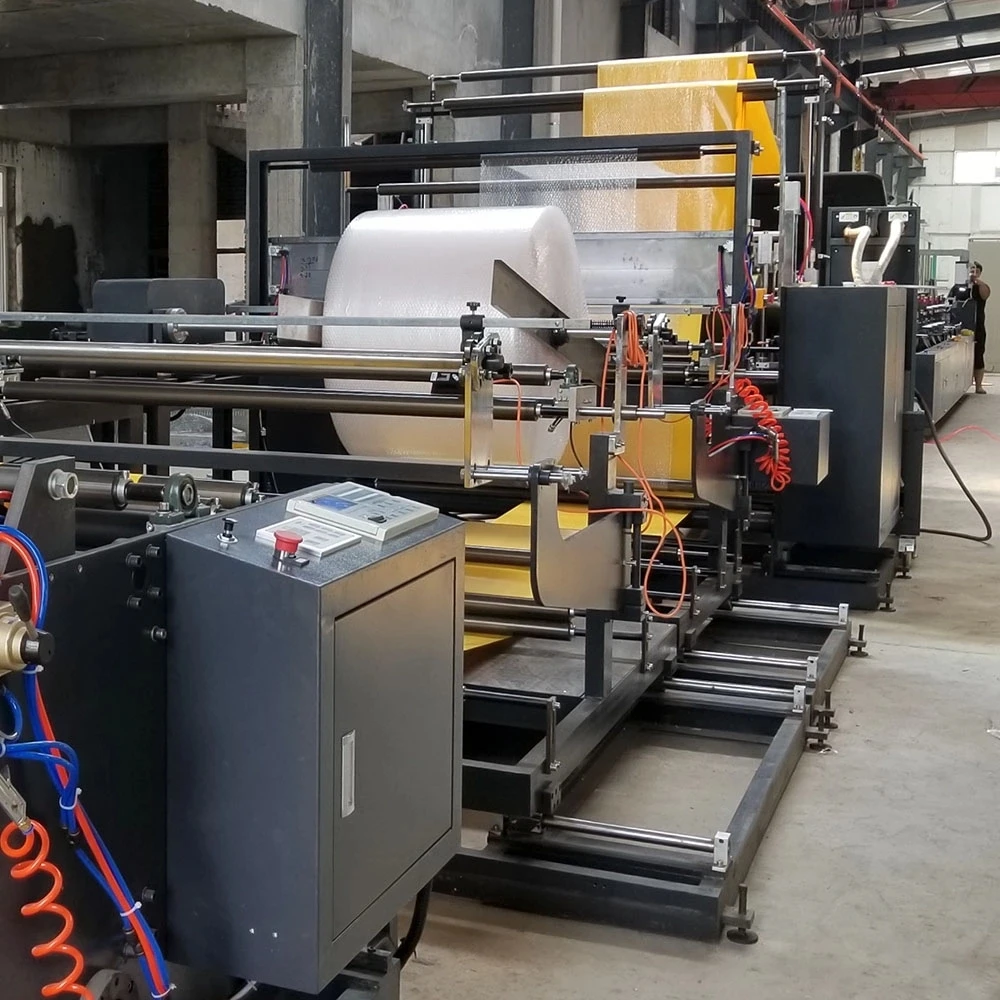

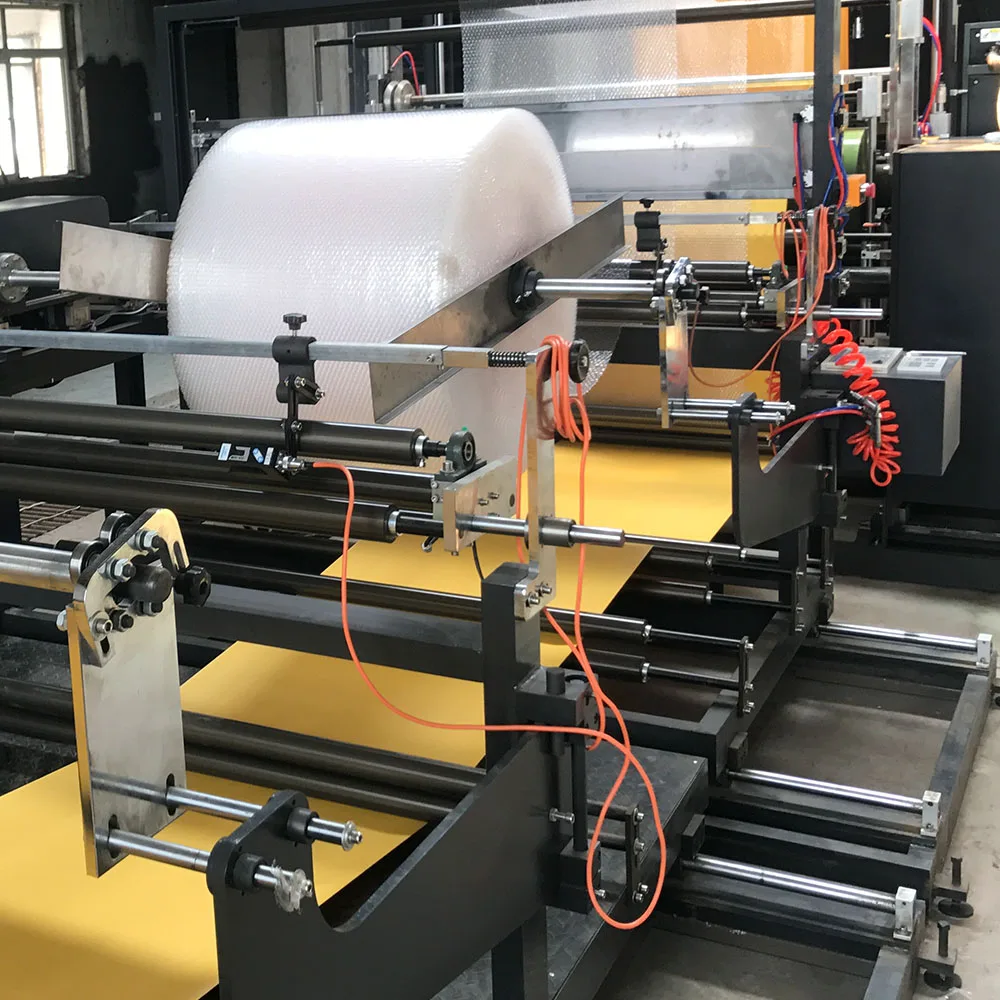

Air bubble film envelop making machine automatic shockproof foam air bubble bag making machine bubble envelope making machine

Air bubble film envelop making machine is special for epe foam, air bubble film bag which widely used as shockproof bags, fragile products packing.



This machine is used for making paper/kraft/film laminated bubble envelope bag, which kind of bags are widely used for protect products and mailing.









Air Bubble Bag Making MachineTechnical Parameters

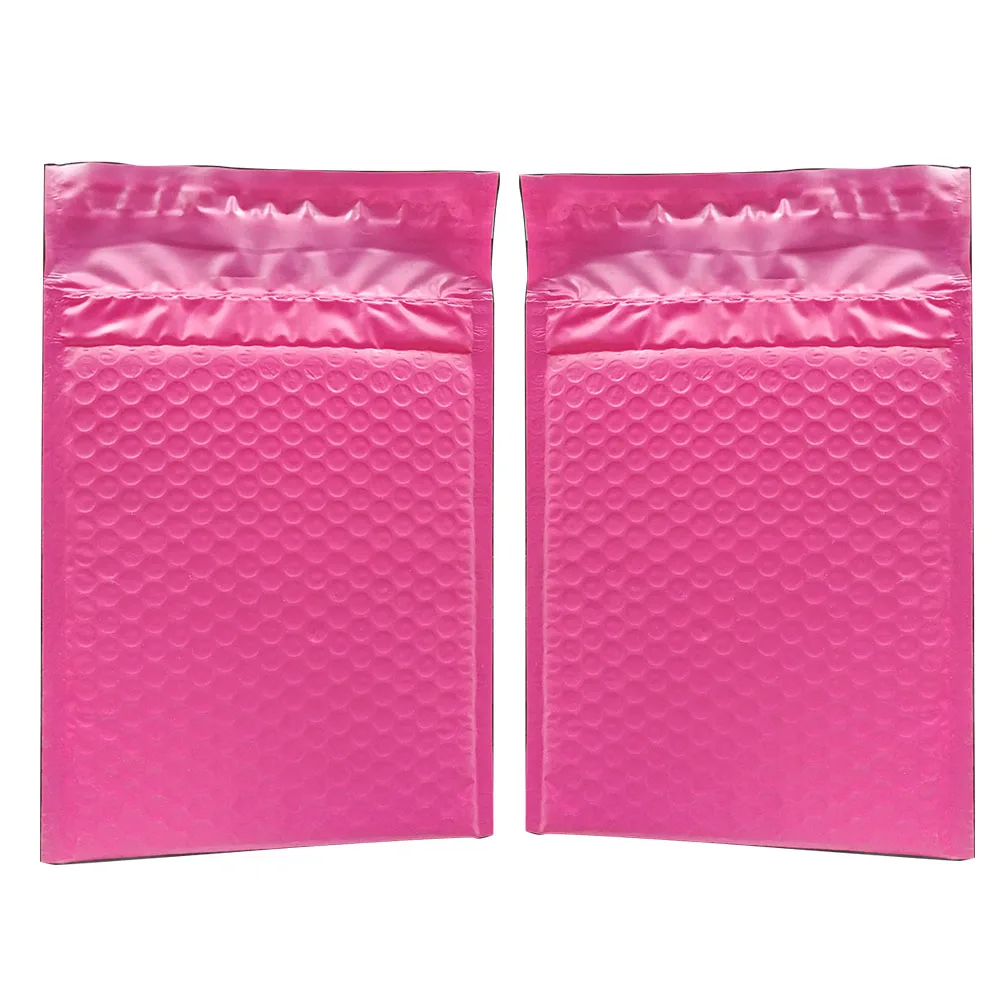

1.Suitable bags: Poly bubble mailer and Kraft bubble mailer.

(The machine can make laminating and folding two side seal bubble envelope.)

2.Mechanical executing speed: 90 pcs/min

(The actual speed of making bags may differ according to the size of bags, thickness of materials and time of fusing.)

3.   Max width of bag:

One line: 800mm (including the envelope flap)

Double line: 400mm (including the envelope flap)

4.Maximum length of bag:    400mm

5.Maximum width of unwinding: paper or film: 1400mm  bubble 1350mm

6.Maximum diameter of unwinding: paper or film Φ800mm, bubble Φ1300mm

7.Weight of machine: 8500kg

8.Overall dimension: 23000X2600X2400mm(L×W×H)

9.Power required: 80KW

10.Voltage: three-phase five-wire, AC 380V 50Hz

(three firing line, one null line, one ground lead)



Air Bubble Bag Making Machine Main Configuration



1.COMPUTER CONTROL

2.Cutter

3.Material pulling

4.Gluing

5.The main function of main engine is to mold the compounded material by heating pressing and sealing.

6.Folding part

7.Feeding part





Application



The bubble film is made of LDPE material. It can be used for various packaging purposes such as moisture proving,dust proving, shock proving, and static prevention. It can also make into laminated films with aluminized film, foamed PE sheet, and paper are the applications of sun shading, heat insulation, and packaging.





Details Parts Of edible oil bubble wrap making Equipment for air bubble pad



DYPE-1000-2500 series sheet making line characteristic:

1.Our company products, all adopt inverter adjust speed, capability stabilization, and retrench energy sources.
2. Outfit different specifications vacuum
3.Can outfit corresponded organ. and product compound film of compound plating aluminium  film, air bubble compound EPE pearl cotton and so on

4.Have a torque winder, the operate is very convenience.
5. The machine have a water cooler or natural cooler
6. Unique screw design. can suit for mixing product of LDPE. LLDPE and regenerative material.



PE air bubble sheet, which not only has such advantages as good cushioning effect, shock resistance and heat-sealing, but also has good corrosion resistance and transparency. So it has been widely used for packing of household wares post parcel, precise instrument, bicycle and furniture, etc.



dfpe-1000-2500 series sheet making line main technical parameters:



Model	Material	Width(mm)	Max.production	Total Power	Weigth(kg)
DY-QD2400T	LDPE	2400	250	220	7900
DY-QD2000T	LDPE	2000	200	165	7400
DY-QD1800T	LDPE	1800	160	135	6900
DY-QD1600T	LDPE	1600	140	105	6500
DY-QD1500T	LDPE	1500	120	105	6000
DY-QD1200T	LDPE	1200	100	90	5500
DY-QD1000T	LDPE	1000	80	80	5300





Note:The Type B series Machines also can product single side (two layers)air bubble film Features:

1. Two extruders for a bubble layer and two laminated layers

2.Unique automatic-turning winding mechanism

3. Variouse cooling and direction configuring
