Детали для пневматического калиберная пробка микрометр внутреннего

Цена:645,00 $*

Количество:

Features

Operation is simple, Compact and lightweight.

High precision, high stability, the resolution up to 0.1µm

At the same time display the relative value of the detection size, absolute value

Ten sets of programs can be set to carry out a variety of measurements

5 measurement ranges of 0.005mm~0.100mm

Display resolution of 0.0001mm~0.0010mm

Pass/Fail assessments can be easily made via the three-color LED bar graph

A fix magnification type with weight reduced compact body

Direct jump to mastering display via I/O device

101 dots 3 color LED bar (green, red, orange)

With a digital display function (operating mode or value of measurements).

Accommodates memory capture measurements and continuous capture measurements in addition to regular measurements.

2000 measurement data can be saved without loss of power failure

Specifications

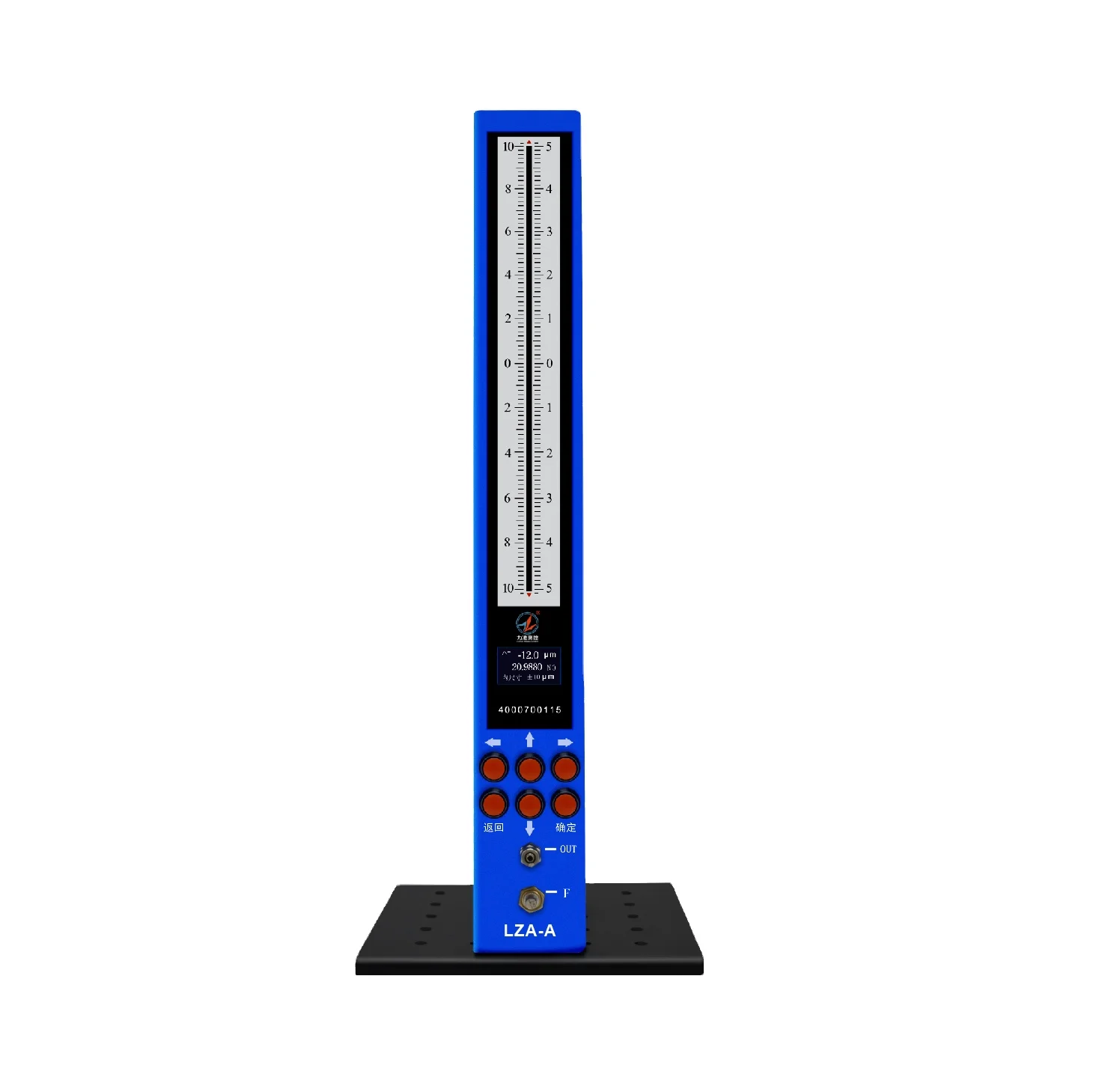

Item	LZA Air Micrometer
Detection method	Semiconductor A/E conversion system
Display	Three-color LED display, 101-dot, bar graph
Display	Digital display (displays mode, measurements and parameters)
Judgement function	Measurement and parameter ranking assessments: +NG, OK1-30 and +NG
Operating display function	Comes standard with 10 basic operational modes for single channel specs
Measurement function	Inner diameter, outer diameter, thickness, highness, straightness. Accommodates memory capture measurements and continuous capture measurements in addition to regular measurements.
Output interface	RS-485
Air pressure supplied	300~700kPa
Power	100~240V±10% 50/60Hz 11VA
Weight (Kg)	2.8
Dimension	60mm(W)498mm(H)180mm(D)
Optional	Audible alarm, USB, Air auto shut off, Wireless transmission, QR code with measurements
