Наружная реклама P8 светодиодный
- Категория: Digital Signage and Displays >>>
- Поставщик: Shenzhen,Muenled,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 362.4 $* | 369.74 $* |
| Jul-17-2025 | 294.31 $* | 300.19 $* |
| Jun-17-2025 | 356.79 $* | 363.64 $* |
| May-17-2025 | 353.57 $* | 360.90 $* |
| Apr-17-2025 | 282.7 $* | 288.73 $* |
| Mar-17-2025 | 348.77 $* | 355.90 $* |
| Feb-17-2025 | 345.54 $* | 352.95 $* |
| Jan-17-2025 | 342.7 $* | 349.2 $* |
Характеристики
Covering ads to display full-scene applications
Point pitch: P3/P4/P5/P5.9/P6/P8/P10

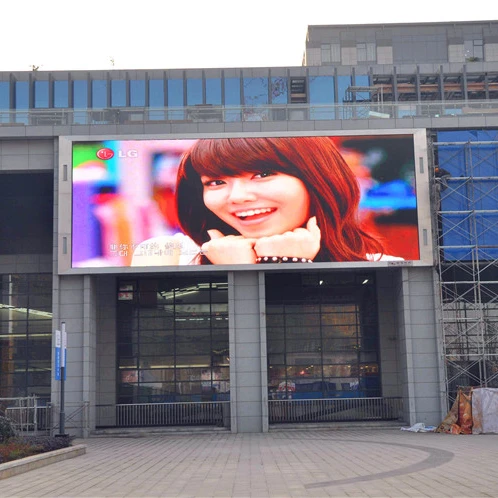

1: Standard billboard

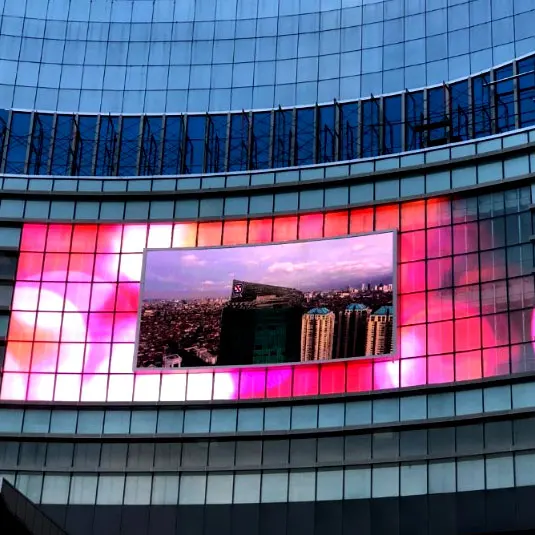

2: Street view display

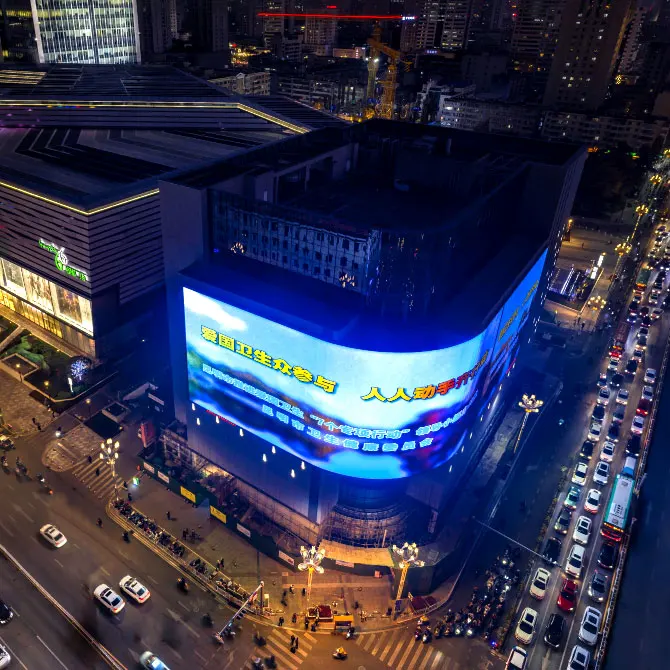

3: Outdoor large screen
4: Traffic hub screen
5: Electronic signage
6: Sports
Product Description
Setting Information | ||
Name | ||
rated voltage | AC110/220V | |
Power Consumption (Average) | 160w/cabinet | |
Humidity | 15%-85% | |
Refresh Rate | >1920Hz | |
Drive Mode | 1/4Scan | |
Module Weight | 39 kg | |
Well-known brand power supply , saving energy and high efficiency
life span. Normal power supply electro optic conversion ratio is under 80%, and high heat dissipation, not stable, low cost.
Unique superior quality
Outdoor Fixed P10 LED
1: Pixel pitch: 10mm; cabinet size: 960×960mm
2: SMD 3535 LED; High brightness: 7500nits, adjustable brightness, high intensity.
3: Use standard processing technology to ensure that each row of lights is on the same horizontal line as each row of lights, and to ensure the consistency of light and a clear, stable picture.
3: Use standard processing technology to ensure that each row of lights is on the same horizontal line as each row of lights, and to ensure the consistency of light and a clear, stable picture.

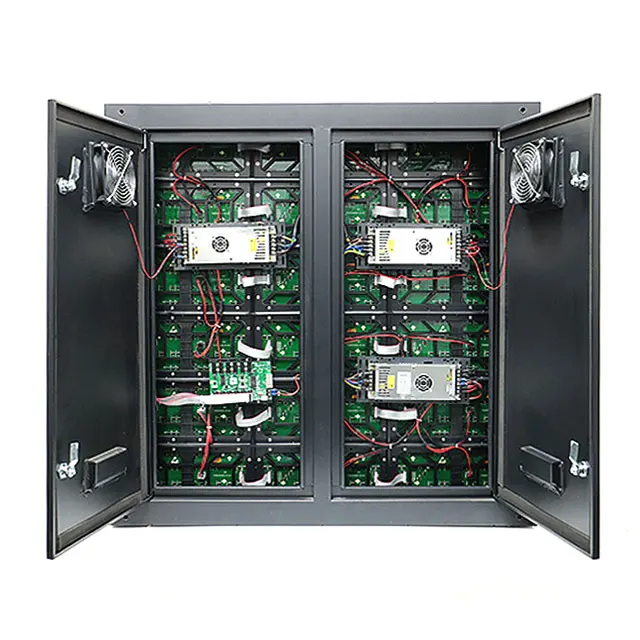

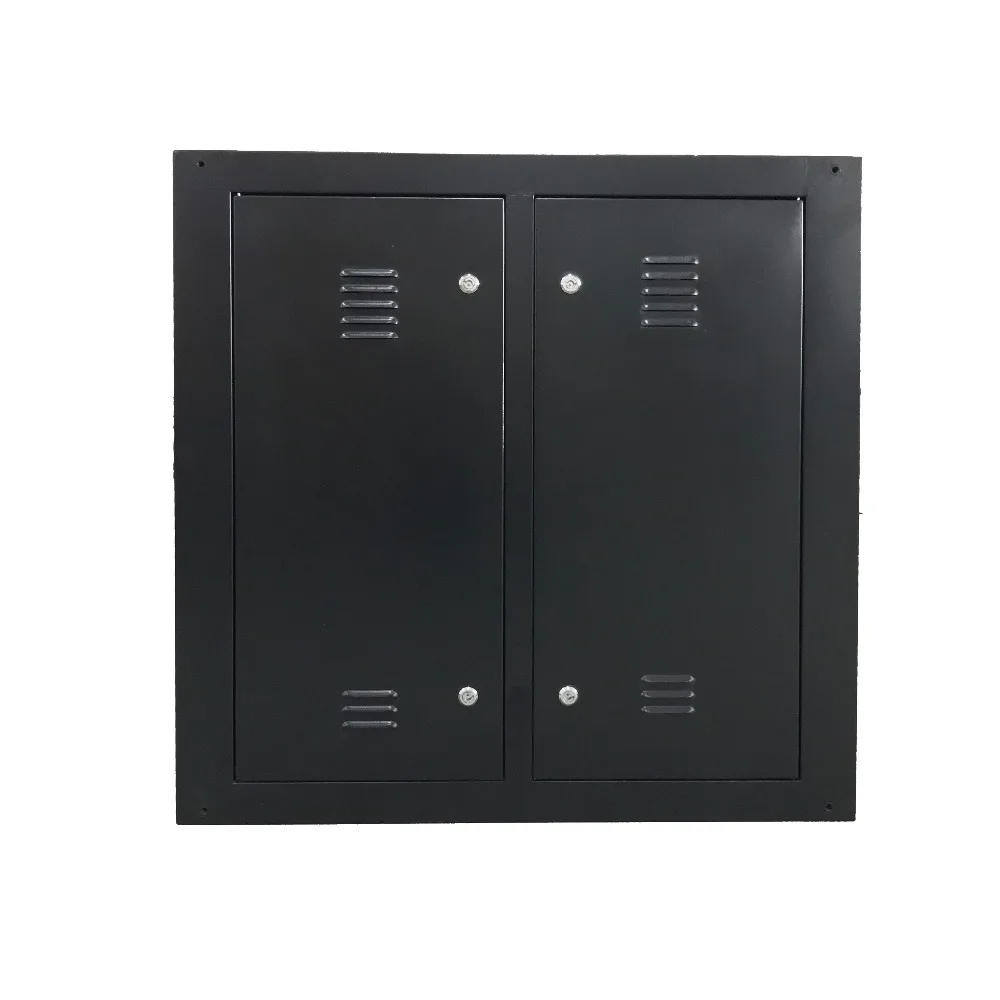

4: The cabinet design is light, easy to maintain, IP65 high performance waterproof and dustproof.
Protection Rate IP65 and Module Style Design.
Protection rate IP65, installation without frame. Module Style Design, fast installation and easy maintenance with low cost.
Ultra low power consumption, the first option for saving energy
The brightness of 7500 nits, the power consumption of 330W/sqm, and the power consumption of 1 kWh in three hours is 50% lower
than that of traditional panels. Excellent display performance, The first choice of millions of advertising operators.
Wide Viewing Angle for Broader Reach
The display features a wide viewing angle of 120° horizontal and 160° in vertical which reaches more viewers. The picture quality remains seamless in all direction and at a distance, presenting all viewers the same highly quality outputs. This makes it suitable for large gathering.
High Refresh Rate
The P10 outdoor LED display is manufactured according to the latest technology dynamic scanning mode, which can provide higherbrightness and higher refresh rate. It has a high refresh rate of 1920Hz, independent RGB gamma adjustment, and can produce the
best quality output in the form of pictures, videos and texts, making pictures more real and clearer.
Rapid dynamic display
LED has a nanosecond response time, its lighting and extinguishing alternate time is extremely short, there is no afterglow effect of fluorescent display technology, so it can quickly respond to image changes, high dynamic definition, and has great inherent advantages.
Technical Parameter | ||||||
Pixel Pitch | 10mm | Type | SMD3535 | |||
Chip parameters | Red λd:(620-625nm) IV:(800-960mcd) | Chip parameters | Green λd:(520-525nm) IV:(1350-1650mcd) | |||
Chip parameters | Blue λd:(470-475nm) IV:(330-400mcd) | Module Resolution | 32×16=512(Dots) | |||
Module Size | 320×160mm | Pixel Density | 10000 Dots/㎡ | |||
Cabinet Resolution | 96×96=9216(Dots) | Cabinet Dimension(W*H*D) | 960×960×130mm | |||
Cabinets Material | Steel | Cabinet Weight | 39kg | |||
Brightness | ≥7500cd/㎡ | Viewing Angle | 120(Horizontal),120(Vertical) | |||
Nearest Viewing Distance | 13m | Power Consumption (Max) | 1000 w/㎡ | |||
Power Consumption (Average) | 300 w/㎡ | Refresh Rate | ≥1000Hz | |||
Input Voltage | AC110-220V±10%,50/60Hz | Grey Scale Levels | 16bit | |||
Brightness Adjustment | 256 color levels,can be adjusted manually and automatically optional | Life-span | 100,000 hours | |||
Protection Level(front/back) | IP66/IP54 | Working Temperature | -30℃~50℃ | |||
Humidity | 15%~85% | Drive Mode/Driver Position | Constant driving 1/2 Scan，Combined diver board | |||
Input Signal | AVI/MPG/MPEG/TXT.etc | Control Mode | Synchronization/Asynchronization | |||
Certificate Control System | CE,ROHS,FCC,ISO9001，TUV Sending Card, Receiving Card,Receiving HUB | PC Operating System | Microsoft Windows 7, XP and Vista | |||
CSoftware | LED Studio ( MIKE_TV-linsn ) | Certificate | CE,ROHS,FCC,ISO9001，TUV | |||
Communication Type | Net cable，3G、WIFI（Sold separately) | Control Card Input | DVI,USB,RJ45、HDMI（Sold separately) | |||
Language | English、French、Japanese、Russian、Thai、Spanish、Polish、Italian、Portuguese、Turkish、Dutch、Greek、Bulgarian、Romanian、Arabic | |||||
\t\t\t\t\t\t\t\t\tApplications \t\t\t\t\t\t\t
Packing&delivering
Best After-sale Service
If your LED Screen is defected during warranty period, we will offer you free accessories to replace. Whenever you need us, we are always online for you. Our support staff will assist you for any problems. Feel free to contact us any time.
Company Information
MuenLED Co.,Ltd in Shenzhen China is a real factory who produce LED sign /display /billboard with high quality and competitive price.
Products: From P1.9- P16 / Taxi Roof Advertising / Rental Cabinets / LED truck/ transparent screen, etc.
Service: We are supplier of LED screens with excellent quality, and 2-year warranty for the products. Use Epistar chips for our products, sold to 20+ countries all over the world.Average lead time is less than 15 days. 12-year experience technical team to solve problems for you at anytime!
Please you do not hesitate to send us inquiries, you will get prompt attention.
Looking forward to hearing from you.
Goods production - goods supply - pre-sale and after-sales service
1. We have the advantage of a full range of LED display production2: Goods supply from indoor and outdoor P10, P8, P6, P4, P3,P3.91, P4.81, P2, P2.5, P1.976 have sufficient inventory, at the same time has high quality, let you buy at ease, use at ease
3. We have round-the-clock online customers to help customers and give customers product performance introduction, as wellasproduct advantage analysis; According to the actual situation and the use of the situation, for the customer evaluation,choosethe most reasonable scheme
4: At the same time, we can provide customers with professional training on the operation and maintenance of the led display system Display troubleshooting
3. We have round-the-clock online customers to help customers and give customers product performance introduction, as wellasproduct advantage analysis; According to the actual situation and the use of the situation, for the customer evaluation,choosethe most reasonable scheme
4: At the same time, we can provide customers with professional training on the operation and maintenance of the led display system Display troubleshooting
Safety guarantee removes worries
The standard production process has undergone multiple quality tests, ensuring safety
1: Brand raw materials
2: Standardized production process
3: Whole process quality control
4: Multiple authentication
Certifications
FAQ
muen led display Rental led Display muen led screen Price
muen led Rental muen led Lowest Price rental led lowest price
Q1. Can I have a sample order for led Screen?
A: Yes, we welcome sample order to test and check quality. Both for LED moduel or a whole screen
Q2. What about the lead time?
A:Order less than 50 square meter led time take 15 working days
Q3. Do you have any MOQ limit for led Screen order?
A: Low MOQ, 1 square meter or a moudle checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We mostly accectp EXW trade term, but we can help you order and arrange shipping agent. It usually take 20-30 days by sea. a few days for customer clearance
Q5. How to proceed an order for led Screen?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led Display product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products
