Низкая заводская цена эффект холла Датчик тока сдвоенный модуль преобразователя датчик эффекта

Низкая заводская цена эффект холла Датчик тока сдвоенный модуль преобразователя датчик эффекта

Категория: Датчики >>>
Поставщик: Nanjing,UP,Electronic,Technology,Co.,Ltd.

Цена:15,00 $ - 16,50 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-18-2025	19.77 $*	19.94 $*
Jul-18-2025	15.79 $*	15.55 $*
Jun-18-2025	19.41 $*	19.27 $*
May-18-2025	19.51 $*	19.82 $*
Apr-18-2025	15.82 $*	15.41 $*
Mar-18-2025	18.58 $*	18.87 $*
Feb-18-2025	18.58 $*	18.22 $*
Jan-18-2025	18.74 $*	18.47 $*

Характеристики

Product Description

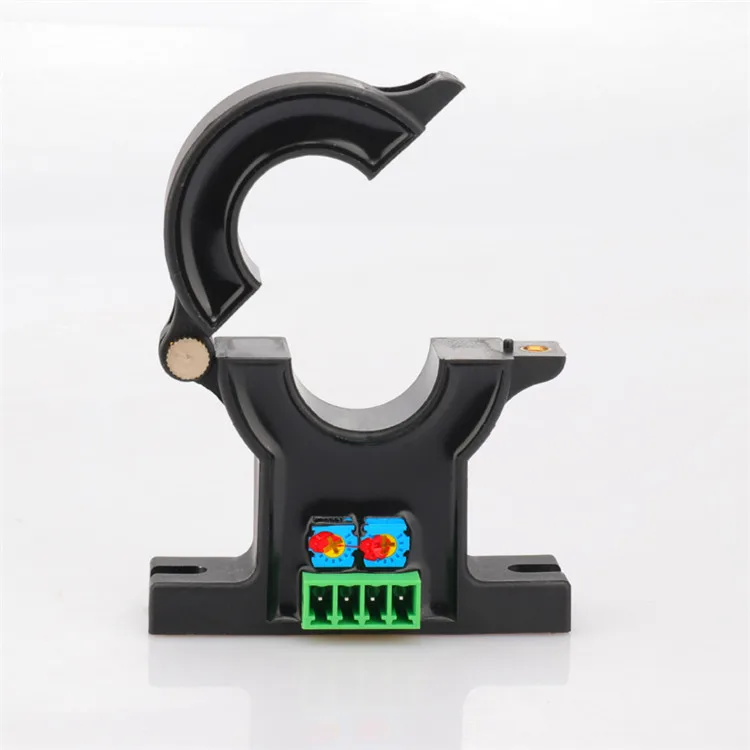

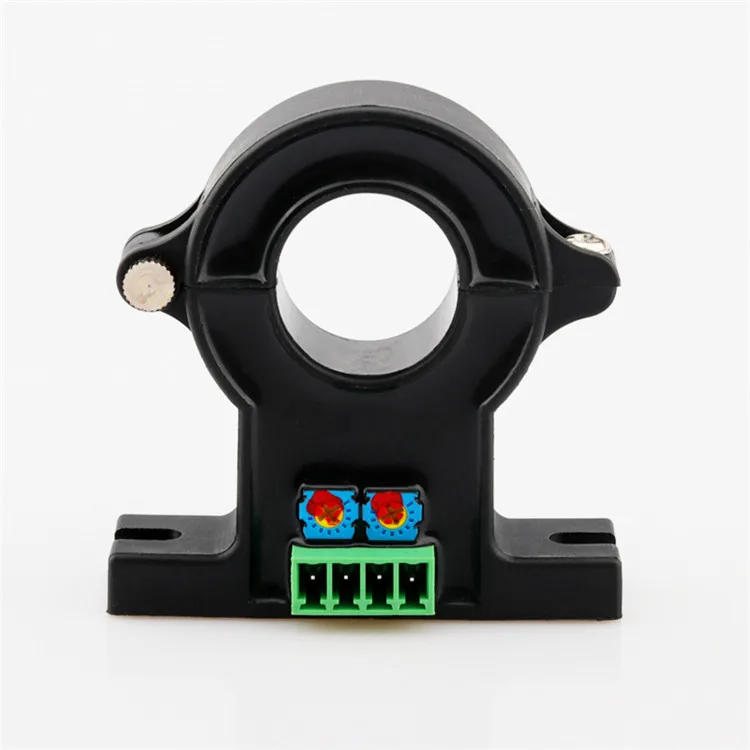

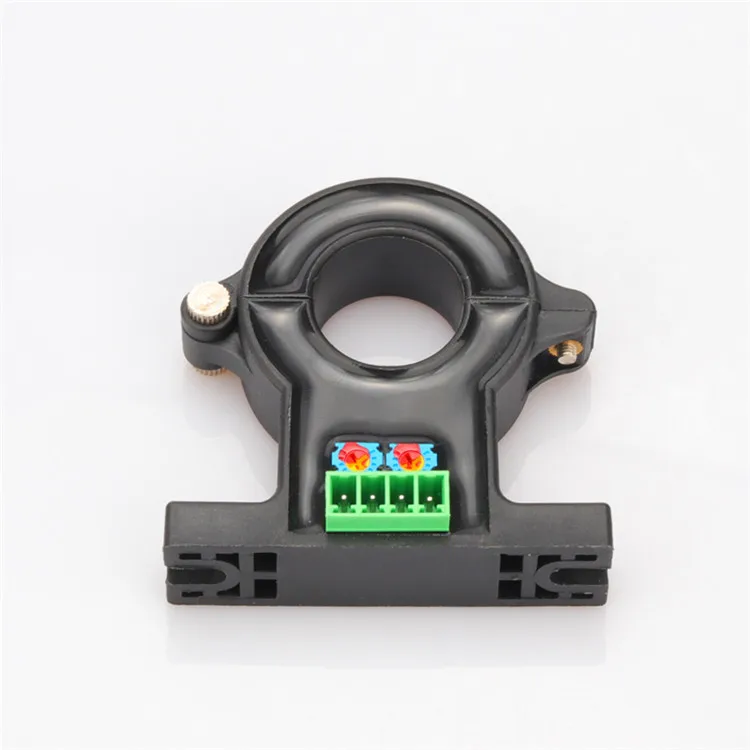

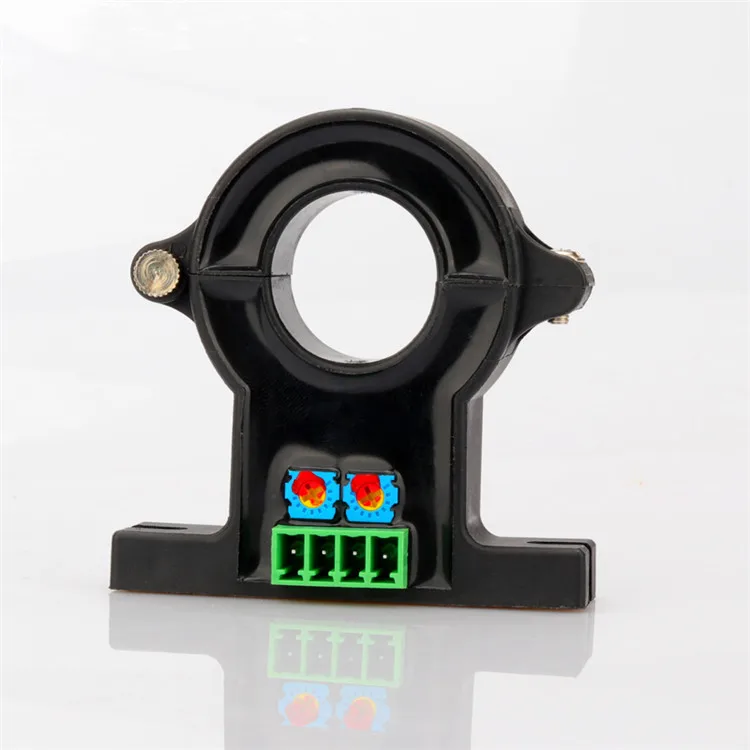

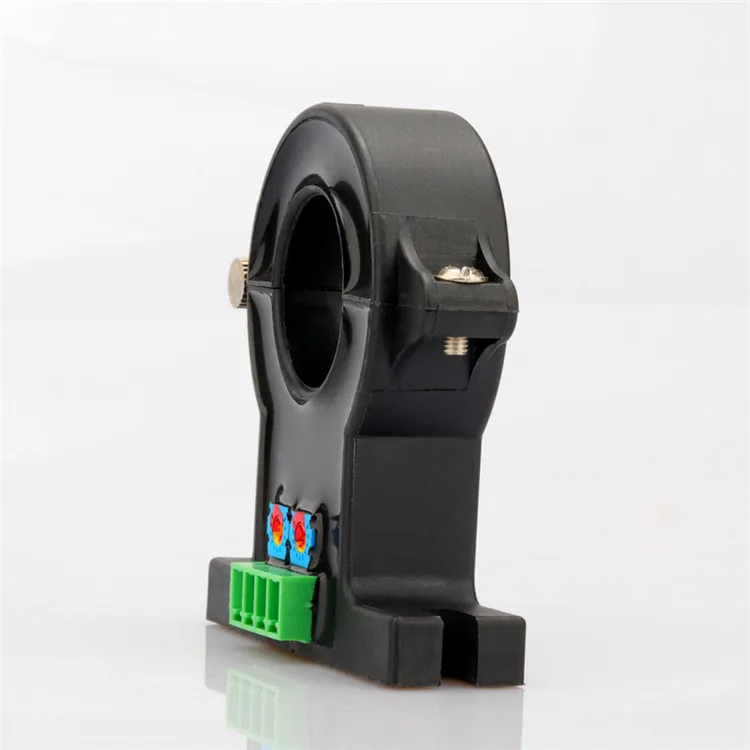

BSQ06CT series dismountable hall effect current Transmitter is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of AC or pulsed currents.

Hall Effect Sensor

Electrical data (Ta=25℃±5℃)

Type	BSQ06CT-100A	BSQ06CT-200A	BSQ06CT-300A	BSQ06CT-400A	BSQ06CT- 500A	Unit
(Ipn AC) Rated current(Ipn AC)	100	200	300	400	500	A
(Ip AC) Measure range(Ip AC)	0—200	0—400	0—600	0—800	0—1000	A
(Io DC) Rated output	@Ip=±Ipn AC 4~20±1%					mA
Supply voltage	+24V					V
Power Consumption	+35+ Io					mA
Zero current	@Ip=0 4±0.1					mA
Offset drift	@ -40~+85℃ ≤±0.005					mA /℃
Output drift	@ -40~+85℃ ≤±0.005					mA /℃
Linearity	@Ip=0-±Ipn≤1					%FS
Response time	≤200					ms
Galvanic isolation	@ 50HZ,AC,1min 2.5					KV
Bandwidth	20~20000					HZ

Applications

·Variable speed drives

·Welding machine

·Battery supplied applications

· Uninterruptible Power Supplies (UPS)

· Electrochemical

Mechanical dimension(for reference only)

Remarks:

1. All dimensions are in mm.

2. General tolerance ±1mm.

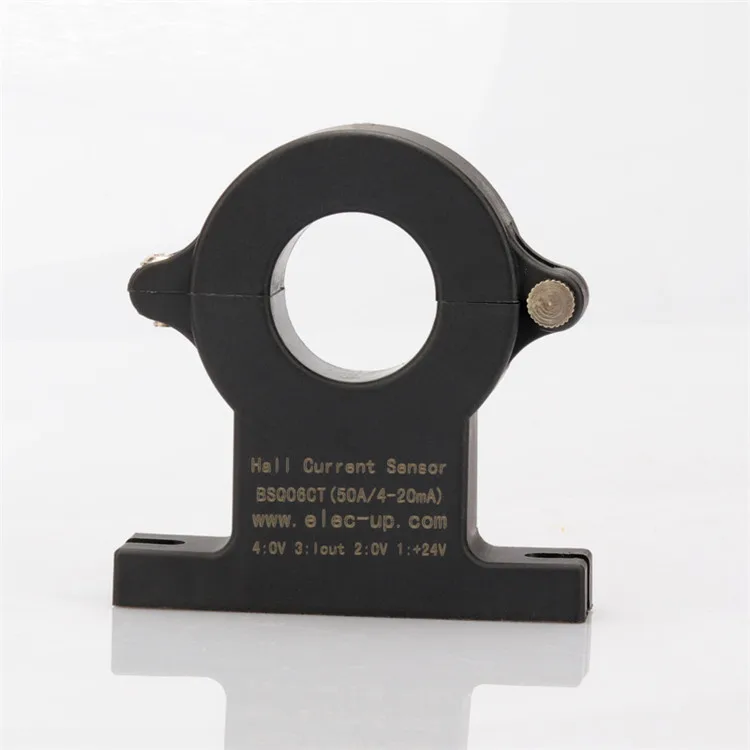

3. Elucidation: 1:+24V2: 0V3:I0UT4:0V

General date

	Value	Unit
(TA) Operating temperature	-40 to +85	℃
(TS) Storage temperature	-40 to +125	℃
(M) Mass(approx)	70	g

Hall effect current sensor split core transducer

Company Profile

Hall effect current sensor split core transducer

Certifications

Staff Style

Hall effect current sensor split core transducer

Packaging & Shipping

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

FAQ

1. Why choose us?
A: We are professional micro transformer manufacturer for more than 10 years.

2. Could I have a sample for testing?
A: Sure, we could offer free sample, but you need pay for the shipping expense.

3. How about your products quality inspection?
A: We have professional QA and QC teams, 100% quality inspection is performed before packing.

4. How long is your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

5. Do you provide OEM service?
A: Yes, we do provide OEM service and can print your own brand on product, and we also provide ODM service.

6. How about the after-sale service of your product?
A: We have 1 year warranty for every product, and our customer service team will provide 24*7 technical support and trouble shooting. We promise to provide free spare parts for customers replacing within warranty.
