Платформа для аэронной работы подъемный стол ножничный подъемник мини-автотележка на гусеничном ходу маленький гидравлический самоходный
- Категория: Lift Tables >>>
- Поставщик: Jinan,Start,Lift,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 5355.2 $* | 5623.14 $* |
| Aug-20-2025 | 5310.33 $* | 5576.64 $* |
| Jul-20-2025 | 4455.45 $* | 4678.76 $* |
| Jun-20-2025 | 5220.44 $* | 5481.3 $* |
| May-20-2025 | 4545.46 $* | 4772.35 $* |
| Apr-20-2025 | 5130.3 $* | 5387.79 $* |
| Mar-20-2025 | 5085.91 $* | 5339.34 $* |
| Feb-20-2025 | 5040.78 $* | 5292.34 $* |
| Jan-20-2025 | 4995.21 $* | 5245.17 $* |
Характеристики
China price Sale aerial work platform scissor lift Platform table mini auto crawler scissor lift machine trolley small hydraulic Self Propelled electric scissor lift
scissor lift Platform table mini auto crawler scissor lift machine trolley small hydraulic Self Propelled electric scissor lift![banner 01.jpg]()
Product Description
High Quality 18ft 10in 21ft 25ft Aerial work platform Lift Scissor Lift
Scissor lift is driven by battery power, elelctric hydraulic system, no pollution and noise. Suitable used for aerial installation & maintenance of the working sites without power supply and with smooth working grounds, such as hotels, grand hall, sport stadium, large factory, workshops, warehouse.
Working heights: ranging from 4m,6m,8m,10m,12m,14m,
Products Details
Model | ZT-05 | ZT-06 | ZT-8A | ZT-8 | ZT-10 | ZT-12 | ZT-14 |
Max working height | 7m | 8m | 10m | 10m | 12m | 13.8m | 15.8m |
Max platform height | 5m | 6m | 8m | 8m | 10m | 11.8m | 13.8m |
Loading capacity | 230kgs | 380kgs | 230kgs | 450kgs | 320kgs | 320kgs | 227kgs |
Turning radius (outer wheel) | 1.64m | 1.64m | 0/3.1m | 0/2.2m | 0/2.2m | 0/2.2m | 0/2.7m |
Platform extend length | 0.9m | ||||||
Lifting speed | 3-5m/min | ||||||
Drive speed (Folded) | 3.5km/h | ||||||
Drive speed (unfold) | 0.8km/h | ||||||
Charger | 24V/30A | ||||||
Power | 24V/4.5Kw | ||||||
Battery | 4*6V/225Ah | ||||||
Max.Climb | 25% | ||||||
Platform size(M): | 1.67*0.74*1.1 | 2.26*0.81*1.1 | 2.26*0.81*1.1 | 2.26*1.13*1.1 | 2.26*1.13*1.1 | 2.26*1.13*1.1 | 2.64*1.13*1.1 |
Overall dimensions(M): | 1.86*0.76*2.08 | 1.86*0.76*2.18 | 2.475*0.81*2.29 | 2.475*1.15*2.29 | 2.475*1.15*2.41 | 2.475*1.15*2.54 | 2.84*1.39*2.59 |
Total weight: | 1361kg | 1435kg | 1980kg | 2190kg | 2430kg | 2960kg | 3320kg |
Safety Precautions:
1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
3. Emergency decline valve: it can go down when you meet an emergency or the power off. 4. Anti-dropping device: Prevent falling of platform

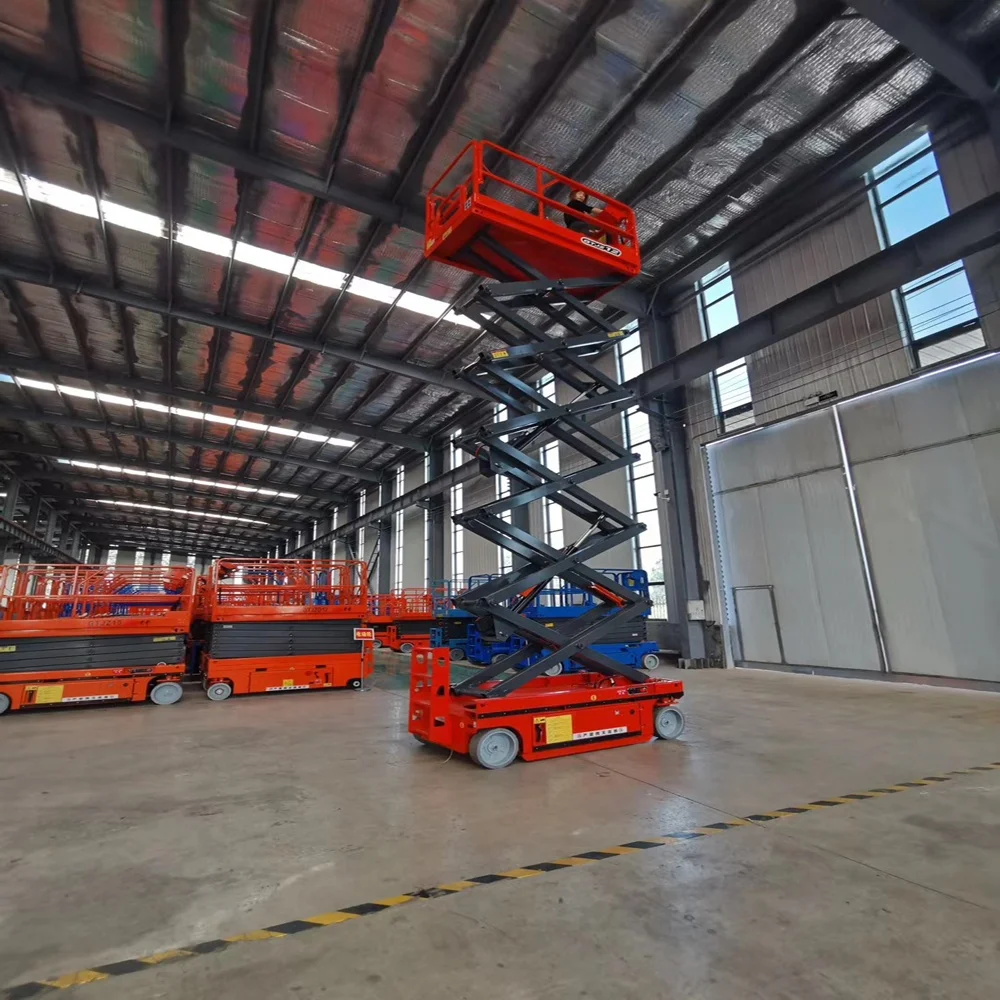

Application Case
Packaging & Shipping
Company Information
Start Lift is a leading enterprise of aerial working platform in China , a land area of more than 300 acres and a building area of up to 160, 000m2. For the creation of high-end equipment, the Company has been devoted to the research and development, manufacturing, sales and service of various aerial working platforms, with 6 series and more than 80 models
Start Lift Mainly products are :Home Villa Elevator,Stationary Scissor Lift, Mobile Self Propelled scissor work platform, car park lift, cargo elevator,Aluminum-alloy mast lift, Four-post Car Lift, disable Wheelchair Lift, Vertical cargo Lift, Articulated boom lift, Hydraulic dock leveler and mobile container loading ramps etc .
Our Services
FAQ
