Высококачественный штырьковый провод iec standard iec61032 iec60335 для лабораторного контроля безопасности доступа к приборам стальной металлический тестовый жесткий
- Категория: Instrument Parts & Accessories >>>
- Поставщик: Shenzhen,Honas,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 333.70 $* | 350.57 $* |
| Aug-18-2025 | 330.37 $* | 347.60 $* |
| Jul-18-2025 | 277.52 $* | 291.97 $* |
| Jun-18-2025 | 325.56 $* | 341.92 $* |
| May-18-2025 | 283.33 $* | 297.77 $* |
| Apr-18-2025 | 319.51 $* | 335.29 $* |
| Mar-18-2025 | 316.51 $* | 332.23 $* |
| Feb-18-2025 | 314.43 $* | 330.84 $* |
| Jan-18-2025 | 311.13 $* | 327.49 $* |
Характеристики
Product Description
Standard test refers to meet the requirements of IEC 61032 & GB 16842 standards, used in the IP protection test to simulate the arm, mainly used for the test of the first characteristic number 2 of the IP protection level test and the additional letter B; in preventing approaching danger In the test requirements of the components, the B-type test probe needs to carry 10±3 N thrust;

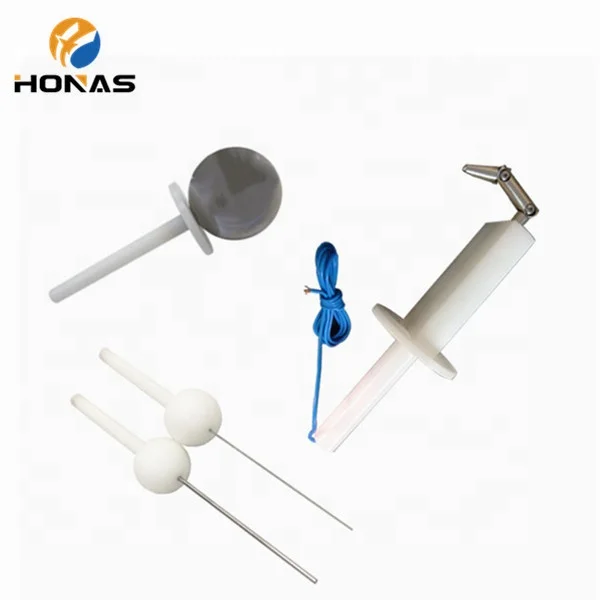

1. HNS-P1A Type A probe (test probe A)
Product Overview: In accordance with IEC61032 Figure 1 test tool A, GB16842 test tool A, GB4208IP1, IEC60529IP1, IEC60065 and other standards.
Protective test to prevent back contact.
● Can be customized with 50 ± 5N thrust.
2,HNS-P2B Type B probe (standard test finger B)
Product overview: in line with GB4706, GB2099, GB4943, GB4208IPX2, GB3883 Figure 1, IEC61032 Figure 2 test tool B, IEC950 Figure 2A, IEC60884, IEC60335, GB/T16842 test tool B, UL507, EN60529 Figure 1, UL1278 Figure 8.4 and other standards .
Protective test for preventing finger touch or electric shock proof.
● Can be customized with 10 ± 1N thrust.
3, HNS-P3C Type C probe (test probe C)
Product Overview: Comply with IEC61032 Figure 2 test fixture C, IEC60529IP3, GB4208IP3, GB/T16842 test fixture C, GB8898, IEC60065, IEC60598, GB7000 and other standards.
A protective test to prevent access by hand tools.
● Can be customized with 3 ± 0.3N thrust.
4,HNS-P4D Type D probe (test tool probe D)
Product Overview: Comply with IEC61032 Figure 4 test fixture D, IEC60529IP3, GB4208IP4, GB/T16842 test fixture D, GB8898, IEC60065, IEC60598, GB7000 and other standards. ,
Protective test to prevent hand-held wire touch.
Can be customized with 1 ± 0.1N thrust
31/32/41/43
1,Probe No. 31 (tester 31 probe)
Product Overview: In accordance with IEC61032 Figure 14 test tool 31, GB/T16842 test tool 31 requirements, used to test whether the dangerous mechanical parts of the grinding system of the residual food processing device are touched.
2,Probe No. 32 (testing tool 32 probes)
Product Overview: In accordance with IEC61032 Figure 15 test tool 32, GB/T16842 test tool 32 requirements, used to verify the role of the fan cover to prevent dangerous mechanical parts, with nylon handle.
3,Probe No. 41 (test probe)
Product Overview: In accordance with IEC61032 Figure 16 test tool 41, GB/T16842 test tool 41, IEC60335, GB4706, GB8898, IEC60065 and other standards, used to test that hot parts are touched.
4,Probe No. 43 (testing tool 43 probe)
Product overview: in accordance with IEC61032 Figure 17 test tool 43, GB/T16842 test tool 43 and other standard requirements for the inspection of fixed or portable visible heat
Product Overview: In accordance with IEC61032 Figure 1 test tool A, GB16842 test tool A, GB4208IP1, IEC60529IP1, IEC60065 and other standards.
Protective test to prevent back contact.
● Can be customized with 50 ± 5N thrust.
2,HNS-P2B Type B probe (standard test finger B)
Product overview: in line with GB4706, GB2099, GB4943, GB4208IPX2, GB3883 Figure 1, IEC61032 Figure 2 test tool B, IEC950 Figure 2A, IEC60884, IEC60335, GB/T16842 test tool B, UL507, EN60529 Figure 1, UL1278 Figure 8.4 and other standards .
Protective test for preventing finger touch or electric shock proof.
● Can be customized with 10 ± 1N thrust.
3, HNS-P3C Type C probe (test probe C)
Product Overview: Comply with IEC61032 Figure 2 test fixture C, IEC60529IP3, GB4208IP3, GB/T16842 test fixture C, GB8898, IEC60065, IEC60598, GB7000 and other standards.
A protective test to prevent access by hand tools.
● Can be customized with 3 ± 0.3N thrust.
4,HNS-P4D Type D probe (test tool probe D)
Product Overview: Comply with IEC61032 Figure 4 test fixture D, IEC60529IP3, GB4208IP4, GB/T16842 test fixture D, GB8898, IEC60065, IEC60598, GB7000 and other standards. ,
Protective test to prevent hand-held wire touch.
Can be customized with 1 ± 0.1N thrust
31/32/41/43
1,Probe No. 31 (tester 31 probe)
Product Overview: In accordance with IEC61032 Figure 14 test tool 31, GB/T16842 test tool 31 requirements, used to test whether the dangerous mechanical parts of the grinding system of the residual food processing device are touched.
2,Probe No. 32 (testing tool 32 probes)
Product Overview: In accordance with IEC61032 Figure 15 test tool 32, GB/T16842 test tool 32 requirements, used to verify the role of the fan cover to prevent dangerous mechanical parts, with nylon handle.
3,Probe No. 41 (test probe)
Product Overview: In accordance with IEC61032 Figure 16 test tool 41, GB/T16842 test tool 41, IEC60335, GB4706, GB8898, IEC60065 and other standards, used to test that hot parts are touched.
4,Probe No. 43 (testing tool 43 probe)
Product overview: in accordance with IEC61032 Figure 17 test tool 43, GB/T16842 test tool 43 and other standard requirements for the inspection of fixed or portable visible heat
Specification

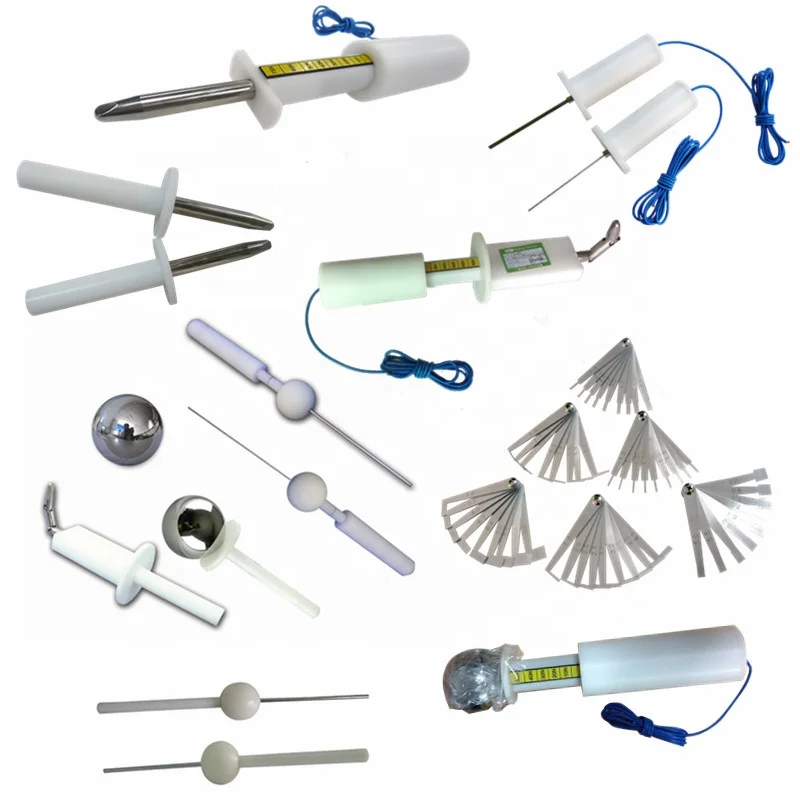

Probe | Clause | Parameter |
Test probe A | IEC61032 figure 1 GB/T16842 figure1 | Φ50 steel ball, Φ45×4 baffle, Φ10 handle |
Test probe B | IEC61032 figure 2 GB/T16842 figure2 | Also known as joint test finger, Φ12×60 joint steel rod, Φ50 flat block, Φ75 baffle |
Test probe C | IEC61032 figure3 GB/T16842 figure3 | Φ2.5×100 steel needle, Φ35 ball, Φ10 handle |
test probe D | IEC61032 figure 4 GB/T16842 figure4 | Φ1×100 steel needle, Φ35 ball, Φ10 handle |
test steel ball 1 | IEC61032 figure5 GB/T16842 figure5 | Φ50 steel ball, positive tolerance |
test steel ball 2 | IEC61032 figure6 GB/T16842 figure6 | Φ12.5 steel ball, positive tolerance |
test probe 11 | IEC61032 figure7 GB/T16842 figure7 | Φ12 jointless probe, Φ50×5 baffle |
test probe 12 | IEC61032 figure 8 GB/T16842 figure8 | Φ4×50 probe, Φ25×4 baffle, Φ10 handle |
test pin 13 | IEC61032 figure9 GB/T16842figure9 | Φ3-4 tapered probe, Φ25×4 baffle, Φ10 handle |
Test square probe 14 | IEC61032figure10 GB/T16842 figure10 | 3×1×80 square rod |
test round bar probe 17 | IEC61032 figure11 GB/T16842 figure11 | Φ0.5 steel needle |
children probe 18 | IEC61032 figure12 GB/T16842 figure12 | Φ8.6 joint curved finger, Φ38.4×101.6+Φ38.1×451.6 |
children probe 19 | IEC61032 figure13 GB/T16842 figure13 | Φ5.6 joint curved finger, Φ25.9×101.6+Φ25.4×454.3 |

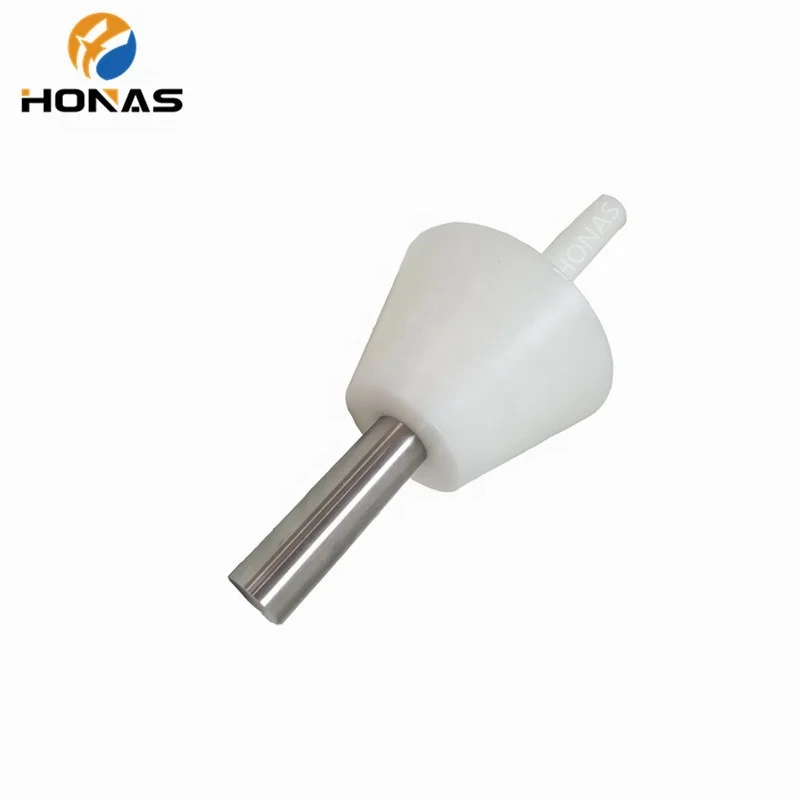

probe 31 | IEC61032 figure14 GB/T16842 figure14 | Φ25 probe, Φ60-110 baffle |
probe 32 | IEC61032 figure15 GB/T16842 figure15 | Φ25 probe |
probe 41 | IEC61032 figure16 GB/T16842 figure16 | Φ30×21.5 pointed cone rod 80 long +Φ50×80 rod |
probe 43 | IEC61032 figure17 GB/T16842 figure17 | 5×50 square bar |
Test finger nail | IEC60335 figure7 GB4706.1 figure7 | See IEC60335-1figure7 |
125mm test finger | IEC60335-2-14 | Φ12 probe, Φ50+Φ75 baffle |
Round standard probe | IEC60335 figure7 GB4706.1 figure7 | Φ12 joint probe, Φ60-110 baffle |
Test probe with force | IEC60335figure7 GB4706.1 figure7 | Φ12 jointless probe, Φ50×5 baffle |
12mm sphere test probe | IEC60950figure 2C | Φ12 hemisphere probe, Φ50 baffle |
Force jointed probe | IEC60335 figure7 GB4706.1 figure7 | Φ12×60 joint steel rod, Φ50 flat block, Φ75 baffle |
40mm sphere probe | IEC60335-2-14 | Φ40×50 hemisphere probe |
75mm sphere probe | GB17988 | Φ75×50 hemisphere probe |
