YTGEEMeet 61851 Tuv 32a 230 В настенное зарядное устройство для домашнего электромобиля с разъемом типа
- Категория: Wall-mounted Charging Stations >>>
- Поставщик: Shenzhen,Ytgee,Technology,Co.,ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 309.51 $* | 324.6 $* |
| Aug-17-2025 | 307.41 $* | 322.99 $* |
| Jul-17-2025 | 257.45 $* | 270.50 $* |
| Jun-17-2025 | 302.72 $* | 317.21 $* |
| May-17-2025 | 263.42 $* | 276.74 $* |
| Apr-17-2025 | 296.19 $* | 311.36 $* |
| Mar-17-2025 | 294.67 $* | 309.32 $* |
| Feb-17-2025 | 291.10 $* | 306.32 $* |
| Jan-17-2025 | 289.58 $* | 303.4 $* |
Характеристики
Related Products
Specification

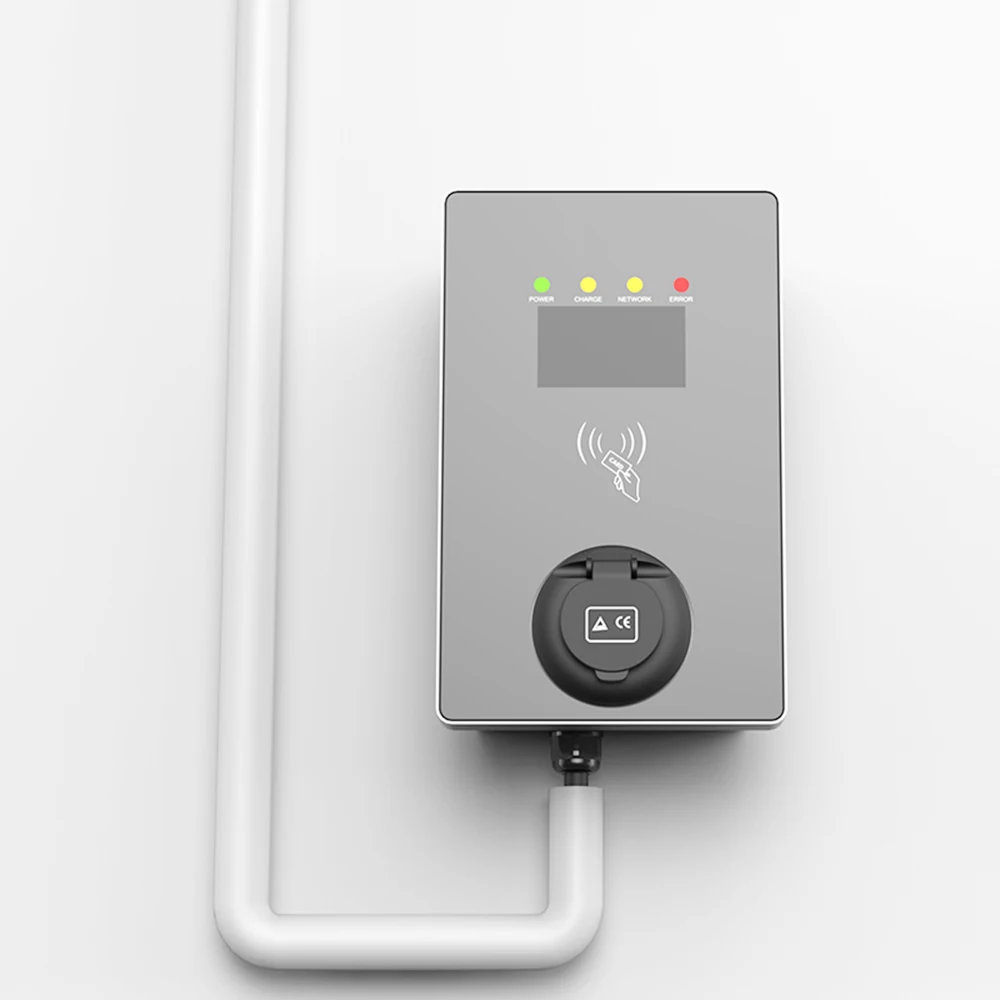

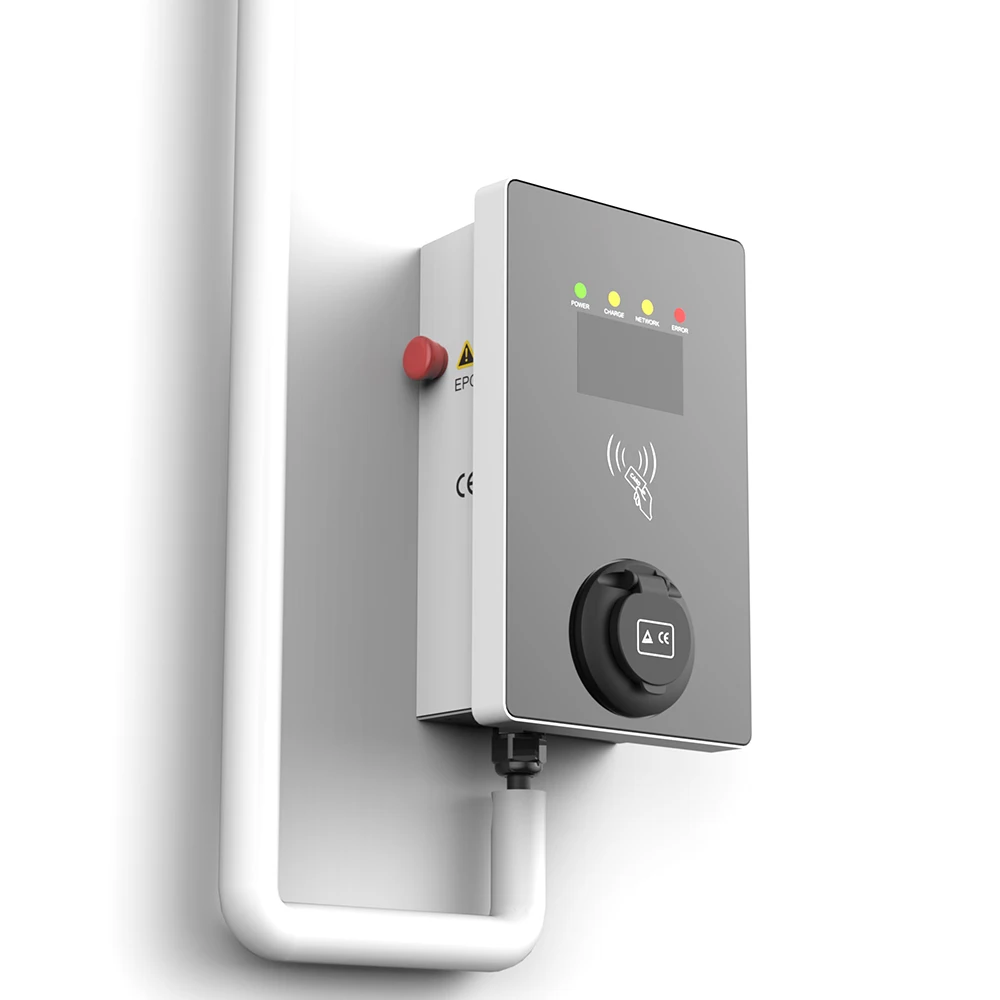

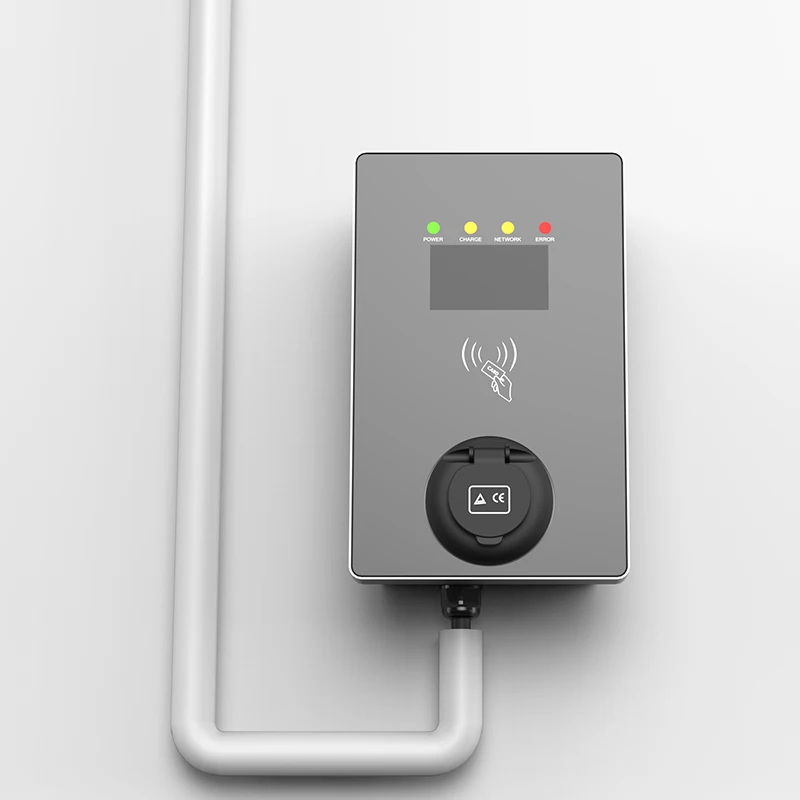

YTGEE Meet 61851 Tuv 32a 230v Wall Mount Home Ev Car Charger With Type 2 Ev Plug
Product Features
* Adopt module design,communication module is pluggable and optional,easy to maintain;
* Support communication with remote management platform to achieve remote control;
* Support mobile scan code and swipe card for charging,can read user card information;
* Complete protection,Operate safely:Over/under voltage protection,overload protection, short circuit protection,leakage protection,ground protection,lightning protection.
* User friendly:4.3” display screen，Real-time display of device status, operational data (voltage, current, power, charge level and time) and fault information.
* Support communication with remote management platform to achieve remote control;
* Support mobile scan code and swipe card for charging,can read user card information;
* Complete protection,Operate safely:Over/under voltage protection,overload protection, short circuit protection,leakage protection,ground protection,lightning protection.
* User friendly:4.3” display screen，Real-time display of device status, operational data (voltage, current, power, charge level and time) and fault information.
Product Name | 3.2/7KW Single phase Type 2 AC ev charger charging pile |
Model No. | YTG-EC7KW (Type 2 CE Approval) |
Display Screen | 4.3”color display screen |
Swipe Card | Support NXP Mifare1 Card |
Metering | Chip metering/Meter measurement |
Charging Method | Swipe card ,Scan code,Plug&Play |
Product Size（mm） | 450*260*130( L*W*H )mm |
LED indicator | Led indicator in red:warning,blue: charging,green:full charging. |
Outlook color | Silver and black |
Charging interface | Type2 socket/type 2 gun with 3.5M cable(cable length can be customized) |
Communication | Ethernet |

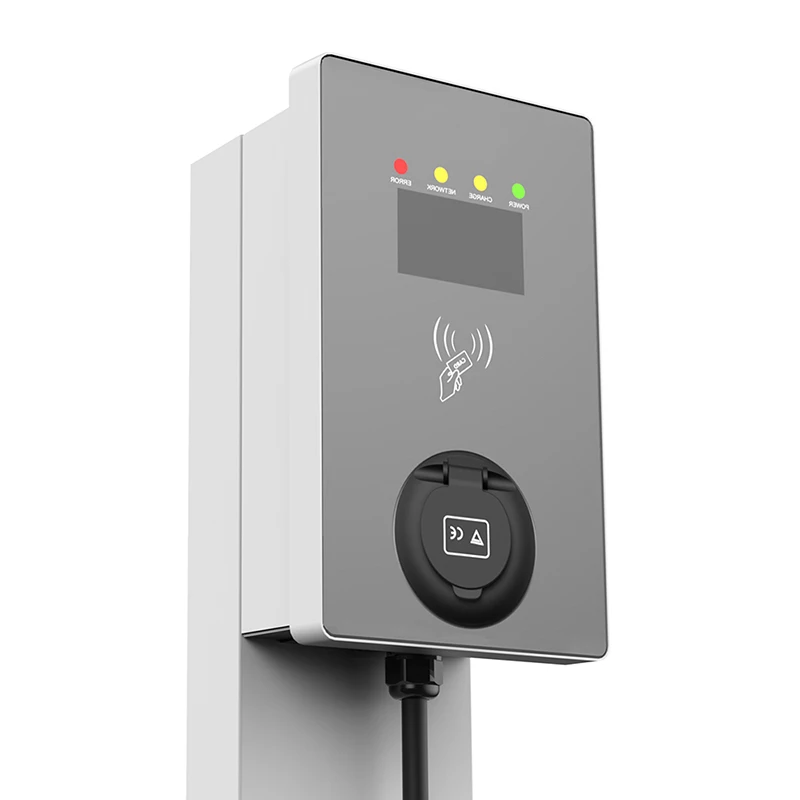

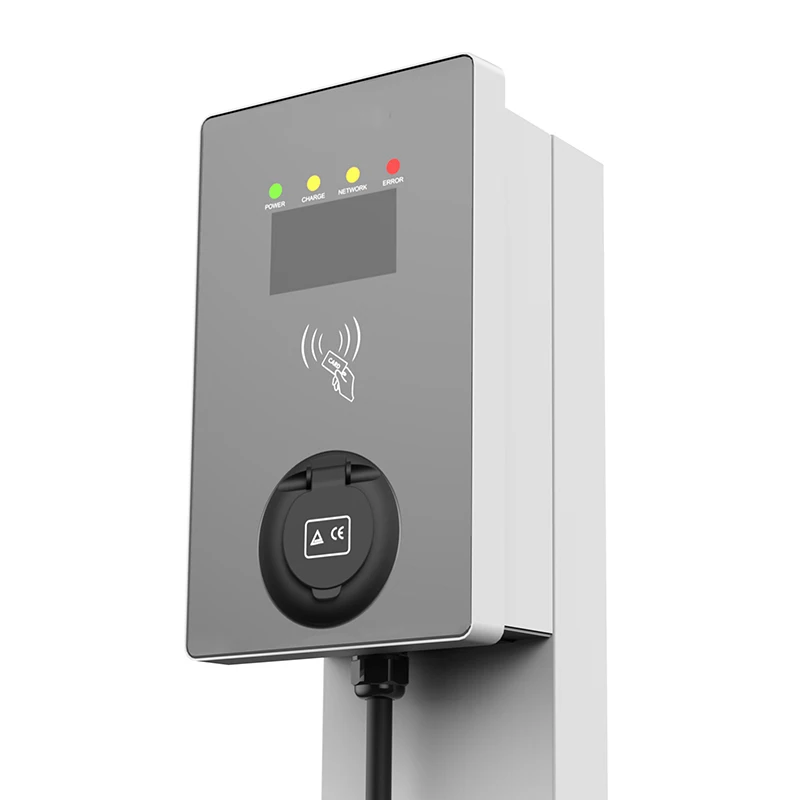

Installation methods | Wall-mounting/Floor standing pile |
Product Weight | Net weight:5.0kgs,Gross weight:6.2kgs |
Input Voltage | AC230V 50Hz |
Max.Power | 7KW |
Output Voltage | 230V |
Output Current | 32A |
Application | Indoor /outdoor |
Working Temperature | -30℃ ~ +55℃ |
Working Humidity | 5% ~ 95% no condensation |
Working Altitude | <2000m |
IP Grade | IP54 |
Cooling method | natural cooling |
Standards | IEC 61851-1:2011,IEC 61851-22:2002,IEC 62196-2 |
MTBF | 100,000hours |
Protection functions | Over/Under voltage protection, over current protection, short circuit protection,ground protection,Lightning protection,emergency stop protection, leakage protection. |
Other functions | Remote Control,Update Software,Mobile Payment,Export Records. |
Warranty(Month) | 12months |
