Интеллектуальные автомобильные зарядные сваи YTGEE 15 кВт Ccs Dc Ev станции Электрические Аккумуляторы для транспортных средств производители зарядных
- Категория: Wall-mounted Charging Stations >>>
- Поставщик: Shenzhen,Ytgee,Technology,Co.,ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 345.29 $* | 362.46 $* |
| Aug-18-2025 | 342.85 $* | 359.46 $* |
| Jul-18-2025 | 287.80 $* | 301.87 $* |
| Jun-18-2025 | 336.40 $* | 353.28 $* |
| May-18-2025 | 293.58 $* | 308.70 $* |
| Apr-18-2025 | 331.26 $* | 348.98 $* |
| Mar-18-2025 | 328.94 $* | 344.83 $* |
| Feb-18-2025 | 325.87 $* | 341.54 $* |
| Jan-18-2025 | 322.95 $* | 338.94 $* |
Характеристики
Related Products
Product Description

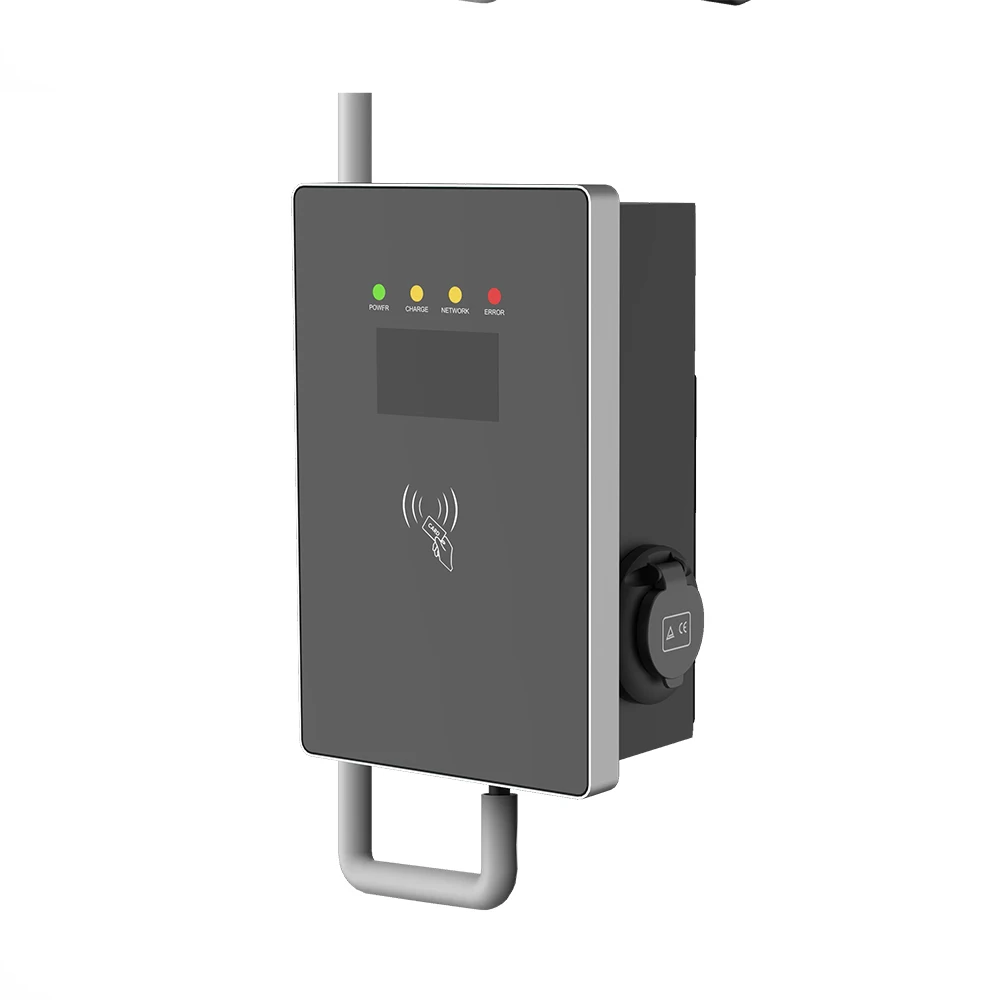

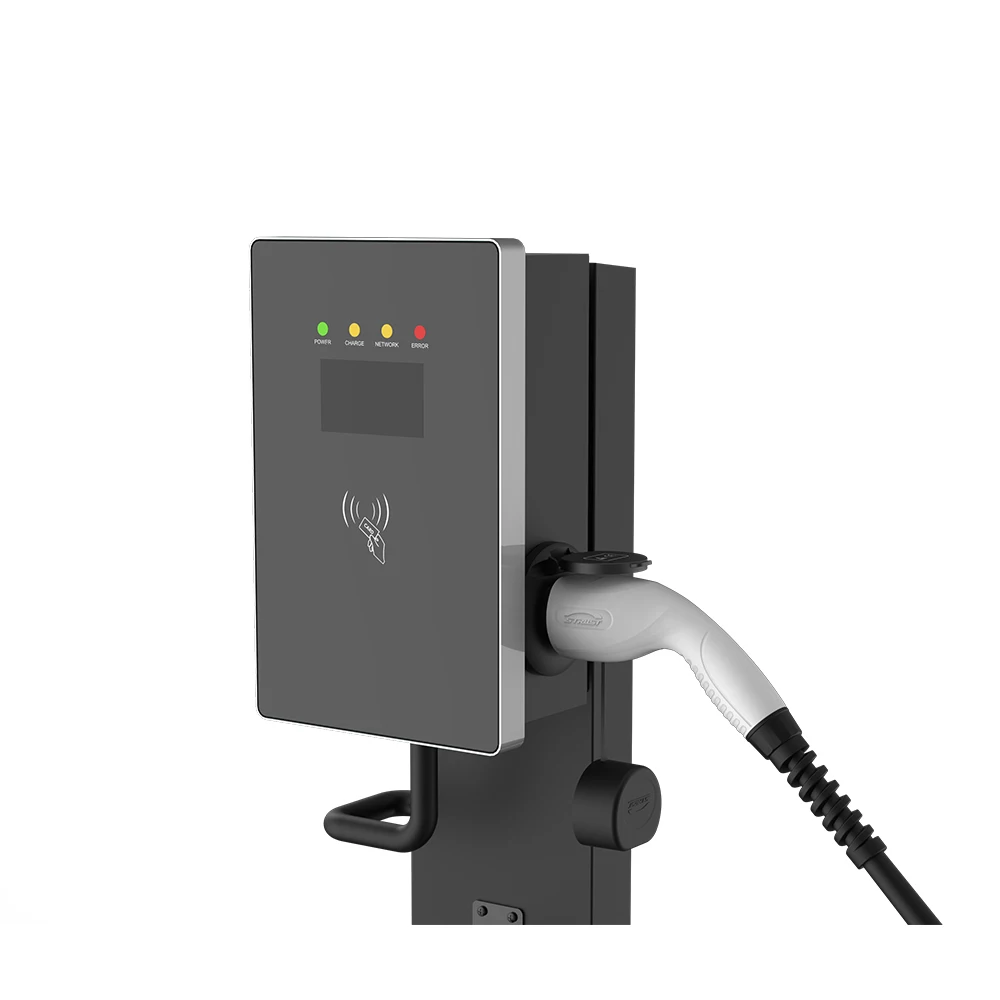

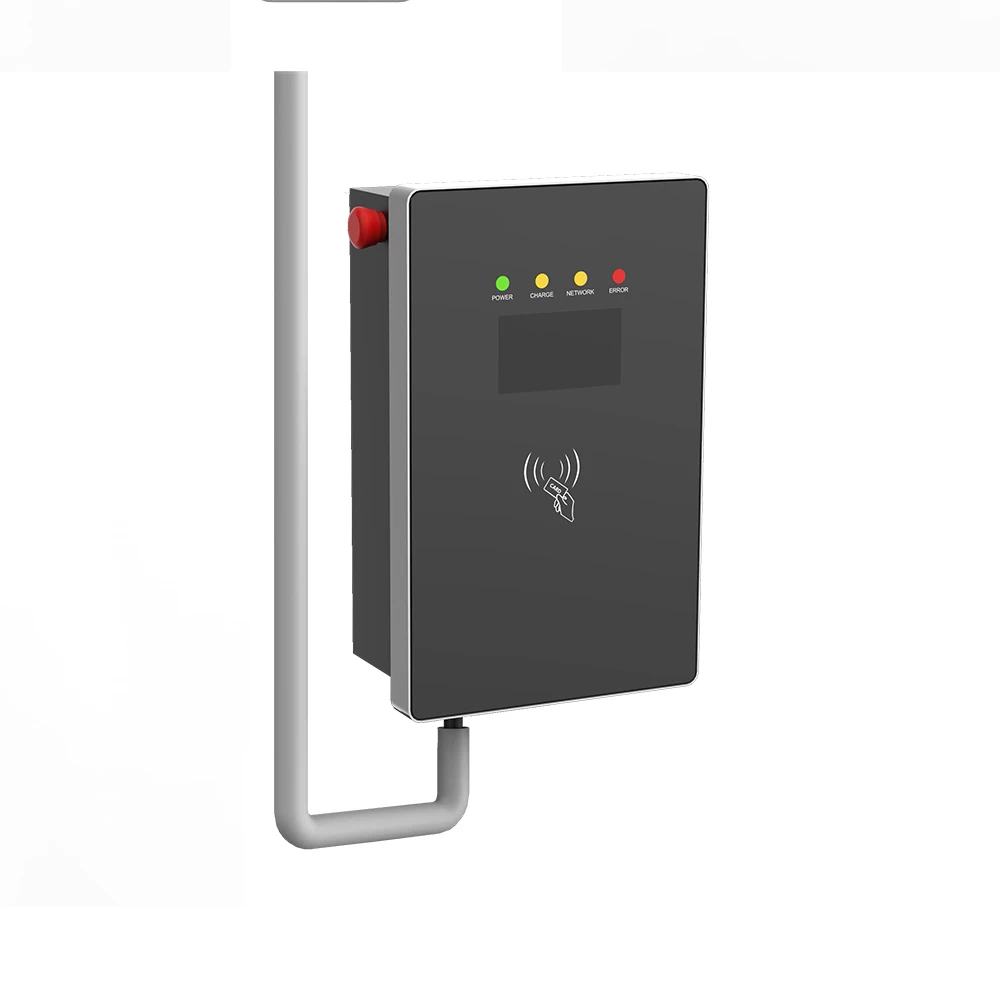

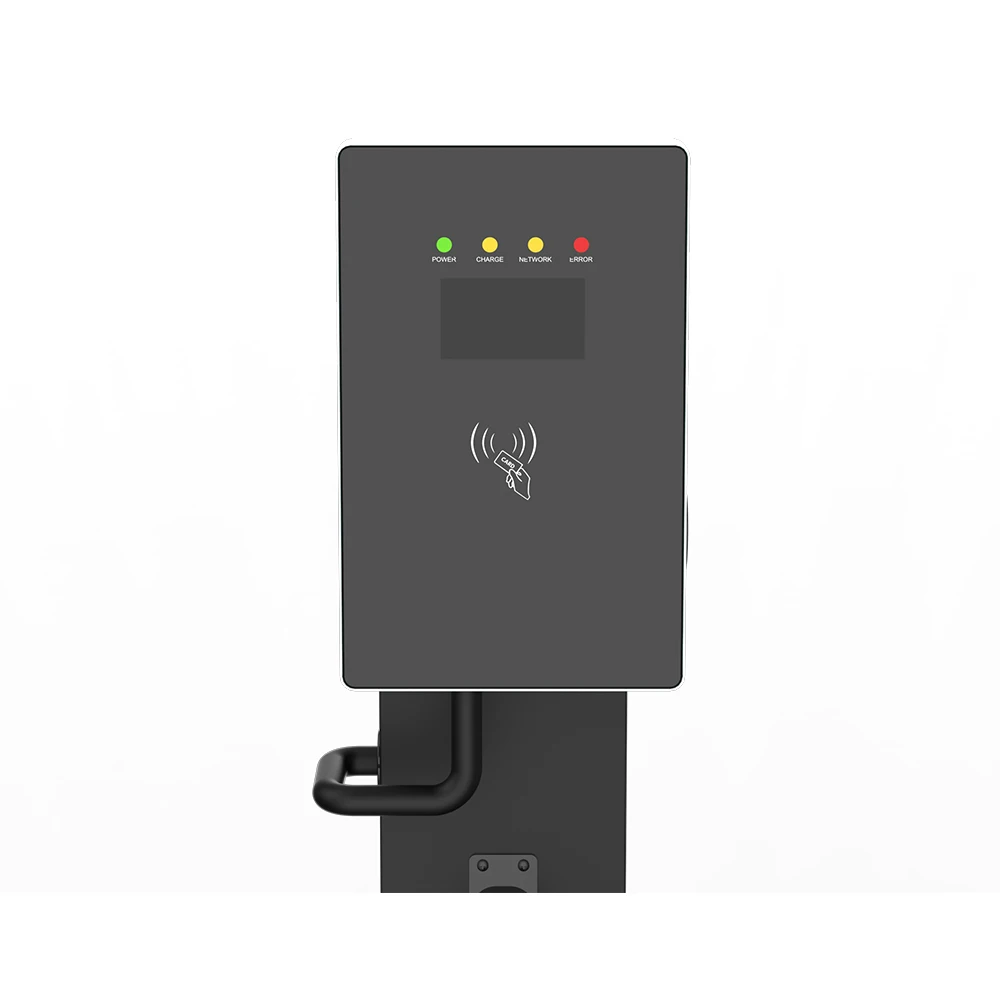

YTGEE Intelligent Car Charging Piles 15kw Ccs Dc Ev Stations Electric Vehicle Battery Ev Charger Manufacturers
Product Features
* Adopt module design,communication module is pluggable and optional,easy to maintain;
* Support communication with remote management platform to achieve remote control;
* Support mobile scan code and swipe card for charging,can read user card information;
* Complete protection,Operate safely:Over/under voltage protection,overload protection, short circuit protection,leakage protection,ground protection,lightning protection.
* User friendly:4.3” display screen，Real-time display of device status, operational data (voltage, current, power, charge level and time) and fault information.
* Support communication with remote management platform to achieve remote control;
* Support mobile scan code and swipe card for charging,can read user card information;
* Complete protection,Operate safely:Over/under voltage protection,overload protection, short circuit protection,leakage protection,ground protection,lightning protection.
* User friendly:4.3” display screen，Real-time display of device status, operational data (voltage, current, power, charge level and time) and fault information.
Specification
Product Name | 22KW 3 phase Type 2 AC ev charger charging pile |
Model No. | YTG-EC22K (Type 2 CE Approval) |
Display Screen | 4.3”color display screen |
Swipe Card | Support NXP Mifare1 Card |
Metering | Chip metering/Meter measurement |
Charging Method | Swipe card 、Scan code |
Product Size（mm） | 450*260*130( L*W*H )mm |
LED indicator | Led indicator in red:warning,blue: charging,green:full charging. |
Outlook color | Silver and black |
Charging interface | Type2 socket/type 2 gun with 3.5M cable(cable length can be customized) |
Communication | Ethernet |
Installation methods | Wall-mounting/Floor standing pile |
Product Weight | Net weight:5.0kgs,Gross weight:6.2kgs |
Input Voltage | AC380V 50Hz |
Max.Power | 22KW |
Output Voltage | 380V |
Output Current | 32A |
Application | Indoor /outdoor |
Working Temperature | -30℃ ~ +55℃ |
Working Humidity | 5% ~ 95% no condensation |
Working Altitude | <2000m |
IP Grade | IP54 |
Cooling method | natural cooling |
Standards | IEC 61851-1:2011,IEC 61851-22:2002,IEC 62196-2 |
MTBF | 100,000hours |
Protection functions | Over/Under voltage protection, over current protection, short circuit protection,ground protection,Lightning protection,emergency stop protection, leakage protection. |
Other functions | Remote Control,Update Software,Mobile Payment,Export Records. |
Warranty(Month) | 12months |
Company Profile
Our Advantage
Our Certificate
Packing & Shipping
FAQ
Q1: Is it available for samples?
A: yes, of course.
Q2: Is it Safe for Operate?
A: Yes, Our products are complete protection with 7 protections:Over/under voltage protection,overload protection, short circuit protection,leakage protection,ground protection,lightning protection.Users can operate easily and safe with our installing and using guide.
A: yes, of course.
Q2: Is it Safe for Operate?
A: Yes, Our products are complete protection with 7 protections:Over/under voltage protection,overload protection, short circuit protection,leakage protection,ground protection,lightning protection.Users can operate easily and safe with our installing and using guide.
Q3: Is Custom Logo available?
A: Yes.Custom logo and package are welcome.
A: Yes.Custom logo and package are welcome.
Q4: What is the lead time?
A: Sample and small quantity: 5-7days; large order: 15-20days; according to quantity.
A: Sample and small quantity: 5-7days; large order: 15-20days; according to quantity.
Q5: What is your MOQ?
A: 1pc.Few quantity are lowest cost and best way to test product quality and supplier ‘s service.
A: 1pc.Few quantity are lowest cost and best way to test product quality and supplier ‘s service.
