IC переключатель QUAD SPST 16SSOP RoHS MAX4661CAE
- Категория: Switches >>>
- Поставщик: Shenzhen,THJ,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.18 $* | 0.56 $* |
| Aug-20-2025 | 0.57 $* | 0.89 $* |
| Jul-20-2025 | 0.73 $* | 0.79 $* |
| Jun-20-2025 | 0.39 $* | 0.98 $* |
| May-20-2025 | 0.95 $* | 0.99 $* |
| Apr-20-2025 | 0.45 $* | 0.3 $* |
| Mar-20-2025 | 0.14 $* | 0.66 $* |
| Feb-20-2025 | 0.84 $* | 0.79 $* |
| Jan-20-2025 | 0.58 $* | 0.13 $* |
Характеристики
Product Paramenters
Part Number | MAX4661CAE+ |
Minimum Quantity | 1 |
Description | IC SWITCH QUAD SPST 16SSOP |
Category | Electronic Components, Accessories & Telecommunications>>Integrated Circuits |
Minimum Quantity | 1 |
Packaging | Tube |
Series | - |
Switch Circuit | SPST - NC |
Multiplexer/Demultiplexer Circuit | 1 |
Number of Circuits | 4 |
On-State Resistance (Max) | 2.5 Ohm |
Channel-to-Channel Matching (ΔRon) | 100 mOhm |
Voltage - Supply, Single (V+) | 4.5 V ~ 36 V |
Voltage - Supply, Dual (V±) | ±4.5 V ~ 20 V |
Switch Time (Ton, Toff) (Max) | 275ns, 175ns |
-3db Bandwidth | - |
Charge Injection | 300pC |
Channel Capacitance (CS(off), CD(off)) | 55pF, 55pF |
Current - Leakage (IS(off)) (Max) | 500pA |
Crosstalk | -59dB @ 1MHz |
Operating Temperature | 0°C ~ 70°C (TA) |

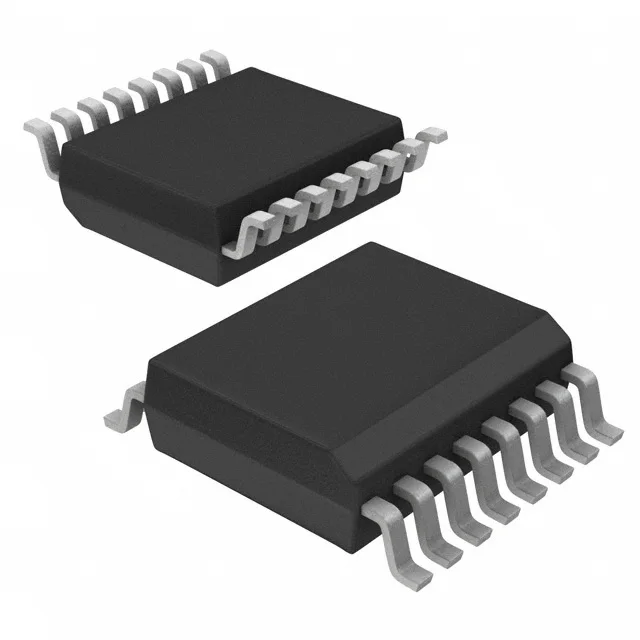

Package / Case | 16-SSOP (0.209", 5.30mm Width) |
Supplier Device Package | 16-SSOP |
Specification:
1. Best service
2. Good quality
3. Competitive price
4. Sufficient supply
5. New and Original
