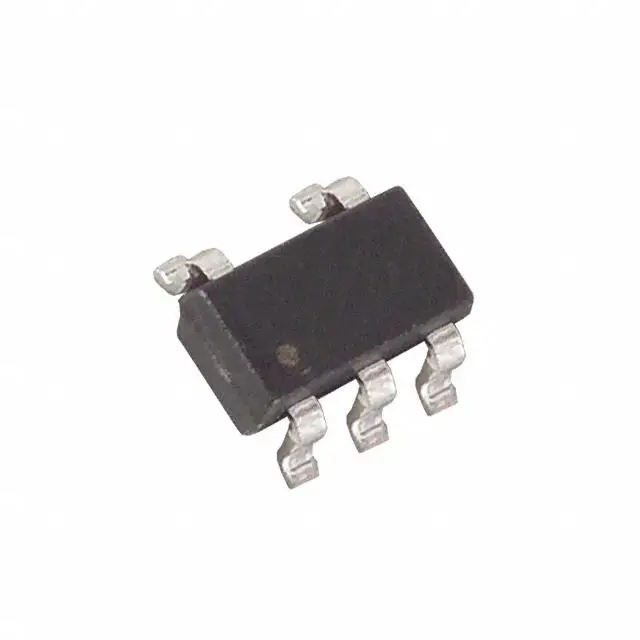

IC аналоговый переключатель SPST SOT23-5 RoHS MAX4568EUK +
- Категория: Switches >>>
- Поставщик: Shenzhen,THJ,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.32 $* | 0.6 $* |
| Aug-19-2025 | 0.98 $* | 0.97 $* |
| Jul-19-2025 | 0.84 $* | 0.85 $* |
| Jun-19-2025 | 0.47 $* | 0.76 $* |
| May-19-2025 | 0.16 $* | 0.18 $* |
| Apr-19-2025 | 0.34 $* | 0.48 $* |
| Mar-19-2025 | 0.26 $* | 0.88 $* |
| Feb-19-2025 | 0.63 $* | 0.7 $* |
| Jan-19-2025 | 0.30 $* | 0.44 $* |
Характеристики
Product Paramenters
Part Number | MAX4568EUK+T |
Minimum Quantity | 2500 |
Description | IC ANALOG SWITCH SPST SOT23-5 |
Category | Electronic Components, Accessories & Telecommunications>>Integrated Circuits |
Minimum Quantity | 2500 |
Packaging | Tape & Reel (TR) |
Series | - |
Switch Circuit | SPST - NO |
Multiplexer/Demultiplexer Circuit | 1 |
Number of Circuits | 1 |
On-State Resistance (Max) | 70 Ohm |
Channel-to-Channel Matching (ΔRon) | 500 mOhm |
Voltage - Supply, Single (V+) | 1.8 V ~ 12 V |
Voltage - Supply, Dual (V±) | - |
Switch Time (Ton, Toff) (Max) | 150ns, 80ns |
-3db Bandwidth | - |
Charge Injection | 6pC |
Channel Capacitance (CS(off), CD(off)) | 20pF, 12pF |
Current - Leakage (IS(off)) (Max) | 500pA |
Crosstalk | - |
Operating Temperature | -40°C ~ 85°C (TA) |
Package / Case | SC-74A, SOT-753 |
Supplier Device Package | SOT-23-5 |
Specification:
1. Best service
2. Good quality
3. Competitive price
4. Sufficient supply
5. New and Original
