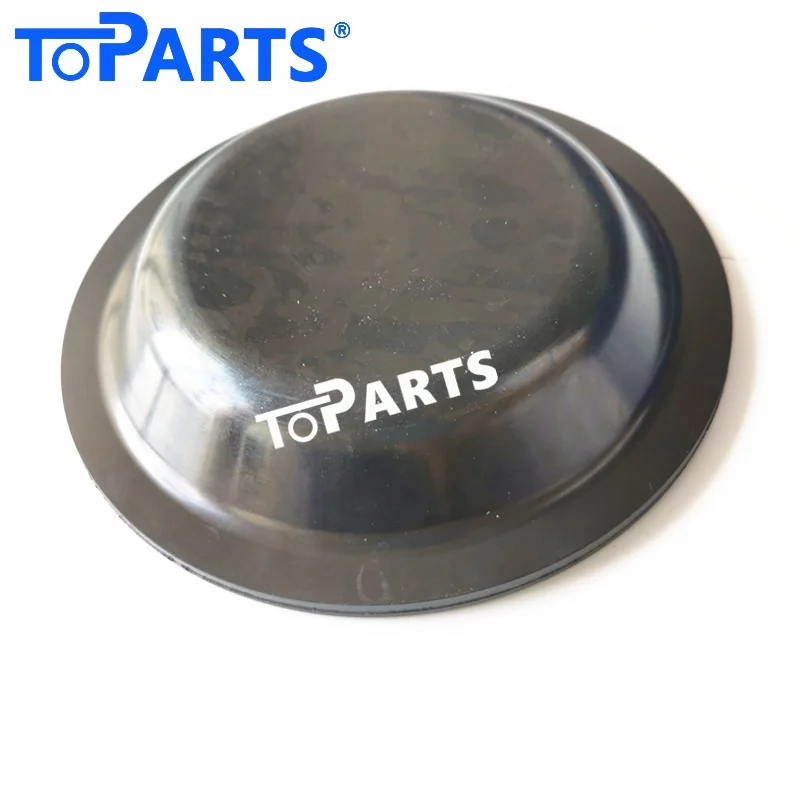

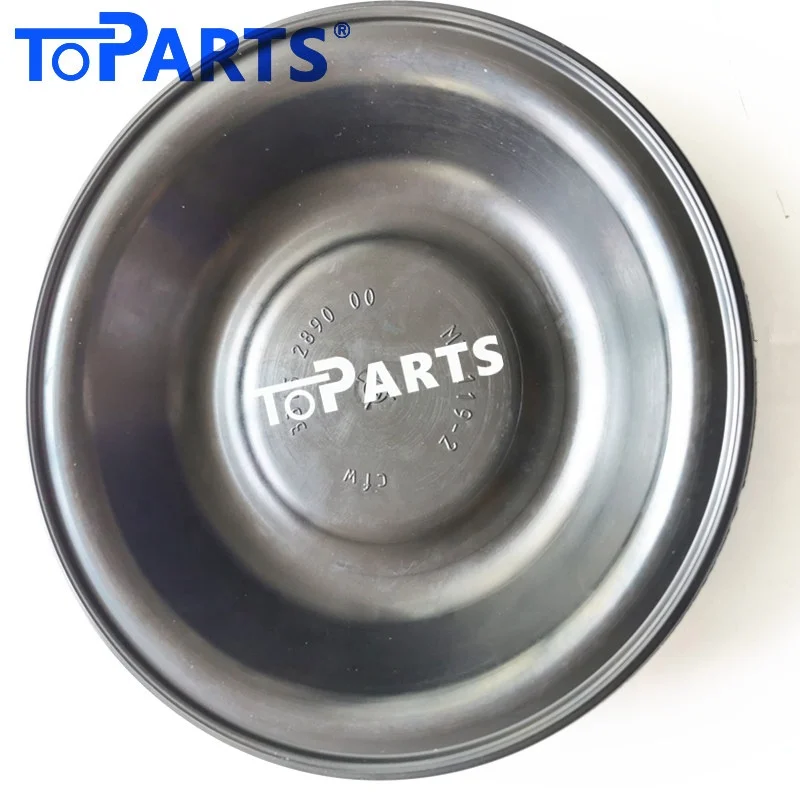

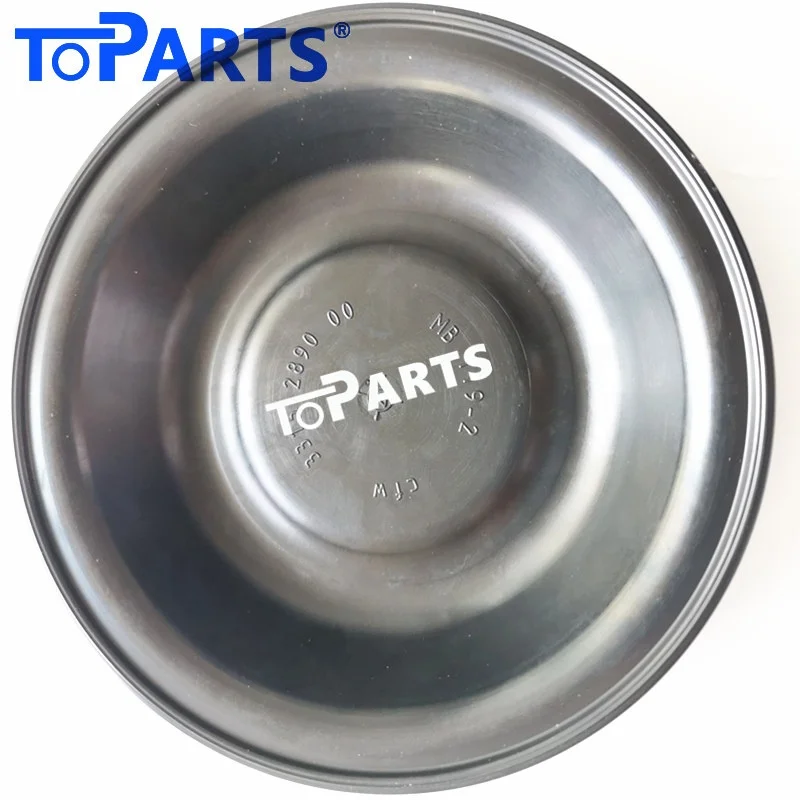

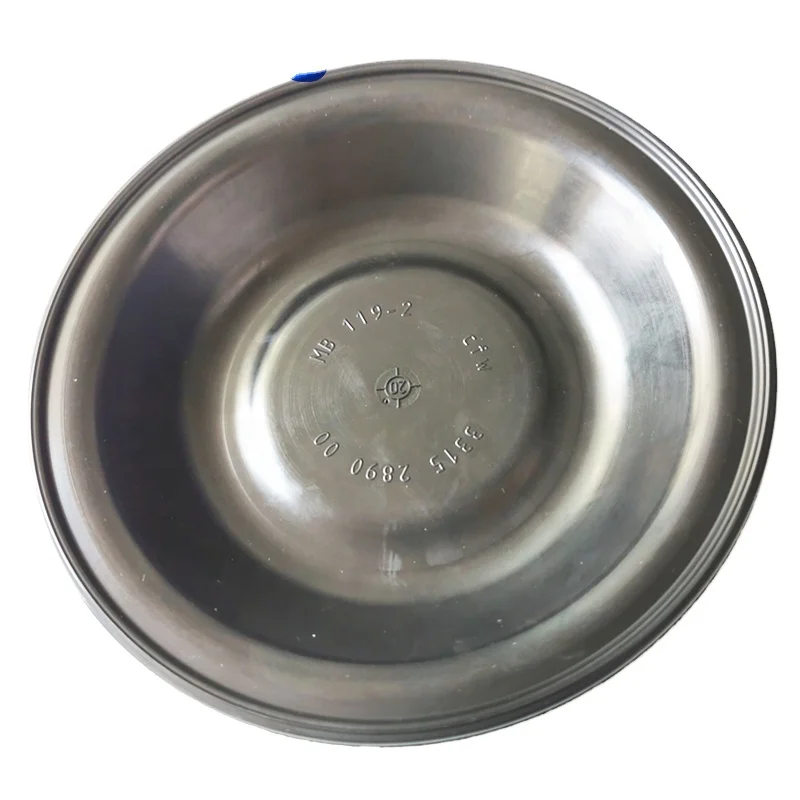

3315289000 SB202 SB200 гидравлическая диафрагма 3315 2890 00
- Категория: Hydraulic Breakers >>>
- Поставщик: Guangzhou,Toparts,Mechanical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.82 $* | 0.73 $* |
| Aug-19-2025 | 0.80 $* | 0.24 $* |
| Jul-19-2025 | 0.62 $* | 0.99 $* |
| Jun-19-2025 | 0.16 $* | 0.49 $* |
| May-19-2025 | 0.33 $* | 0.35 $* |
| Apr-19-2025 | 0.69 $* | 0.88 $* |
| Mar-19-2025 | 0.20 $* | 0.45 $* |
| Feb-19-2025 | 0.79 $* | 0.22 $* |
| Jan-19-2025 | 0.15 $* | 0.53 $* |
Характеристики
Product information | |
Part Name | Breaker Hammer Diaphragm Membrane |
Brand | TOPARTS |
Certification | ISO9001 |
Model | SB202,SB200 |
Size | Standard Size or Custom Size |
Color | Black And More |
Materials | HNBR |
Hardness | 70degree-85degree |
Pressure | 85~125Mpa |
Temperature | -35~135°C |
Feature | Oil-resistant, heat resistant,Durable |
Application | Montabert Breaker Hammer |
MOQ | 1 sets |
Packing | PP bag, Carton, Wooden Case, or as Required |
Related brands | KRUPP,ATLAS,COPCO,NPK,FURUKAWA,TOKU,JACTY,MSB,SOOSAN ,DAEMO,TOPA,SANDVIK,KONAN,DOOSAN,DAEWOO,FINE. |
Parts list
| No. | Description | Quantity | Part number |
| 1 | Breaker body | 1 | |
| 2(3-5) | Bushing standard, complete | 1 | 3315 3540 80 |
| 3 | Bushing | 1 | |
| 4 | Scraper ring | 1 | 3315 3562 00 |
| 5 | O-ring | 4 | 0663 2104 98 |
| 6 | Stop ring | 1 | 3315 2778 00 |
| 7 | Plug | 1 | 0686 1000 09 |
| 8 | Plug | 7 | 0686 6442 07 |
| 9 | Water nozzle, option | 1 | 3315 3952 00 |
| 10 | Lock pin | 1 | 3315 1350 00 |
| 11 | Spring pin, option | 1 | 0108 1691 27 |
| 12 | Tool retainer | 2 | 3315 1349 00 |
| 13 | Lock buffer | 1 | 3315 1419 00 |
| 14 | Hexagon socket plug | 4 | 0686 3718 01 |
| 15 | Coil spring | 1 | 3315 2933 00 |
| 16 | Diaphragm support | 1 | 3315 2889 00 |
| 17 | Diaphragm | 1 | 3315 2890 00 |
| 18 | Accumulator house | 1 | 3315 2824 00 |
| 19 | Hexagon socket screw | 8 | 0211 1965 34 |
| 20 | Plug | 1 | 0686 3718 05 |
| 21 | Seal ring | 1 | 3315 3290 02 |
| 22 | O-ring | 1 | 0663 2120 00 |
| 23 | Charge valve | 1 | 3315 3660 00 |
| 24 | Parallel pin | 1 | 0101 4140 00 |
| 25 | O-ring | 1 | 0663 2114 00 |
| 26(27-29) | Nipple, complete | 1 | 0570 7000 03 |
| 27 | Nipple | 1 | |
| 28 | Seal ring | 1 | 0664 0000 03 |
| 29 | O-ring | 1 | 0663 9055 01 |
| 30 | Cap | 2 | 0570 7000 19 |
| 31 | Grease nipple | 1 | 0544 2153 00 |
| 32 | Plug | 1 | 3315 3052 00 |
| 33 | O-ring | 1 | 0663 9032 01 |
| 34(35-37) | Pressure relief valve, complete | 1 | 3315 3349 00 |
| 35 | Pressure relief valve | 1 | |
| 36 | O-ring | 1 | 0663 9032 01 |
| 37 | O-ring | 1 | 0663 9054 01 |
| 38 | Seal | 2 | 0665 0900 14 |
| 39 | Plug | 1 | 3315 3011 00 |
| 40 | Wiper | 1 | 0665 9099 56 |
| 41 | Piston rod seal | 1 | 0665 0701 30 |
| 42 | O-ring | 9 | 0663 2104 94 |
| 43 | O-ring | 1 | 0663 2101 73 |
| 44 | Liner | 1 | 3315 2774 00 |
| 45 | Piston | 1 | 3315 2773 00 |
| 46 | Piston rod seal | 1 | 0665 0701 29 |
| 47 | Back head | 1 | 3315 2931 00 |
| 48(49-50) | Check valve, complete | 1 | 3315 2448 81 |
| 49 | Check valve | 1 | - |
| 50 | Valve rubber | 1 | 3315 2808 00 |
| 51 | Hexagon head screw | 8 | 0147 1481 03 |
| 52 | Slide cover | 1 | 3315 3598 00 |
| 53 | O-ring | 2 | 0663 2114 44 |
| 54 | Control valve | 1 | 3315 2776 00 |
| 55 | Base plate, option | 1 | 3315 2951 00 |
| 56(57-58) | Set of eight screws, complete | 1 | 3315 2964 90 |
| 57 | Screw | 8 | - |
| 58 | Nut | 8 | - |
| 59 | Back pressure valve | 1 | 3315 3040 80 |
Exploded view
Exploded view
Our Advantages
1. We are manufacturers and product direct sales.
2. More than 10 years of industry experience.
3. Professional production technology, product good quality and Low price.
4. Fast delivery and Support OEM/ODM order.
5. Large Stock,Over 30,000 sizes and more than 1 million pieces in stock.
6.We have the full range of mould size and stable and high quality production line.
1.neutral packing: ploy plastic pp bag + carton
2.commerical packing: multi brand type ploy plastic bag + brand type paper box + carton
3.as customer requirement: we can make packing for your brand. (OEM or ODM)
SHIPPING: We accept Express: DHL Fedex EMS UPS or by Air/ Sea.
Over 30,000 sizes and more than 1 million pieces in stock.
