Модуль камеры 4k OS08A10 1080P @ 60fps 4K 25fps объектив рыбий глаз 8mp
- Категория: Webcams >>>
- Поставщик: Shenzhen,Licam,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 81.53 $* | 85.54 $* |
| Aug-17-2025 | 80.27 $* | 84.34 $* |
| Jul-17-2025 | 67.43 $* | 70.73 $* |
| Jun-17-2025 | 79.84 $* | 83.97 $* |
| May-17-2025 | 69.25 $* | 72.30 $* |
| Apr-17-2025 | 78.73 $* | 82.59 $* |
| Mar-17-2025 | 77.91 $* | 81.44 $* |
| Feb-17-2025 | 76.5 $* | 80.22 $* |
| Jan-17-2025 | 75.95 $* | 79.30 $* |
Характеристики
Product Description
Module No. | DTC-08A10 | |
Module Size | 56x20mm | |
Object distance | 30CM-∞ | |
Focus | Fixed Focus | |
Image quality | Colorful | |
Audio | no microphone | |
Interface | USB 2.0 | |
Voltage | DC 5V | |
Temperature (Operation) | 0°C to 70°C | |
Temperature (Stable Image) | 0°C to 50°C | |
Operating system request | WinXP/Vista/Windows 7 (32bit/64bit)/Windows 8/Windows 10/MAC OSX EI captain 10.11.4 and Linux /Android | |
Sensor Type | ||
Sensor No. | OS08A10 Omnivision | |
Sercor Type | 1/1.8″ | |
Active Array Size | 3840×2160 | |
Pixel Size | 2.0μm x 2.0μm | |
Resolution @ Frame Rate | MJPEG: 3840×2160@25fps 1920×1080@60fps 1280×720@60fps 640×480@60fps YUV: 3840×2160@1fps 1920×1080@5fps 1280×720@5fps 640×480@30fps | |
HDR | YES | |
LENS | ||
FOV | H=100° | |
IR Filter | 650±10nm | |
Distortion | <5% | |
LED | ||
LED | no LEDs | |
DSP Type | ||
GC/EC/Whiter balance | Auto | |
Output Formats | YUV/MJPG | |
Feature:
* 56x20mm PCB Board
* OS08A10 OmniVision RGB Sensor
* HDR function
* USB2.0 slot
* Fixed Focus
* Different FOV lens are available 60~160° HFOV, please contact us to make it happen.
* Commercial surveillance, IoT, action cameras, drones, and augmented / virtual reality (AR/VR) systems
* High quality image
* UVC compliant, Plug & Play
* Support USB2.0 OTG
* 56x20mm PCB Board
* OS08A10 OmniVision RGB Sensor
* HDR function
* USB2.0 slot
* Fixed Focus
* Different FOV lens are available 60~160° HFOV, please contact us to make it happen.
* Commercial surveillance, IoT, action cameras, drones, and augmented / virtual reality (AR/VR) systems
* High quality image
* UVC compliant, Plug & Play
* Support USB2.0 OTG
CONTACT US
Email: lis@dothecamera.com
Web: www.dothecamera.com
Mob/ Wechat/ Whatsapp: +8613662378504
Details Images

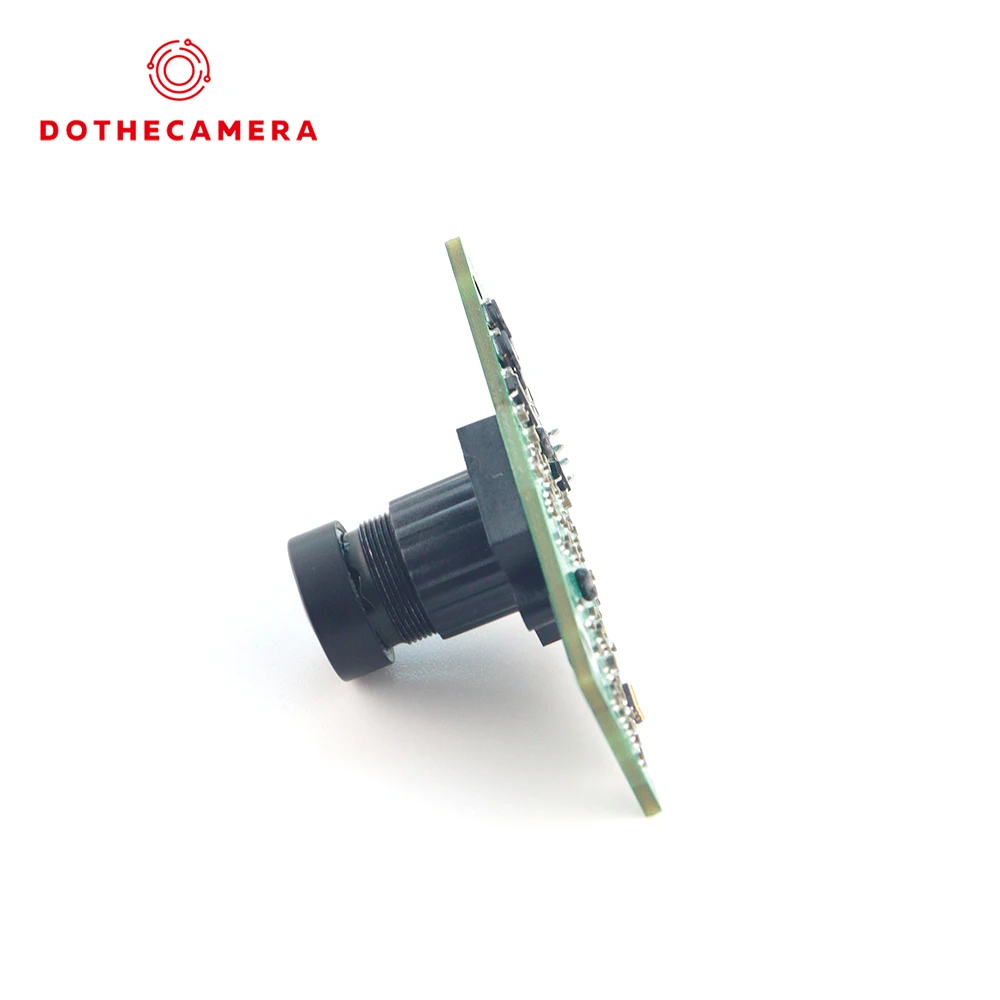

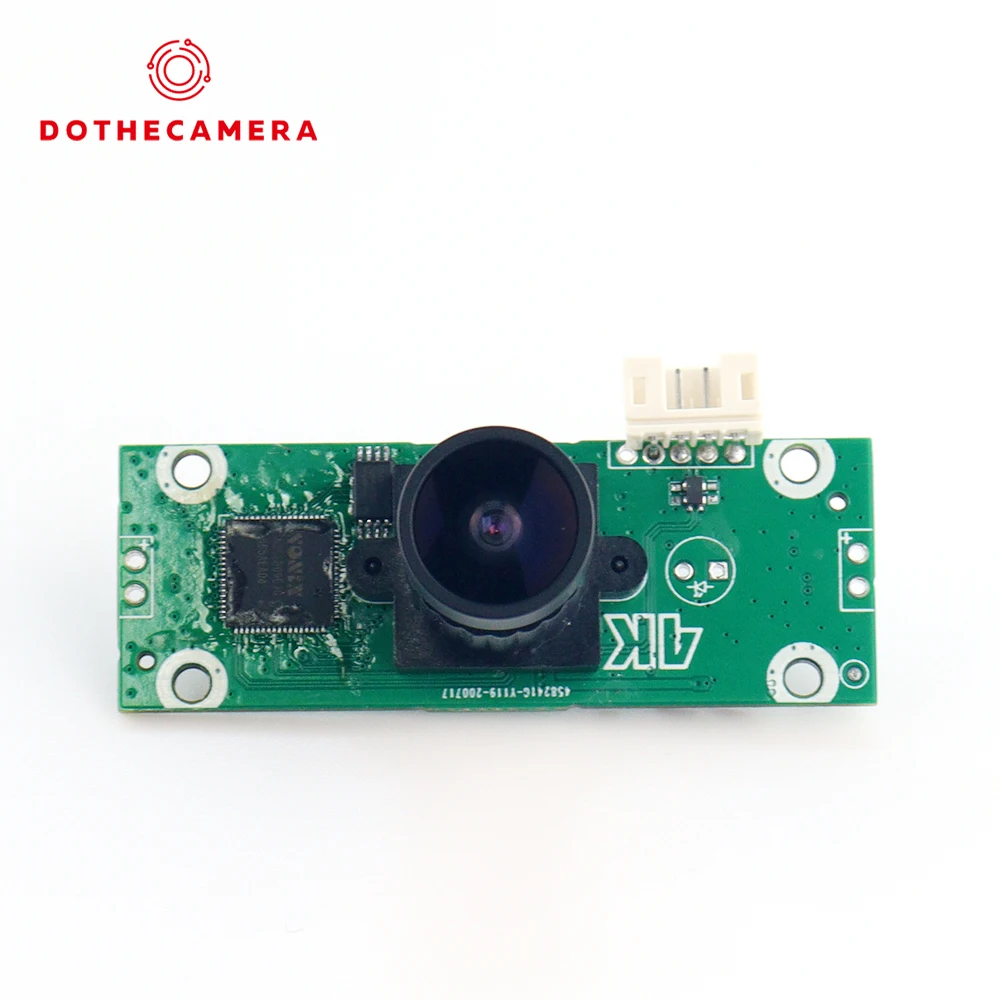

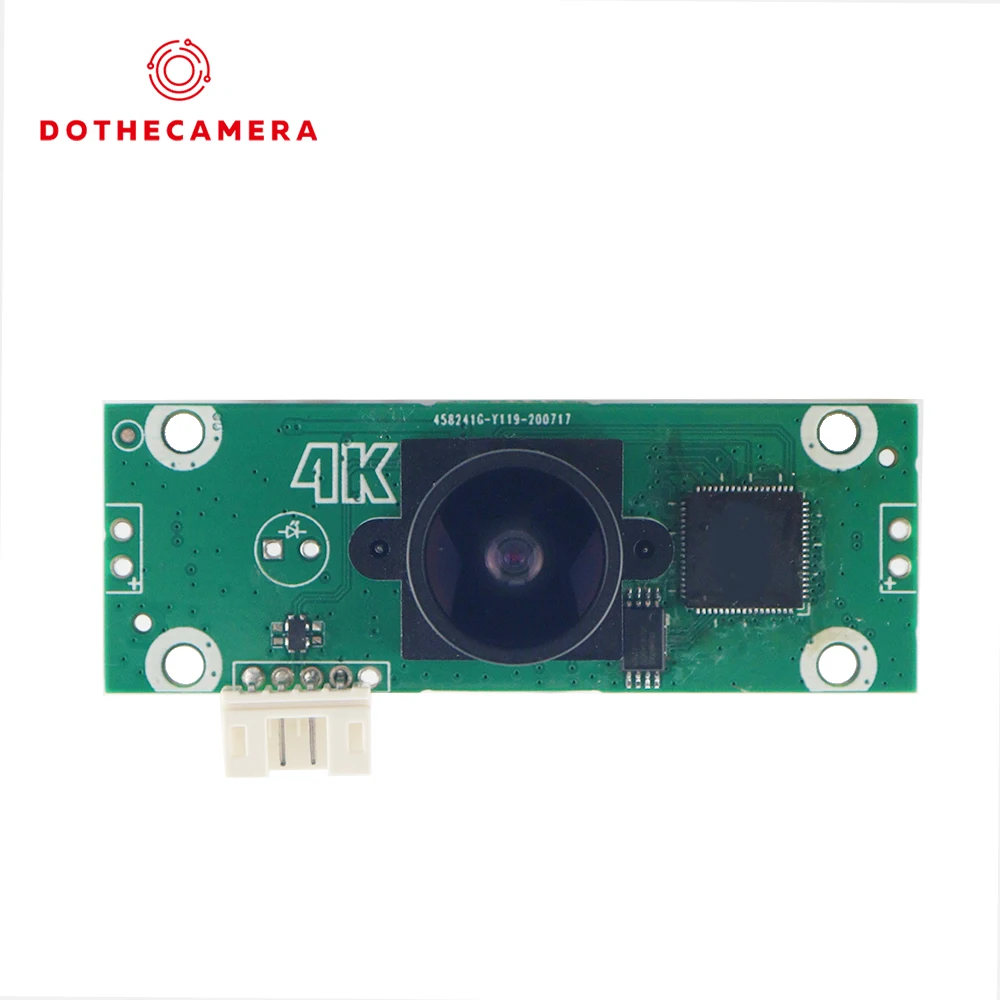

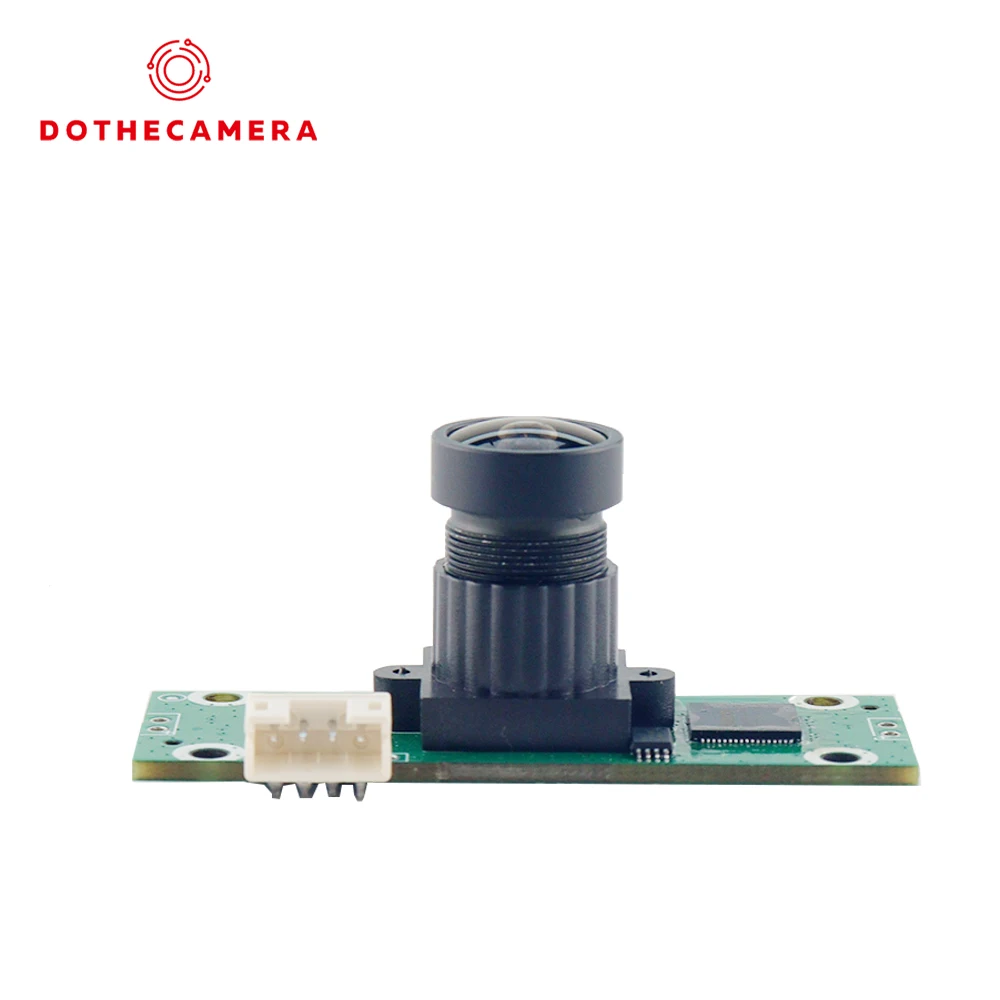

4k2k 3840×2160 4k USB camera module
OmniVision’s OS08A10 is a low-power image sensor that brings 8-megapixel resolution to a variety of applications, including commercial surveillance, IoT, action cameras, drones, and augmented / virtual reality (AR/VR) systems. Built on OmniVision’s advanced PureCel® pixel architecture, the OS08A10 leverages backside illumination (BSI) technology with improved low-light sensitivity to deliver high-resolution images and capture ultra-high-resolution 4K2K video, even in challenging high-contrast lighting conditions.
The OS08A10 captures smooth, best-in-class 4K2K video at 60 frames per second (fps) and 1080p video at 120 fps, enabling detailed wide-area coverage. The OS08A10 also features a 11-degree chief ray angle (CRA), a two-exposure staggered high dynamic range (HDR) mode, and low power requirements to enable a range of battery-powered drones and wireless devices. The OS08A10 is compatible with advanced compression technology such as high-efficiency video coding (HEVC) to deliver 4K video to mainstream displays.
OmniVision’s OS08A10 is a low-power image sensor that brings 8-megapixel resolution to a variety of applications, including commercial surveillance, IoT, action cameras, drones, and augmented / virtual reality (AR/VR) systems. Built on OmniVision’s advanced PureCel® pixel architecture, the OS08A10 leverages backside illumination (BSI) technology with improved low-light sensitivity to deliver high-resolution images and capture ultra-high-resolution 4K2K video, even in challenging high-contrast lighting conditions.
The OS08A10 captures smooth, best-in-class 4K2K video at 60 frames per second (fps) and 1080p video at 120 fps, enabling detailed wide-area coverage. The OS08A10 also features a 11-degree chief ray angle (CRA), a two-exposure staggered high dynamic range (HDR) mode, and low power requirements to enable a range of battery-powered drones and wireless devices. The OS08A10 is compatible with advanced compression technology such as high-efficiency video coding (HEVC) to deliver 4K video to mainstream displays.
This image effect is testing on AMcap software, Windows 10.
1080P@60fps
100HFOV lens image effect
333
Fisheye Lens image effect
155HFOV fisheye lens image effect
HDR, work well even backlight
3840x2160@25fps
Product Usage
Application
Related Products
Packing&Shipping
If you have any special requirement on package, please talk with us.
Company Introduction
Dothecamera® is a start-up company rooted in the Shenzhen City, hold by Shenzhen LiCam Technology Co.,Ltd., the innovation center of P.R. China. During the recent years, our dual lens cameras has been installed in more than 10Kpcs of facial recognition devices. Our cameras have served hundreds of clients from over 15 countries with RELIABLE performance and highly-EFFECTIVE costs.
Our talented team includes professional optical engineers, software developers and electronic technicians. Our TANDARD models are capable of carrying out a broad range of detection/inspection tasks. In addition, we also offer CUSTOMIZED solutions for our clients’ specific demands.
Our talented team includes professional optical engineers, software developers and electronic technicians. Our TANDARD models are capable of carrying out a broad range of detection/inspection tasks. In addition, we also offer CUSTOMIZED solutions for our clients’ specific demands.
“Detect your World better with DoTheCamera®”
Why Choose Us
Quality Control
All cameras would be strictly according to AQL Ⅱ 0/2.5/4
Warmly welcome the 3rd party inspection company
12 months guarantee after selling
Supply Chain
Located in Shenzhen China
Complete Electronic Industry Chain
Make Personalized Customization Possible
Faster Delivery Time
Team
Our members have been in the camera industry for an average of more than 5 years.
Rich Experienced R&D team and sales team to provide you with quality service.
FAQ
1. How to buy our product?
You can buy the products from our company directly. Normally the procedure is, sign the contract, make the payment by T/T, Paypal, Alibaba or Western Union, then ship the goods to your address.
2. What's the warranty?
The free warranty is 12 months from the date of commissioning qualified. During the free warranty period, if there's any fault because of our produce, it's our duty to repair it and change the fault assembly for free.
3. Can we visit your camera module manufacturer?
Of course, we will arrange everything if you can tell me in advance. So please feel free to contact me and I will do my best to make your trip worthwhile.
4. How to customize camera modules as our requirement?
For customization service, it's warmly welcome.
Our company has been in camera module industry for over 10 years and has a rich experience on customized services.
We'll try our best to meet your requirements.
In order to know well clients' requirements, we should know parameters as below,
a) Form factor
b) Dimensions
c) Pixel
d) Frame rate
e) FOV-horizontal, diagonal, vertical
f) Interface-MIPI, USB, ANALOG etc.
g) Pin description
h) Image Effect, monochrome or colorful
i) Any other function requirement? IR Light, IR Cut? What's the wavelength?
Our company has been in camera module industry for over 10 years and has a rich experience on customized services.
We'll try our best to meet your requirements.
In order to know well clients' requirements, we should know parameters as below,
a) Form factor
b) Dimensions
c) Pixel
d) Frame rate
e) FOV-horizontal, diagonal, vertical
f) Interface-MIPI, USB, ANALOG etc.
g) Pin description
h) Image Effect, monochrome or colorful
i) Any other function requirement? IR Light, IR Cut? What's the wavelength?
