Нагревательный элемент Mosi2 для высокотемпературной

Нагревательный элемент Mosi2 для высокотемпературной

Категория: Industrial Heater >>>
Поставщик: Sinton,Electric,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.72 $*	0.29 $*
Aug-19-2025	0.98 $*	0.33 $*
Jul-19-2025	0.97 $*	0.19 $*
Jun-19-2025	0.45 $*	0.52 $*
May-19-2025	0.87 $*	0.29 $*
Apr-19-2025	0.69 $*	0.94 $*
Mar-19-2025	0.32 $*	0.52 $*
Feb-19-2025	0.19 $*	0.32 $*
Jan-19-2025	0.73 $*	0.19 $*

Характеристики

Product information

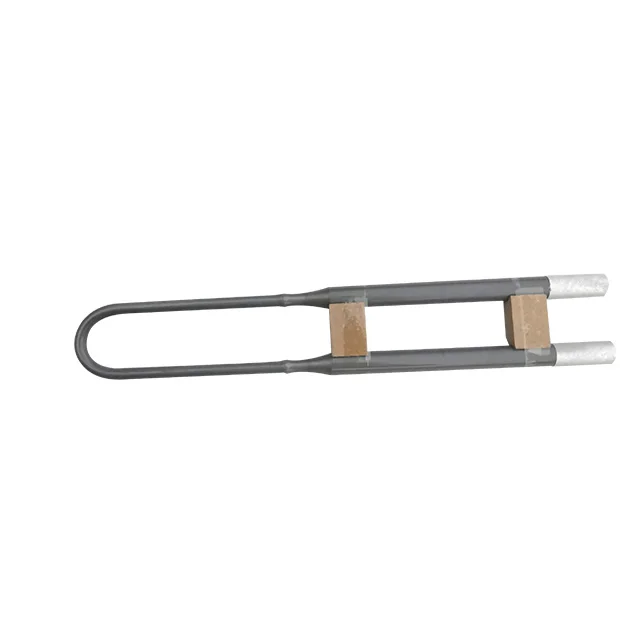

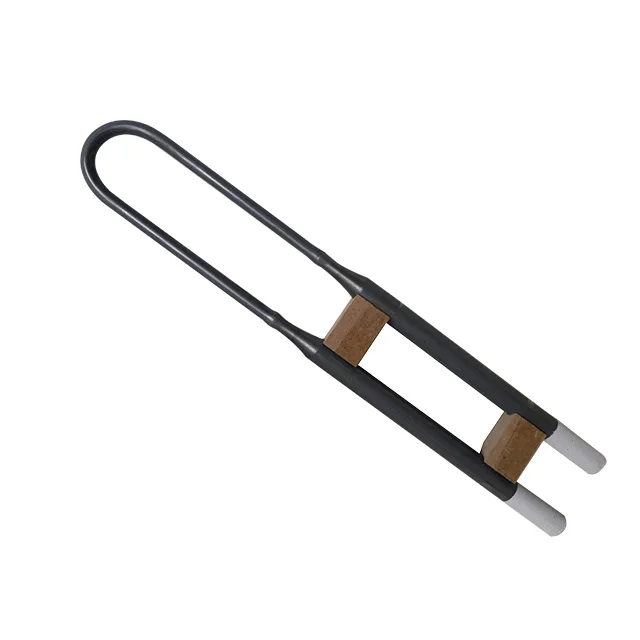

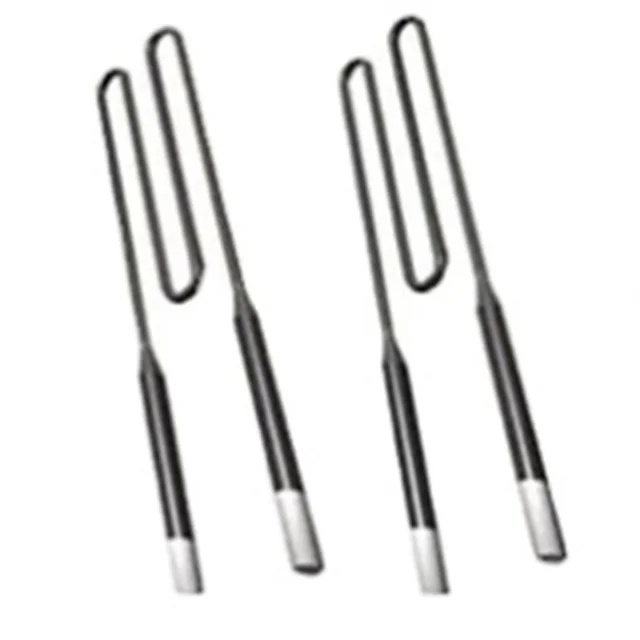

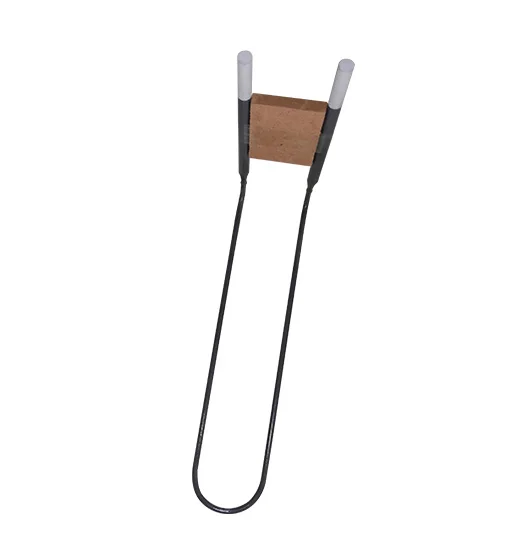

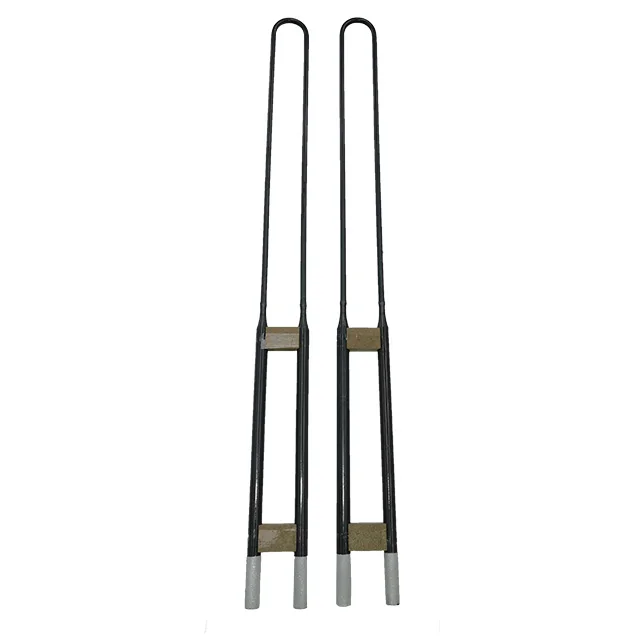

MoSi, heating element is a type of resistance heating element composed of high purity Molybdenum Disilicide. When heated to a high temperature in an oxidizing atmosphere, a layer of compact quartz glass forms on the surface of the element which withstands oxidation. In an oxidizing atmosphere, its maximum temperature can reach 1800℃, and its applicable temperature is 500-1700℃. It can be widely used as heating elements in high temperature furnaces for a variety of industries including ceramics, magnets, glass, metallurgy, refractory and many others. We named our MoSi2 heating elements asRisesun Super。

Risesun Super 1850 is the latest super quality element researched and developed by us, which adopts high purity Molybdenum and Silicon powder and with whole process anti-oxidation. Risesun Super 1850 has the advantages of higher service temperature, and higher tensile strength. Its maximum service temperature is 1830℃ and it can sustain furnace temperatures of 1750℃.

Application

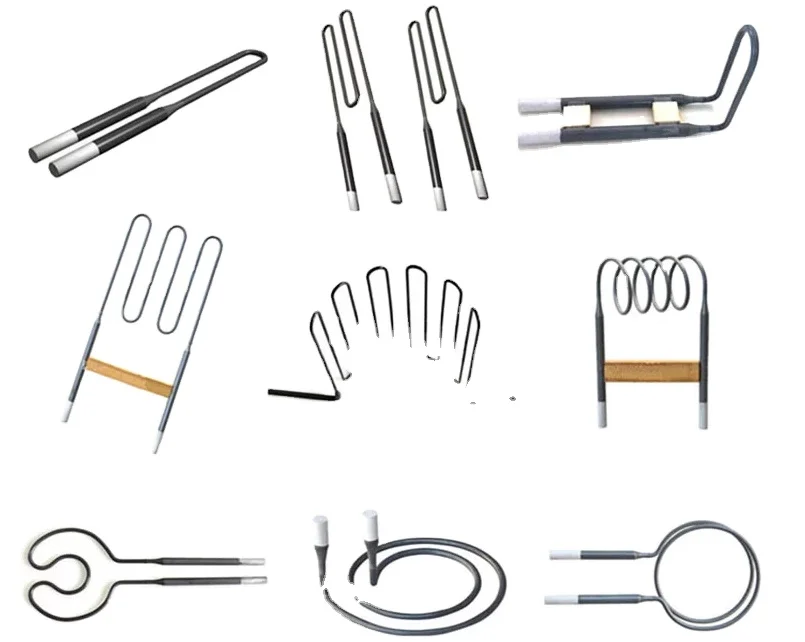

It is widely used in various high temperature electric furnaces and other electric heating devices, such as in the industries of magnet, ceramics, powder metallurgy, glass metallurgy and machinery etc. Our main products include silicon carbide heating element and Mosi2 heating element with various types such as U type, three phase type, equal diameter type, and other heterotypic.

Features

1 .withstands as high as 1800°C
2 .high strength and excellent shock resistance
3 .heat source is free of noise and air pollution
4 .anti-oxidization, anti- corrosion
5 .easy to installation and maintenance

\t\t\t\t\t\t\t\t\tProduct details \t\t\t\t\t\t\t

Physical properties
Volume Density	Bend Strength	Porosity	Water Absortion	Hot Extensiblity
5.5-5.6g/cm³	15-25kg/c㎡	7.4%	1.2%	4%

Atmosphere	Max. element temperature
		1700 Grade		1800 Grade
Air	1700℃		1800℃
Nitrogen	1600℃		1700℃
Argon, Helium	1600℃		1700℃
Hydrogen	1100-1450℃		1100-1450℃
N2/H2 95/5%	1250-1600℃		1250-1600℃
General applications	Heat treatment furnace Forging Sintering Glass melting Refing Radiant tubes		Laboratory furnaces Testing equipment High temperature sintering production furnace

Recommend surface load
Furnace Temperature (℃)	1400	1500	1600	1650	1700
Surface load of Hot zone(w/c㎡)	＜18	＜15	＜12	＜10	＜8

Pay Attention To The Point

1. Mosi2 heating element is hard and fragile, during the transportation anc installation should be careful, keep in a dry and ventilated place to prevent aluminum spray out of the digestion and deliquescence，

2. Mosi2 heating element should not be used within the range of 400-700 ℃ long time ,or else ,the element will due to low temperature oxidation effect and become powder，

3. The resistance of Mosi2 heating element generally does not change with the length of usage time, so the new and used components can be mixed。
