Original Factory Car Speed Limiter Truck Vehicle GPS speed governor









Preface

How does the GPS speed limiter works

The GPS speed limiter is controlled by microcomputer to realize the effective control of the high speed, to avoid the potential safety risk caused by over speed driving, and at the same time to ensure the free action of accelerator pedal within the scope of speed limit. Beside, also support real time tracking, alarms, and driving behavior monitoring.



Application Field:

l  Vehicle Commanding and Dispatching System;

l  Heavy Construction Vehicles Tracking Device;

l  Dangerous goods transportation;

l  Passenger Car Management;

l  Logistics vehicle management.

l  Oil Tanker Monitoring and Management



Product Functions

l  Speed limiter

Enforce to limit the speed of your vehicle if preset maximum speed reach Pre-warn at a speed of 5% less than preset speed.

l  Tamper proof

Maximum speed is 40km/h if maximum speed is tampered or speed wire is cut.

Any lose of signal of speed wire, GPS antenna, external power wire, it will automatically send alarm to server.

l  Download data

Data can be stored for 72 hour at intervals of 5 seconds

Data can be retrieved using a USB cable

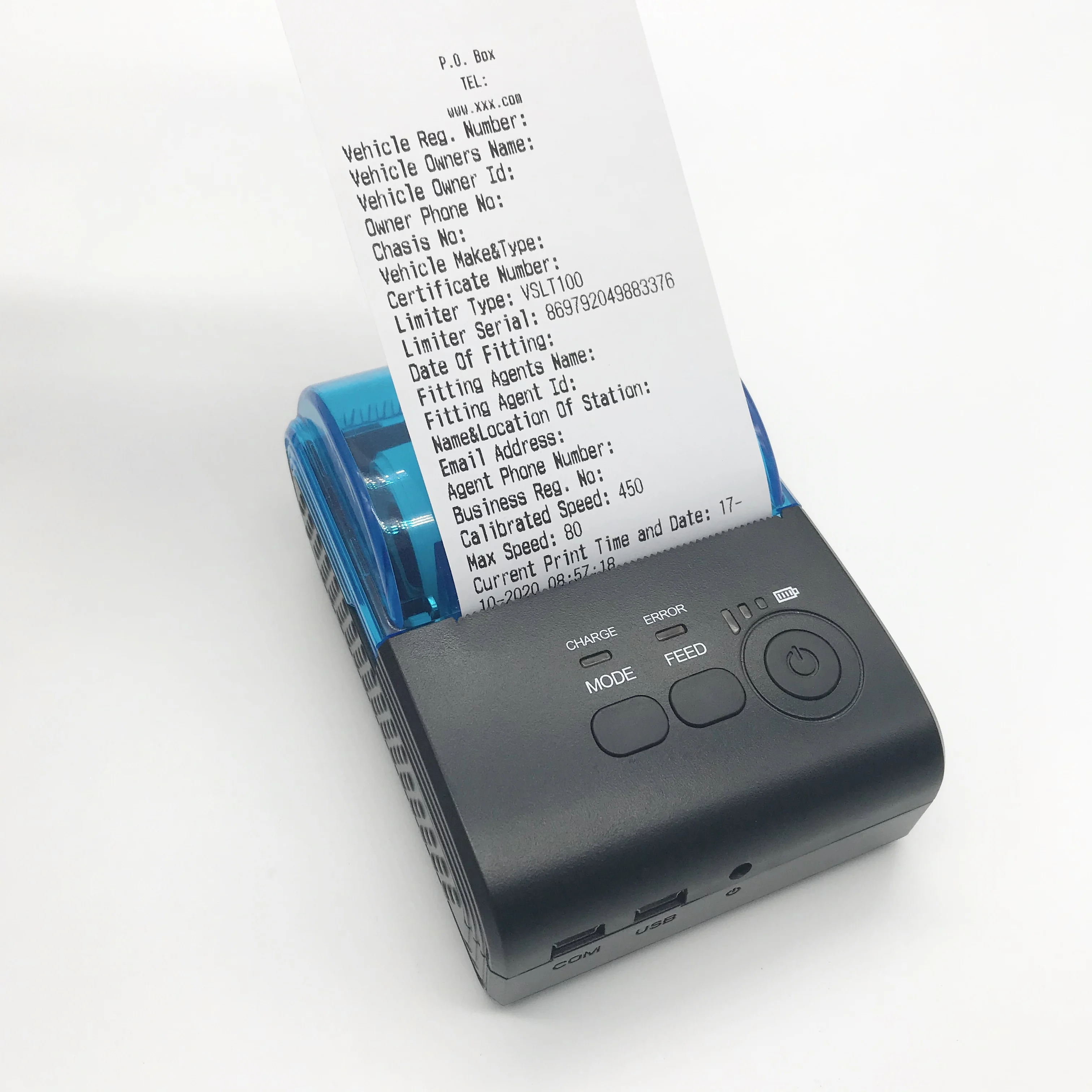

l  Printer

Violations can be printout for the last one hour driving.

Speed violations can be printable.

l  Violations alarm

All violations (over speed, tamper maximum speed data) will be transmitted to platform.

l  Real time Tracking



Product More Features

1)     GPS record data, send data at every 5 seconds,

2)     When connecting the odometer speed signal wire, limit the speed to the preset speed value. If the signal wire is disconnected, the speed is limited to 40 kph.

3)     Get speed from vehicle odometer and GPS location information.

4)     USB Type-A interface-external printer

5)     ACC detection, ACC ignition ON/OFF alarm, Cut engine / recovery engine

6)     Set ACC ignition ON/OFF interval

7)     Voice listening

8)     Built-in buzzer for sound when alarm occurred.

9)     Fuel detection with optional fuel sensor

10)  Built-in acceleration sensor

11)  SOS alarm/low power alarm/over speed alarm out fence alarm/vibration alarm/ignition ON/OFF alarm/power failure alarm



Tamper proof

1)     Remove GPS antenna, device will restrict speed at 40km automatically

2)     Remove speed signal wire, device will restrict speed at 40km automatically

3)     Remove Ignition wire, it will cut fuel to stop the engine automatically

4)     Remove positive or negative wire, it will cut fuel to stop engine automatically

5)     Overspeed alarm:

Ø Pre-alarm: when speed is <80km/h, the buzzer will intermittent rings

Overspeed alarm: when speed is >80km/h, the buzzer will continuously rings, and cut fuel to stop engine automatically.









Specification

Content	Specs.
Dim.	118(L)x75(W)x29(H) mm
Weight	50g
Network	GSM/GPRS
Frequency	850/900/1800/1900 MHz
GPS/GSM module	Quectel MC20, MCU STM32
GPS channel	66
Tracking sensitivity	-165dBm
Location accuracy	<10 meters CEP
Time To First Fix(open sky)	Cold status <35s Hot status  <1s
Working voltage	9-36VDC
GPRS Protocol	Class12, TCP/IP
Operating temp.	-20°C to +70°C
Back up battery	500mAh /3.7V Li-Polymer battery
Standby & Working consumption	5mA~50mA
GSM / GPS antenna	external
G-Sensor	Support
Memory Capacity	4MB memory
Configuration Mode	PC tool/GPRS/SMS
Buzzer	Built-in
Speed limit Scope	40-120KM/H
Speed Limit Deviation	±5KM/H
