(Китайский ведущий производитель) Золотая производственная линия круглая Дробильная мельница медно-рудная влажная сковорода для
- Категория: Горнообогатительная установка >>>
- Поставщик: Jiangxi,Henghong,International,Mining,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 4748.20 $* | 4985.24 $* |
| Aug-15-2025 | 4708.18 $* | 4943.10 $* |
| Jul-15-2025 | 3950.77 $* | 4148.36 $* |
| Jun-15-2025 | 4628.71 $* | 4859.35 $* |
| May-15-2025 | 4030.42 $* | 4232.20 $* |
| Apr-15-2025 | 4549.66 $* | 4776.20 $* |
| Mar-15-2025 | 4509.83 $* | 4734.25 $* |
| Feb-15-2025 | 4469.91 $* | 4692.40 $* |
| Jan-15-2025 | 4429.15 $* | 4650.78 $* |
Характеристики
Main Features
1).Uniform grinding,fine output size small to 1mm
2).Lowest cost than ball mill machine
3).Have in stock ,lead time is fast
4).Low energy comsumption,silent,stable working
5).Easy to operation and maintaince
6).Wearable grinding roller,Longer service life
2).Lowest cost than ball mill machine
3).Have in stock ,lead time is fast
4).Low energy comsumption,silent,stable working
5).Easy to operation and maintaince
6).Wearable grinding roller,Longer service life

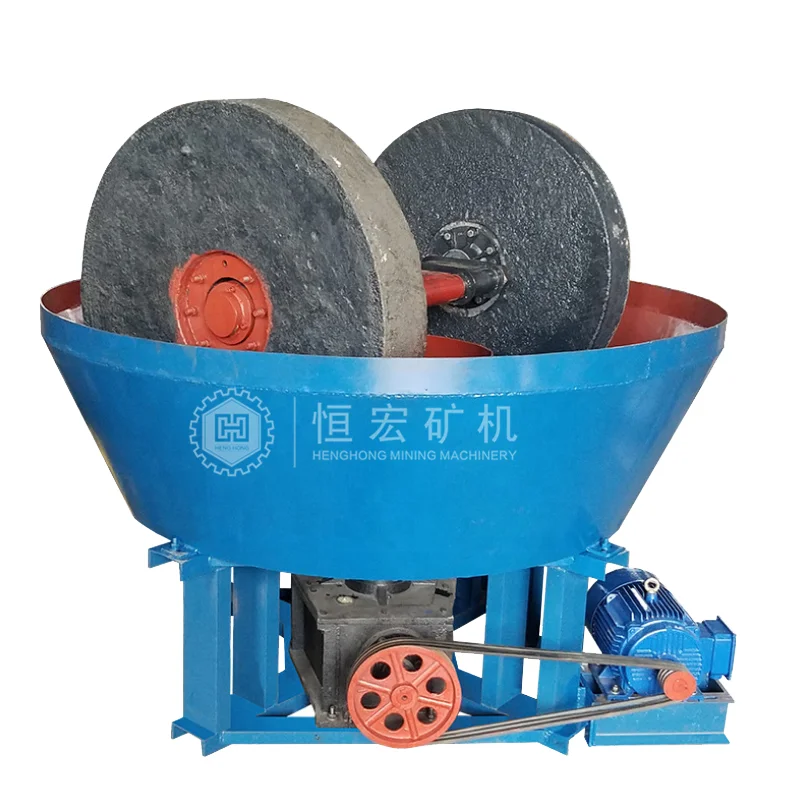

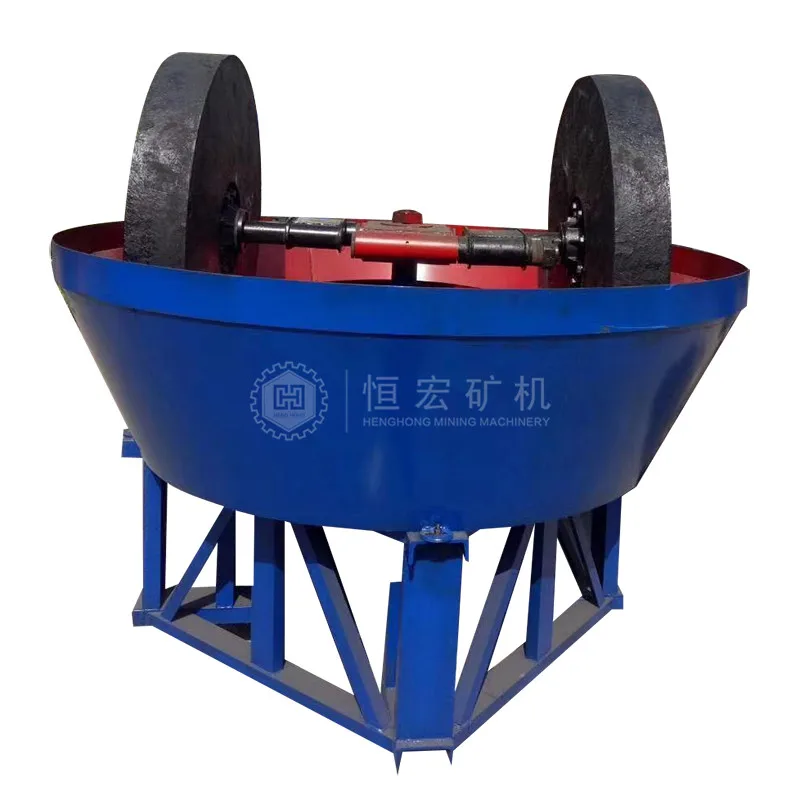

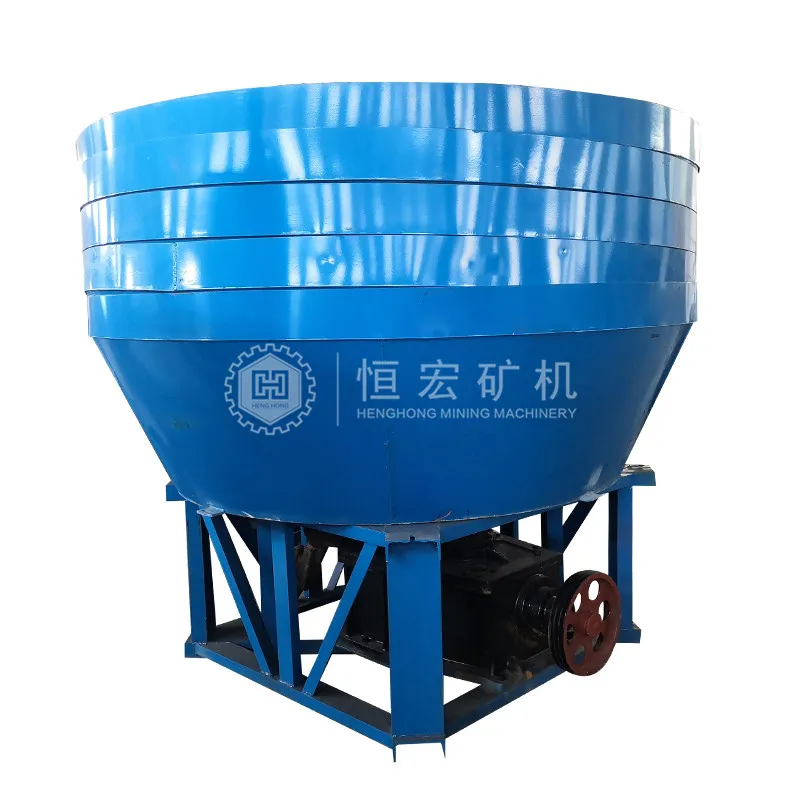

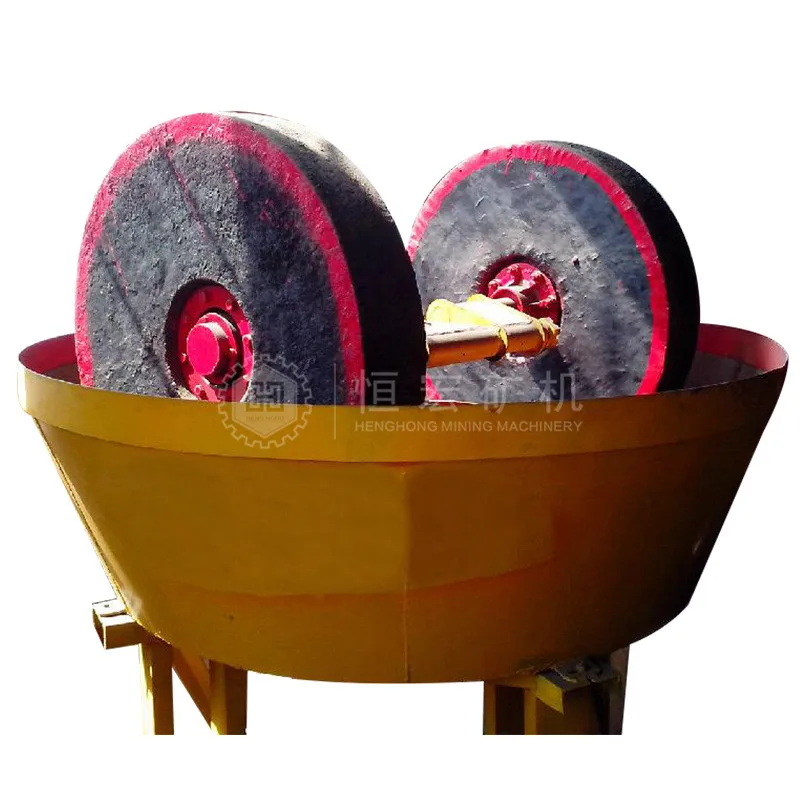

(China Top Manufacturer) Gold Production Line Round Gold Crushing Mill Copper Ore Grinder Gold Wet Pan Mill For Ore Benefication
Wet pan mill full name is wet grinding machine,according to the different operating methods, devided into roller gold
machine,mixed mercury grinding, grinding machine,electric milling.
machine,mixed mercury grinding, grinding machine,electric milling.
1.Wet Pan Mill Applications:
Wet pan mill is mainly used for grinding gold, silver, lead, zinc, iron, molybdenum, copper, antioumy and so on.
Wet pan mill is perfect equipment for medium sized company and small enterprises,it can instead of ball mill.
2.Gold Pan Mill Working principle:
This wet pan mill mainly include power plant, frame, birdbath, grinding wheel, pan and other parts, using moving wheel grinding work way: first of all, the grinding pan mill motor will transmit power to the reducer, by the reducer, through a large vertical pass torque at the top of the horizontal axis and then it through a horizontal two axis pull rod to grinding wheel, the grinding wheel have driving force, along the horizontal axis do counterclockwise motion; Studio of the grinding wheel can be turning around wet mill big vertical shaft, and around the wheel of center shaft rotation, pan is stationary; Add ore materials, in the mill from the extrusion wheel of its own weight, grinding wheel with the pan during the revolution of great friction, by repeated after extrusion, kneading, grinding, were crushed.
Wet pan mill is mainly used for grinding gold, silver, lead, zinc, iron, molybdenum, copper, antioumy and so on.
Wet pan mill is perfect equipment for medium sized company and small enterprises,it can instead of ball mill.
2.Gold Pan Mill Working principle:
This wet pan mill mainly include power plant, frame, birdbath, grinding wheel, pan and other parts, using moving wheel grinding work way: first of all, the grinding pan mill motor will transmit power to the reducer, by the reducer, through a large vertical pass torque at the top of the horizontal axis and then it through a horizontal two axis pull rod to grinding wheel, the grinding wheel have driving force, along the horizontal axis do counterclockwise motion; Studio of the grinding wheel can be turning around wet mill big vertical shaft, and around the wheel of center shaft rotation, pan is stationary; Add ore materials, in the mill from the extrusion wheel of its own weight, grinding wheel with the pan during the revolution of great friction, by repeated after extrusion, kneading, grinding, were crushed.
Small Centrifugal Concentrator
You're also welcome to "Click and Purchase" the above small centrifugal concentrator,It is good use for gold mining selection after grinding process by our Wet Pan Mill.
Model | Specification | Input size(mm) | Rotate Speed (r/min) | Powder(kw) | Weight(t) |
1600A | 1600×400×200×500±20mm | 30mm | 20-22 | 25KW | 14.5 |
1500A | 1500×350×200×460±20mm | 20-22 | 22KW | 13.5 | |
1500B | 1500×350×150×460±20mm | 20-22 | 22KW | 12.3 | |
1500C | 1500×300×150×420±20mm | 20-22 | 22KW | 11.3 | |
1400A | 1400×250×150×350±20mm | 16-18 | 18.5kw | 8.5 | |
1400B | 1400×250×150×350±20mm | 21-23 | 18.5kw | 8.5 | |
1350A | 1350×250×150×350±20mm | 16-18 | 18.5kw | 8 | |
1350B | 1350×250×150×350±20mm | 21-23 | 18.5kw | 8 | |
1300A | 1300×250×150×350±20mm | 16-18 | 15kw | 7.5 | |
1300B | 1300×250×150×350±20mm | 21-23 | 15kw | 7.5 | |
1200A | 1200×200×80×250±20mm | 17-19 | 7.5kw | 5.5 | |
1200B | 1200×200×80×250±20mm | 23-25 | 7.5kw | 5.5 | |
1100A | 1100×200×80×250±20mm | 17-19 | 7.5kw | 5 | |
1100B | 1100×200×80×250±20mm | 23-25 | 7.5kw | 5 | |
1000 | 1000×200×80×250±20mm | 13-15 | 5.5kw | 4.5 | |
900 | 900X200X80 | 10-15 | 5.5kw | 3 |
We produce all kinds of machine for optional purchase,such as Material Hopper,Conveyor Belt,Vibrating Feeder,Chute Feeder,Disc Feeder,Jaw Crusher,Hammer Mill,Hammer Crusher,Cone Crusher,Impact Crusher,Double Roller Crusher,Trommel Screen,Trommel Scrubber,Vibrating Screen,Ball Mill,Wet Pan Mill,Spiral Classifier,FX Hydrocyclone, Agitation Tank,Flotation Separator,Shaking Table,Centrifugal Concentrator,Spiral Chute,Jig Machine,Roller Magnetic Separator, 3 Disc Magnetic Separator,Thickener,Filtering Equipment,Drying Equipment,High Frequency Gold Melting Furnace, Medium Frequency Gold Melting Furnace etc
Q:1.What is your machine used for ?
A: Our Wet Pan Mill is mainly used for grinding gold, silver, lead, zinc, iron, molybdenum, copper, antioumy and so on.
Q: 2.Are you factory or trade company?
A: Yes dear,we are the Professional manufacturer from 1985.So we could give you original factory price than those trade companies.
We're also warmly welcome your Visiting our factory if you are coming to China.Please Call at +86-18870736160
Q: 3.Can I operate it well, if I have no experience?
A: Do not worry! Our machines is designed to use easily.You are welcome to visit our company to be trained here,And we could arrange the engineer to go to your country/company to train your workers directly as your requested and the relative travel cost will be on your account.
Q:4.Can you send me the video to show how the machine works?
A: Surely.we have made video of every machine,so if you need we can send for you to checking in clearly.
Q:5. What should I take care when using the machine?
A: Please using the machine in regular and Keeping the machine away from thinner and other chemical liquid.
Q:6.How about the service of your company?
A:24Hours Online service.all machines have one year warranty and Wholelife Technology support to make sure your machine work well.
Q:7.How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:8 What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q:9 What's Information we need from your side ?
A: What kind of ore do you want to process ? The Capacity per hour do you need ? and the Max feeding size of your material ?
A: Our Wet Pan Mill is mainly used for grinding gold, silver, lead, zinc, iron, molybdenum, copper, antioumy and so on.
Q: 2.Are you factory or trade company?
A: Yes dear,we are the Professional manufacturer from 1985.So we could give you original factory price than those trade companies.
We're also warmly welcome your Visiting our factory if you are coming to China.Please Call at +86-18870736160
Q: 3.Can I operate it well, if I have no experience?
A: Do not worry! Our machines is designed to use easily.You are welcome to visit our company to be trained here,And we could arrange the engineer to go to your country/company to train your workers directly as your requested and the relative travel cost will be on your account.
Q:4.Can you send me the video to show how the machine works?
A: Surely.we have made video of every machine,so if you need we can send for you to checking in clearly.
Q:5. What should I take care when using the machine?
A: Please using the machine in regular and Keeping the machine away from thinner and other chemical liquid.
Q:6.How about the service of your company?
A:24Hours Online service.all machines have one year warranty and Wholelife Technology support to make sure your machine work well.
Q:7.How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:8 What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q:9 What's Information we need from your side ?
A: What kind of ore do you want to process ? The Capacity per hour do you need ? and the Max feeding size of your material ?
Warmly Welcome to Sending Inquiry,We will give 100% positive responses.
