Цена:1 082 994,66 ₽ - 2 078 474,60 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 1288763.3 $* 1353201.12 $*
Aug-18-2025 1277933.3 $* 1341830.14 $*
Jul-18-2025 1072164.82 $* 1125772.28 $*
Jun-18-2025 1256273.9 $* 1319087.95 $*
May-18-2025 1093824.11 $* 1148515.8 $*
Apr-18-2025 1234613.20 $* 1296344.88 $*
Mar-18-2025 1223783.87 $* 1284972.39 $*
Feb-18-2025 1212953.36 $* 1273601.61 $*
Jan-18-2025 1202123.96 $* 1262229.92 $*

Характеристики





Product Paramenters


Slag Coal Clinker Cement Pet Coke Limestone Grinding Vertical Mill

High drying efficiency, Low running cost, Good environmental effect

Vertical Mill integrates crushing, drying, grinding, classifying and conveying together, and it is specialized in processing non-metallic minerals, pulverized coal and slag. Its coverage area is reduced by 50% compared with ball mill, and the energy consumption is saved by 30%-40% similarly.

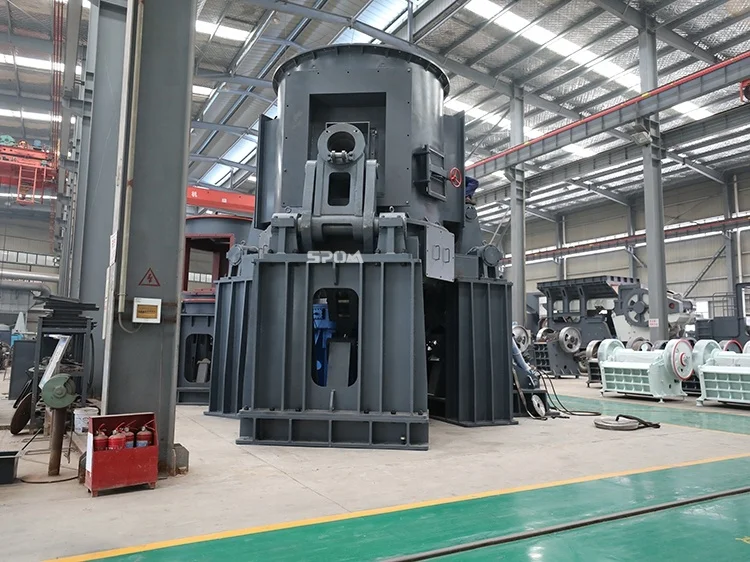

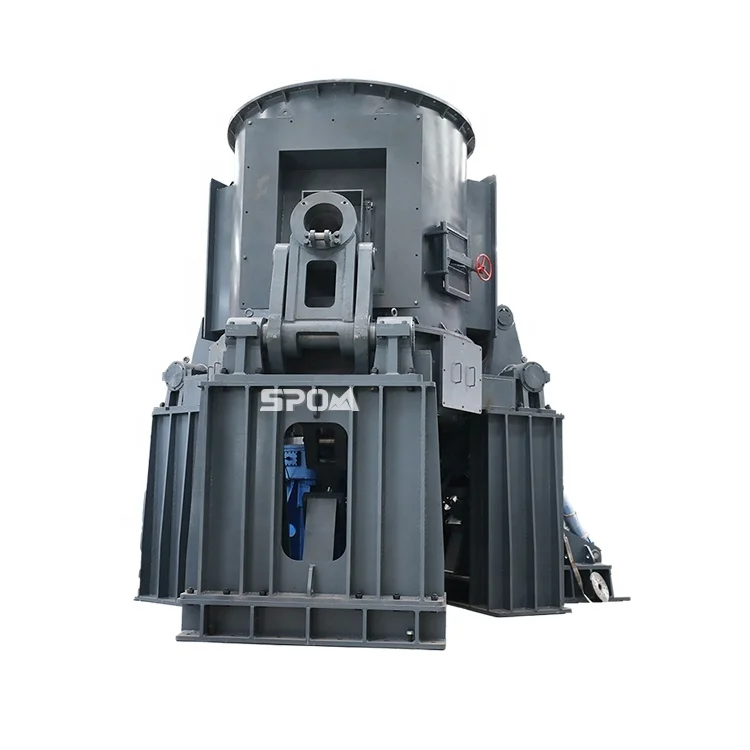

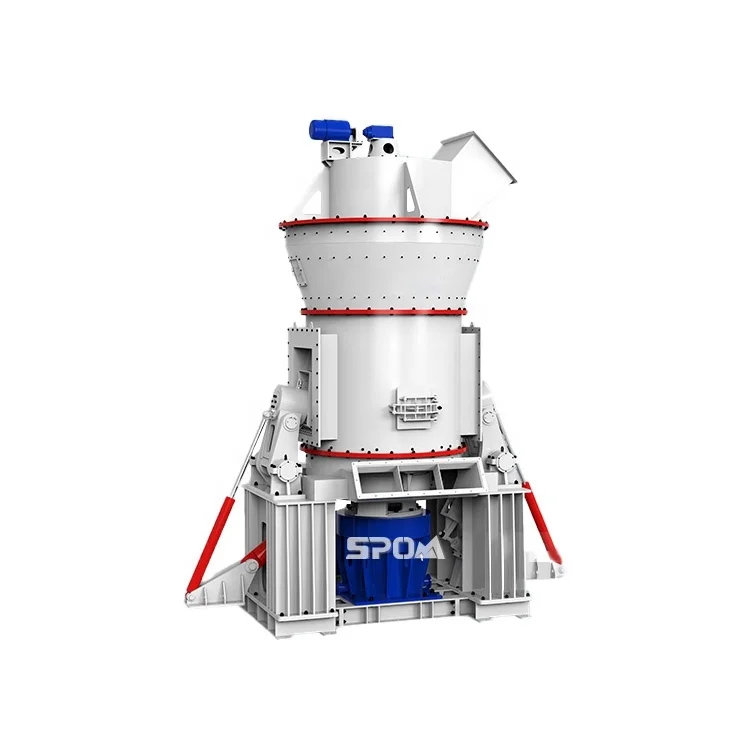

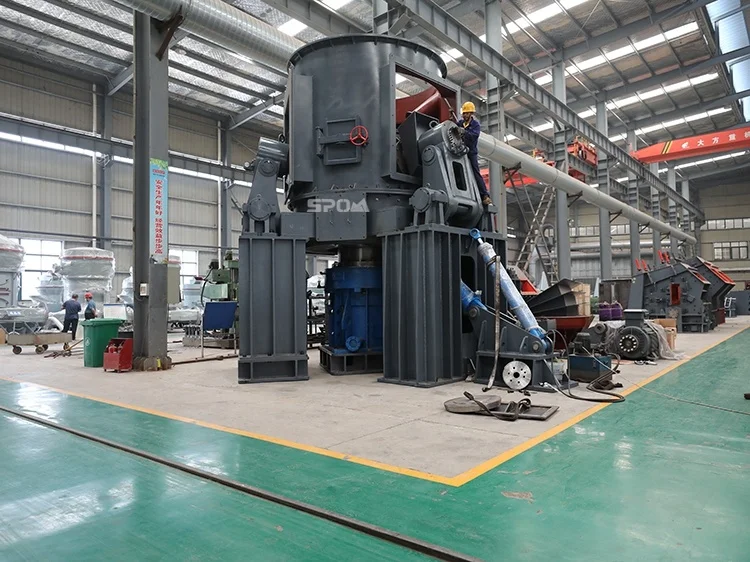

ZLM-K Series Vertical Mill (Slag Mill)
Model
ZLM130K
ZLM150K
ZLM170K
ZLM190K
ZLM220K
Roller Qty. (pcs)
2
2
2
2
2
Ring Dia. (mm)
1100
1300
1400
1500
1700
Disc Dia. (mm)
1300
1500
1700
1900
2200
Main unit speed (r/min)
43
39.5
36.5
33.5
31.5
Capacity (t/h)
10~30
13~40
18~57
23~72
36~110
Final size
μm
170~45
170~45
170~45
170~45
170~45
Mesh
80~325
80~325
80~325
80~325
80~325
Product moisture
≤1%
≤1%
≤1%
≤1%
≤1%
Input Particle Size D80 (mm)
＜10
＜10
＜10
＜10
＜10
Max.input size (mm)
＜38
＜40
＜42
＜45
＜50
Best input moisture
＜4%
＜4%
＜4%
＜4%
＜4%
Input moisture (drying required)
4~15%
4~15%
4~15%
4~15%
4~15%
Inlet air temperature (℃)
＜350
＜350
＜350
＜350
＜350
Outlet air temperature (℃)
70~95
70~95
70~95
70~95
70~95
Main Mill Power (KW)
200
280
400
500
800
Analytical Machine (frequency modulation motor) (KW)
30
37
55
75
110
Fan motor power（KW）
250
315
450
560
710
Overall dimension
Length(mm)
5520
6550
7170
7580
8080
Width(mm)
2500
3070
3460
3820
6700
Height(mm)
7060
7560
8300
8960
9020


ZLM-M Series Vertical Mill (Coal Mill）
Model
ZLM130M
ZLM150M
ZLM170M
ZLM190M
ZLM220M
Roller Qty. (pcs)
2
2
2
2
2
Roller Dia. (mm）
1100
1300
1400
1500
1700
Disc Dia. (mm)
1300
1500
1700
1900
2200
Main unit speed (r/min)
49
43
38.6
34.8
32.6
Capacity (t/h)
10~15
16-22
20-28
26-35
35-50
Coal powder fineness (R0.08)
5-20%
5-20%
5-20%
5-20%
5-20%
Coal powder moisture
＜1%
＜1%
＜1%
＜1%
＜1%
Input Particle Size D80 (mm)
＜10
＜10
＜10
＜10
＜10
Max.input size (mm)
＜38
＜40
＜42
＜45
＜50
Input moisture
＜15%
＜15%
＜15%
＜15%
＜15%
Inlet air temperature (℃)
＜350
＜350
＜350
＜350
＜350
Outlet air temperature (℃)
75~95
75~95
75~95
75~95
75~95
Haugh's grindable index of raw coal
＞55
＞55
＞55
＞55
＞55
Main mill power (KW)
185
250
315
400
500
Analytical Machine (frequency modulation motor) (KW)
30
37
55
75
110
Fan motor power (KW)
250
315
450
560
710
Overall Dimension
Length(mm)
5520
6550
7170
7580
8080
Width(mm)
2500
3070
3460
3820
4660
Height(mm)
7060
7560
8300
8960
9020


Product Description




Applications: Cement, coal, power plant desulfurization, metallurgy, chemical industry, non-metallic mineral, construction material, ceramics.




Learn More About ZLM Vertical Mill


1. Low Investment Cost.

This mill itself can crush, dry, grinding, classifying, so the system is simple, and occupation area is about 50% of ball mill system. In addition, it can be installed outside, so it will reduce a large number of investment costs.

2. Low Operation Cost.

(1) High efficiency: roller compacted materials directly onto the grinding disc, so power consumption is low. Compared with ball mill, it saves energy consumption by 30% ~ 40%.
(2) Less wear and tear: As the roller is not in direct contact with the disc, and material of the roller and liner is high quality, so life lime is long.




3. High Drying Ability.

As the hot air inside contacts directly with the material, drying ability is higher, and it saves energy. By regulating the air temperature, it can meet requirements with different humidity.

4. Simple and reliable operation.

(1) It is equipped with automatic control systems, so remote control makes it easy to operate.
(2) It is equipped with one device,which prevents the roller from contacting with the liner directly, and avoids the destructive impact and severe vibration.




5. The stability of product quality.

As the material stays in the mill for a short time, it is easy to detect and control the product particle size and chemical composition, to reduce duplication of milling, stable product quality.

6. Maintenance convenience.

By repairing fuel tank, rotating the arm, it is fast to replace the roller sleeve, and liner, and reduce the downtime loss.

7. Environmental protection.

It is with small vibration, low noise, and the overall sealing. The system works under negative pressure, so there is no dust going out. It meets the requirements of the state Environmental Protection.




Company Profile


As a leading global manufacturer of crushing, grinding and mining equipments, Henan Shibo Mechinical Engineering Co. Ltd. (SPOM) offers advanced, reasonable solutions for any size-reduction requirements including quarry, aggregate, and different kinds of minerals. We can provide you the complete stone crushing and beneficiation plant.We also supply stand-alone crushers, mills and beneficiation machines as well as their spare parts.

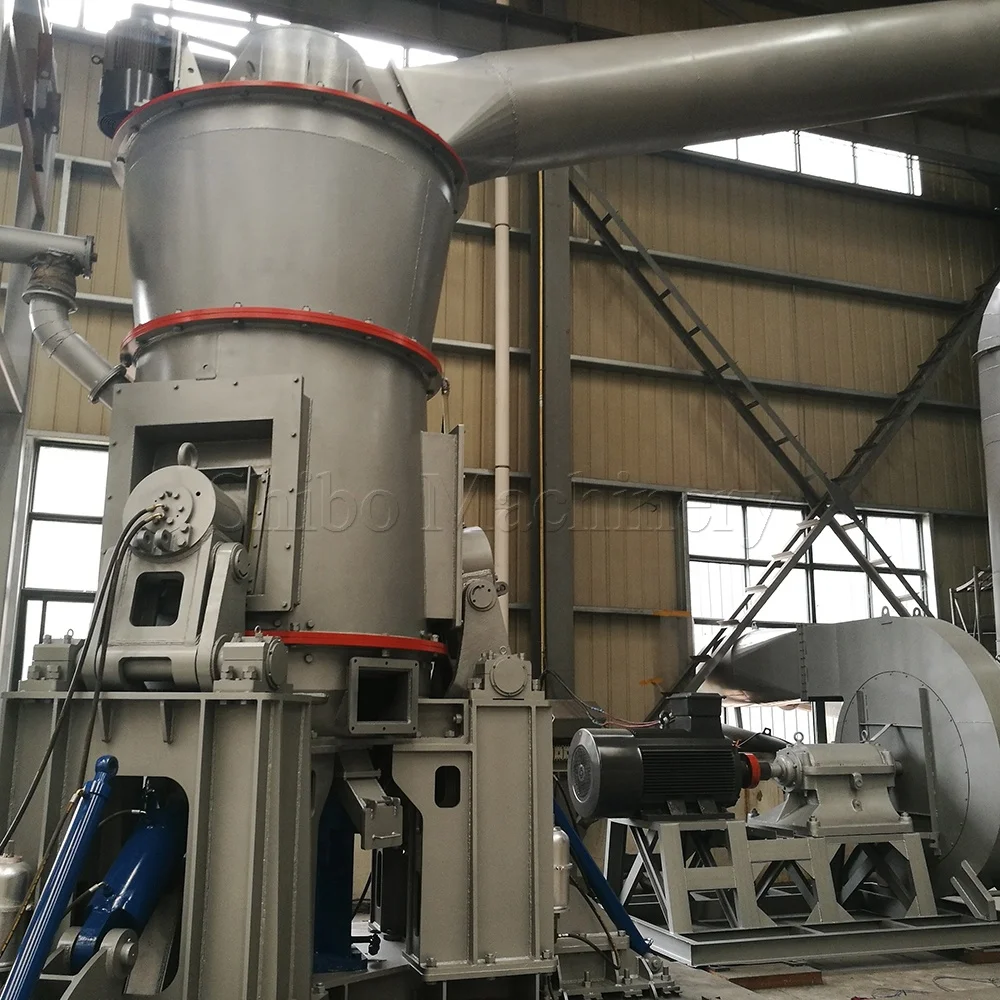

Customer Photos


After more than 30 years development, now we have more than 100 world markets and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future.






FAQ


Q: what is the payment terms ?

A: 30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery, L/C is also acceptable .

Q: How long do you need to produce the impact crusher?

A: Most model are in stock, can delivery within 10 days.

Q: Which airport and train station is near to the factory ?

A: Zhengzhou xinzheng international airport and Zhengzhou East Railway Station

Q: How to choose the suitable model ?

A: please confirm the following information :
1. what kind of stone do you want to grinding ? such as limestone ? gypsum ? or ?
2. what's the size of your stone before grinding ? how many inch or mm ?
3. what's your requirements of final powder size ? how many mesh ?
4. what's your requirements of production capacity ? how many ton per hour ?
