Different Style Open Cell Carbon metallic Foam C Metal Foam





Description:

Carbon foam has been developed for decades. Due to its low density and high thermal conductivity, it has been widely used in many fields.Such as high temperature heat capacity material, porous electrode, catalyst carrier, filter, support material. In foreign countries, there have been many researches on carbon foam, including its microstructure, mechanical properties and thermal properties.Our company is the first domestic developed foam carbon (coal based, asphalt based, mixed base) developed by high temperature physical foaming method, used in battery electrodes and electronic components heat dissipating materials and other industries to fill the gap in China. The graphite foam material developed abroad by American Oak Ridge National Laboratory is also developed from asphalt raw materials.

Characteristic
1. Low density, high strength
2. It can be made into high or low thermal conductivity materials
3. It has good thermal shock resistance and can resist the shock of temperature sudden change of 1 250 ℃
4. High temperature and corrosion resistance
5. Pore size can be foamed according to customer's requirements
6, the processing performance is good, can use all kinds of common adhesives to bond, so that the carbon foam block is not restricted, and more easily formed a complex structure, on the surface of the carbon foam can be plated metal materials.
7. Flexible material design. The performance design can be changed in a wide range, and the performance of the foam carbon can be achieved by engineering methods to meet the needs of different density, hole and hole connection.

Technical indicators:

Density: 0.2 ~ 1.0g/cm3

porosity: 30 ~ 80%
Aperture: 0.01-6mm

Compressive strength: 8-12mpa
Compression modulus: 300-620mpa

Tensile strength: 2-5mpa
Tensile modulus: 300 ~ 500MPa

thermal expansion coefficient: 5.0ppm / ℃
Thermal conductivity: 25 ~ 80W / m.k

Resistivity: 1.0 × 10-2 ~ 10-5 Ω· M
Maximum operating temperature: 600 ℃ (in air), 3000 ℃ (in inert gas)

0.5mm*200mm*300mm	1mm*200mm*300mm	1.5mm*200mm*300mm
2mm*200mm*300mm	2.5mm*200mm*300mm	3mm*200mm*300mm
4mm*200mm*300mm	5mm*200mm*300mm	6mm*200mm*300mm
7mm*200mm*300mm	8 to 10mm*20mm*300mm	The size can be customized

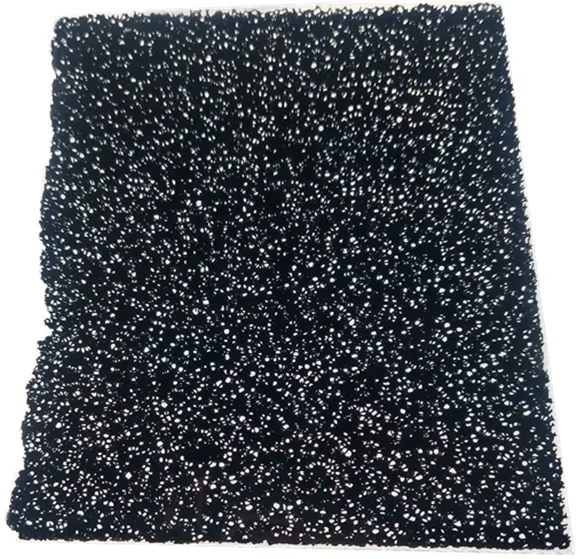

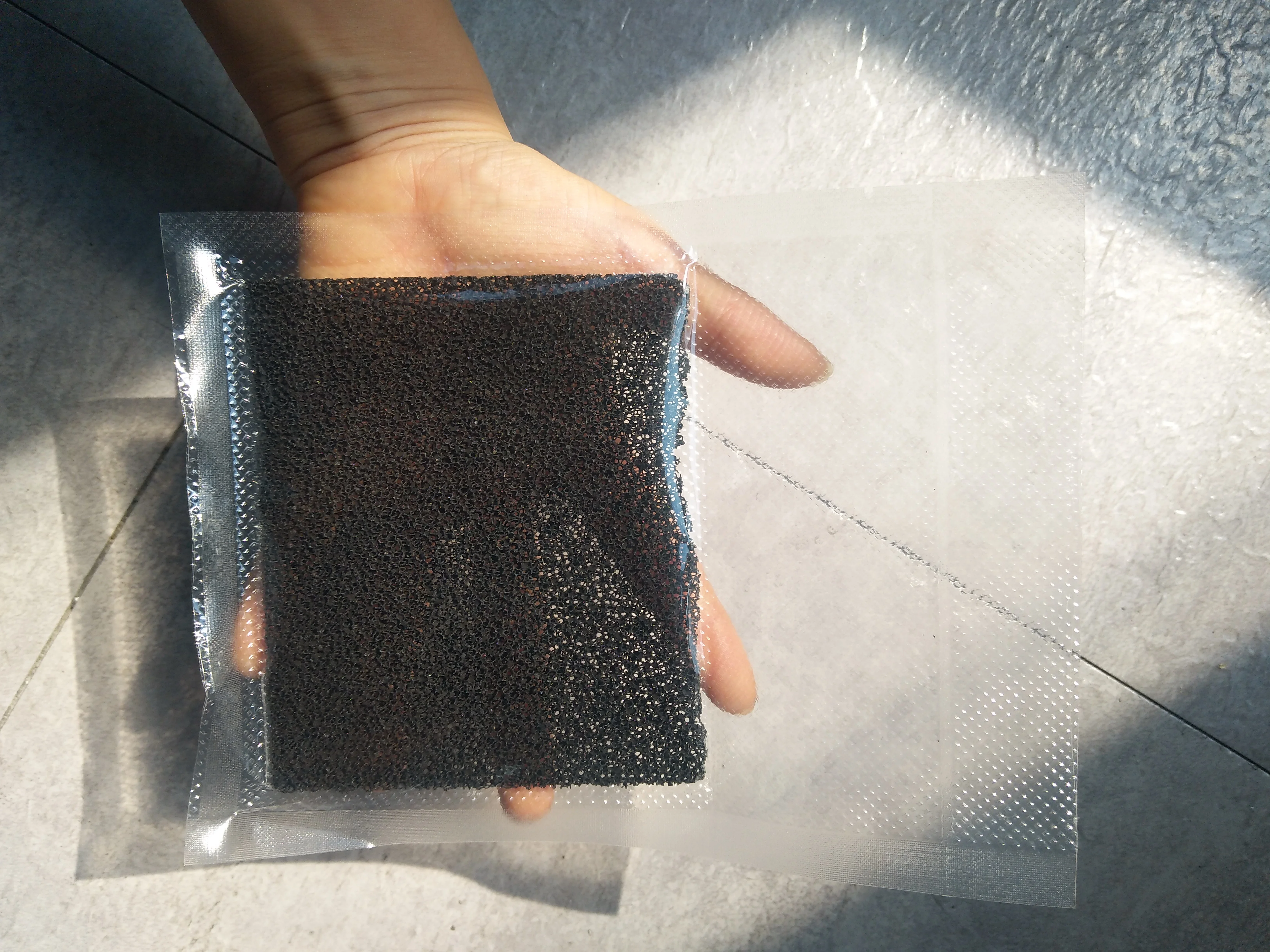

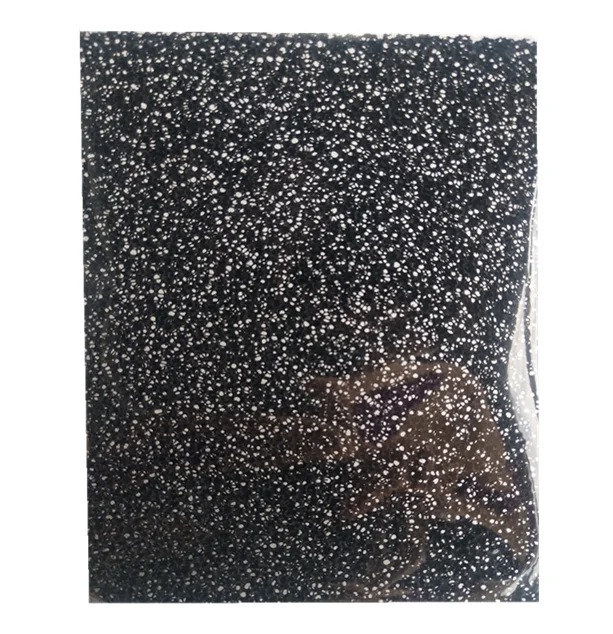

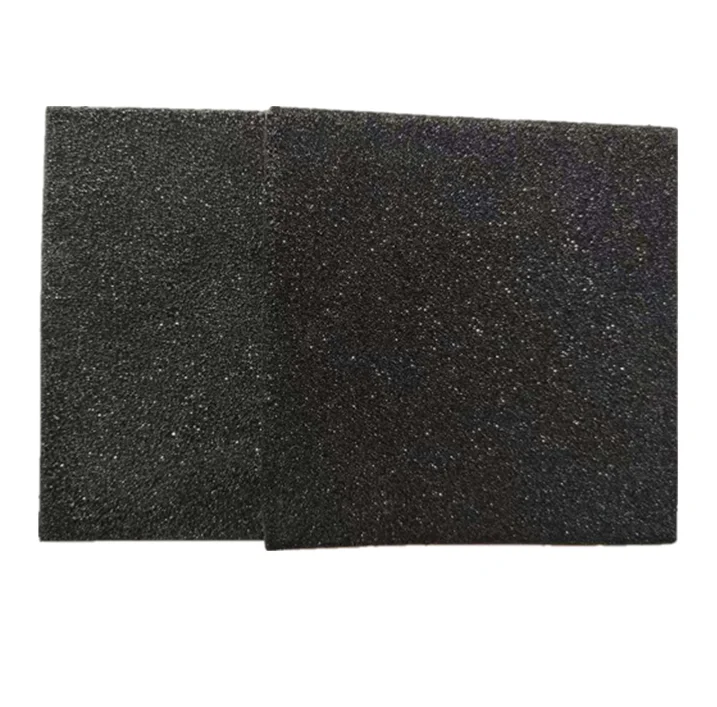

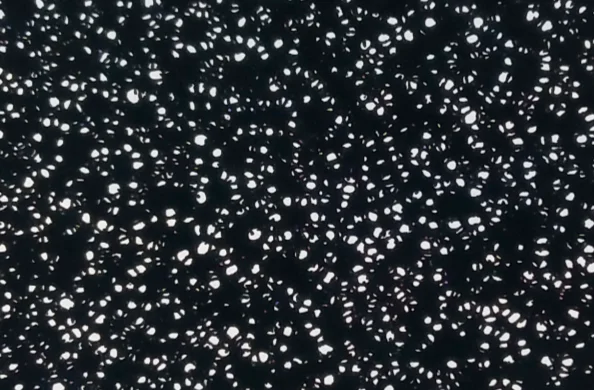

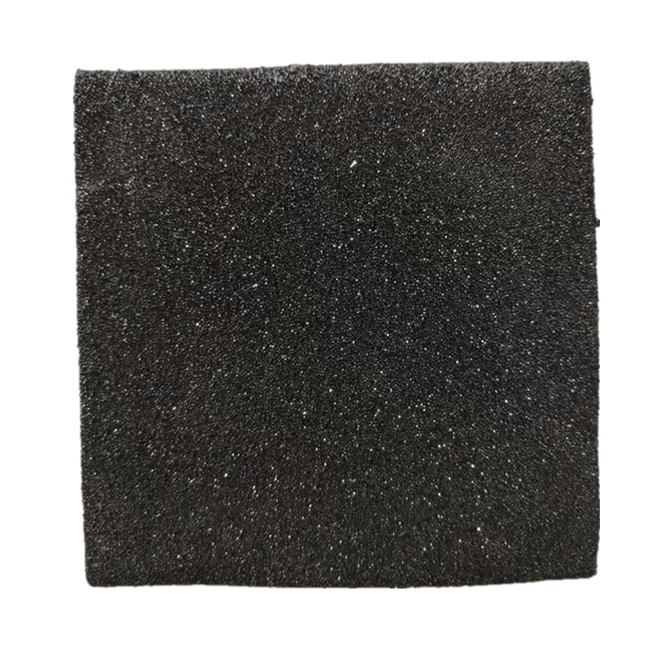

 Product Images













1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
