Product Description

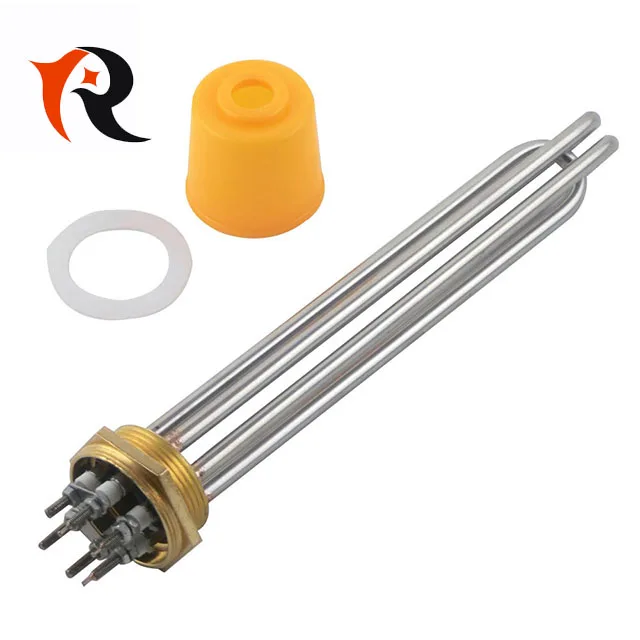

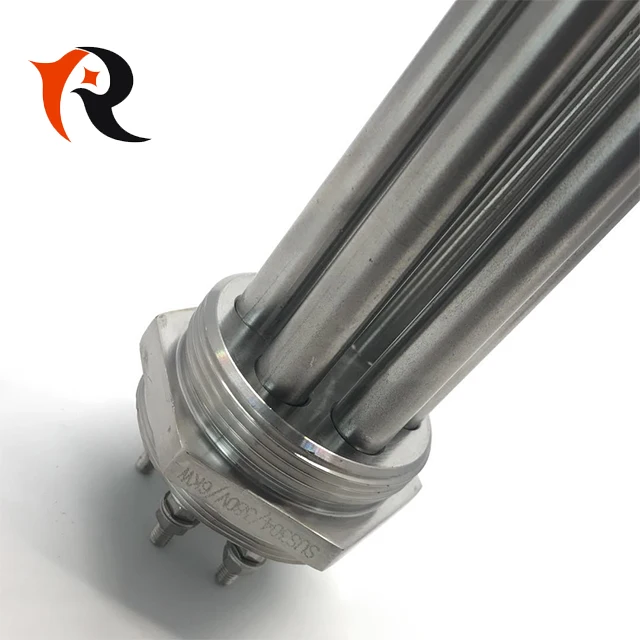

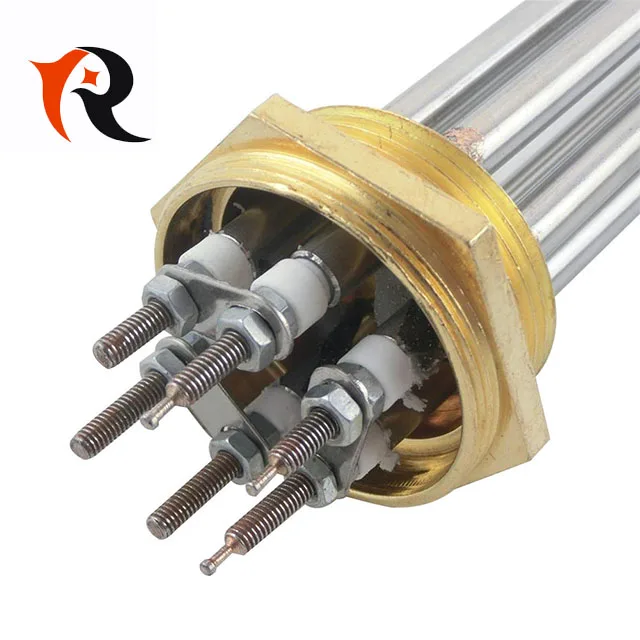

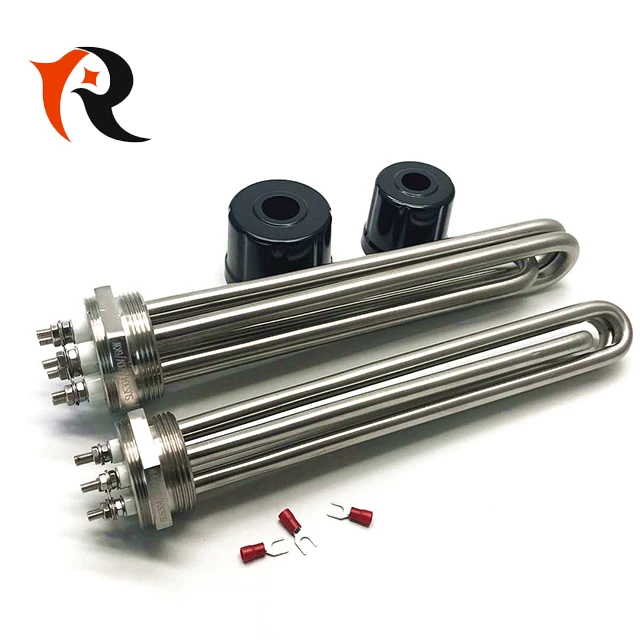

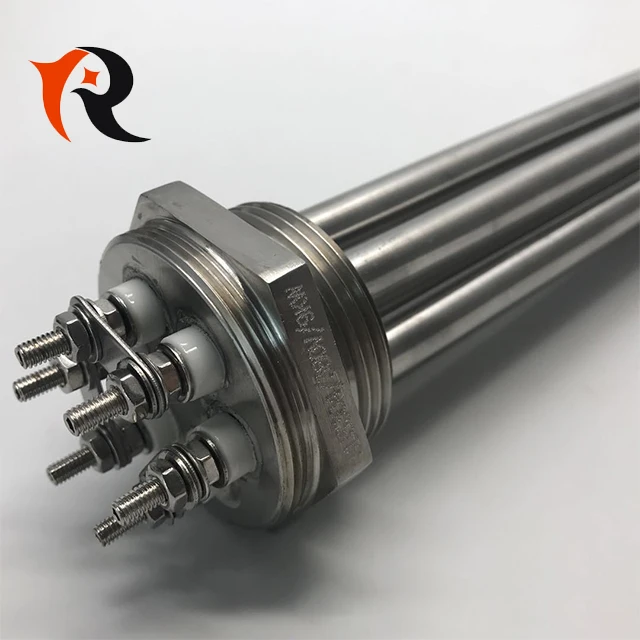

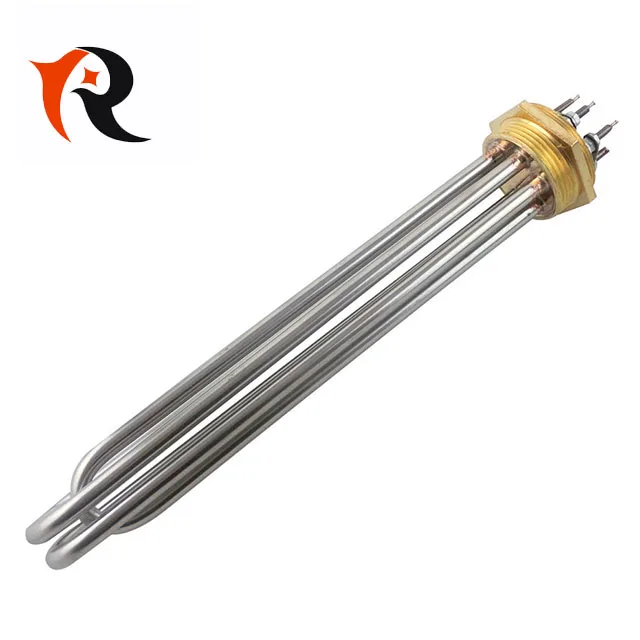

Thread Heating Element Water Resistance Electrical Immersion Heater
Flanged immersion heaters consist of hairpin bent tubular elements welded or brazed into a flange and provided with wiring boxes for electrical connections. Flange heaters are installed by bolting to a matching flange welded to the tank wall or nozzle. A wide selection of flange sizes, kilowatt ratings,voltages, terminal housings and sheath materials makes these heaters ideal for all types of heating applications
Tube diameter: | Φ8mm-Φ20mm |
Tube Material | SS201, SS304, SS316, SS321 and INCOLOY800 etc |
Insulation Material | MgO |
Conductor Material: | Nichrome Resistance Wire |
Wattage Density: | High/Middle/Low (5-25w/cm2) |
Voltages available: | 380V,240V, 220V,110V,36V,24V or 12V |
Lead Connection Option: | Threaded Stud Terminal or Lead Wire |
Detailed Images
Specifications
* High-Density and quality tubular heating elements
* Many diameters and length offered as standard
* Alloy sheath for high corrosion resistance
Main Features
* We support OEM order,and print Brand or Logo on surface.
* We can custom tubular heating elements specially(According to your size,voltage,power etc.)
Application
* Plastic processing machinery
* Water and oil heating appliances* Packing machineries
* Vending machines
* Dies and Tools
* Heating chemical solutions
* Ovens and Dryers
* Kitchen equipments
Order Guidance
The key questions which need to be answered before selecting a tubular heating element are:
1.What wattage and voltage will be used?
2.What is the diameter and heated length required?
3.What's the heating medium? Water or Oil heating?
4.What is maximum temperature and how long required to reach your temperature?
Our Company
Yancheng Xinrong Electronic Technology Co.,Ltd have been engaged in design and manufacturing of industrial heating system, Our company have advanced production lines and testing equipment, who supply clients high quality goods, as well as professional R&D department and service team, who provide customers best heating solutions. Our products have been exported to Europe, America, Asia, Mid East etc. more than 200 countries. We supply different heating element, heating equipment, and temperature measurer.
Adhering to "Quality Best, Customer First and Honesty" business philosophy, the company and domestic and foreign partner make progress together to create a better future.
Our Service
Pre-Sales Service
* Technical solutions & support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the products, training how to use the products
* Service will be always online.
Packing & Delivery
Packaging | ||
Size | 40 (L) * 30 (W) * 30 (D) | |
Weight | 20KGS | |
Packaging Details | The normal package is carton(Size: L*W*H). If export to european countries,the wooden box will be fumigated.We will use pe film for packing or pack it according to customers special request. | |
