Introduction

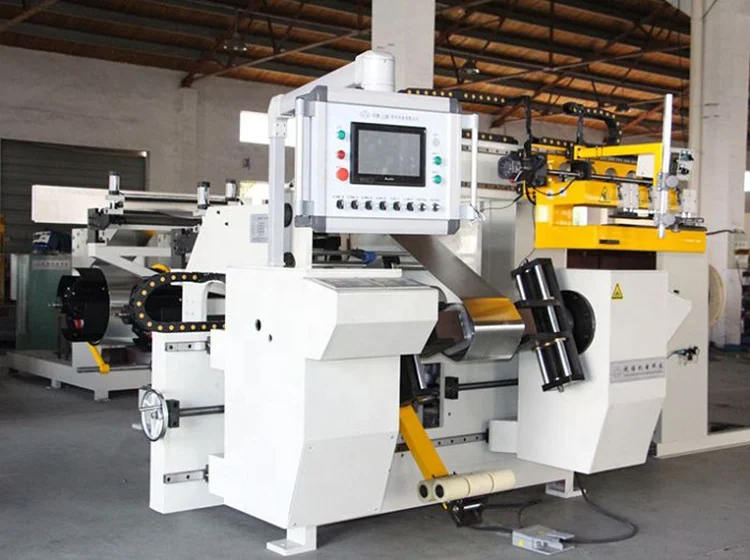

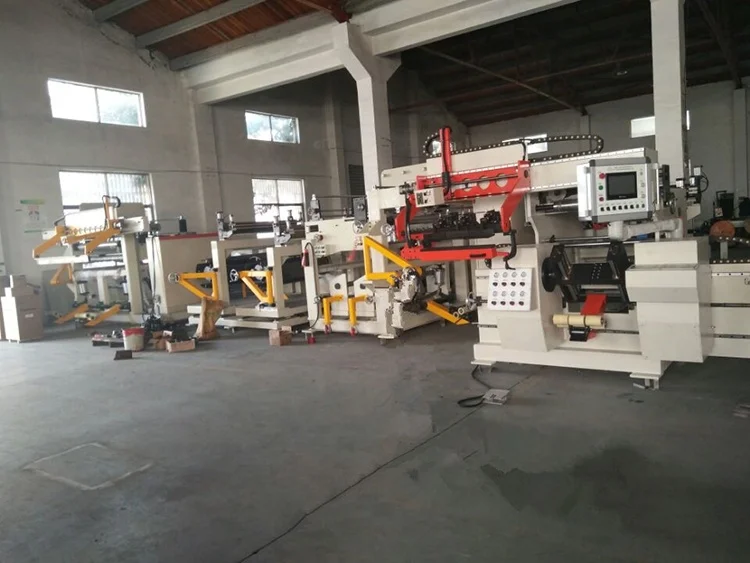

Dual Layer Strip Winder Servo Motor Driven Reactor Foil Winding Machine BRJ600-2-2 is a core-clamping type foil winding machine, and it  adopts double servo motors, which makes two ends of the mandrel have the same torque and ensures the two ends to wind synchronously. This kind of reactor foil winding machine can wind 1 or 2 layers of foil conductor and 1or 2 layers of insulation paper at the same time. The reactor foil winding machine adopts PLC based control system, and can be easily operated. Operators just need to clamp the core on the machine, input all of the parameters, then it can wind automatically as per the parameters. The parameters are input through a touch-screen user interface. Moreover, this reactor foil winding machine can count the number of turns, reversibly input parameters by segment, and have power-off memory.



Main Components:



1. Main frame

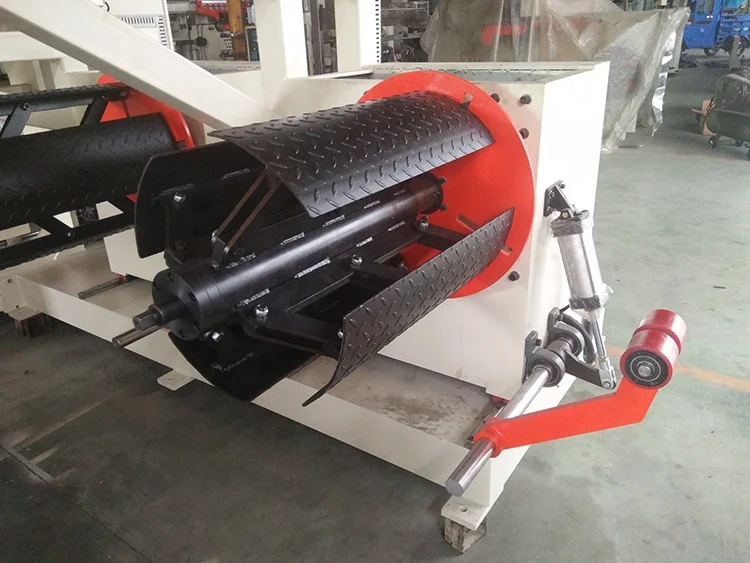

2. Foil decoiler

3. Pressing roller

4. Winding unit

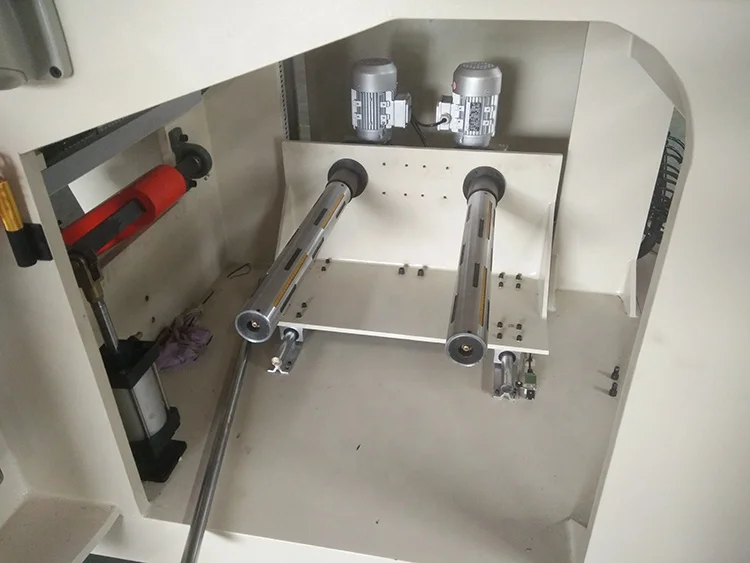

5. Insulation paper decoiler

6. Edge alignment system

7. Automatic welding unit

8. Pneumatic unit

9. Electrical Control System



Technical Parameters



Typical standard specifications of BRJ600-2-2 are shown below, however these can be easily modified as requested.

Max. Winding Length (foil width):	600mm
Conductor Decoiler Number:	2
Conductor Decoiler Length:	650mm
Conductor Decoiler Shaft:	Dia. range 400-520mm
Insulation Paper Decoiler Number:	2
Insulation Paper Width:	650mm
Insulation Paper Decoiler Shaft:	Expandable (pneumatic open/close action)
User interface:	10 inches (254mm) touch screen industrial PC / access controller
Counting Turn Range:	0 - 9999.9
