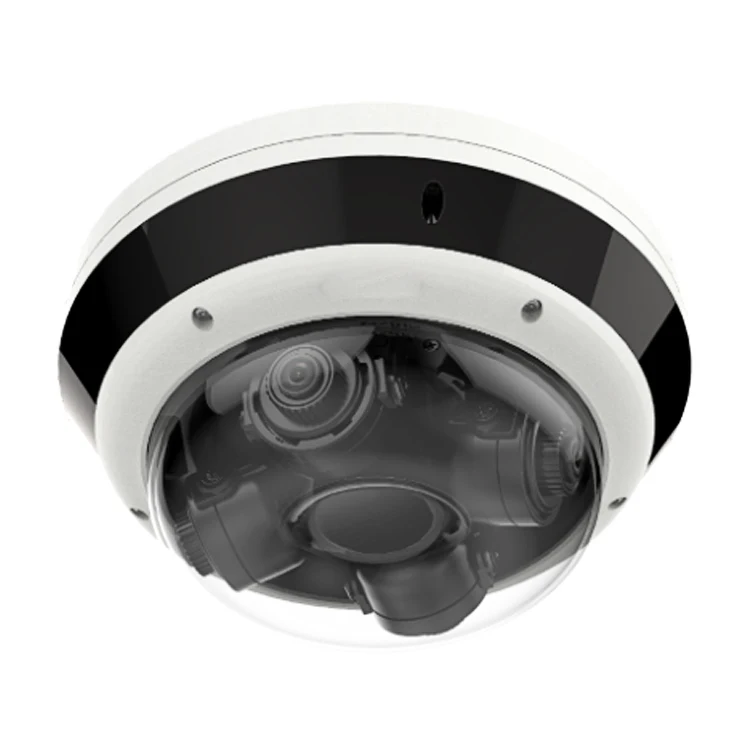

4 два направления Multisensor 360 панорамная камера DS-2CD6D54G1-IZ

What is the Specification of this Product ?

4-Directional Multisensor Network Camera

• 4 adjustable lenses in one camera cover up to 360° field of view, ensuring no blind area monitoring and the monitoring tilt angle can be adjusted


• Each lens up to 5 MP, capturing clear images, and more details can be displayed on video wall


• Clear imaging against strong back light due to 120 dB true WDR technology


• Water and dust resistant (IP67) and vandal proof (IK10)


• 3D DNR technology delivers clean and sharp images


• -S: audio and alarm interface available

• Camera


• Image Sensor1/2.7" Progressive Scan CMOS


• Min. IlluminationColor: 0.0125 Lux @(F1.9, AGC ON) B/W: 0.0025 Lux @(F1.9, AGC ON), 0 Lux with IR


• Shutter Speed1 s to 1/100,000 s


• Slow ShutterYes


• Day &NightIR cut filter


• Angle AdjustmentPan: -60° to 60°, tilt: 10° to 90°, rotate: 0° to 350°


• WDR120 dB

• Lens


• ApertureF1.9


• FocusManual, semi-auto


• FOVHorizontal FOV 100° to 49°, vertical FOV 72° to 36.4°, diagonal FOV 134.4° to 61.4°


• Lens MountØ14


• Lens TypeVarifocal lens, 2.8 to 8 mm

• Illuminator


• IR RangeUp to 30 m


• Wavelength850 nm

• Video


• Max. Resolution2560 × 1920


• Video Stream3 defined streams


• Main Stream50 Hz: 25 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720)


• Sub Stream50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 24 fps (704 × 480, 640 × 480)


• Third Stream50 Hz: 6 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 8 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)


• Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264


• H.264 TypeBaseline Profile/Main Profile/High Profile


• H.265 TypeMain Profile


• Video Bit Rate32 Kbps to 16 Mbps


• SVCH.264 encoding


• H.264+Main stream support


• H.265+Main stream support

• Audio


• Audio CompressionWith -S model: G.711/G.722.1/G.726/MP2L2/PCM


• Audio Bit RateWith -S model: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)


• Environment Noise FilteringWith -S model: Yes


• Audio Sampling RateWith -S model: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

• Smart Feature-Set


• Smart EventLine crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Scene change detection, audio exception detection(-S), defocus detection


• Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)


• Region Of Interest4 fixed regions and dynamic face tracking for each stream


• Linkage MethodUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

• Image


• Image EnhancementBLC, HLC, 3D DNR, Defog, EIS


• Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser


• Target CroppingYes


• Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)


• Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format


• SNR≥52 dB

• Network


• Network StoragemicroSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR


• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour


• APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome


• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/ HTTPS, WSSE and digest authentication for Open Network Video Interface


• Simultaneous Live ViewUp to 20 channels


• User/HostUp to 32 users. 3 user levels: administrator, operator and user


• ClientiVMS-4200, Hik-Connect, Hik-Central


• Web BrowserIE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11

• Interface


• Communication InterfaceWithout -S model: 1 RJ45 10M/100M/1000M Ethernet port; built-in RS-232 With -S model: 1 RJ45 10M/100M/1000M Ethernet port; built-in RS-232 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self- adaptive)


• AudioWith -S model: 1 input (line in), 1 output (line out), 3.5 mm three-contact


• AlarmWith -S model: 2 inputs, 2 outputs (max. 24 VDC, 1 A)


• On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB

• Approval


• EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015


• SafetyUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015


• Chemistry2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006


• ProtectionIK10 (IEC 62262:2002), IP67 (IEC 60529-2013)

• General


• Firmware VersionV5.5.32


• Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)


• General FunctionAnti- flicker, 3 streams, heartbeat, mirror, privacy masks


• ResetReset via reset button on camera body, web browser and client software


• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)


• Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)


• Power Supply12 VDC± 20%, reverse polarity protection; three-core terminal block 24 VAC ± 20%; PoE (802.3at, class 4)


• Power Consumption And Current12 VDC, 1.8 A, 22 W 24 VAC, 1.4 A, 22 W PoE (802.3at, 42.5 to 57 VDC), 0.44 to 0.33 A, 19 W, class 4


• MaterialBubble & IR cover: plastic, camera: metal


• DimensionsCamera: Ø250 × 114.9 mm (9.8″ × 4.5″) With package: 336 × 261 × 293 mm (13.2″ × 10.3″ × 11.5″)


• WeightCamera: 2.2 kg (4.9 lb.) With package: 3.9 kg (8.6 lb.)
