M0313 модуль Modbus to

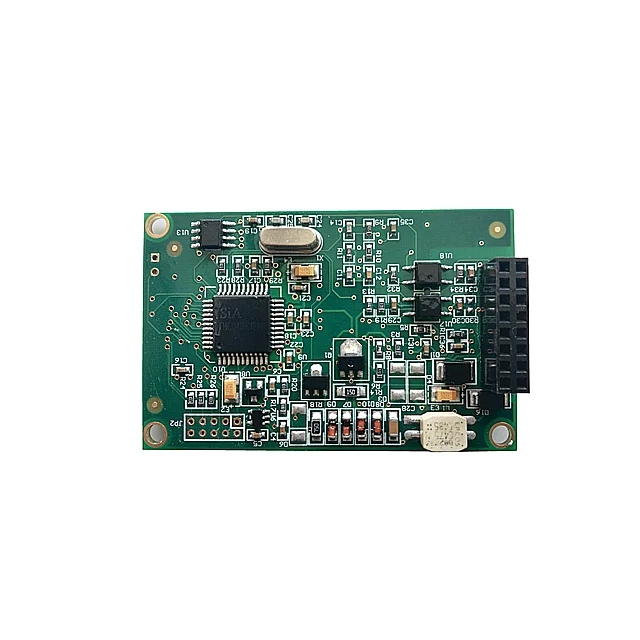

- - The Microcyber M series built-in modules have the same size: 65mm(length)*42mm(width)

There are three Φ3 location hole in the module.The module can be fixedly installed in the user’s board with three hexagonal prism.

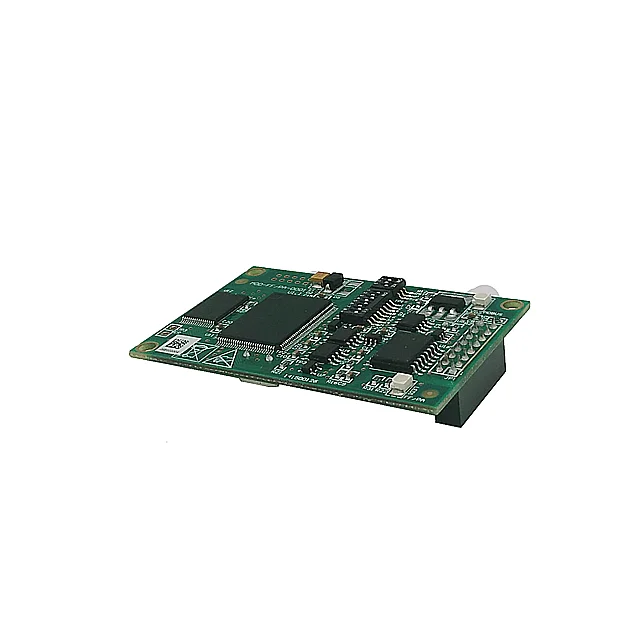

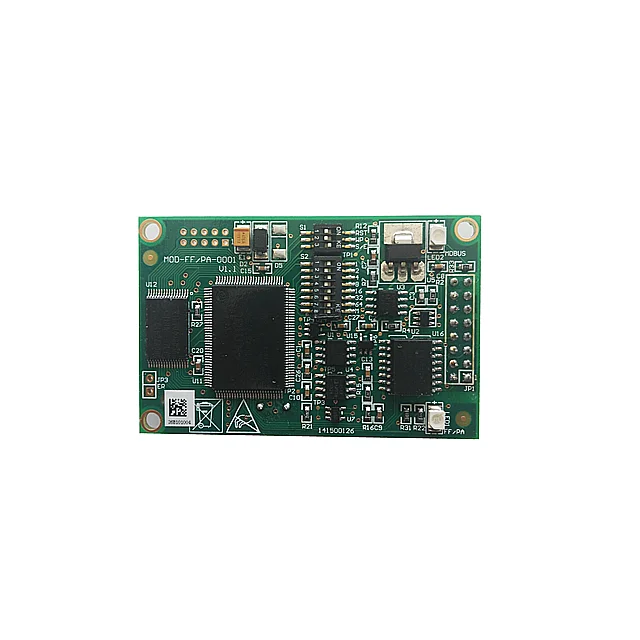

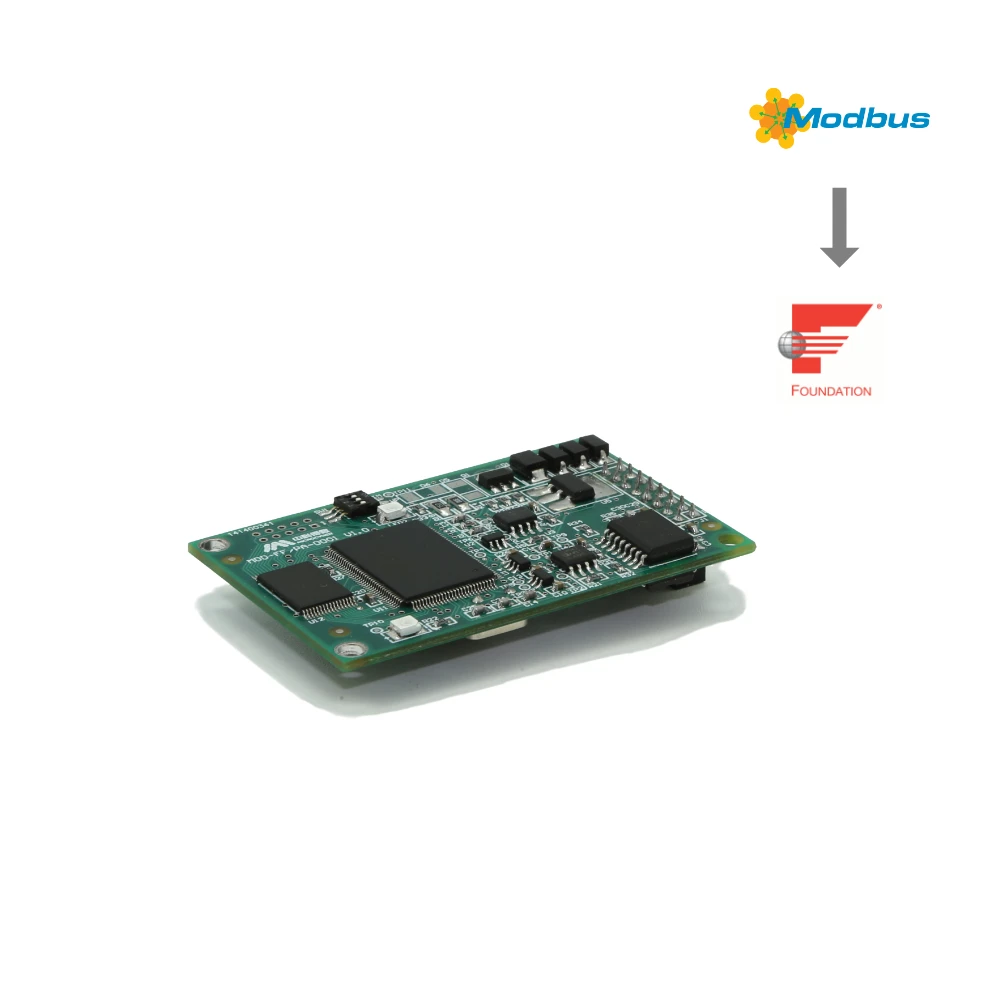

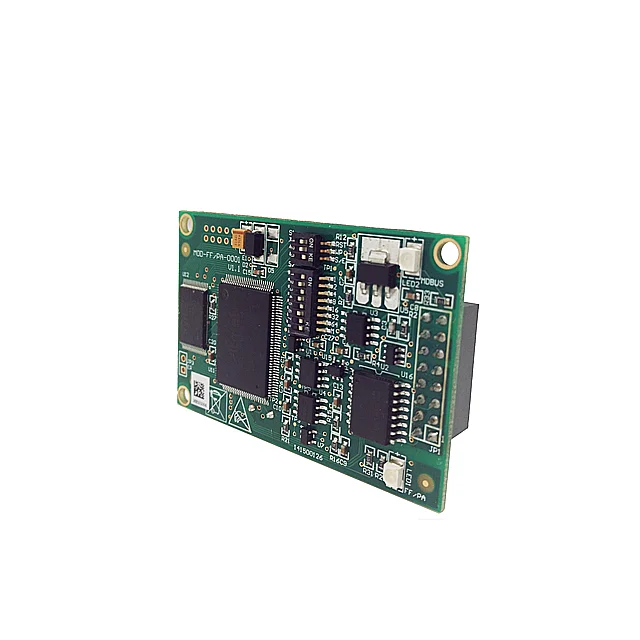

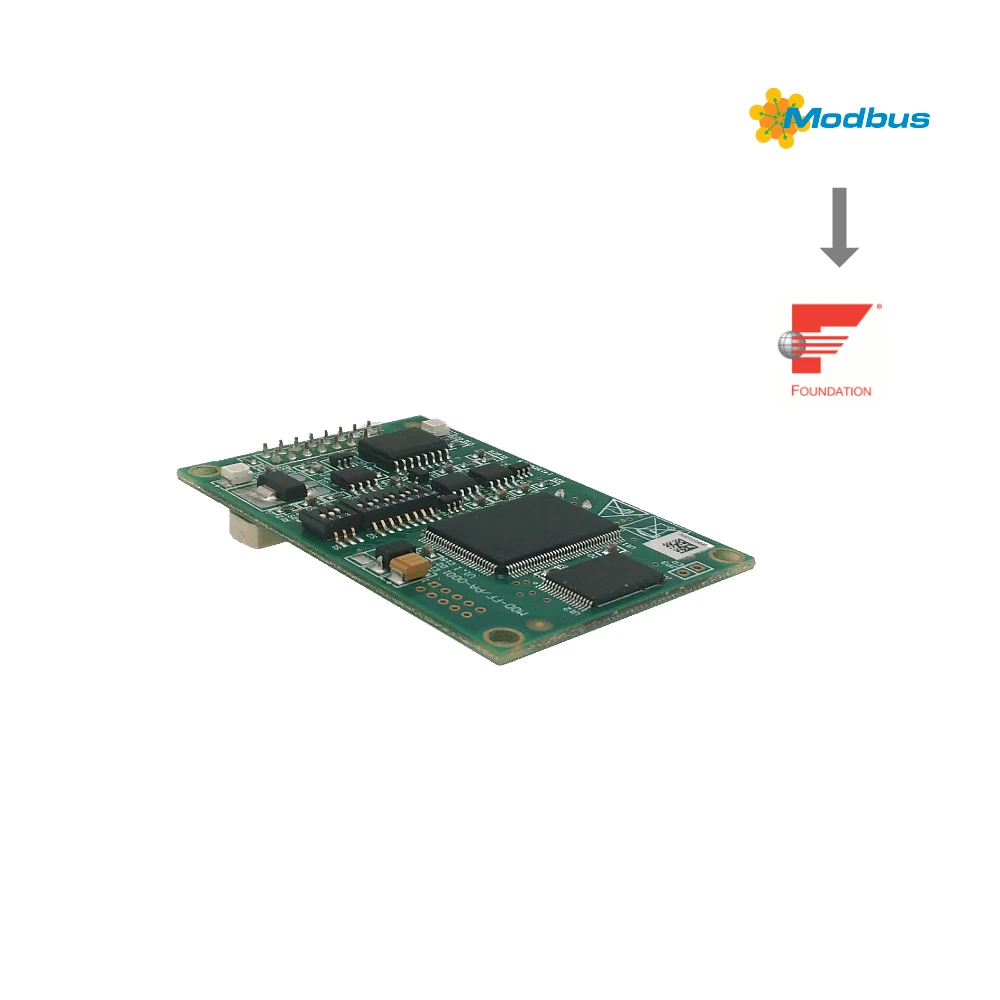

M0313 Modbus to FF built-in module is a module supporting Modbus and FF protocol.As FF device,it can communicate with Modbus devices,read Modbus data to FF device by simply configuration,and transfer data to control system through FF bus.System Wiring Diagramof Modbus to FF built-in module is shown in picture:

M0313 Modbus to FF built-in module support 1 Modbus slave device,8 groups of analog input outputand discreter input output parameters,totally 32 channels provided.It configures Modbus device’s data into transducer block’s parameters via Modbus register,and provides data support for FF system via channels betweenvariables and AI,AO,DI and DO function blocks.Principle Diagram for Modbus to FF built-in module is shown in picture:

FF device support many net topologies shown as picture. The bus connection of FF instrument is shown in picture, in order to ensure the bus signal quality ,the terminal matching resistances should be connected to the 2 ends of the bus.The bus maximum length is 1900m,with a repeater,the length can be extended to 10 kilometers.
