Высокое качество одномодовый 9/125 дуплексный ST LC FC SC-SC/оптический патч-корд
- Категория: Telecommunications >>>
- Поставщик: Shenzhen,DYS,Fiber,Optic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.19 $* | 0.84 $* |
| Aug-19-2025 | 0.34 $* | 0.56 $* |
| Jul-19-2025 | 0.54 $* | 0.86 $* |
| Jun-19-2025 | 0.83 $* | 0.25 $* |
| May-19-2025 | 0.13 $* | 0.23 $* |
| Apr-19-2025 | 0.73 $* | 0.11 $* |
| Mar-19-2025 | 0.4 $* | 0.62 $* |
| Feb-19-2025 | 0.34 $* | 0.24 $* |
| Jan-19-2025 | 0.95 $* | 0.64 $* |
Характеристики
Product Description

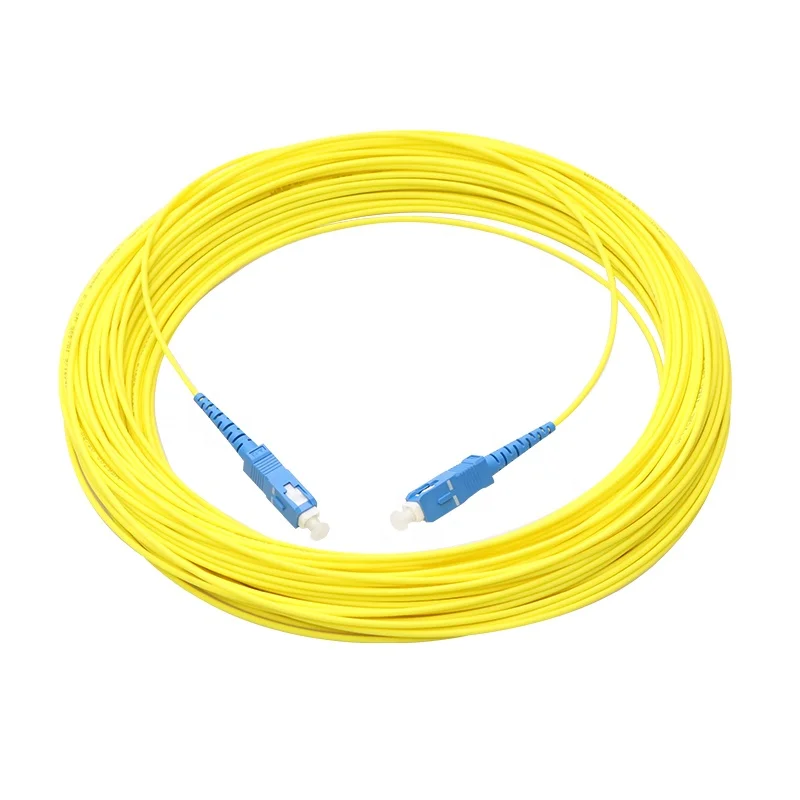

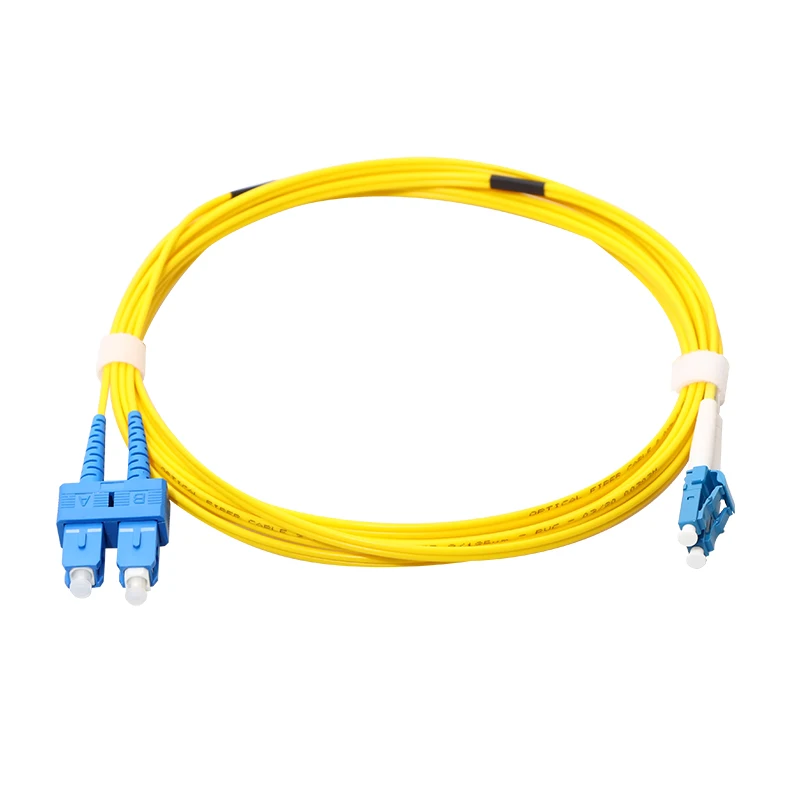

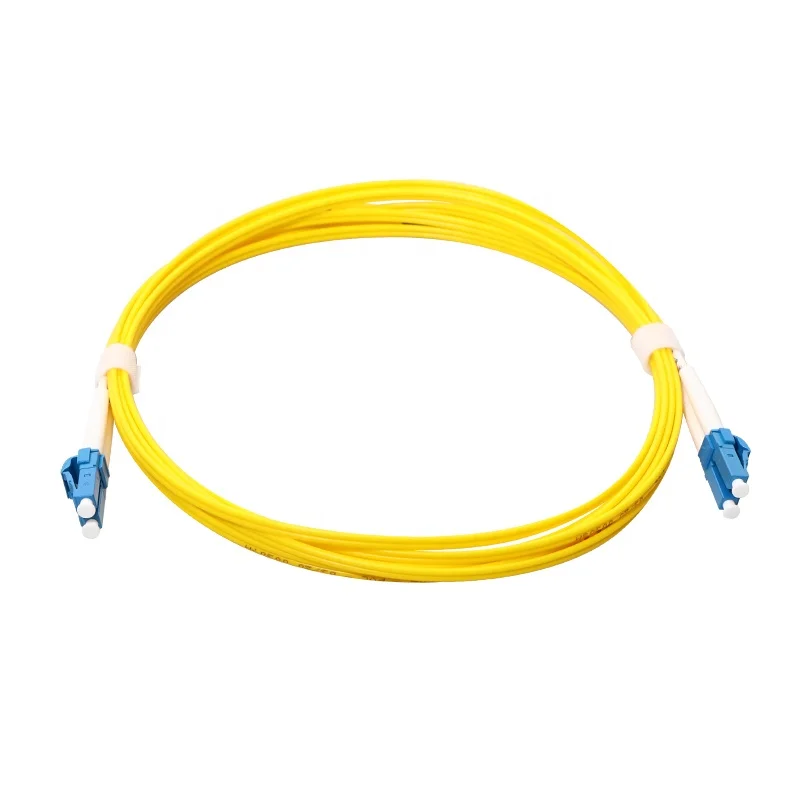

High quality Single Mode 9/125 Duplex ST LC FC SC-SC/UPC Fiber Optic Patch Cord
1.Fiber optic patch cord is available in both singlemode and multimode versions.
2.Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC
profile and convex spherical end.
3.These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability
2.Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC
profile and convex spherical end.
3.These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability
APPLICATION
1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical
FEATURES
1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard
Mode | Single mode | Multimode | |||
Polish | UPC | APC | PC | ||
Insertion Loss | ≤0.30dB | ≤0.20dB | ≤0.20dB | ||
Return Loss | ≥50dB | ≥60dB | ≥30dB | ||
Test Wavelength | 1310/1550nm | 850/1310nm | |||
Durability(500 Matings) | ≤0.2dB | ||||
Operating Temperature | -40℃~+60℃ | ||||
Storage Temperature | -45℃~+85℃ | ||||
Fire Resistant | IEC 60794-2-30 | ||||
Standards-Compliant | ROHS,IEC and GR-326 | ||||
Our Company
