Products Description

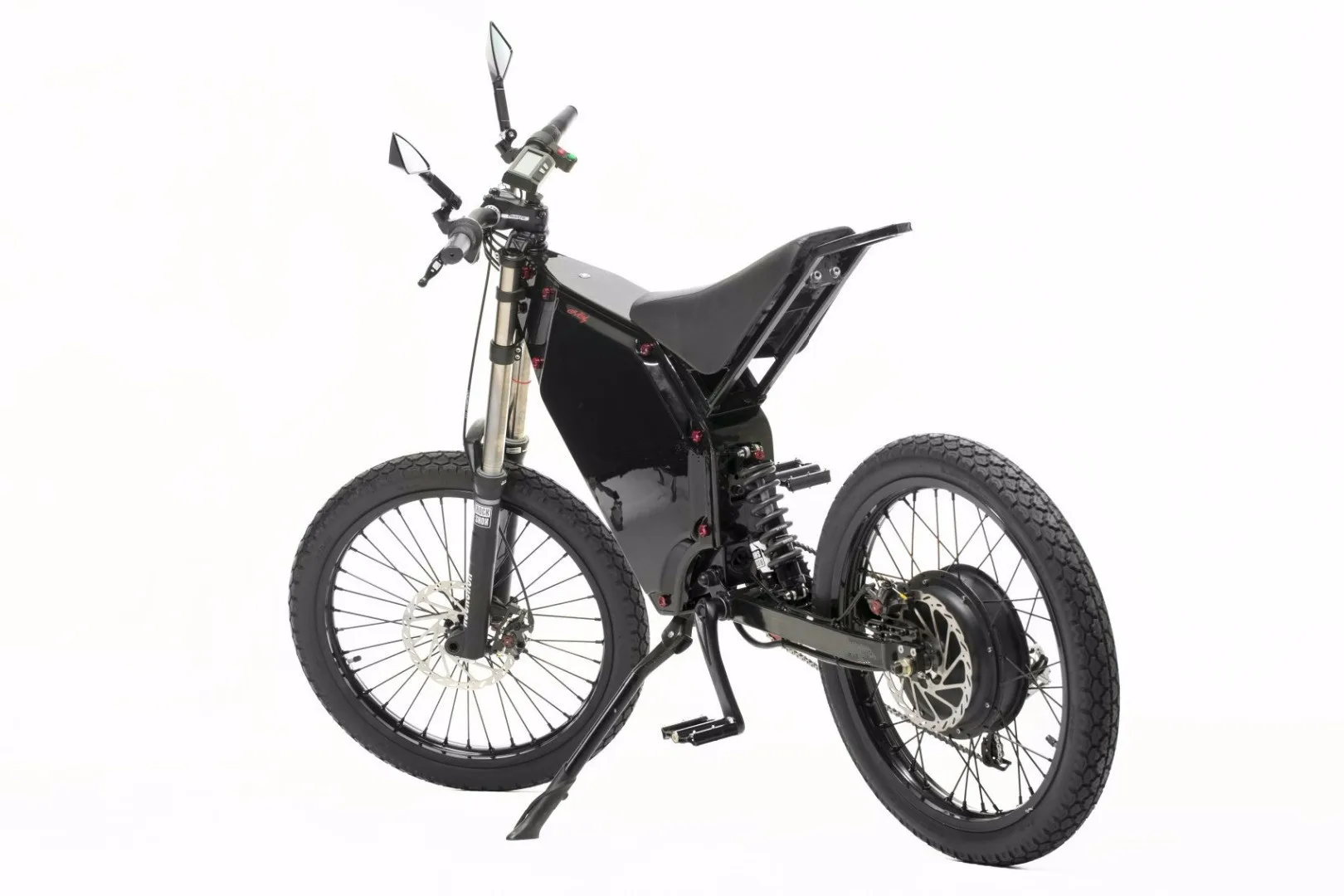

Electric Downhill enduro EEB bike frame with DNM USD 8 electric bicycle front fork
This dedicated dual suspension e-bike frame makes a suberb basis for a high power e-bike. There is a very large battery enclosure,dual suspension, with wide rear dropout (~155mm) with integrated torque arms built to accept high power e-bike parts and be stable at very high speeds and challenging off road terrain.
What's Included?

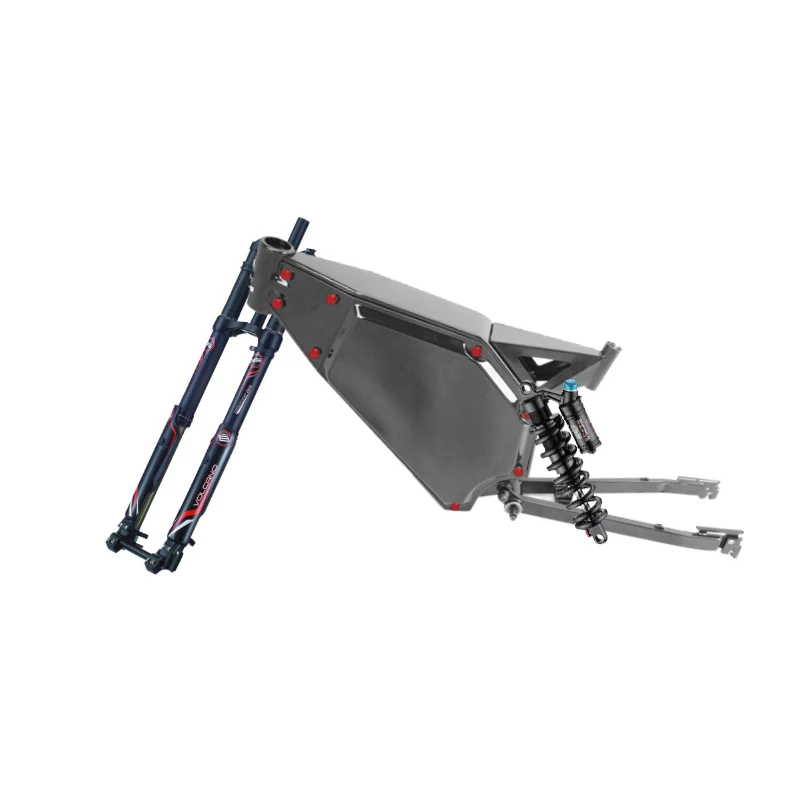

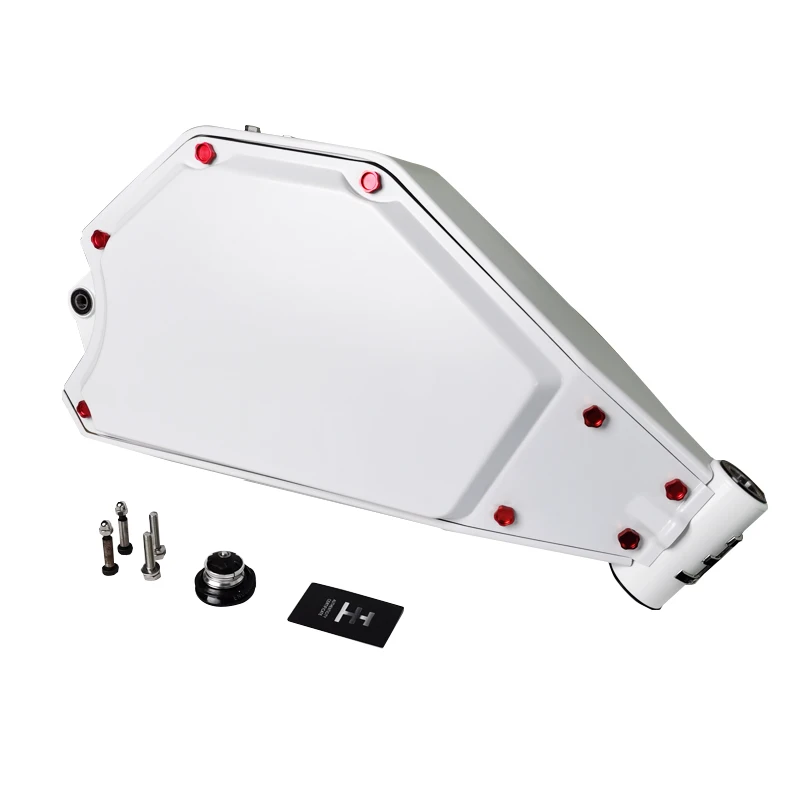

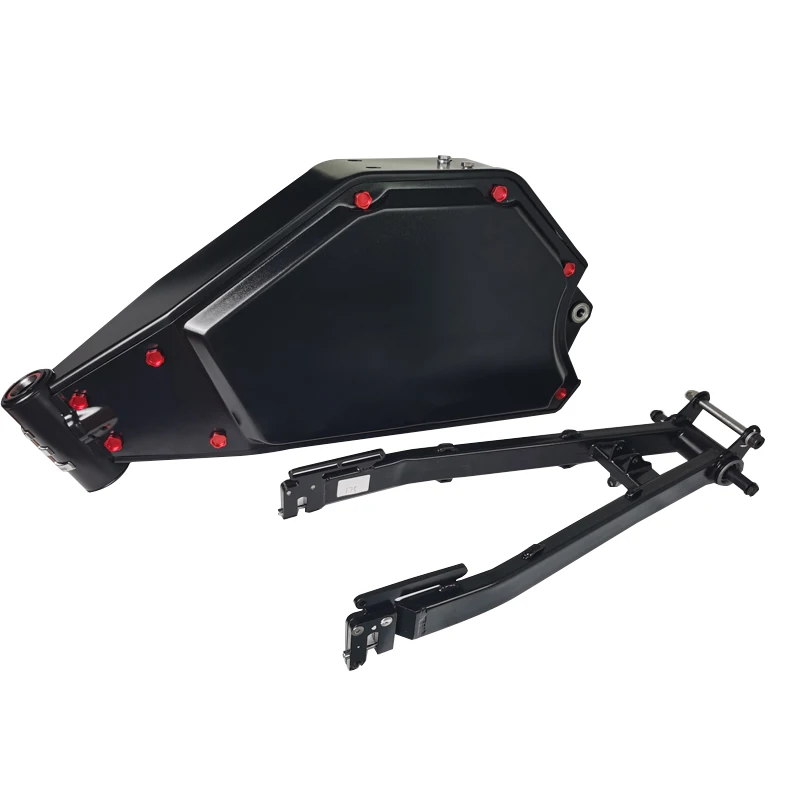

One frameset includes: main frame structure (including plastic covers, fittings etc), swingarm with integrated pinching torque arms, headset, 100mm bottom bracket, seatpost platform, plus all bolts washers and accesssories to assemble these parts together.
One frameset includes: main frame structure (including plastic covers, fittings etc), swingarm with integrated pinching torque arms, headset, 100mm bottom bracket, seatpost platform, plus all bolts washers and accesssories to assemble these parts together.
Key point:
Weight - 10kg with all bolts and plastic (shipping weight 13kg, equivalent volume weight is ~20kg).
Materials - 2mm Q235A steel tubes, 4mm ABS+PMMA plastic, high strength steel bolts and aluminum anodized bolts for side covers.
Colour options - Black frame with Red Anodised Bolts, or White Frame with Black Bolts.
Battery Compartment - 140mm internal width, 148mm external width. Detailed internal dimensions can be seen in additional images.
Max recommended battery weight is 17kg.

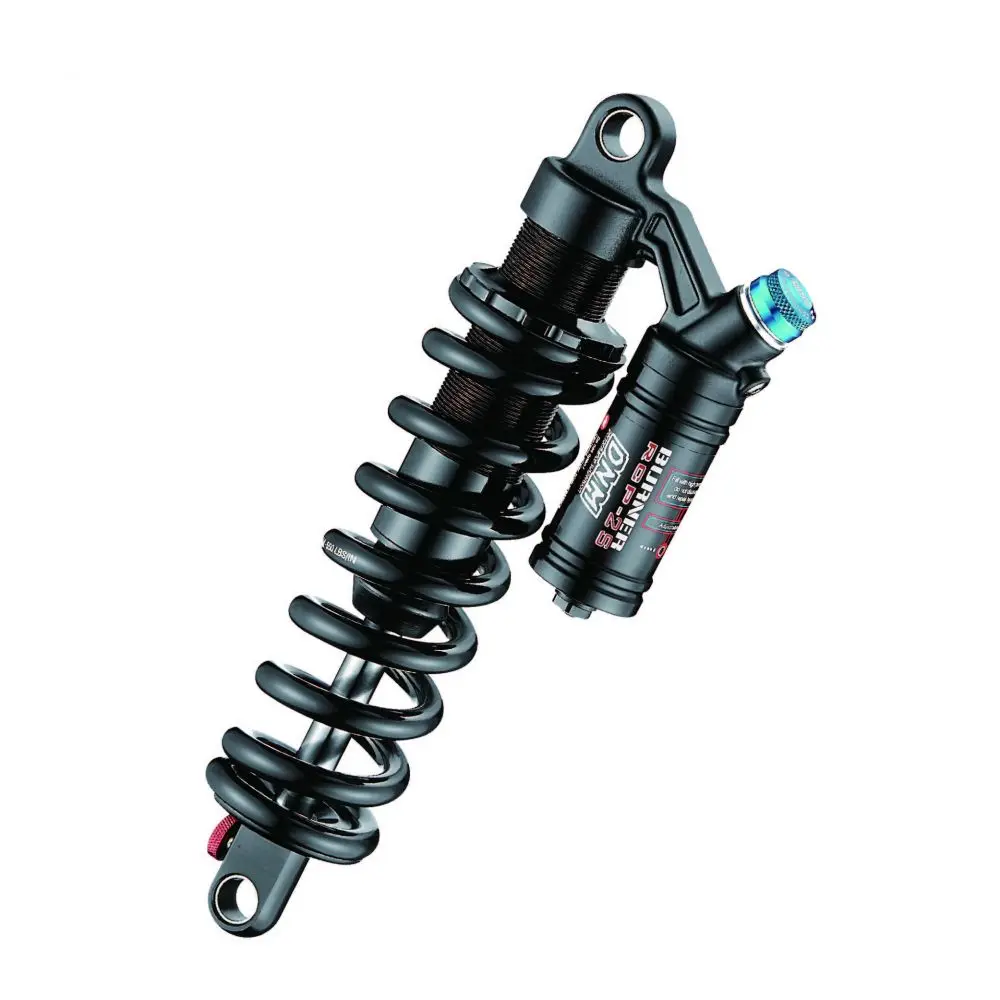

Rear Shock - Compatible with rear shocks with length of 190-240mm (axle to axle), but recommended length is 220mm. Recommended
coil spring, 650-750lbs (for riders 90kg, 200lb plus, consider the 750lb spring). 240mm shock length is best only used for smaller
wheels (such as 17-18 inch moto). Shock mount width is 24mm. We offer the DNM Burner-RCP3 shock as an upgrade to our frame kit.
See "Upgrades" below.

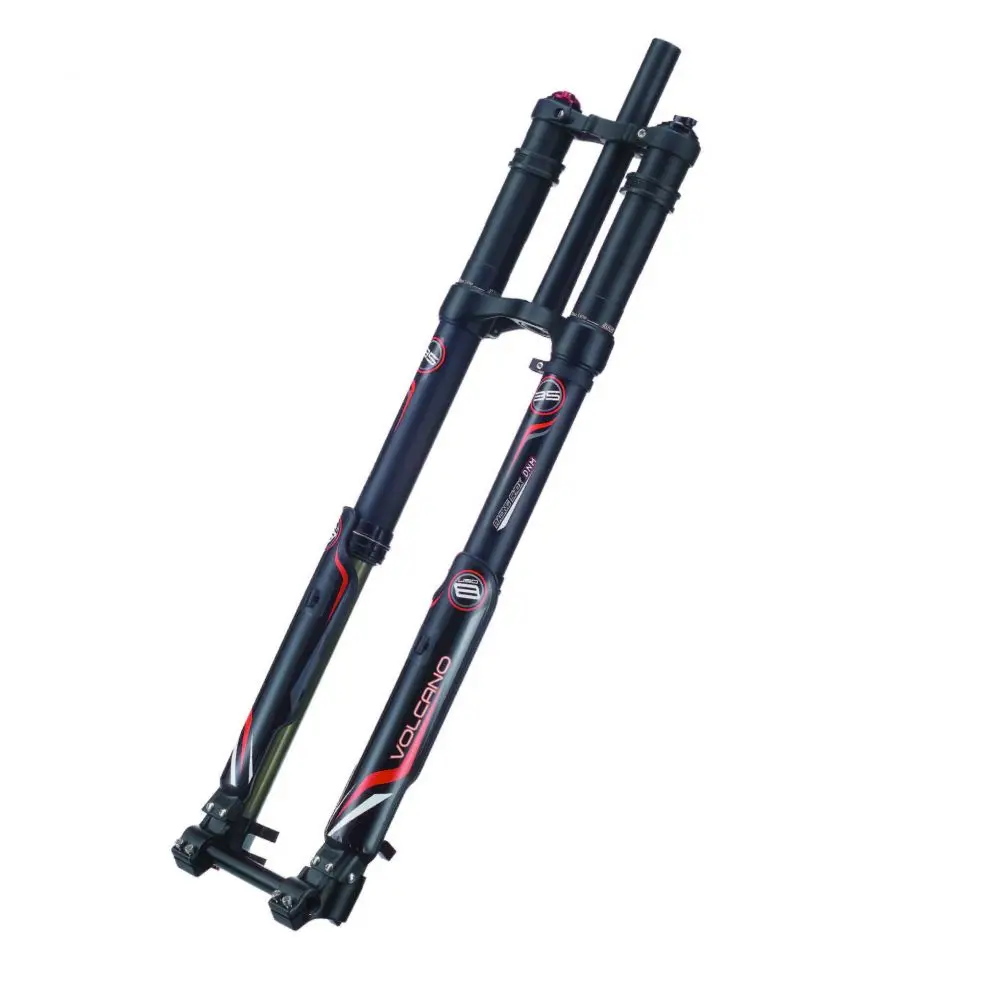

Front fork - A strong Mountain Bike Fork with 130-200mm travel is recommended. Compatible with tapered and non-tapered steering
tube . Headtube length 130mm. We offer the DNM USD-8 fork as an upgrade to our frame kit. See "Upgrades" below.
Rear Brake - Standard bicycle IS mount. Can be used with 160-225mm brake disc.
Derailleur - Standard M10x1 threaded hole for installation of a standard derailleur.
Seat - Seat Post diameter TBC.
Headset - Headset is included. High Quality semi-integrated, sealed bearing, original Taiwan VP Components J305AC(S) headset, compatible with standard bicycle 1,1/8 and also tapered forks (two different bottom rings included).
Bottom Bracket - Square Taper 100/145mm BC-63 VP Components BB included (standard bicycle 34mm thread, 100mm width, as used on Fat Bikes).
Dropout - 156mm Dropout width. Can be be used with motors from 135mm, up to 155mm axle width. Spacers can be added to 135mm motors to fill the dropout.
Wheels - Intended for 26", but can also be used with smaller bicycle wheels, or even 17-19 inch motorcycle wheels. Up to 2.7" wide tyres
Materials - 2mm Q235A steel tubes, 4mm ABS+PMMA plastic, high strength steel bolts and aluminum anodized bolts for side covers.
Colour options - Black frame with Red Anodised Bolts, or White Frame with Black Bolts.
Battery Compartment - 140mm internal width, 148mm external width. Detailed internal dimensions can be seen in additional images.
Max recommended battery weight is 17kg.
Rear Shock - Compatible with rear shocks with length of 190-240mm (axle to axle), but recommended length is 220mm. Recommended
coil spring, 650-750lbs (for riders 90kg, 200lb plus, consider the 750lb spring). 240mm shock length is best only used for smaller
wheels (such as 17-18 inch moto). Shock mount width is 24mm. We offer the DNM Burner-RCP3 shock as an upgrade to our frame kit.
See "Upgrades" below.
Front fork - A strong Mountain Bike Fork with 130-200mm travel is recommended. Compatible with tapered and non-tapered steering
tube . Headtube length 130mm. We offer the DNM USD-8 fork as an upgrade to our frame kit. See "Upgrades" below.
Rear Brake - Standard bicycle IS mount. Can be used with 160-225mm brake disc.
Derailleur - Standard M10x1 threaded hole for installation of a standard derailleur.
Seat - Seat Post diameter TBC.
Headset - Headset is included. High Quality semi-integrated, sealed bearing, original Taiwan VP Components J305AC(S) headset, compatible with standard bicycle 1,1/8 and also tapered forks (two different bottom rings included).
Bottom Bracket - Square Taper 100/145mm BC-63 VP Components BB included (standard bicycle 34mm thread, 100mm width, as used on Fat Bikes).
Dropout - 156mm Dropout width. Can be be used with motors from 135mm, up to 155mm axle width. Spacers can be added to 135mm motors to fill the dropout.
Wheels - Intended for 26", but can also be used with smaller bicycle wheels, or even 17-19 inch motorcycle wheels. Up to 2.7" wide tyres
Product packaging
