Product Overview

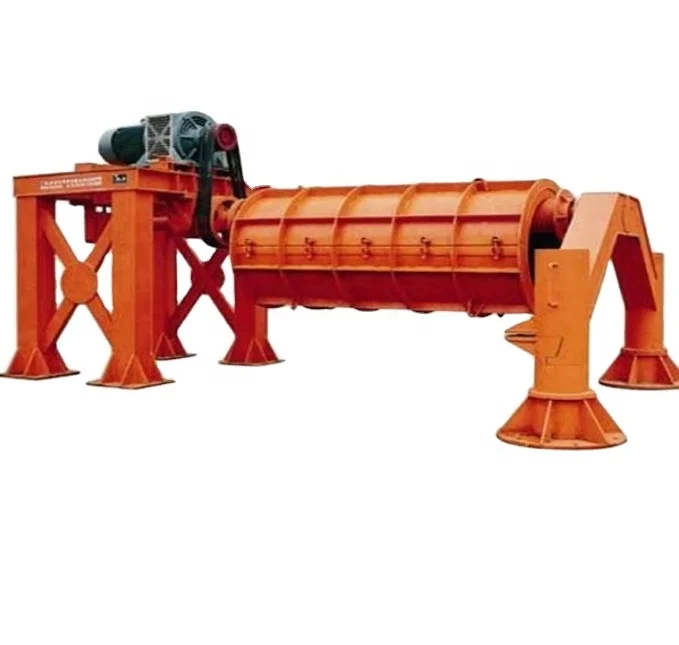

HONGFA Cement Pipe Making Machine
Suspension roller type concrete pipe machine is a kind of perfect machine and equipment to produce reinforced concrete pipes and pre-stressed concrete pipe. This machine is capable to make pipes with diameter from 300-2000mm and with length from2-4meters. We can design many kinds of the pipe joint, including flush joint, socket & spigot joint And all the concrete pipes are widely used in administrative drainage, agricultural field irrigation, road culvert and deep water well.
FEATURES AT A GLANCE
Main Features
· Pipe Diameter: range:200mm to 2500mm diameter, length: 1m-5m
· With hard dry casting concrete, high intensity, and better strength
· We can design many kinds of the pipe joint, including flush joint(flat mouth type), groove joint, socket and spigot joint(socket
and plug mouth type) etc
· The concrete pipes are widely used in administrating drainage, agricultural field, roof culvert, and deepwater well
· With hard dry casting concrete, high intensity, and better strength
· We can design many kinds of the pipe joint, including flush joint(flat mouth type), groove joint, socket and spigot joint(socket
and plug mouth type) etc
· The concrete pipes are widely used in administrating drainage, agricultural field, roof culvert, and deepwater well
Pipe molds
Pipe machine Joints

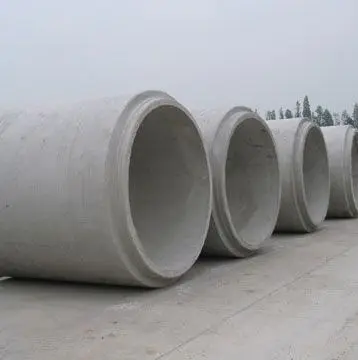

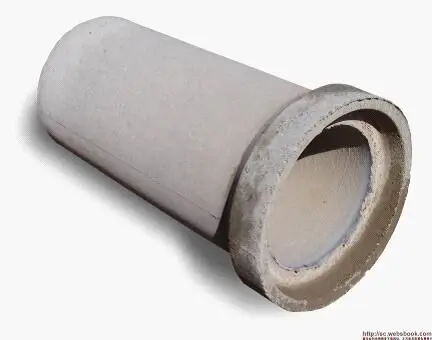

Cement pipes
PRODUCT SPECIFICATIONS
Model | XG600 | XG1200 | XG1500 |
Pipe Length (mm) | 300-600 | 600-1200 | 800-1500 |
Pipe Diameter (mm) | 2000 | 2000 | 2000 |
Motor Power (KW) | 15 | 30 | 55 |
Model of Motor | YCT-2254B | YCT-3154A | YCT-3354A |
Roller Thickness (mm) | 25 | 30 | 35 |
Roller Rotation Speed | 83-833 (R/Min) | 69-687 (R/Min) | 65-653 (R/Min) |
Items | XG 200-600 | XG 800-1200 | XG 1000-1500 | XG 4M |
Diameter | 200-600mm | 800-1200mm | 1000-1500mm | 300-2000mm |
Length | 2000mm | 2000mm | 2000mm | 1000-4000mm |
Power of motor | 15kw | 45kw | 90kw | 110kw |
Capacity | 10-15pc/h | 8-12pc/h | 6-10pc/h | 6-8 pc/h |
Labor demand without feeding machine | 4-5 | 4-5 | 4-5 | 4-5 |
Labor demand with feeding machine | 3-4 | 3-4 | 3-4 | 3-4 |
Joint | Plain,socket and spigot,male and female | Same as XG 200-600 | Same as XG 200-600 | Same as XG 200-600 |
PRODUCT CONFIGURATION

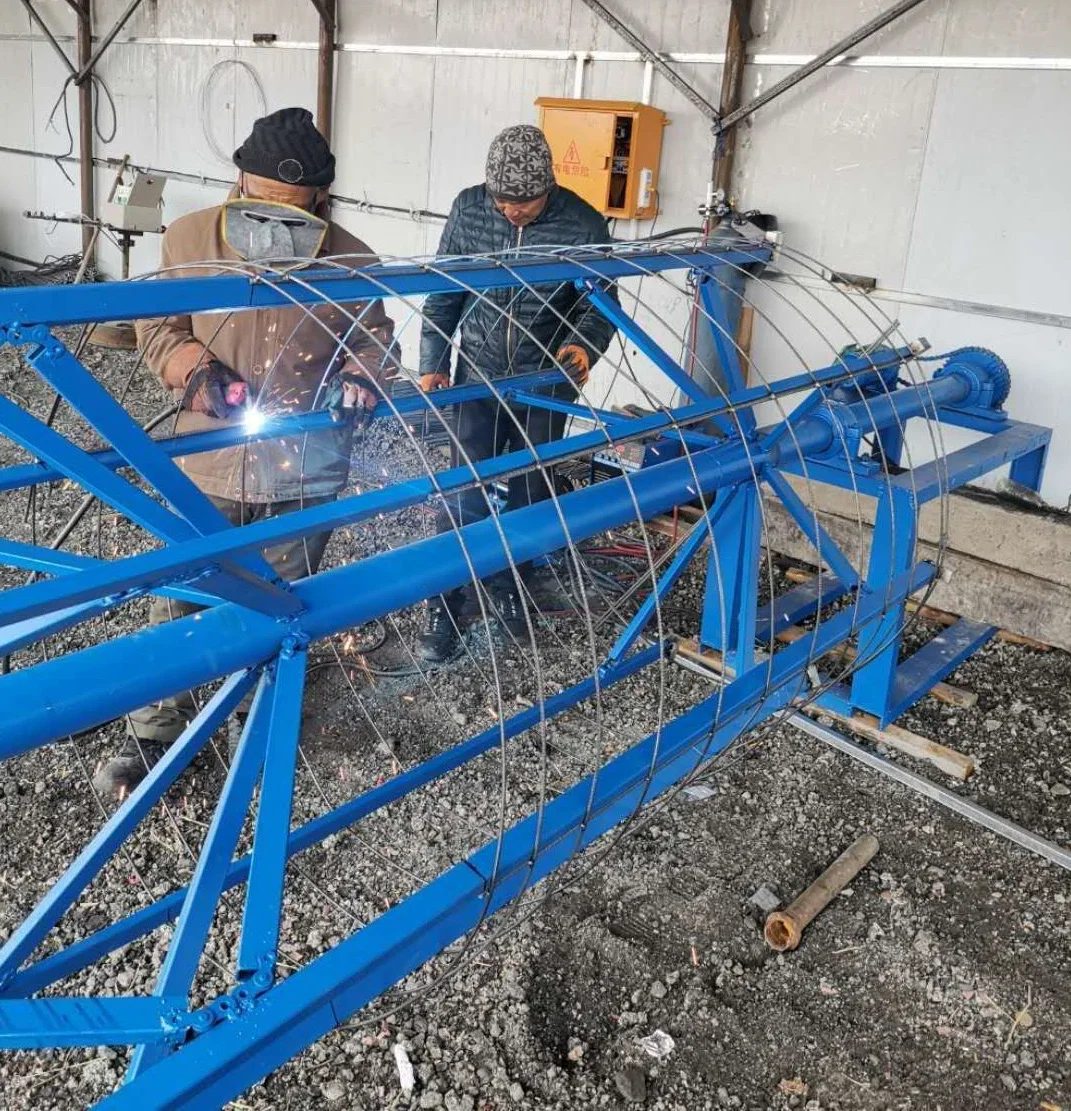

Welding machine

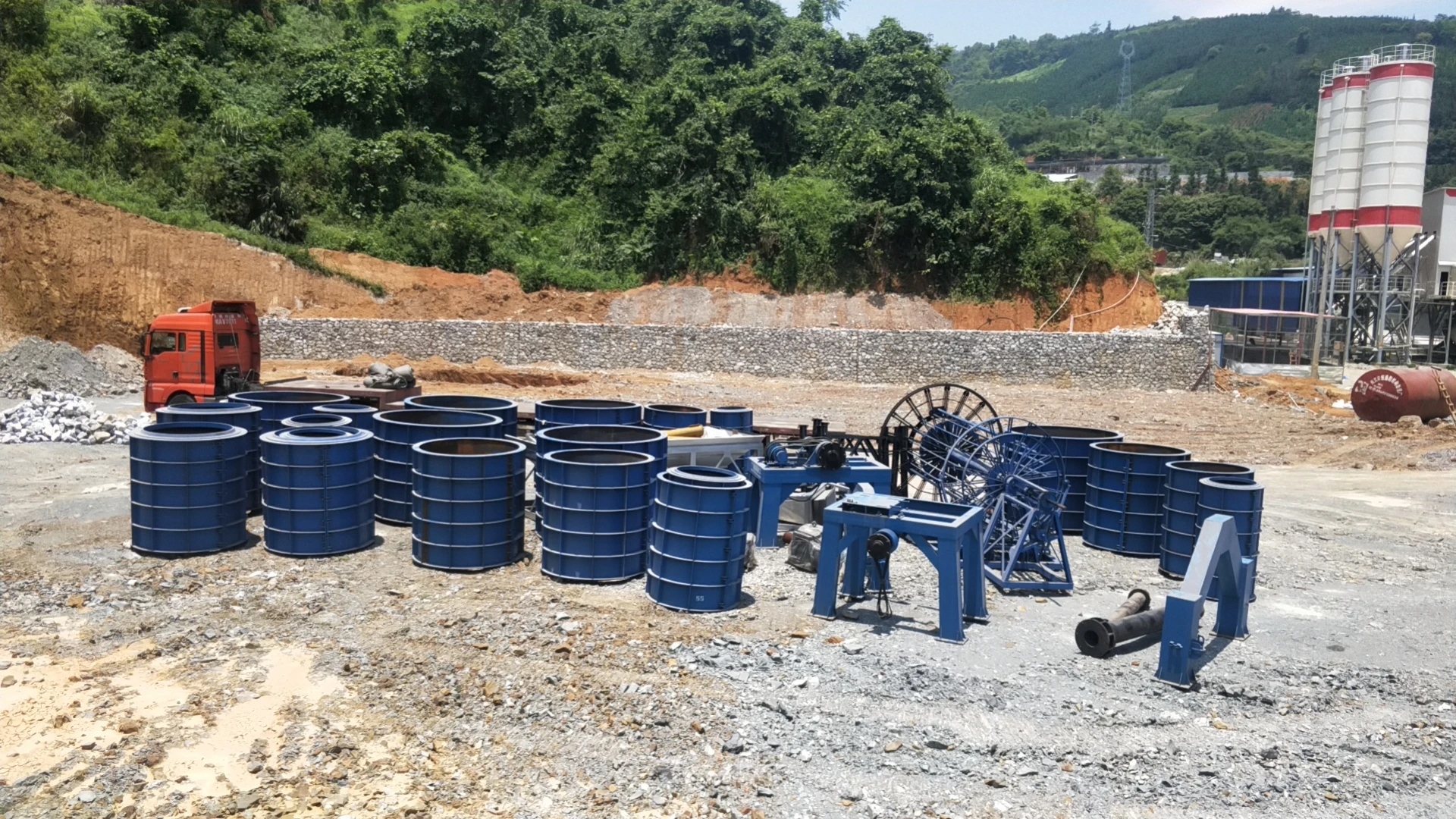

Cement pipe molds

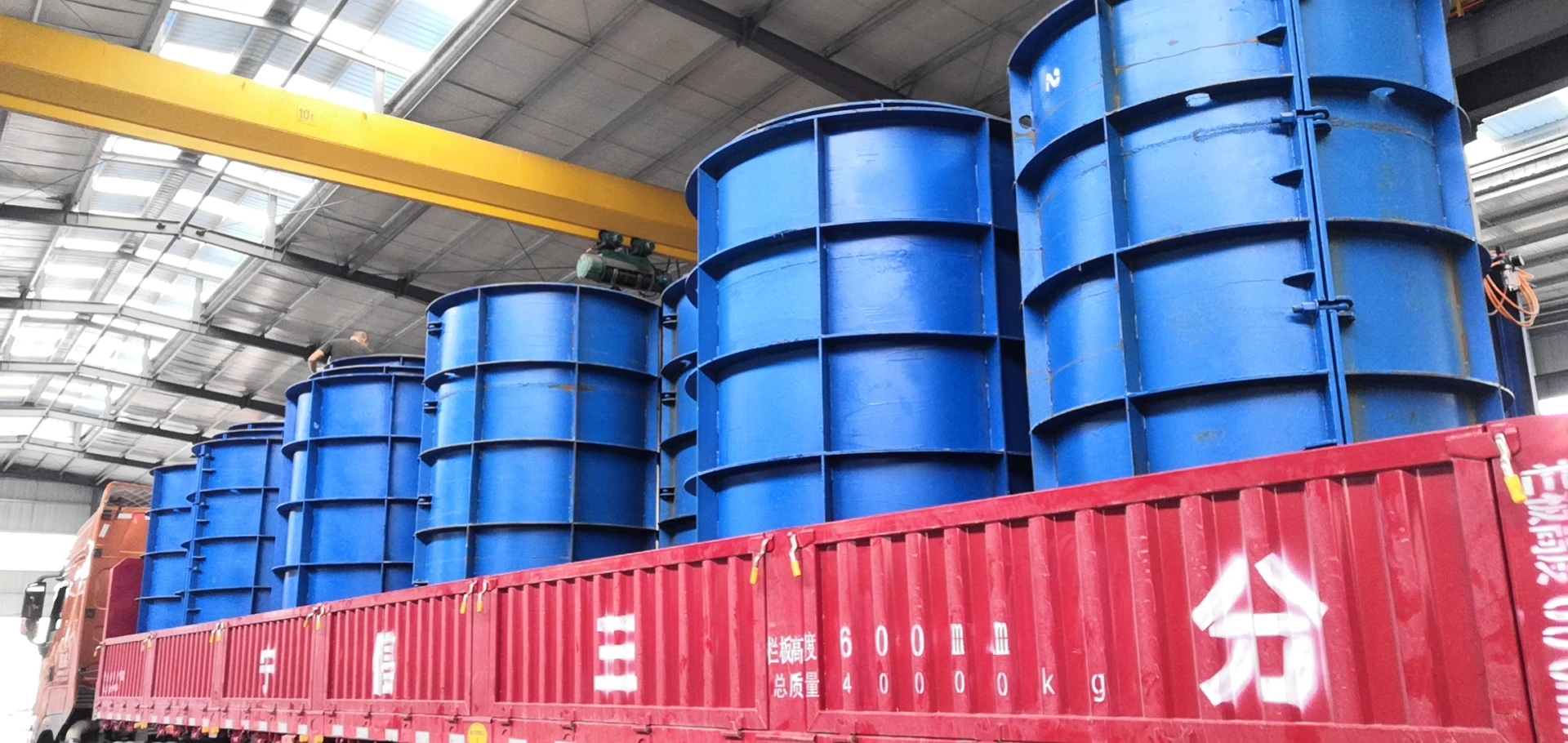

Pipe machine shipping
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in India
Project in Russia
