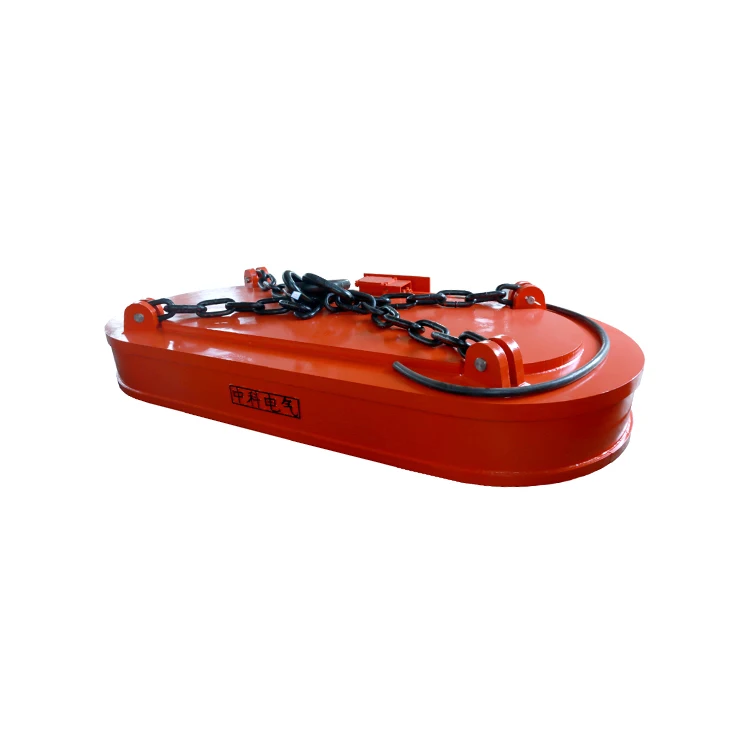

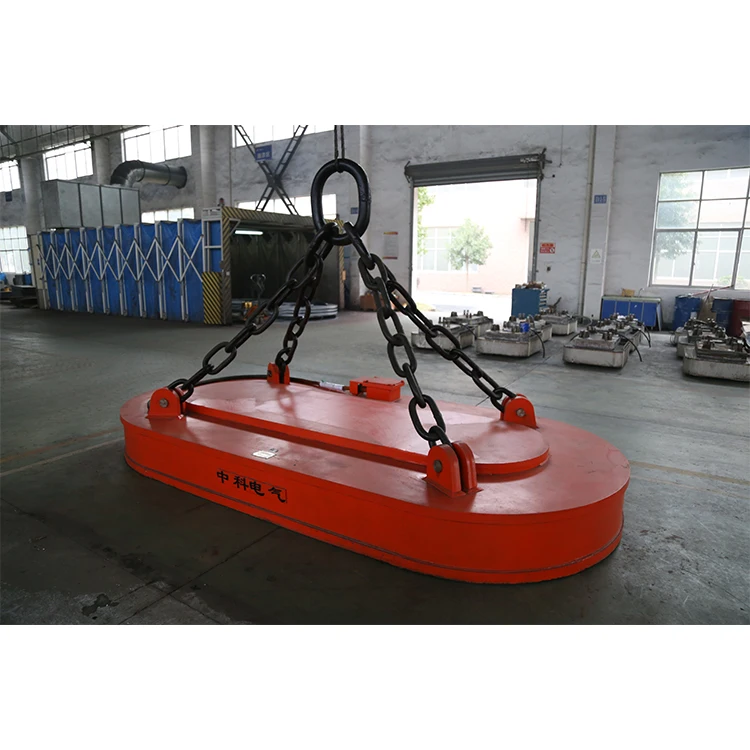

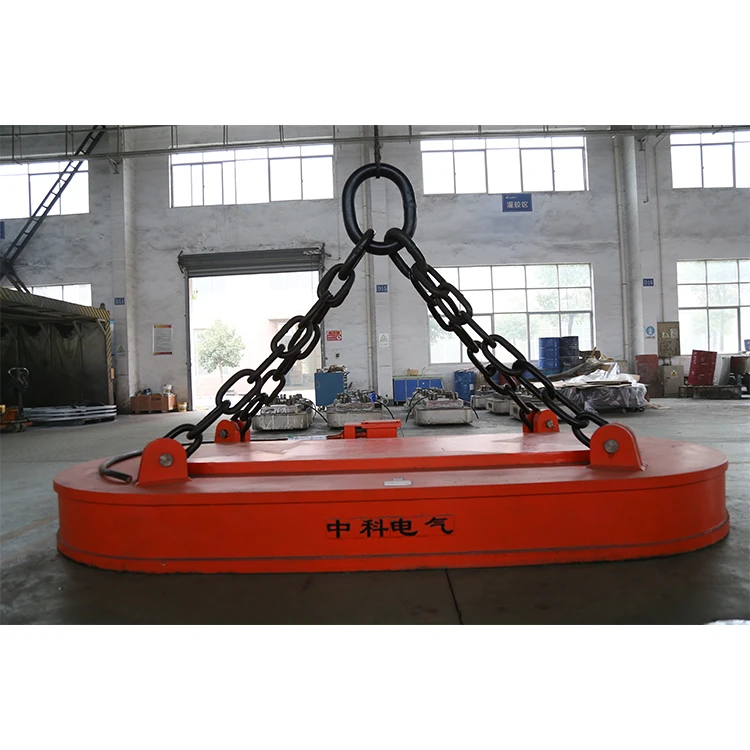

Professional design large  MW61 series electromagnet lifting

Model	Size(mm)	Current(A)	Voltage(V)
MW61-300210L/1-75	3000*2100	148	220
MW61-400210L-G-75	4000*2100	168	220
MW61-250200L-1	2500*2000	129	220
MW61-11060L-1	1120*620	27	220
MW61-380180L/1	3800*1800	230	220
MW61-310210L	3100*2100	148	220
MW61-400160L/1-75	4000*1600	185	220
MW61-400160L/1	4000*1600	195	220
MW61-180130L/2/75	1800*1300	93	220
MW61-350180L/2	3500*1800	162	220
MW61-240180L/2	2420*1820	123	220
MW61-500180L/2-75	5000*1800	228	220
MW61-400160L-1-QC	400*1600	226	220
MW61-350170L/1-75	3500*1700	214	220
MW61-380170L/1-75	3800*1700	230	220
MW61-350180T/2-75	3500*1800	157	220
MW61-280170L-1-75	2800*1750	119	220
MW61-380165L/1-75J	3800*1650	200	220
MW61-300210L/1-75	3000*2100	136	220
MW61-500180L/1-75QC	5000*1800	209	220
MW61-250120L/1-75	2500*1200	109	220
MW61-250150L/1-75	2500*1500	118	220
MW61-360180L-1-QC-75	3600*1800	194	220
MW61-400200L/1	4000*2000	213	220
MW61-380200L/1-75	3800*2000	199	220
MW61-380150L/1-75	3800*1500	199	220
MW61-320175L/2-75	3200*1750	140	220
MW61-330168L/1-75	3300*1680	164	220
MW61-250200L/1-75	2500*2000	139	220
MW61-330165L/1-75	3300*1650	166	220
MW61-200130L/2-75	2000*1300	77	220
MW61-300150L/1	3000*1500	156	220
MW61-400220L/1-75QC	4000*2200	214	220
MW61-400220L/1-75	4000*2200	195	220
For more details, please feel free to contact us.

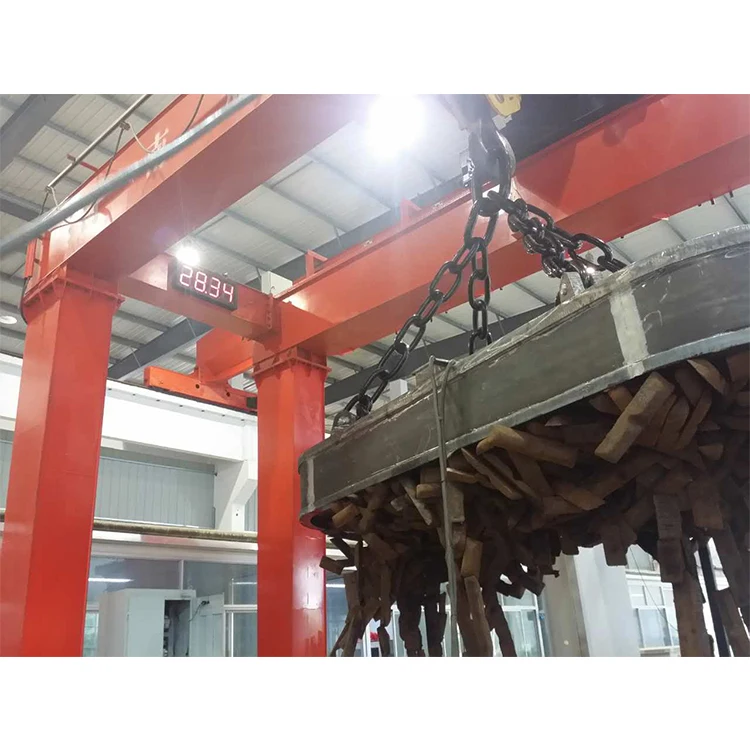

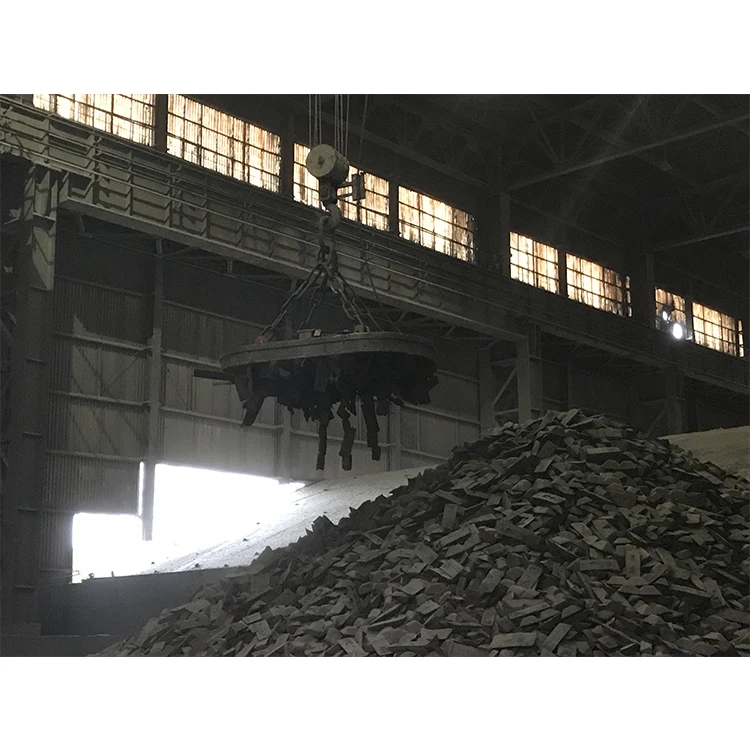

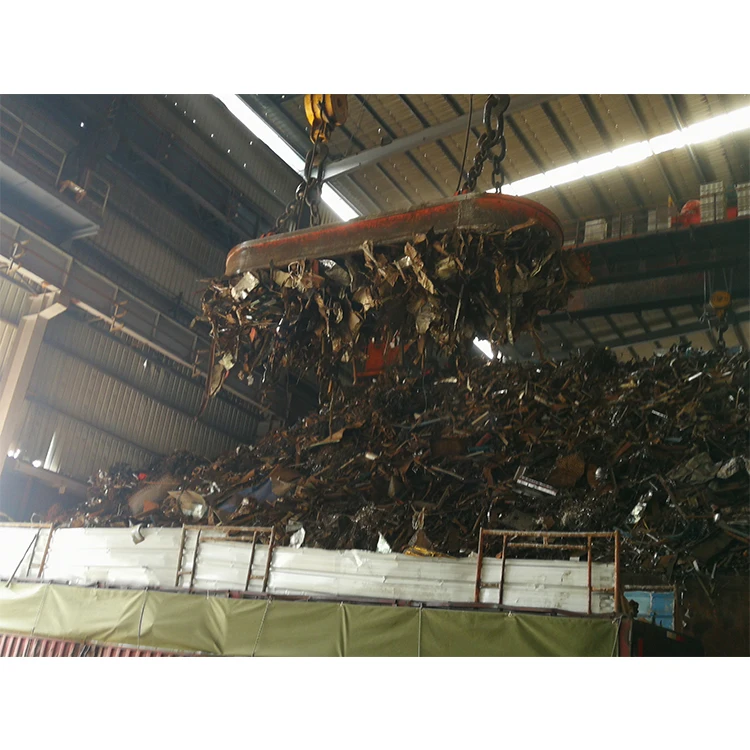

It is widely used for handling cast iron ingots, steel balls, iron filings, and steel scrap.
The structure is simple, and it's convenient to install.
Modes: Constant voltage (DC 220V); strong excitation method (DC 290V/200V),; overexcitation method (DC 350V/290V/200V), which can accelerate the excitation speed and increase the lifting capacity by approximately10 %.
