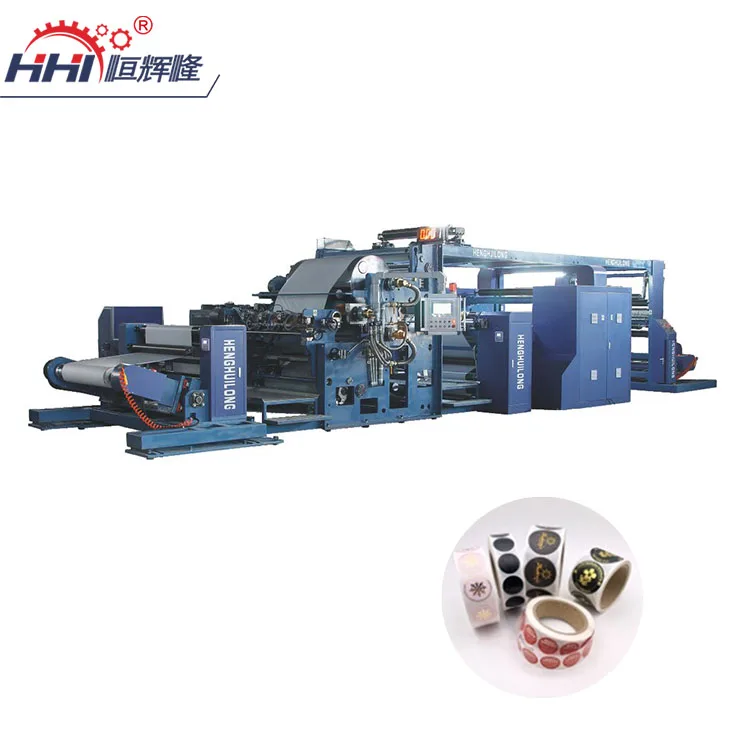

Полностью автоматическая высокоскоростная машина для нанесения термоплавкого покрытия

Полностью автоматическая высокоскоростная машина для нанесения термоплавкого покрытия

Категория: Машины для нанесения покрытия >>>
Поставщик: Guangdong,Henghuilong,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.50 $*	0.3 $*
Aug-18-2025	0.93 $*	0.2 $*
Jul-18-2025	0.6 $*	0.73 $*
Jun-18-2025	0.61 $*	0.50 $*
May-18-2025	0.55 $*	0.50 $*
Apr-18-2025	0.87 $*	0.69 $*
Mar-18-2025	0.30 $*	0.40 $*
Feb-18-2025	0.27 $*	0.11 $*
Jan-18-2025	0.48 $*	0.20 $*

Характеристики

The main purpose:

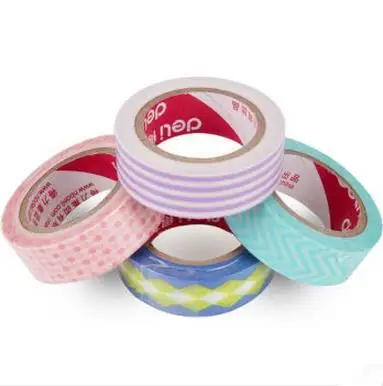

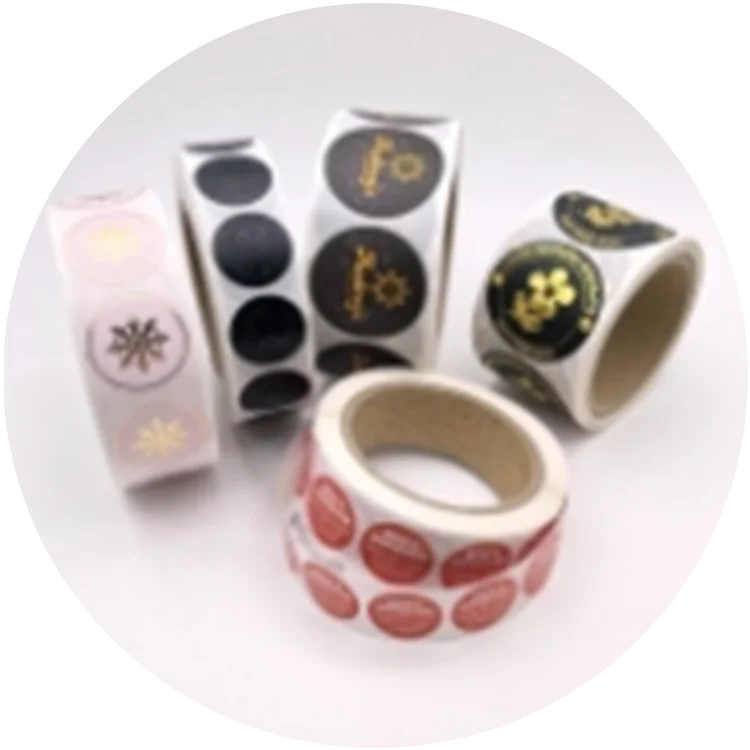

The equipment is mainly suitable for coating compound processing equipment such as label tape

label tape

Substrate width	1300mm
Guide roller width	1450mm
Total machine power	~70kw
Coating speed	6-300m/min (speed depends on the characteristics of the substrate used, thickness uniformity characteristics and others)
Mechanical speed	320/min
Unwinding maximum diameter	Φ1200mm
Maximum diameter of winding	Φ1200mm
Maximum length of paper tube	1300mm
Specification of retracting and unwinding shaft	3 inches (Φ74mm)
Maximum width of coating	1300mm

Production process：
Unwinding unit (squeegee) coating unit cooling unit winding unit electrical control system

Main features:
1.Maximum mechanical speed: 320m/min
2.Tension control configuration: Floating roller vector variable frequency motor linkage tension control system, multi-segment tension is detected by low friction cylinder swing roller, with high precision and high sensitivity stable tension control.
3.Off-site acceleration and deceleration, automatic speed control, and tension and speed linkage control, stable acceleration and deceleration.
4.Selectable acceleration/deceleration curves, whether acceleration/deceleration rings, whether meter counting reaches the set value, and whether it automatically decelerates to stop and other personalized functions.

5.Fully embodies the human-oriented design concept of science and technology
6.Adopt Japanese Mitsubishi 3U series PLC centralized control, color man-machine interface Chinese display operating system. The integrated design of machine, electricity, light and gas has perfect safety protection function.

Comparison of the properties for Dot transfer lamination & Suspension scraping lamination

Item	Dot transfer lamination（other used）			Suspension scraping lamination（we used）
Post-maintenance	Frequently changing the width of the rubber baffle will result in a short life of the rubber baffle. The rubber baffle needs to be replaced frequently. The scraper blade is replaced in about 30 days. The rubber roller is often repaired and replaced, which is troublesome to disassemble.			Since the width of the glue is changed, there is no need to adjust the rubber baffle, and the rubber baffle has a long life. The pressure of squeegee for suspension scraping coating is 2-3KG air pressure relative to the squeegee for dot transfer coating, so the life of the squeegee is relatively long.
		Frequently change the width of the glue coating, the baffle is easy to damage	The rubber roller is easy to be deformed and needs maintenance, and the accuracy must be well controlled.
Glue coating material	Not suitable for high air permeability and perforated materials, and not suitable for low weight materials, such as (8-15g non-woven fabric, etc.)			Breathable and non-breathable materials, both high and low weight materials are available, and mesh materials can also be coated

For More Details, Please Click Here！

Q1: What Industry is your product suitable for?

A1:Our machines are widely used in the fields of disposable hygienic products,disposable medical products, clothing, textile fabrics, self-adhesive labels, medical tape, plaster backing, and various othercoating compounds.

Q2：What if the machine fails during use?

A2:Our machines will be carefully inspected and ensured before delivery,and we will provide the correct instructions for use of the products. In addition, our products support lifetime warranty service, if there any question during using our products please consult our work personnel.

Q3: When can I get the machine after payment?

A3:The product production time about 45-60 days. We will deliver it on time as the date we agreed both side.

Q4: How can I install my machine when it arrives?

A4:We will provide installation videos and tutorials, or send our engineer to your side ASAP
you get all your machines ready, for testing and teaching your technicians how to run the machine.

Q5: What payment do you accept?
A5:We generally accept T/T or L/C, and we can negotiate the payment method.
