Суперсентябрь плотный неизолированный медный кабель 0 57 мм 4 пары ethernet sftp cat7 lan cat 7
- Категория: Communication Cables >>>
- Поставщик: Hangzhou,Jianye,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 133.15 $* | 136.61 $* |
| Jul-20-2025 | 108.90 $* | 110.97 $* |
| Jun-20-2025 | 131.13 $* | 134.23 $* |
| May-20-2025 | 130.67 $* | 133.94 $* |
| Apr-20-2025 | 104.75 $* | 106.68 $* |
| Mar-20-2025 | 128.76 $* | 131.85 $* |
| Feb-20-2025 | 127.17 $* | 130.60 $* |
| Jan-20-2025 | 126.35 $* | 129.48 $* |
Характеристики
Products Description
Faster speed 1000MHZ high quality fluk passed CAT 7 network cable
Cat7 cable is tested bandwidth broadband, audio and video applications, best practiced for office, home, building and construction
areas installations. Providing enhanced performance in any environment. Suggested for long run installations for network adapters,
routers, switches, DSL/modem, hubs and keystone jacks, this cable recommended where high-performance data structure is required.
This cable enables 10-Gigabit data transmission over a 4-connector twisted-pair copper cable, allowing connection distances of up
to 100 meters. It also proposes a new measurement for Power-Sum Alien Crosstalk to 750 MHz. Alien Crosstalk is a coupled signal in
a disturbed pair arising from a signal in a neighboring cable.
to 100 meters. It also proposes a new measurement for Power-Sum Alien Crosstalk to 750 MHz. Alien Crosstalk is a coupled signal in
a disturbed pair arising from a signal in a neighboring cable.
CAT 7 CABLES | ||
Conductor Material | TC/BC/CCA | |
Conductor diameter | 0.57/0.58mm | |
Insulation | HPDE | |
Shiled | FTP/SFTP /SSTP | |
Number of Conductors | 8 | |
Jacket | PVC | |
Test | 100% CONTUNUITY | |
Usage | Computer/Switch/Hubs/Router | |
Color | As client’s request | |
Sample | free | |
Length | 305m | |
Certification | CE/RoHS/ISO9001 | |
PRODUCT PARAMETERS | ||||||
Item | CAT7 SFTP OURDOOR CABLE | |||||
Brand Name | JIANYE /OEM | |||||
No. of Cord. | 4 Pair | |||||
Conductor | Material | bare copper Solid | ||||
Construction | 1 / 0.585 ± 0.008 mm | |||||
Insulation | Material | PE | ||||
Thickness | 0.40±0.02 mm | |||||
Diameter | 0.98 ± 0.05 mm | |||||
Pair Shield | Material | Aluminum Foil | ||||
Overlap(%) | 15% | |||||
Over Braid Shield | AL | 128*0.12mm with jelly | ||||
Coverage(%) | 60% | |||||
Jacket | Structure | PVC+PE | ||||
Thickness | PVC 0.56 ± 0.02mm + PE 0.2 ± 0.02mm | |||||
Diameter | 7.5 ± 0.20 mm | |||||
Color | Optional | |||||
Mechanical Characteristics: | ||||||
Test Object | Jacket | |||||
Test Material | PVC | |||||
Before Tensile Strength (kg/mm2) | ≥1.4 | |||||
Elongation(%) | ≥1.4 | |||||

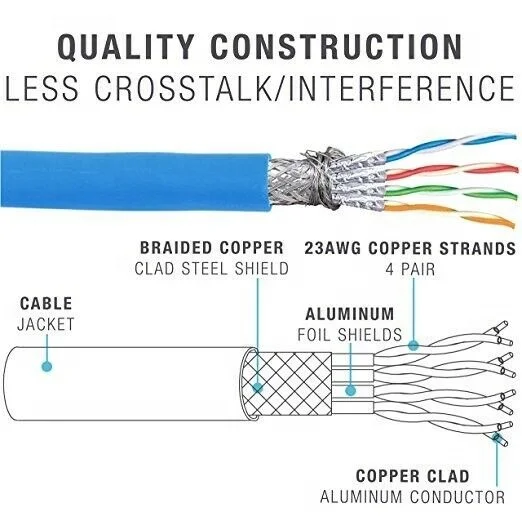

Cat7 offers extensive shielding to reduce signal attenuation.
Cat7 cable can support up to 10Gbps and frequencies of up to 600MHz.
This Category 7 cable provides universal connectivity to computers & network components, such as routers, switch boxes, network printers, network attached storage (NAS) devices, VoIP phones & PoE devices. Provides exceptional transmission performance & low signal losses.
Product Information:
-LSZH jacket, making it non-halogenated & flame retardant
-23AWG durable build preserves signal quality & still manages to take up only minimal wall space
-Shielding: 100% AL/Mylar coverage, 80% Aluminum braid
This Category 7 cable provides universal connectivity to computers & network components, such as routers, switch boxes, network printers, network attached storage (NAS) devices, VoIP phones & PoE devices. Provides exceptional transmission performance & low signal losses.
Product Information:
-LSZH jacket, making it non-halogenated & flame retardant
-23AWG durable build preserves signal quality & still manages to take up only minimal wall space
-Shielding: 100% AL/Mylar coverage, 80% Aluminum braid
Details Images
Product packaging
Network Cable packing :
1). 305m/1000ft wood drum
Color Box and OEM Package available.
20" Container Full Load: 850boxes.
40" Container Full Load: 1700boxes.
2)500M/Wooden Reel
Color Box and OEM Package available.
20" Container Full Load: 850boxes.
40" Container Full Load: 1700boxes.
