Юго-Западный ND/шейный Полный открытый клапан и сиденье для диафрагменного

Юго-Западный ND/шейный Полный открытый клапан и сиденье для диафрагменного

Категория: Вакуумные клапаны >>>
Поставщик: Maanshan,Wila,CNC,Machine,Tools,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	0.46 $*	0.0 $*
Aug-20-2025	0.40 $*	0.63 $*
Jul-20-2025	0.29 $*	0.68 $*
Jun-20-2025	0.73 $*	0.79 $*
May-20-2025	0.36 $*	0.77 $*
Apr-20-2025	0.55 $*	0.57 $*
Mar-20-2025	0.1 $*	0.69 $*
Feb-20-2025	0.78 $*	0.67 $*
Jan-20-2025	0.67 $*	0.7 $*

Характеристики

Product Description

Valve assembly is the key component of the fluid end of slurry pump, which has high working frequency and great influence. Itsquality directly affects the service life of the hydraulic cylinder and is one of the main vulnerable parts of the mud pump. Itsmain material is forged by high quality alloy steel (20CrMnTi, 20CrNiMo) which is higher than the standard of petroleum industry.

The advanced heat treatment method is adopted to obtain high strength and toughness. The hardness of the working surface is aboveHRC58, and it is processed and manufactured according to strict technological regulations to ensure high finish and accurate size.

Valve rubber, also known as Versaille rubber, is the main accessories in the hydraulic end system of drilling mud pump. It is the key part of the life of valve body. The material of ordinary valve rubber is NBR, and polyurethane rubber can also be used to improve the working temperature range of rubber. The valve assembly consists of a body assembly and a seat. According to the inner hole form of the seat, the assembly can be divided into through-hole valve, three-seat valve and four-seat valve. The main function of the valve assembly is to control the water inflow and drainage of the mud in the tank.

ITEM	PARAMETERS
Name	valve and seat for slurry pump
Application	abrasive slurry of copper, iron, aluminium etc mineral mining.
Advantage	High anti-friction

Techical parameters

Valve and seats:

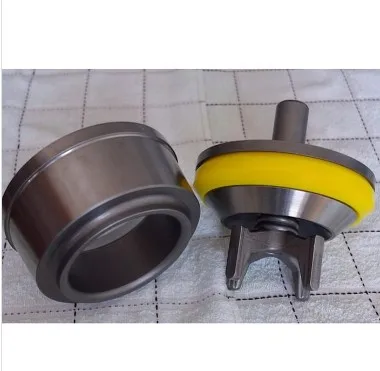

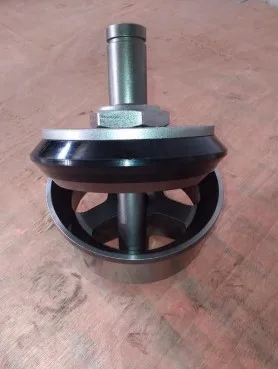

1) stem-guided Valves and cross-arms seats: Features greater fluid flow than four-arm seats, as well as it features an extra wide metal to metal seal on the valve flange. The serrated upper surface on the valve gives a longer non-breathing seal between valve body and insert while the rigid seat cross-arms give greater strength and positive sealing.
2) stem-guided Valves and three-arms seats: Features an extra side metal to metal seal on the valve flange. The serrated upper surface on the valve gives a longer non-breathing seal between valve body and insert while the rigid seat cross-arms give greater strength and positive sealing.

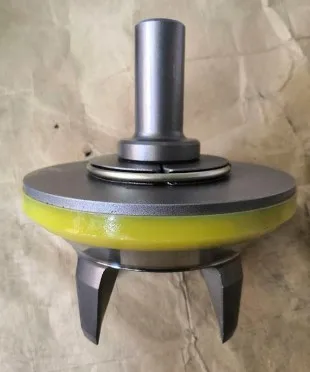

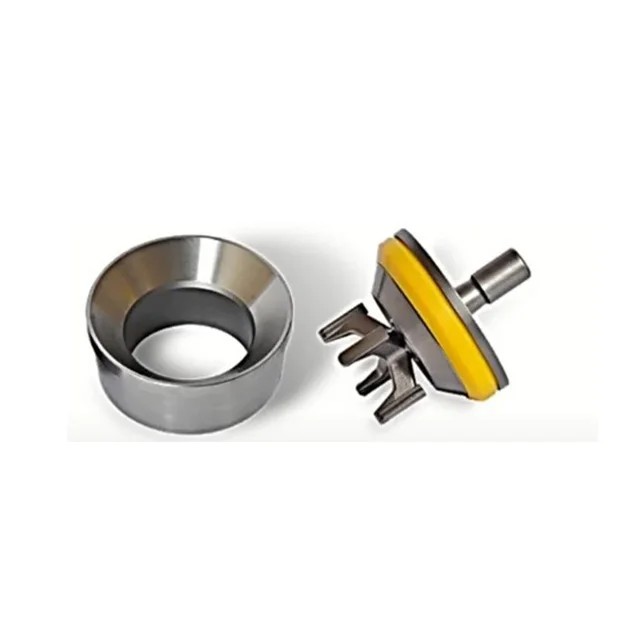

3) Four-wing Valves and full open seats: Valve design eliminates snap rings, plates or keepers providing reduced maintenanle by snap-on valve insert and easy installation.
4) Three-wing Valves and full open seats, Innovative unibody valve design eliminates snap rings, plates or keepers providing reduced maintenanle by snap-on valve insert and easy installation We supply qualified valves with positive price. If you have any interest, please do not hesitate to contact with me.

Our Exhibition

Maanshan Wila CNC Machine Tools Co., Ltd. attend various exhibution every year,our products are very popular with many other countries .

Company Introduction

Maanshan Wila CNC Machine Tools Co., Ltd. was founded in 2005 which has 15 years experience,specializing in the research and development of mud pump accessories. Our main products are cylinder, cylinder liner, flange,piston, valve assembly, extension rod, piston rod, etc. All products are produced strictly in accordance with the API standard,can be exchanged with the world famous brand mud pump accessories, such as National, Oilwell, Emsco, Gardner Denver, Bomco,Honghua, etc., its performance meet or better than OEM standards.

The company has passed ISO9001-2000 international quality system certification, the products are supplied to major domestic oil fields and exported to Russia, India, Arabia, Iran and other countries.
In line with the principle of “mutual benefit and common development” WILA is in the persistent pursuit of the tenet of “Striving for survival by quality, promoting development by management, seeking progress by innovation and expanding markets by honesty” to provide customers with petroleum drilling products of great value.

WILA is always your faithful friend and reliable partner. We are looking forward to extensive exchange and close cooperation with possible partners. We warmly welcome enquiry through letters or by phone from customers at home and abroad for more information.
