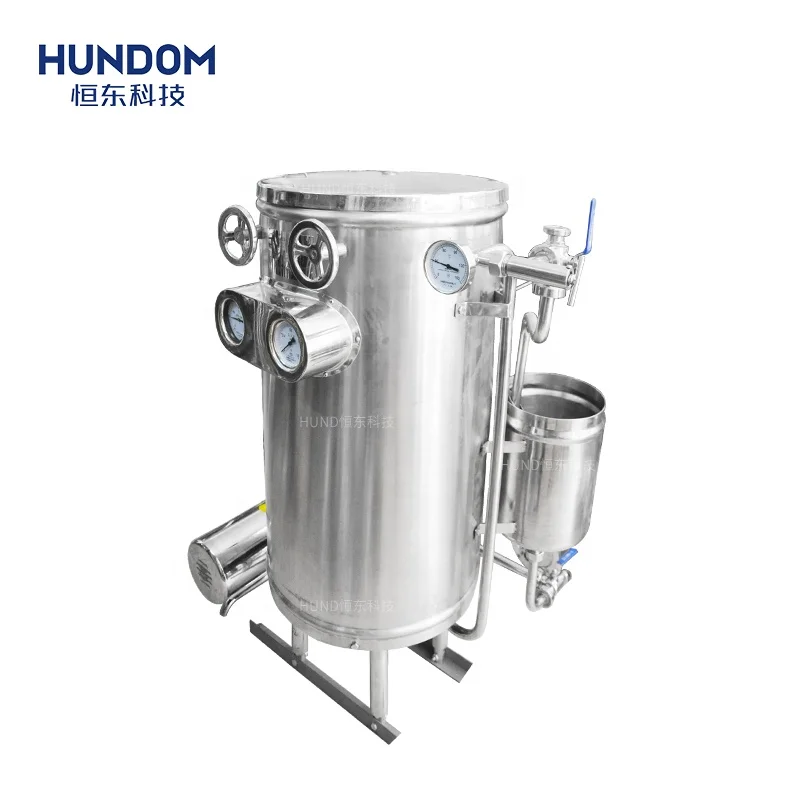

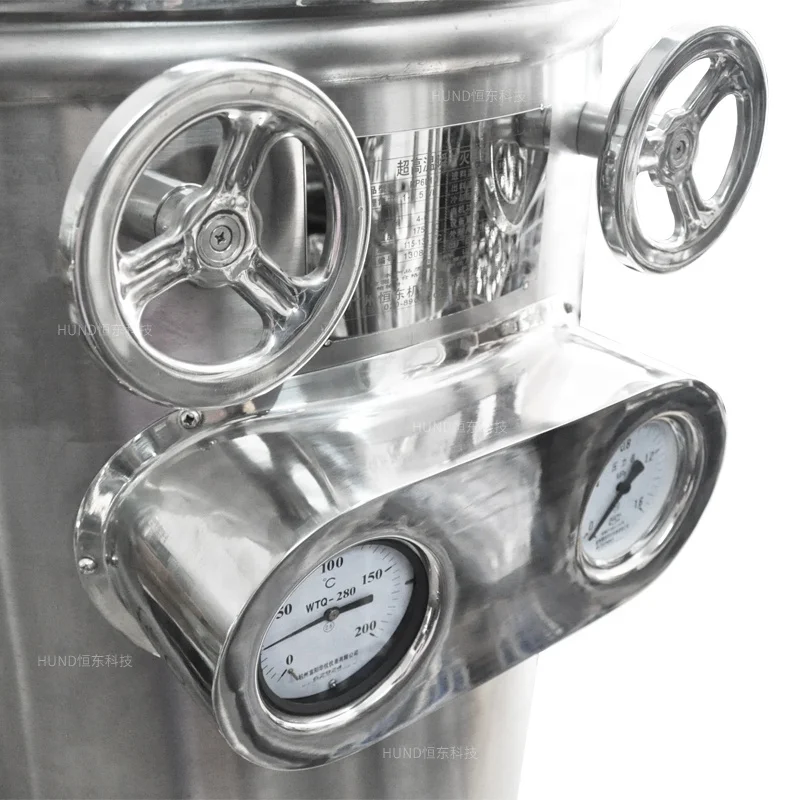

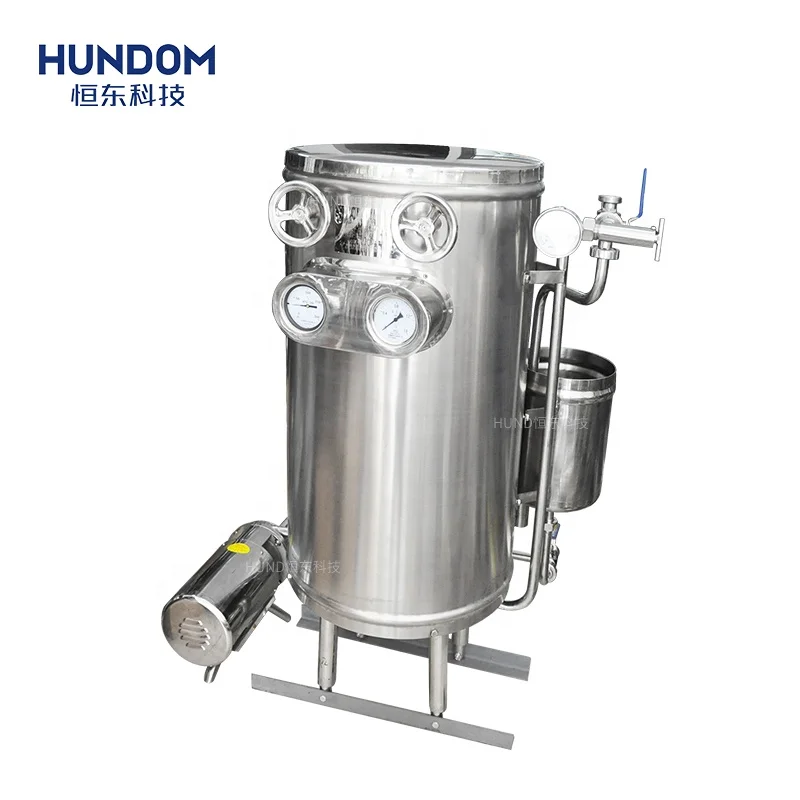

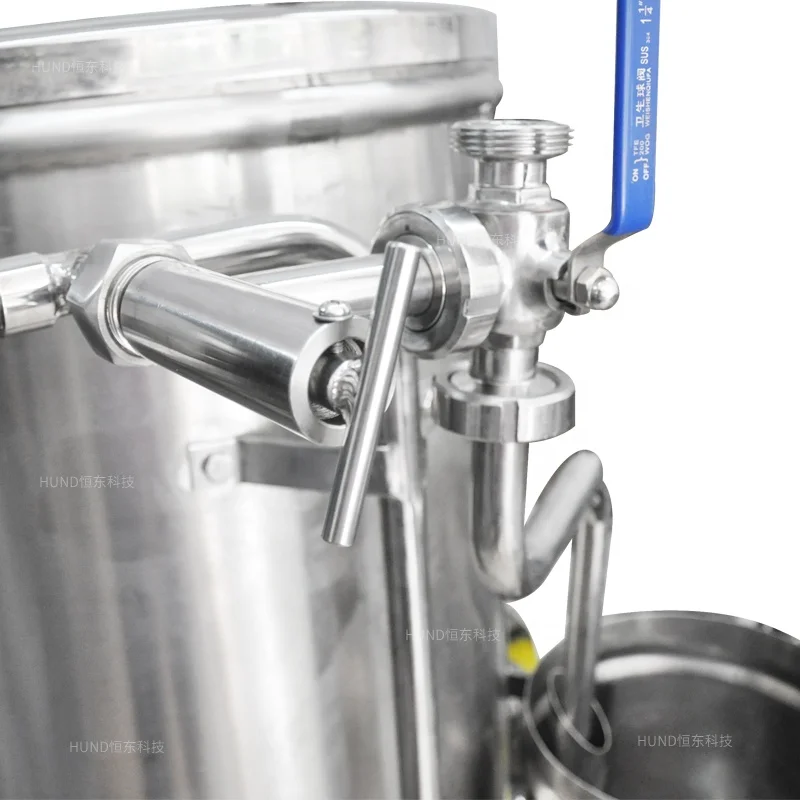

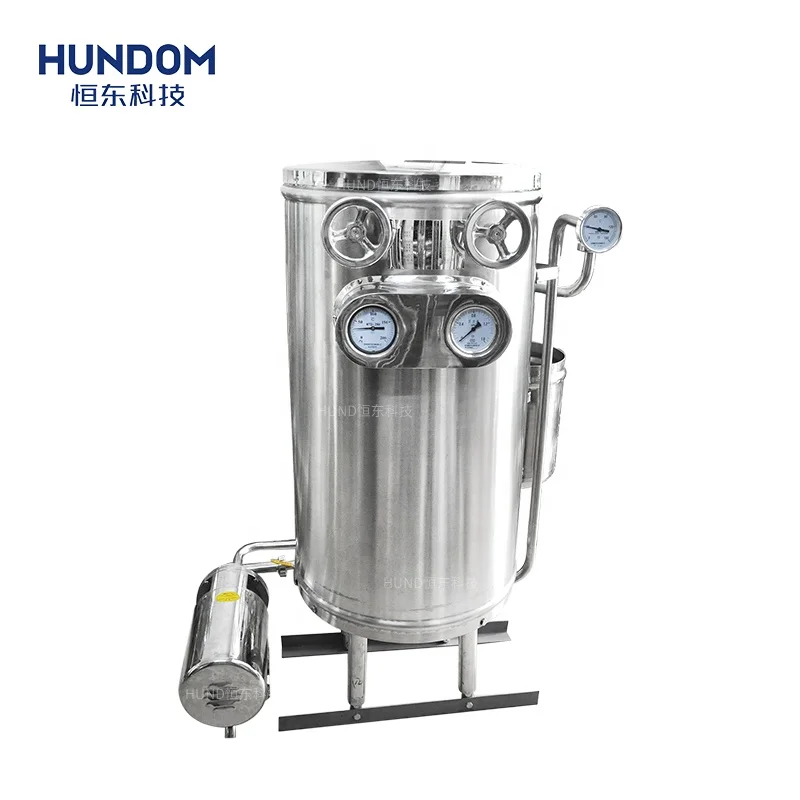

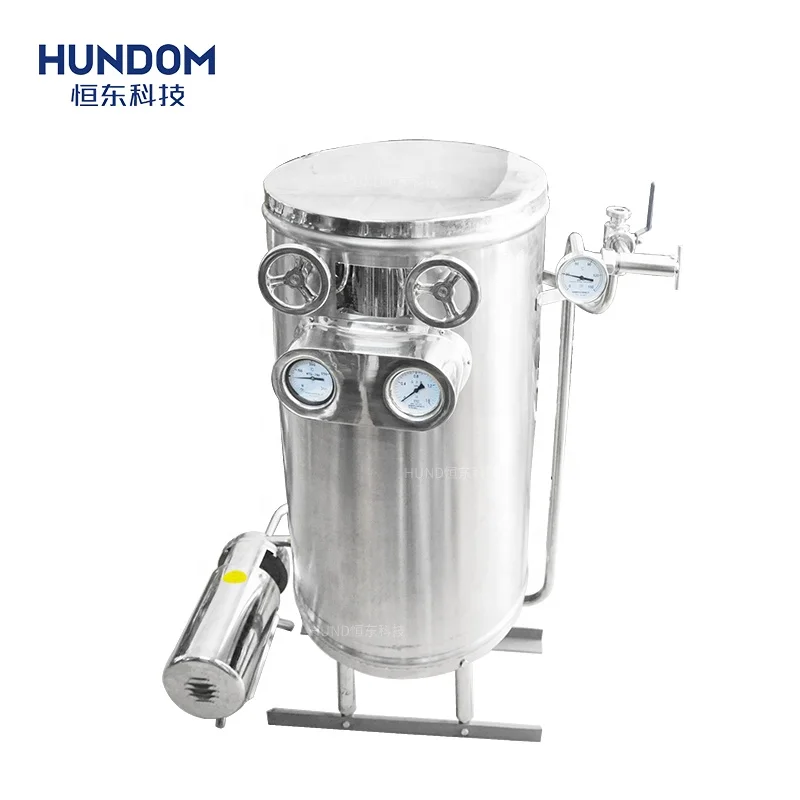

Stainless steel high temperature instant sterilizer



Specification:

1. Pasteurizing for various fluid, such as fresh milk, fruit juice, drinks, popsicles, ice cream paste, soy sauce, soy milk, wine and etc.

2. Continuous working with short pasteurizing time span

3. Instant ultra high temperature, excellent pasteurizing effect

4. Cooperated with centrifugal pump or high pressure homogenizer, high viscosity fluid can be processed

5. Made by high quality full stainless steel, high efficiency and stable performance .



Technical parameters:

Model	UHT-1	UHT-2	UHT-4	UHT-6
Capacity (T/H)	0.5~1t/h	1.5~2t/h	3~4t/h	5~6t/h
Sterilization temperature	115~137°C	115~137°C	115~137°C	115~137°C
Use of steam pressure	<0.78MPa	<0.78MPa	<0.78MPa	<0.78MPa
High-temperature sterilization time	4~6s	4~6s	4~6s	4~6s
Discharge temperature	<65°C	<65°C	<65°C	<65°C
Feed temperature	<16°C	<16°C	<16°C	<16°C
Steam consumption	<0.12kg/L	<0.15kg/L	<0.15kg/	<0.20kg/L
Power	1.5kW	2.2kW	3kW	4kW
Dimensions(mm)	1200×920×1650	1300×1100×1700	1600×1200×1800	1940×1400×2000
