Food grade vco coconut water filtration machine/coconut oil processing machine for coconut filters in sri lanka

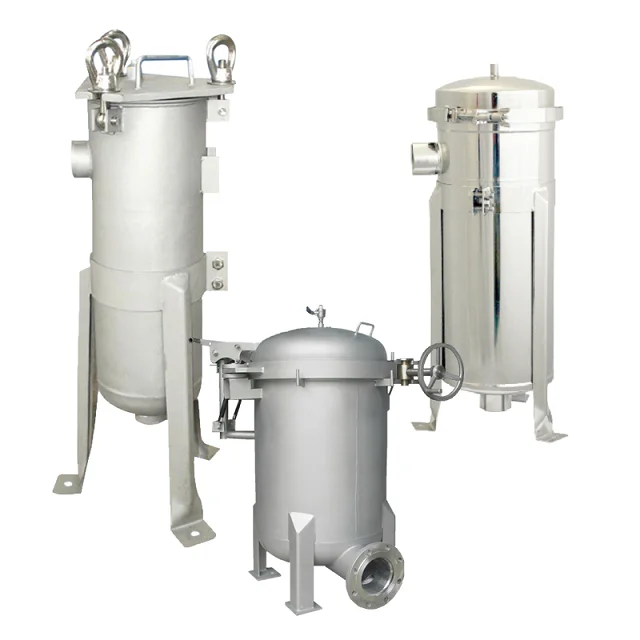

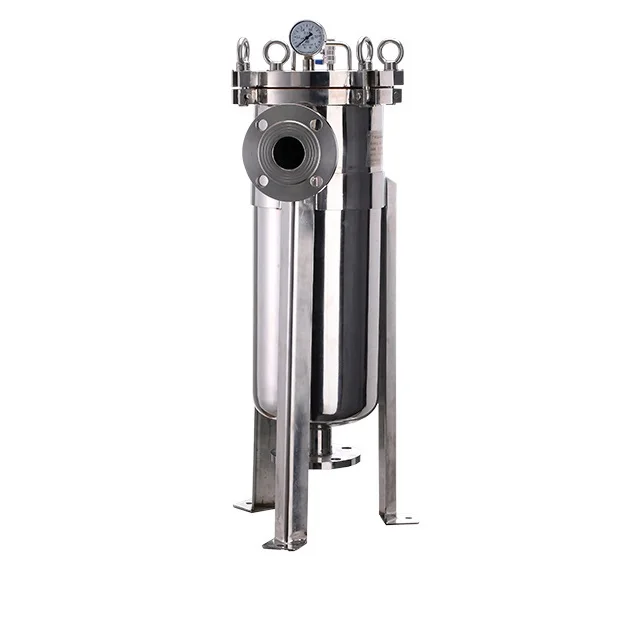

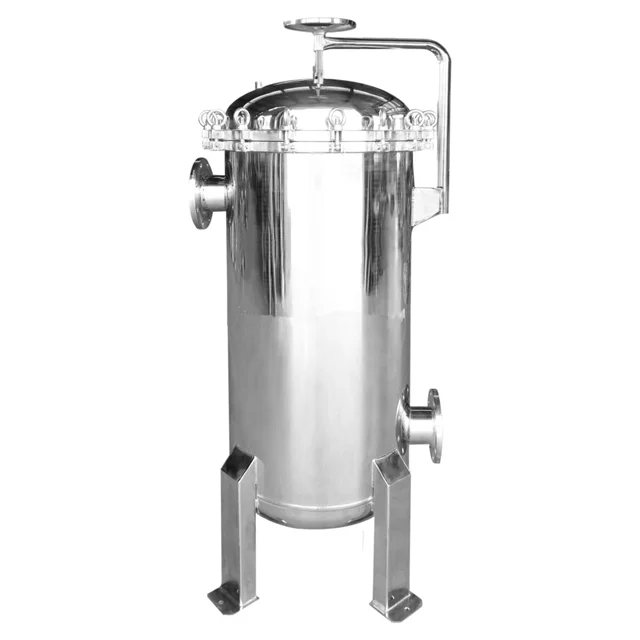

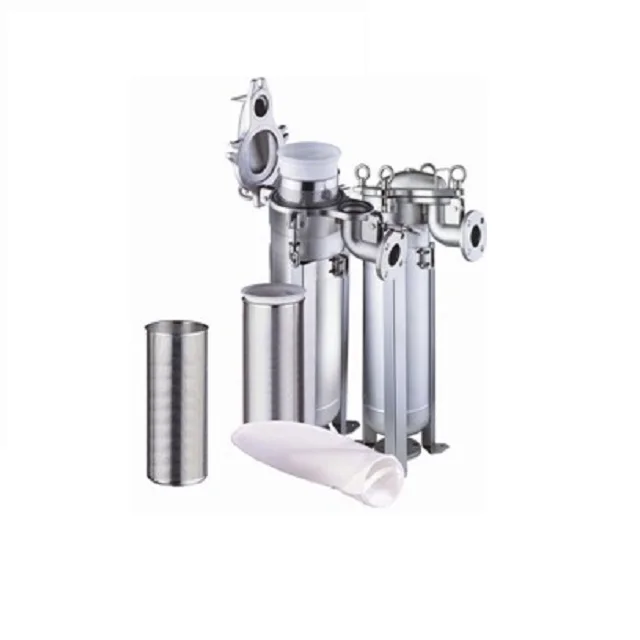

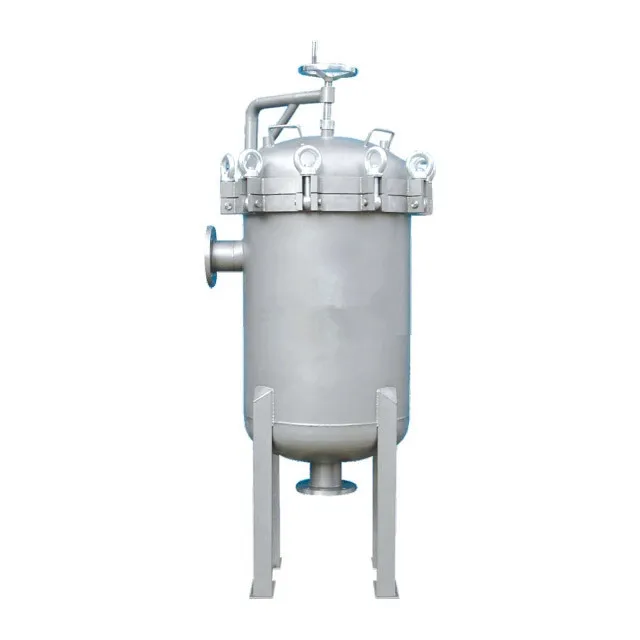

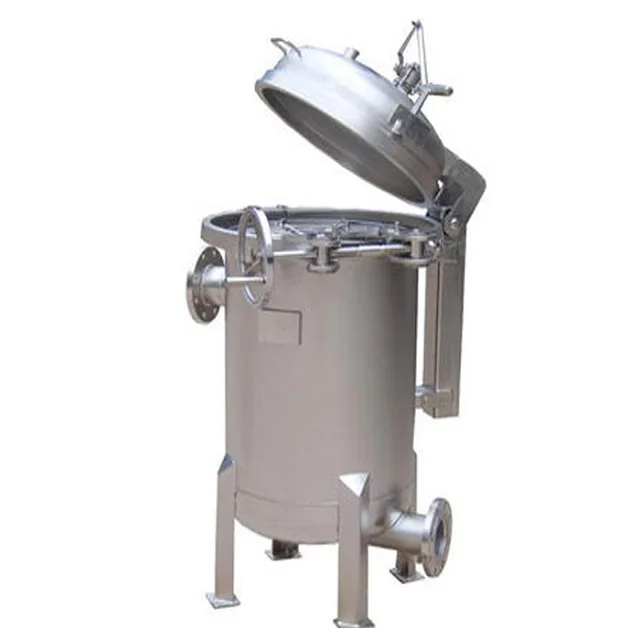

Bag filters are particularly useful for filtering large volumes or high viscosity liquids, which are constructed of filter housing, filter bags, internal cage to support bags, positive sealing arrangement.





Features & Benefits:

• High flow rates


• Complete stainless steel 304,316L structure


• High temperature & High pressure design are available


• Wide range of bag size for choice


• Easy to clean

Bag Size:

Item	Flow rate(m3/h)	Filtration area(m2)	Diameter(mm) X Length(mm)
#1	20	0.25	180(7") X 410(16")
#2	40	0.50	180(7") X 810(32")
#3	6	0.10	102(4") X 210(8.25")
#4	12	0.15	102(4") X 356(14")
#5	25	0.30	175(6,7/8") X 870(34")
*Size could be on your request



Specifications:

Type	Model	Dimension(mm)		Connection	Bag		Flow rate(m3/h)
		Diameter	Height		Size	Q'ty(pc)
Single Bag Filters	BJD1	220	550	2''Tri-Clamp, Flange, NPT, DIN, etc	#1	One	20
	BJD2	220	950		#2		40
	BJD3	130	650		#3		6
Muti-Bag Filters	BJD2-2	400	1550	3'', 4", 5" Tri-Clamp, Flange, NPT, DIN, etc	#2	Two	80
	BJD2-3	500	1550		#2	Three	120
	BJD2-4	550	1550		#2	Four	160
	BJD2-5	600	1550		#2	Five	200



Operating Conditions(Bag Filter):

Max.Operating Pressure: 6 bar(87psi) ,  10.34bar(150psi)

Max.Operating Temperature: 120°C

Applications:

Processing Chemicals	Paints,Inks,Coolants
Oils,Edible Oils, Vegetable Oils	Pharmaceuticals
Sugar Syrup	Cleaning Fluids



Company Name:	Hangzhou TianShan (TS Filter) Precision Filter Material Co.,Ltd.
Founded:	2001 (Year)
Main Products:	PP, GF, PES, PTFE, PVDF, Nylon Membrane Filter Cartridges
	Stainless Steel Cartridge Filter Housings, Bag Filter Housings
	Capsule Filters, Filter Membranes, Filter Bags, etc
Certifications:	IFTS,ISO9001, EC etc.
