Адаптер 5 В 2 А 0 в адаптер питания а переменного тока постоянный ток 12 3 настенный переменного/постоянного для путешествий 1 Usb зарядного
- Категория: Адаптеры >>>
- Поставщик: Shenzhen,Gofern,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 1.73 $* | 1.43 $* |
| Jul-18-2025 | 1.17 $* | 1.75 $* |
| Jun-18-2025 | 1.73 $* | 1.9 $* |
| May-18-2025 | 1.43 $* | 1.84 $* |
| Apr-18-2025 | 1.92 $* | 1.47 $* |
| Mar-18-2025 | 1.81 $* | 1.48 $* |
| Feb-18-2025 | 1.87 $* | 1.43 $* |
| Jan-18-2025 | 1.52 $* | 1.50 $* |
Характеристики

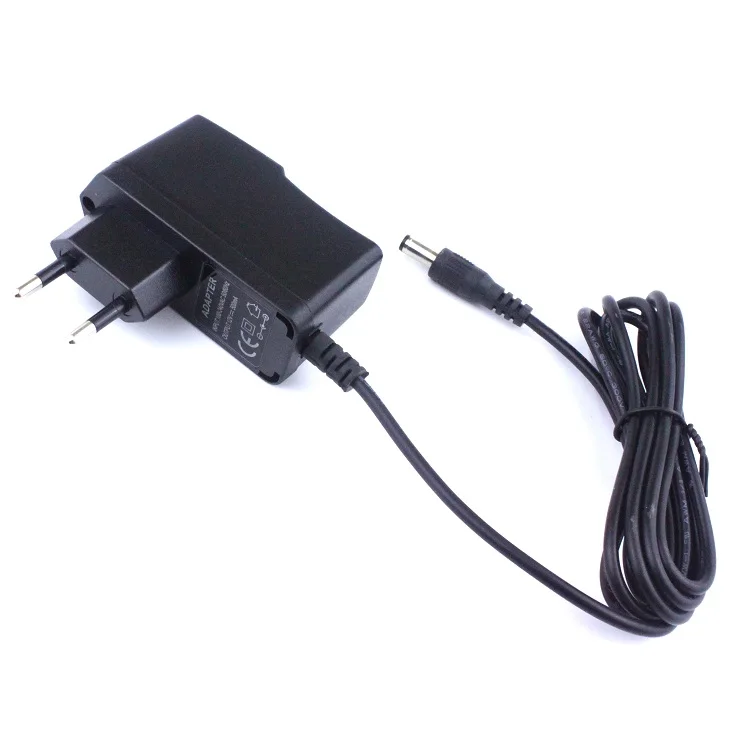

5v2.5a Usb Volt Amp 5 V 2.5 A 5.0v Charger Adaptor Adapters Wall Travel Power Dc Ac Adapter 5v 2.5a
Product Description
Features:
Low power consumption, high reliability
Protections: Short circuit/Over load/Over voltage
Fully enclosed plastic case
Universal AC input /Full range
Specification:
| MODEL | GF-0502518WS | |||||
| OUTPUT | DC VOLTAGE | 5V | ||||
| OUTPUT POWER | 12.5W | |||||
| CURRENT RANGE | 0-2.5A | |||||
| RIPPLE & NOISE(max.) | 50mVp-p | |||||
| LINE REGULATION | ±1.0% | |||||
| LOAD REGULATION | ±5.0% | |||||
| VOLTAGE TOLERANCE | ±2.0% | |||||
| SETUP,RISE TIME | 500ms,20ms,50ms/230VAC 500ms,20ms,15ms/115VAC at full load | |||||
| INPUT | VOLTAGE RANGE | 85-264VAC | ||||
| AC input current | 0.7A/100VAC | |||||
| AC inrush current | 45A/230VAC | |||||
| Leakage current | 0.75mA/240VAC | |||||
| EFFICIENCY(Typ.) | 80% | |||||
| Frequency range | 47~63Hz | |||||
| LEAKAGE CURRENT | <0.75mA/240VAC | |||||
| PROTECTION | OVER LOAD | 110%~150%rated output power | ||||
| Protection mode : Hiccup mode ,auto-recovery after fault condition is removed. | ||||||
| OVER VOLTAGE | 105~135% rated output power | |||||
| Protection mode :Clamp by zener diode,output short | ||||||
| ENVIRONMENT | WORKING TEMP. | -0℃ ~ +50℃ | ||||
| WORKING HUMIDITY | 20%~90% RH non-considering | |||||
| STORAGE TEMP.,HUMIDITY | -20℃ ~ +85℃ 10~95% RH | |||||
| TEMP. COEFFICIENT | ±0.03% /℃(0~50℃) | |||||
| Vibration | 10~500Hz, 2G 10min./1 cycle ,period for 60 min. each along X Y Z axes | |||||
| SAFTY & EMC | Withstand voltage | I/P-O/P:3000 VDC | ||||
| Safety standards | EN60950 | |||||
| Insulation resistance | I/P-O/P:100M Ohms/500VDC/25℃/70%RH | |||||
| EMI conduction&radiation | Compliance to EN55024, EN61000-3-3 | |||||
| EMS immunity | Compliance to EN61000-3-3 | |||||
| OTHERS | Weight/Packing | 0.1kg/200PCS/21kg | ||||
| Dimension | 42*36*50mm | |||||
| CONNECTOR | Plug | 5.5X2.1mm | ||||
| Cable | 1.2m | |||||
Remark: 1. All parameters are specified at 230VAC input, rated load, 27℃ 70%RH ambient. | ||||||
MOQ-
No limited
Many power models-
5 Watts - 1800 Watts
Many voltage output-
5V, 7.5V, 9V, 12V, 13.8V, 15V, 18V, 24V,29V, 36V, 48V,50V,60V (Depend on your requirement).
New Design-
We have professional engineer to make new design as your speical requirment.
Good quality-
We have the best professional and experienced engineer and the strict QC system.
Fast delivery-
The delivery time is 1-25 days which depend on quantity and details items.
Payment term-
T/T, L/C, Paypal, Western Union, Money Gram.
Solutions-
With more than 10 years experience,we can provide professional design solution for power supply according your requirement.
Cooperation-
You are welcome to be our distributor or agent in all over the world for switch power supply.Please contact us for more details.
