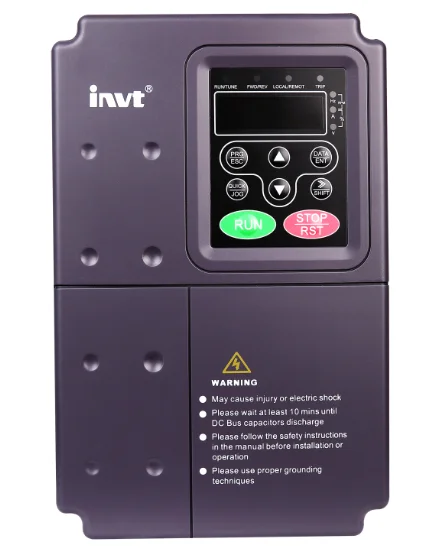

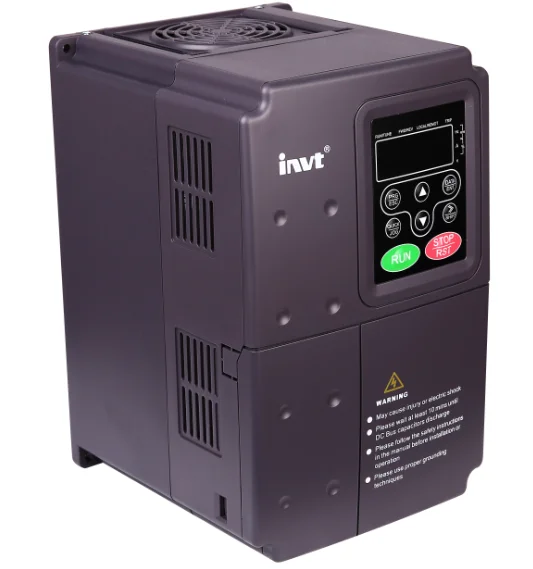

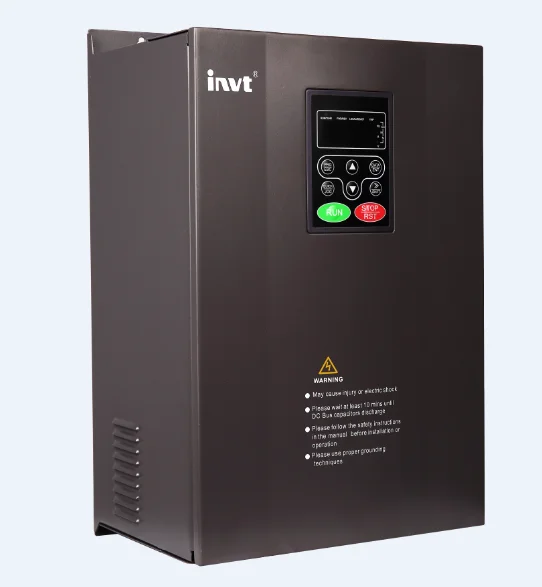

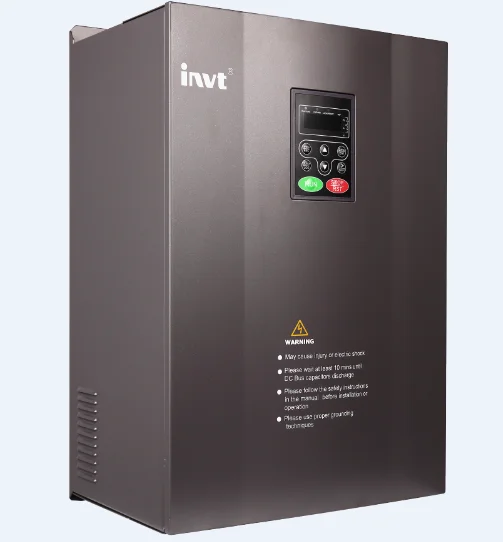

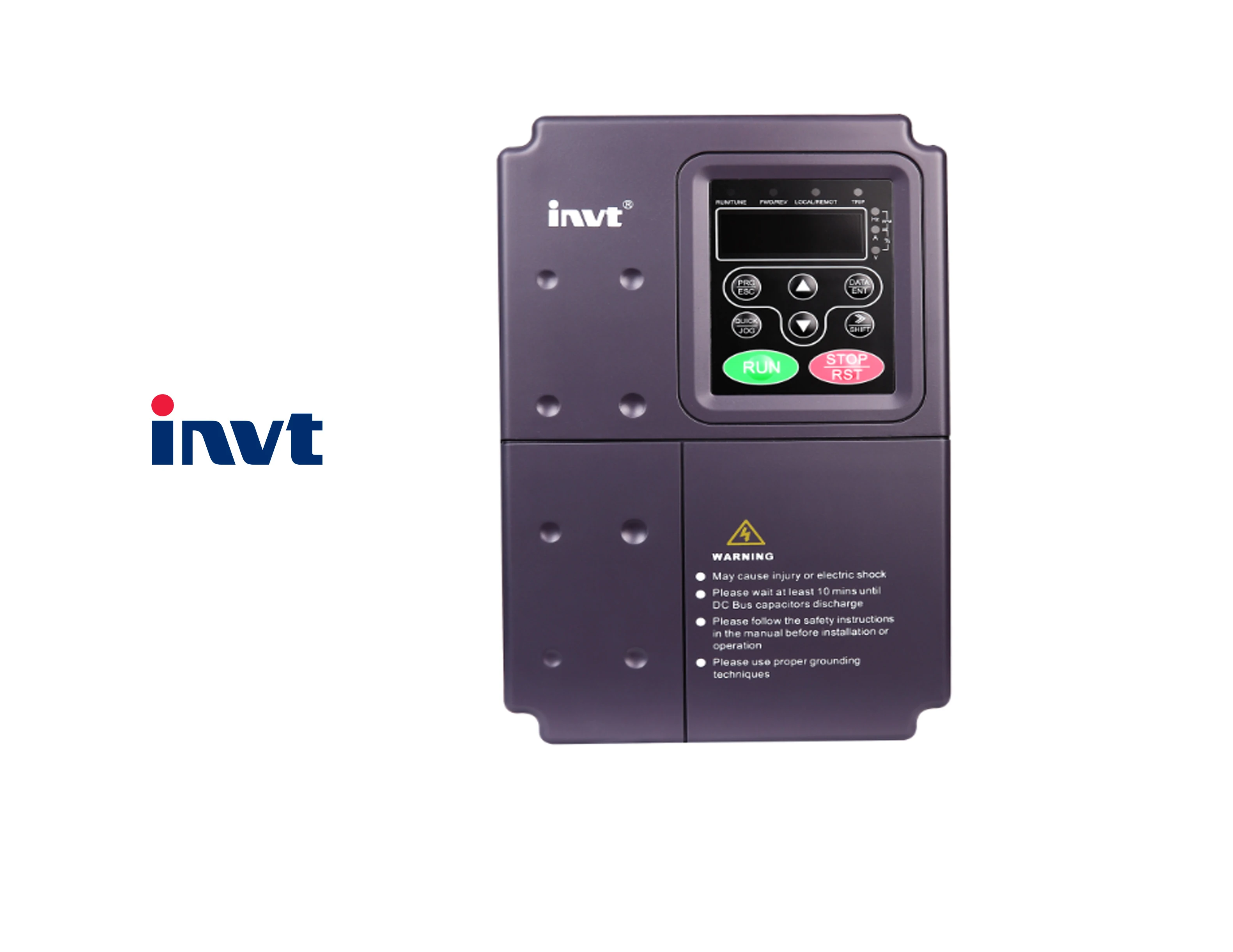

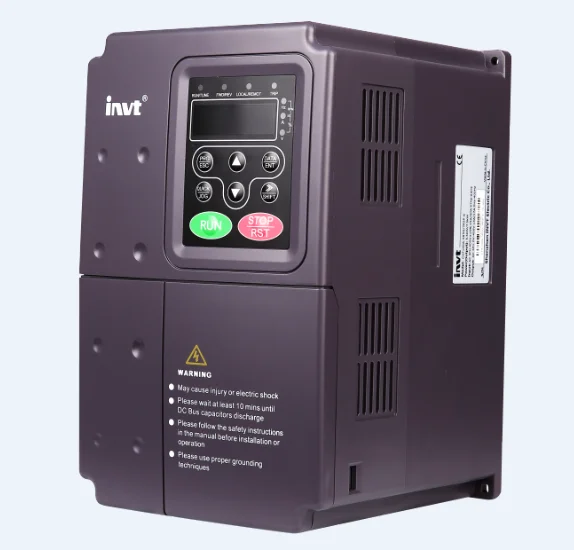

Распродажа инвертор солнечного насоса CHF100A однофазный 220 В
Распродажа инвертор солнечного насоса CHF100A однофазный 220 В
Распродажа инвертор солнечного насоса CHF100A однофазный 220 В
Распродажа инвертор солнечного насоса CHF100A однофазный 220 В
Распродажа инвертор солнечного насоса CHF100A однофазный 220 В
Распродажа инвертор солнечного насоса CHF100A однофазный 220 В
Распродажа инвертор солнечного насоса CHF100A однофазный 220 В

Распродажа инвертор солнечного насоса CHF100A однофазный 220 В


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 0.1 $* 0.74 $*
Aug-19-2025 0.45 $* 0.80 $*
Jul-19-2025 0.96 $* 0.39 $*
Jun-19-2025 0.71 $* 0.15 $*
May-19-2025 0.55 $* 0.67 $*
Apr-19-2025 0.51 $* 0.59 $*
Mar-19-2025 0.58 $* 0.1 $*
Feb-19-2025 0.96 $* 0.45 $*
Jan-19-2025 0.35 $* 0.53 $*

Характеристики



Instruction
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.


Technical Features
1.Three control modes: without PG vector (SVC), V/F control, and torque control;
2.Starting torque: without PG vector control: 0.5Hz/150% (SVC);
3.18.5kW-90kW inverter built-in DC reactor to improve input power factor and increaseoverall efficiency and stability;
4.Internal brake unit with every specification 0.75-15kW, so that the braking resister can be connected directlyfor a quick stop;
5.16-steps simple PLC, multi-speed control, and PID control
6.Supporting multi-frequency installation methods: digital setup, analog quantity setup, PID setup, and communication setup;
7.Supports starting and stopping DC brake;
8.The input and output terminals may be freely programmed, so users may combine a variety of operating modes as needed;
9.Equipped with jump frequency control which prevents mechanical resonance and makes the system more stable and reliable;
10.Equipped with instantaneous power failure non-outage capability;
11.Equipped with sleep-wake delay installation capability;
12.Equipped with over-torque detection;
13.Variety of maximum frequency setting source options;
14.Equipped with a bidirectional shift key , which enables users to use the shift key to view real-time parameters;
15.Rotation speed tracking re-start function: allowing rotating machinery to be started smoothly and without any shocks.


Application
1.Boiler drum, induced draft fan, mine exhaust fan;
2.Energy-saving central air conditioning;
3.Oil injection pump, oil transfer pump;
4.Energy-saving air compressor;
5.Circulating pump, water supply pump, constant pressure wate








I/O Features
Input Voltage Range
380/220V±15%
Input Frequency Range
47~63Hz
Output Voltage Range
0~rated input voltage
Output Frequency Range
0~rated input voltage



I/O Terminals
Input Terminals
programmable DI:7, 1 high speed pulse; programmable AI:2, AI1: -10V~10V; AI2: 0~10V or 0~20mA;

Output Terminals
programmable open collector output:1(open collector or high speed pulse output selectable); programmable relay output:2
programmable AI:2, 0/4～20mA or 0～10V selectable.
Communication Terminals
provide RS485 communication interface, adopt Modbus-RTU communication mide.







Control Function
Control Mode
V/F control, sensorless vector control (SVC)
Speed Adjusting Range
1:100(SVC)
Overload Capacity
150% rated current 60s, 180% rated current 10s .
Frequency Reference Source
Keypad, analog input, HDI, serial communication, multi-step speed, simple PLC and PID. The combination of multi- modes and the switch between different modes can be realized.



Other Functions
\u0095 Traverse Control Function \u0095 PID Control Function \u0095 Simple PLC, Multi-Steps Speed Control Function: 16 steps speed can be set. \u0095
None-Stop when instantaneous power off. \u0095 Speed Trace Function: Smoothly start the running motor. \u0095 Automatic Voltage Regulation
Function (AVR): \u0095 Up to 23 fault protections: over current, over voltage, under voltage, over temperature, phase failure, overload
etc.

Man-machine Interface
LED Display
Can display: setting frequency,output frequency,output voltage,output current etc.
Multi-function Key-press
The QUICK/JOG key-press can be used as multi-function key-press.


EMC


EMC Criterion
if the installing and wiring of the VFD together with the EMI filter according to 《Manual of CHF100A》, we can promise it's must
meet the following criterion: \u0095 EN61000-6-4 \u0095 EN61800-3 [Normally, if the cable of motor is longer than 50m, it's should install
AC reactor or sinusoidal filter at the output side of the VFD.]





Environmental Constraint
Temperature
-10°C ~ +40°C. VFD will be derated if ambient temperature exceeds 40°C.
Humidity
≤90%, without condensation
Altitude
≤1000M, output rated power >1000M, output power with derating
Impingement and Oscillation
The VFD is prohibited to drop on the floor or with suddenly impact, it also prohibited to be installed at the place where the
oscillation may occur very probably.
Electromagnetic Radiation
The VFD is prohibited to be installed at the place where stronger electromagnetic radiation may occur very probably.
Store Environment
The VFD is prohibited to be stored at the place where with direct sunlight, fall of oil mist, steam and with heavy oscillation.
