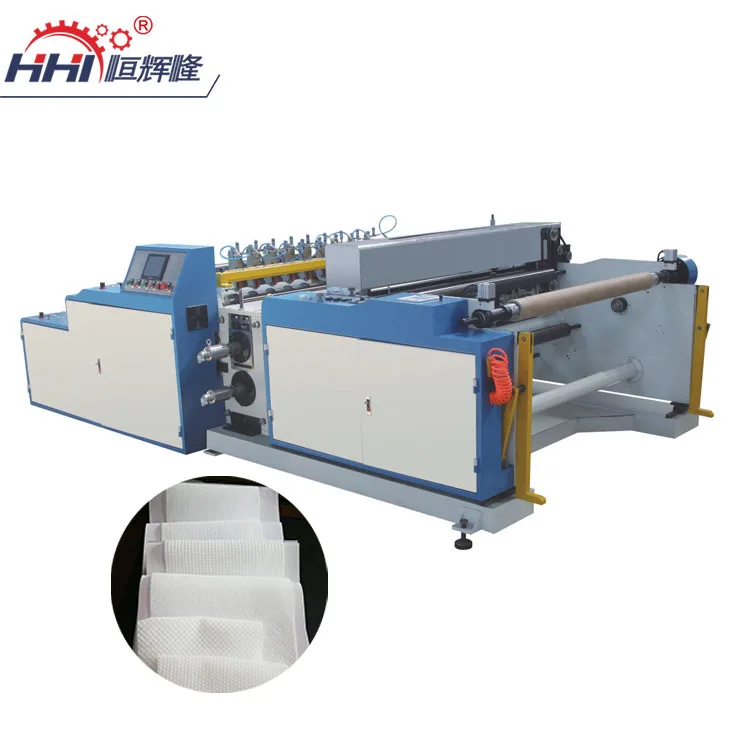

Гигиенический нетканый перфорирующий станок для выдавливания отверстий поверхности гигиенических прокладок
- Категория: Embossing Machines >>>
- Поставщик: Guangdong,Henghuilong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.53 $* | 0.78 $* |
| Aug-17-2025 | 0.62 $* | 0.40 $* |
| Jul-17-2025 | 0.86 $* | 0.56 $* |
| Jun-17-2025 | 0.36 $* | 0.97 $* |
| May-17-2025 | 0.35 $* | 0.0 $* |
| Apr-17-2025 | 0.21 $* | 0.31 $* |
| Mar-17-2025 | 0.63 $* | 0.54 $* |
| Feb-17-2025 | 0.20 $* | 0.46 $* |
| Jan-17-2025 | 0.47 $* | 0.64 $* |
Характеристики
Application：
Main working in the top sheet of diaper, diaper pad and Non-woven cutting.
Main working in the top sheet of diaper, diaper pad and Non-woven cutting.
Baby diaper backsheeet
Embossing nonwoven
Substrate width | 1200mm |
Total machine power | ~21kw |
Mechanical speed | 90/min |
way to heat up | Oil heating |
Slitting and winding edges are neat | +1mm |
Punching speed of hot air non-woven fabric and imitation sticky fabric | The punching speed of 6-80m/min depends on the characteristics of the substrate used |
Stereotype | Cooling water 5 degrees to room temperature |
temperature control | 50-200 degree/+-1 degree |
Acceptance speed | 70m/min |
Maximum diameter of unwinding and unwinding | 01000mm |
Maximum length of paper tube | 1200mm |
Paper tube specifications | 76mm inner diameter 92mm outer diameter |
Outer diameter of rewinding and unwinding inflatable shaft | 74mm each with two |
Length of guide car | 1300mm |
Effective punching width | 1200mm |
Tension control range | 3~25kg/full width |
Tension control accuracy | ± 0.5kg/full amplitude accuracy |
Working principle
This machine is composed of an unwinding unit, a punching unit, an online slitting unit, a winding unit, an electrical control system and corresponding pneumatic control instruments.
Notable features of this model
•Maximum mechanical speed: 90m/min
• Standard configuration of imported machine:
Two-stage floating-type full-servo motor linkage tension control system. Unwinding adopts ultra-low friction cylinder swing detection, with high precision and high sensitivity tension control. Rewinding adopts high-precision tension detector, with high-precision and high-sensitivity tension control.
•Automatic control of acceleration and deceleration and speed in different places, linkage control of tension and speed, stable acceleration and deceleration.
•Personalized functions such as selectable acceleration/deceleration curve, acceleration/deceleration ringing, and automatic deceleration and shutdown when the meter reaches the set value. It fully embodies the humanized design concept of human-oriented technology.
• Adopt Japanese Mitsubishi Fx3U series PLC centralized control, color man-machine interface Chinese display operating system. The integrated design of machine, electricity, light and gas has perfect safety protection function.
This machine is composed of an unwinding unit, a punching unit, an online slitting unit, a winding unit, an electrical control system and corresponding pneumatic control instruments.
Notable features of this model
•Maximum mechanical speed: 90m/min
• Standard configuration of imported machine:
Two-stage floating-type full-servo motor linkage tension control system. Unwinding adopts ultra-low friction cylinder swing detection, with high precision and high sensitivity tension control. Rewinding adopts high-precision tension detector, with high-precision and high-sensitivity tension control.
•Automatic control of acceleration and deceleration and speed in different places, linkage control of tension and speed, stable acceleration and deceleration.
•Personalized functions such as selectable acceleration/deceleration curve, acceleration/deceleration ringing, and automatic deceleration and shutdown when the meter reaches the set value. It fully embodies the humanized design concept of human-oriented technology.
• Adopt Japanese Mitsubishi Fx3U series PLC centralized control, color man-machine interface Chinese display operating system. The integrated design of machine, electricity, light and gas has perfect safety protection function.
Q1: What Industry is your product suitable for?
A1:Our machines are widely used in the fields of disposable hygienic products,disposable medical products, clothing, textile fabrics, self-adhesive labels, medical tape, plaster backing, and various othercoating compounds.
Q2：What if the machine fails during use?
A2:Our machines will be carefully inspected and ensured before delivery,and we will provide the correct instructions for use of the products. In addition, our products support lifetime warranty service, if there any question during using our products please consult our work personnel.
Q3: When can I get the machine after payment?
A3:The product production time about 45-60 days. We will deliver it on time as the date we agreed both side.
Q4: How can I install my machine when it arrives?
A4:We will provide installation videos and tutorials, or send our engineer to your side ASAP
you get all your machines ready, for testing and teaching your technicians how to run the machine.
you get all your machines ready, for testing and teaching your technicians how to run the machine.
Q5: What payment do you accept?
A5:We generally accept T/T or L/C, and we can negotiate the payment method.
A5:We generally accept T/T or L/C, and we can negotiate the payment method.
