Автоматическое строгальное лезвие гильотинное машина для заточки бумажных


Поделиться:


Цена:5 000,00 $ - 6 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 5950.40 $* 6248.92 $*
Aug-18-2025 5900.68 $* 6195.40 $*
Jul-18-2025 4950.47 $* 5198.98 $*
Jun-18-2025 5800.18 $* 6090.23 $*
May-18-2025 5050.44 $* 5303.44 $*
Apr-18-2025 5700.76 $* 5985.24 $*
Mar-18-2025 5650.86 $* 5933.22 $*
Feb-18-2025 5600.11 $* 5880.26 $*
Jan-18-2025 5550.96 $* 5828.6 $*

Характеристики



Product Description




Specification

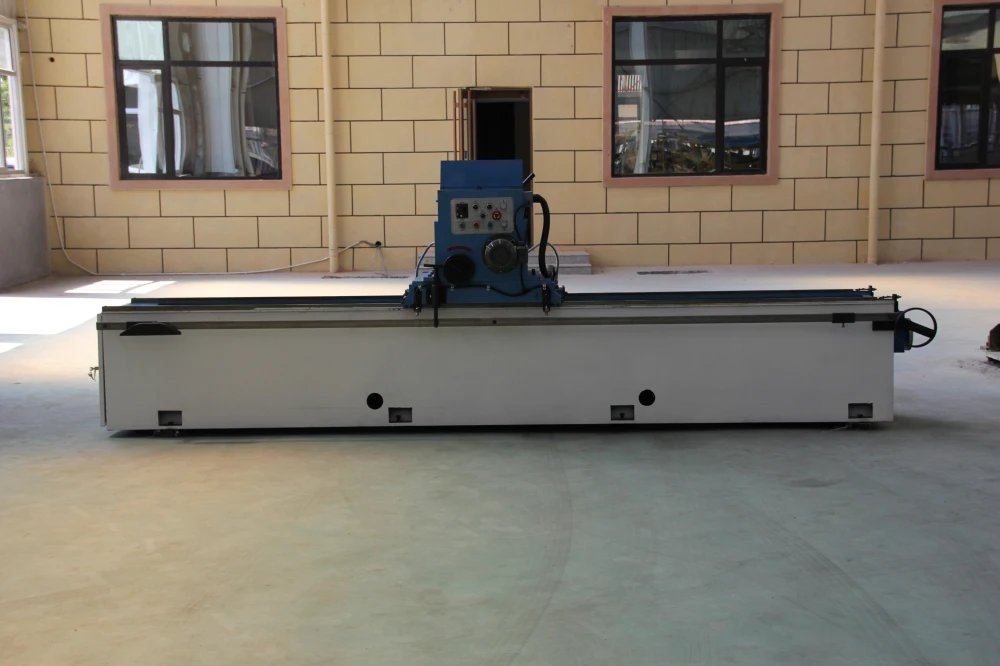

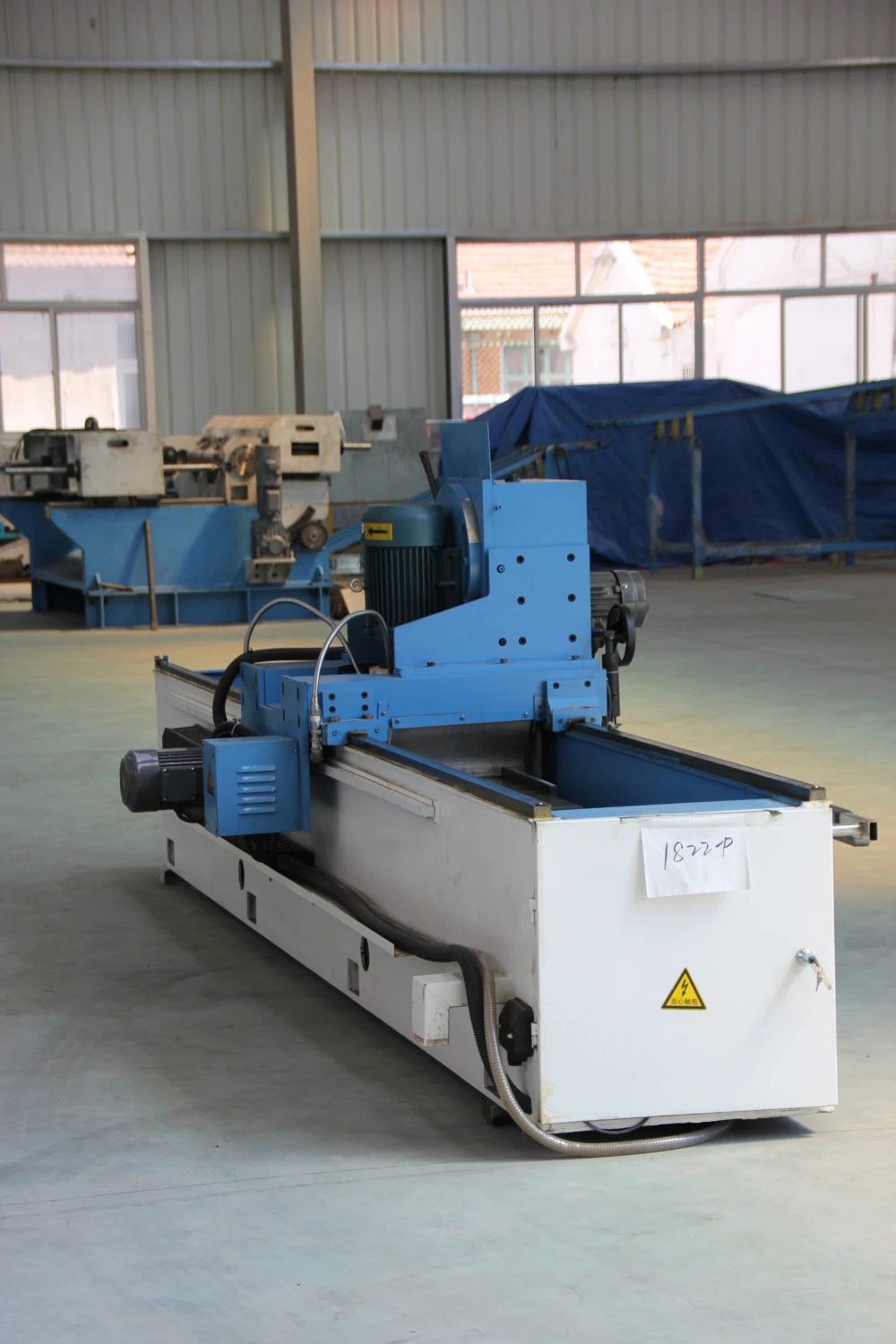

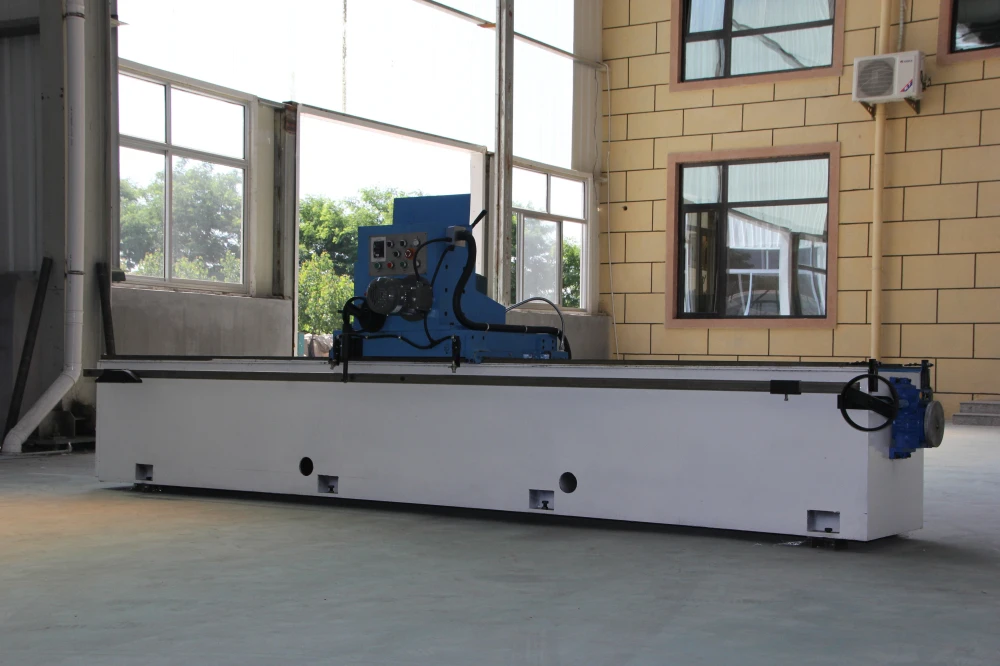

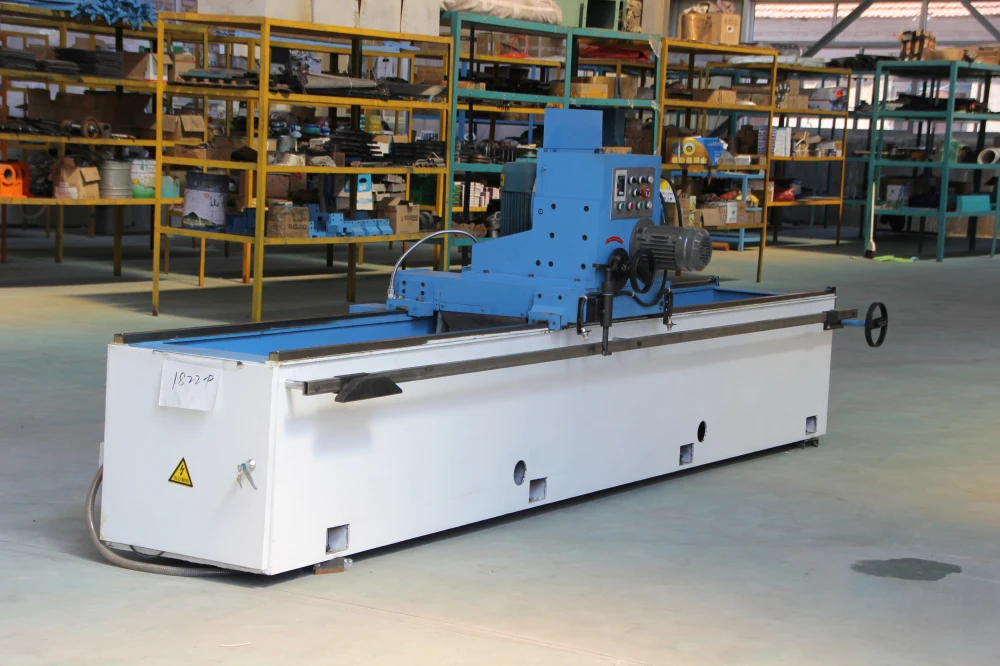

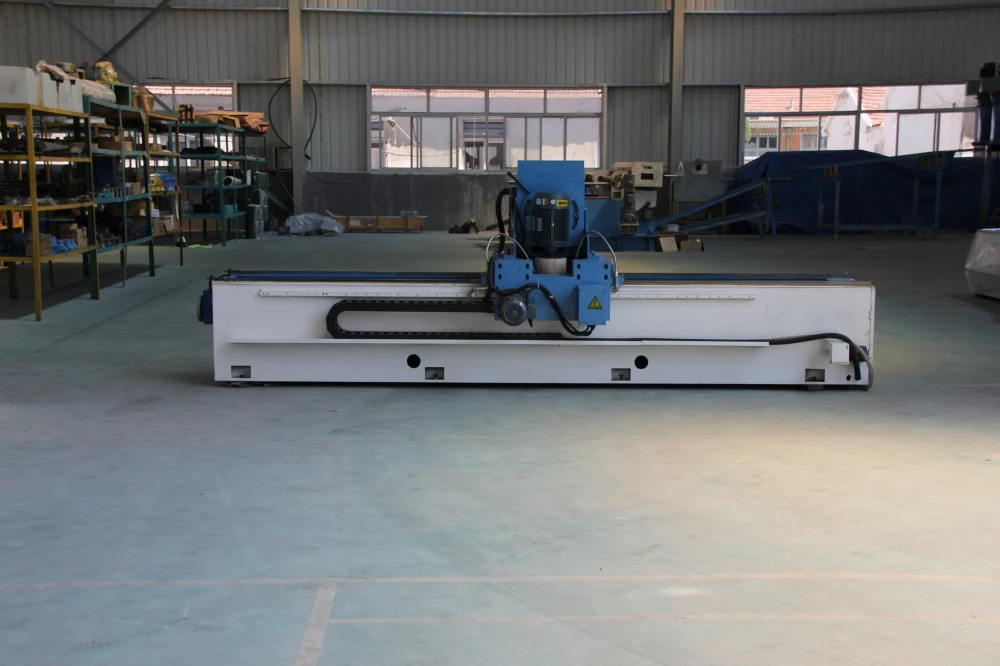

knife sharpening machine
1. The working table is of electromagnetic chunk with strong magnetic power and lower consumption.
2. The spindle motor is professionally made for grinding knife, with high precision and easy maintenance.
3. The machine has a double tilting fillet to lock tight the working table , so the grinder is more stable.
4. The machine chooses rack driving, so the grinding head traveling is smoother.
5. The button is chosen from Siemens which has a reliable quality. It is easy to operate and has a long life span.
6. The switch and the contactor is choose from French Schneider electric components which are well known in the world. The
quality is beyond all doubts.
7. The moving up and down of the grinding head is depended on the ball screw. The machine can use for a long time without the
dropping of the knife. It is the no clearance transmission.
8. The movement of the grinding head is controlled by the inverter. Its speed is 0-20m/s. Its speed can be fitted for both
accurate grinding and rough grinding.

9 the automatic feed system , job accuracy is 0.01mm.
10 This machine’s body is a design of gantry body, with the high-quality steel weld, stress relieved eliminating the internal
stress. The body has high strength and good rigidity. No shrinking in centre of body. The thickness of the machine body steel is
11mm. The machine body have the heat treatment


Name/ model
HM2015
Max grinding length
1500mm
Width of the working table
200mm
grinding head power
4kw
Linear speed of grinding wheel
15m/s
Pump power
100w
Specification of grinding stone
200x150x32mm
Tilting range of the working table
±90°
Speed of the sliding plate
Stepless speed change
Weight
1980kg
Overall dimension
3300x1400x1400mm
