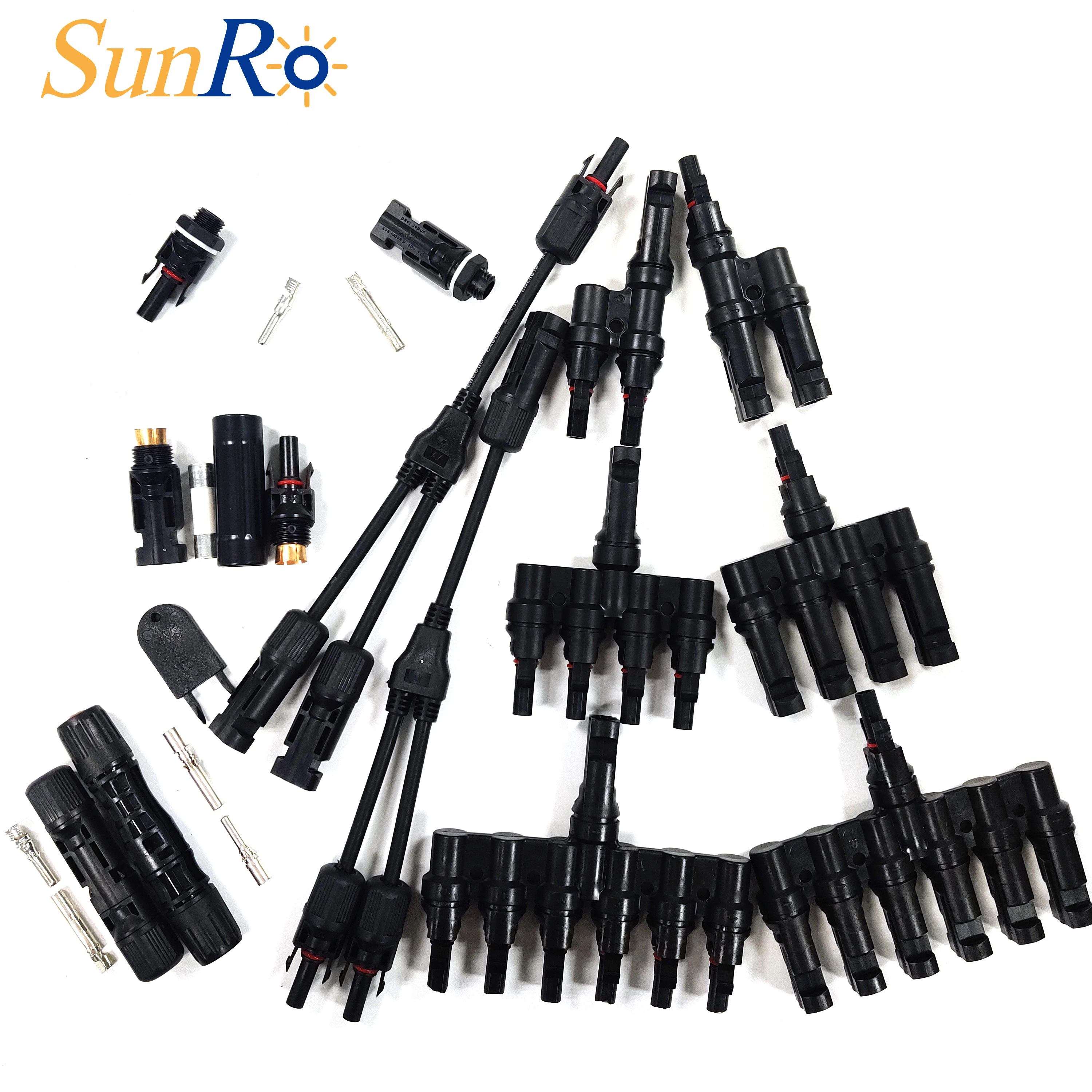

SunRo IP67 панель солнечных батарей кабель мама и папа разъем 1000 В постоянного тока коннектор для
- Категория: Connectors & Terminals >>>
- Поставщик: Shanghai,Seanro,Solar,Power,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.83 $* | 0.59 $* |
| Aug-18-2025 | 0.4 $* | 0.65 $* |
| Jul-18-2025 | 0.24 $* | 0.98 $* |
| Jun-18-2025 | 0.10 $* | 0.37 $* |
| May-18-2025 | 0.60 $* | 0.30 $* |
| Apr-18-2025 | 0.77 $* | 0.8 $* |
| Mar-18-2025 | 0.88 $* | 0.84 $* |
| Feb-18-2025 | 0.78 $* | 0.94 $* |
| Jan-18-2025 | 0.11 $* | 0.19 $* |
Характеристики
Products Description

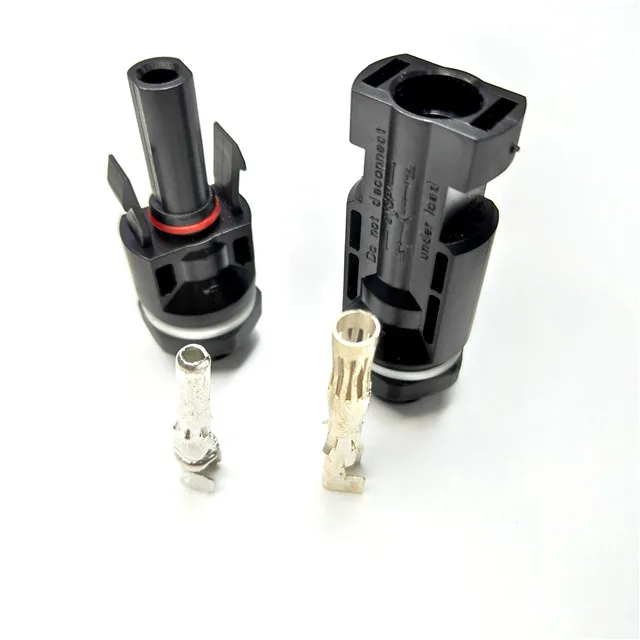

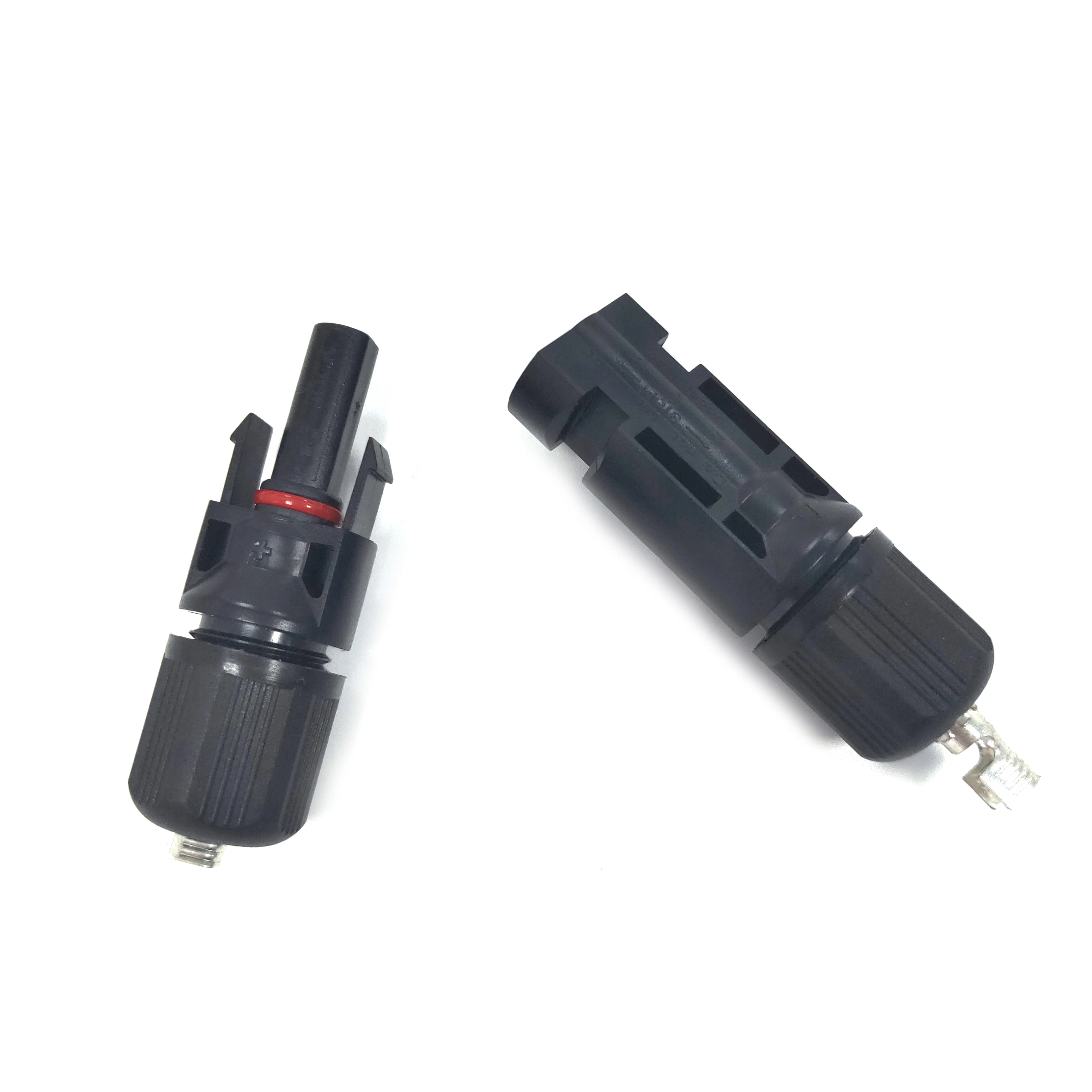

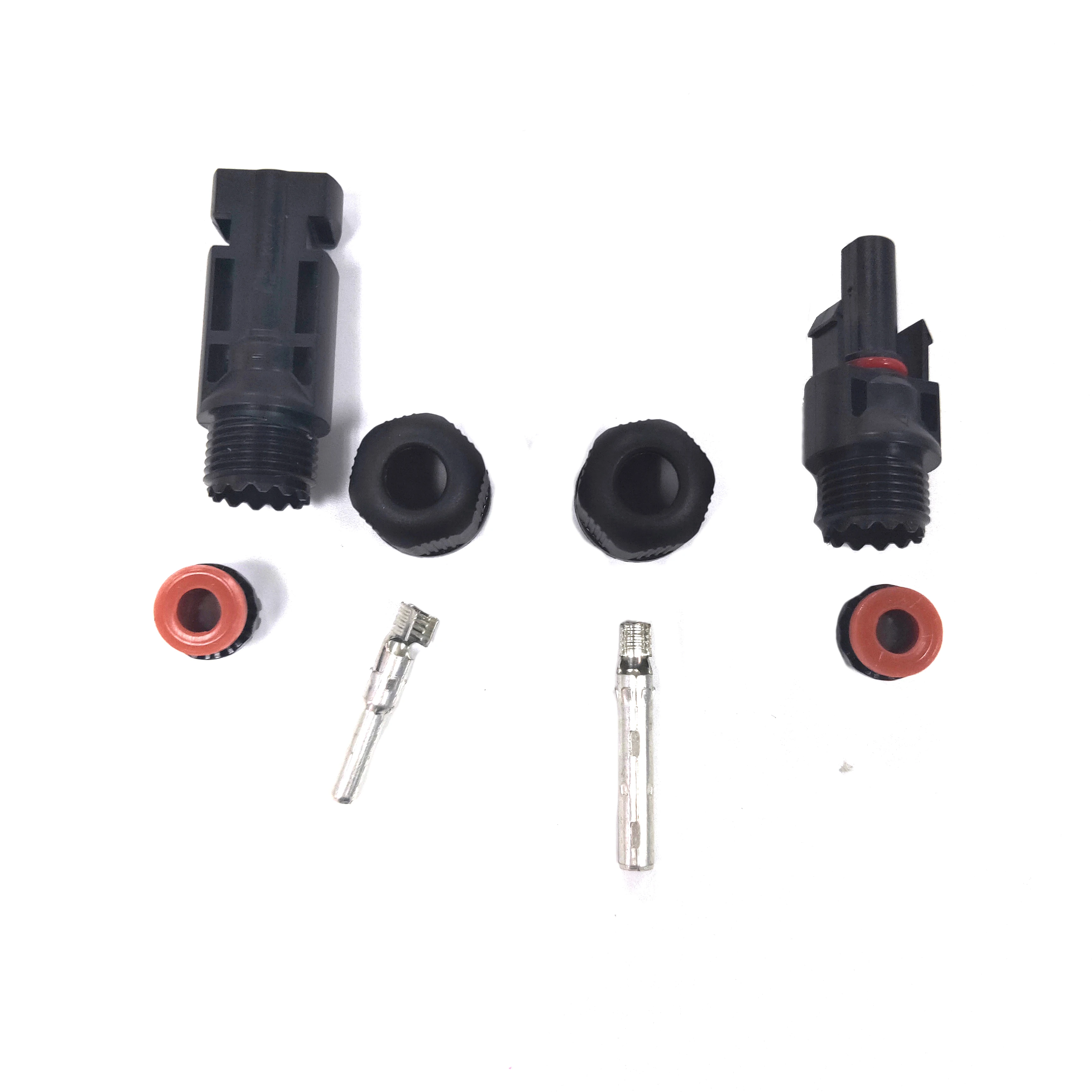

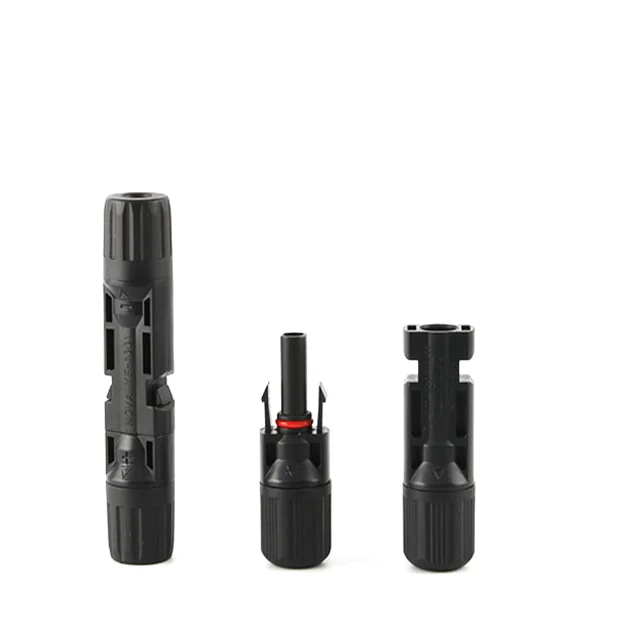

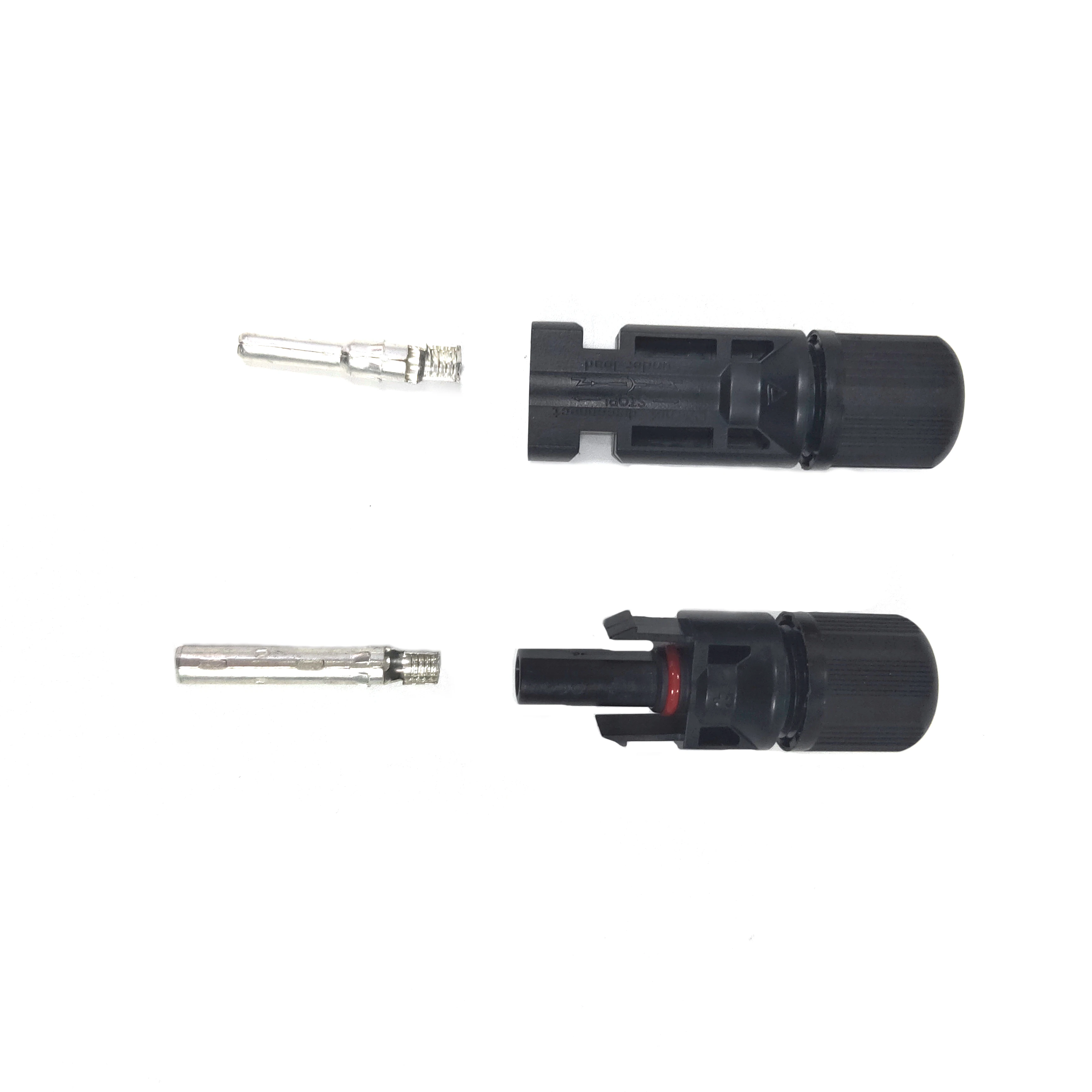

SunRo IP67 Solar PV Panel Cable Female and Male Connector 1000V DC Terminal solar panel cable connector
CONSTRUCTION | ||
connector system | Φ4mm | |
Degree of protection mated/unmated | IP67/IP2X | |
Safety class | Ⅱ | |
Contact material | Messing, verzinnt , copper alloy, tin plated | |
insulation material | PC/PPO | |
Locking system | Snap-in | |
Salt mist spray test degree of severity 5 | IEC 60068-2-52 | |
TECHNICAL DATA | ||||||
Rated Voltage | 1000V DC(IEC) | Test voltage | 6KV (50HZ, 1min) | |||
Rated current | 17A (1.5mm²) 22A (2.5mm²; 14AWG) 30A (4mm²; 6mm²; 12AWG; 10AWG) | Ambient temperature | -40°C upto +90 °C (IEC) -40°C upto +75 °C | |||
Upper limiting temperature | +105 °C (IEC) | Contact resistance of plug connectors | 0.5mΩ | |||
Why Choose Us
★ Offer You the Most Competitive Price ★
★ Our High Quality Products Made of Selected Materials and Excellent Processing Equipment ★
★ Feedback from Customers★
★ Application ★
packing＆shipping
Choose the Most Suitable Packaging and Transportation
We will choose the best packing and transportation mode according to the product characteristics and your requirements.
Company Profile
Concentrates on the research, development and innovation of wire cables.
It has owned many patents in the new robot field.Meanwhile, it produces different types of cables which are applicable for the special occasion.
The company can meet various requirements of customers by customization.
It can also provide the short delivery time, suitable model selection, specialized installation guidance and other overall after-sales services.
Certifications
Contact Us
FAQ
Q1. How can I place order?
A: You can contact us by email about your order details, or place order on line.
Q2. How can I pay you ?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are
using.
Q3. what is the package of the cable ?
A: The package is usually wooden drum or steel wooden drum or coil.also according to customer's requirment.
Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where
A: You can contact us by email about your order details, or place order on line.
Q2. How can I pay you ?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are
using.
Q3. what is the package of the cable ?
A: The package is usually wooden drum or steel wooden drum or coil.also according to customer's requirment.
Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where
they come from.
