Композитная пружинная конусная дробилка для добычи меди железа руды камня дробильная машина mini symons гидравлическая
- Категория: Mining Machinery >>>
- Поставщик: Henan,Baichy,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 30702.49 $* | 32237.77 $* |
| Aug-18-2025 | 30444.16 $* | 31966.50 $* |
| Jul-18-2025 | 25542.50 $* | 26819.56 $* |
| Jun-18-2025 | 29928.88 $* | 31424.55 $* |
| May-18-2025 | 26058.65 $* | 27361.27 $* |
| Apr-18-2025 | 29412.80 $* | 30883.10 $* |
| Mar-18-2025 | 29154.66 $* | 30612.18 $* |
| Feb-18-2025 | 28896.86 $* | 30341.30 $* |
| Jan-18-2025 | 28638.54 $* | 30070.0 $* |
Характеристики
Compound Spring cone crusher price mining copper iron ore stone crushing machine, mini symons Hydraulic marble rock cone crusher
As the second crushing process, CS High-Efficiency Cone Crusher can process river stone, granite, basalt and ironstone for medium crushing. This machine takes advantages of safety and easy maintenance, and its overload protection device can make the production stable and steady.
cone crusher can crush materials of above medium hardness. And it is widely used in metallurgy, building, hydropower, transportation, chemical industry, etc. When used with jaw crusher, it can be used as secondary, tertiary or quaternary crushing. Generally speaking, the standard type of Symons cone crusher is applied to medium crushing. The medium type is applied to fine crushing. The short head type is applied to coarse fine crushing. As casting steel technique is adopted, the machine has good rigidity and large high strength.
Application: CS Symons cone crusher is widely used to crush metaliferous and non-metaliferous ores, such as iron ore, sandstone pebble, limestone, granite, basalt, diabase, cobble, etc
Working principle
Cone crusher consist of frame, transmission device( countershaft, countershaft bushing, gear and pinion), main shaft, eccentric shaft, cone,mantle, bowl-shaped bearing, springs and hydraulic pressure station for adjusting discharge opening.
(1) Transmission device: Countershaft assembly is supported by the bronze countershatf bushings, can be dismounted for convenience of maintence. And the gear and pinipn with high strengh and high precision are adopted to ensure the reliable operation of equipment.
(2) Main shaft: Forged form hardened and tempered chrome molybdenum steel particularly large diameter to suit wear-resisting application. High quality copper socket liner can bear high crushing load, and allows the machine working under rigorous condition.
(3) Cone and mantle plate, high manganese steel casting, hydraulic lock device is convenient and reliable.
(4) Spring and hydraulic device: Convenient for adjusting the discharge size, can remove the foreign materials if non-crushable objects came into the crushing chamber.
| Model | Moveable Cone Dia. (mm) | Cavity Type | Feeder Opening Size | Adjusting Range of Discharge Opening(mm) | Main Shaft Speed (r/min) | Motor Power (kw) | Capacity(t/h) | Overall Dimension L*W*H (mm) | |
| Shutting Size(mm) | Opening Size(mm) | ||||||||
| CS75B | 900 | Fine | 83 | 102 | 9-22 | 580 | 75 | 45-91 | 2821×1880×2164 |
| Coarse | 159 | 175 | 13-38 | 59-163 | |||||
| CS110B | 1200 | Fine | 127 | 131 | 9-31 | 485 | 110 | 63-188 | 2821×1974×2651 |
| Medium | 156 | 156 | 13-38 | 100-200 | |||||
| Coarse | 178 | 191 | 19-51 | 141-308 | |||||
| CS160B | 1295 | Fine | 109 | 137 | 13-31 | 485 | 160 | 109-181 | 2800×2342×2668 |
| Medium | 188 | 210 | 16-38 | 132-253 | |||||
| Coarse | 216 | 241 | 19-51 | 172-349 | |||||
| CS220B | 1650 | Fine | 188 | 209 | 16-38 | 485 | 220 | 181-327 | 3911×2870×3771 |
| Medium | 213 | 241 | 22-51 | 258-417 | |||||
| Coarse | 241 | 268 | 25-64 | 299-635 | |||||
| CS315B | 2134 | Fine | 253 | 278 | 19-38 | 435 | 315 | 381-726 | 4613×3251×4732 |
| Medium | 303 | 334 | 25-51 | 608-998 | |||||
| Coarse | 334 | 369 | 31-64 | 789-1270 | |||||
The raw material is high strength cast iron, with good mechanical property, as well as good ability of absorbing the energy of crusher's vibration. It's a great help to make the rotation of main shaft running steady, which can continuously stable the output of your crusher. The heat treatment of tempering is applied to release the internal stress. It's a great help to prevent the part's dimension change in the daily operation of your crusher. It obviously can prolong the life of your crusher. The final machining is carried by CNC machine to ensure each dimension tolerance, which helps to make your assembly easy and fast, to improve the efficiency of your production and maintenance.

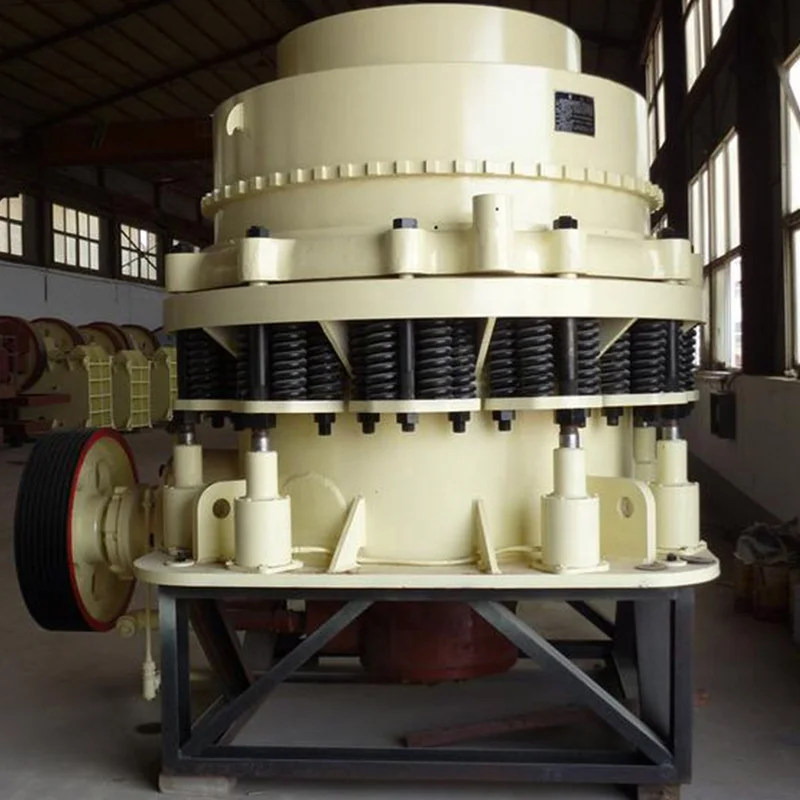

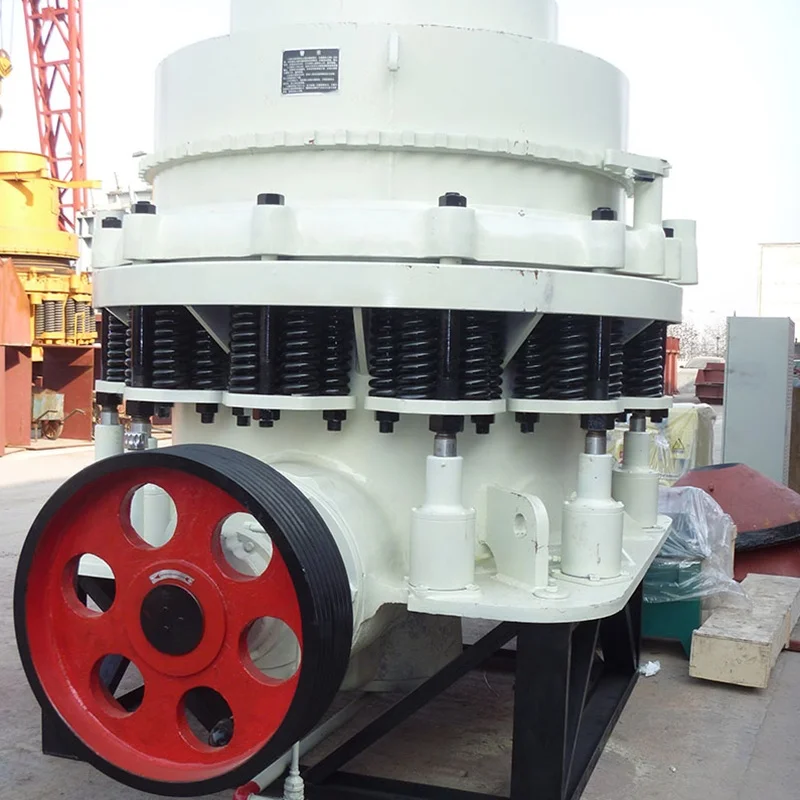

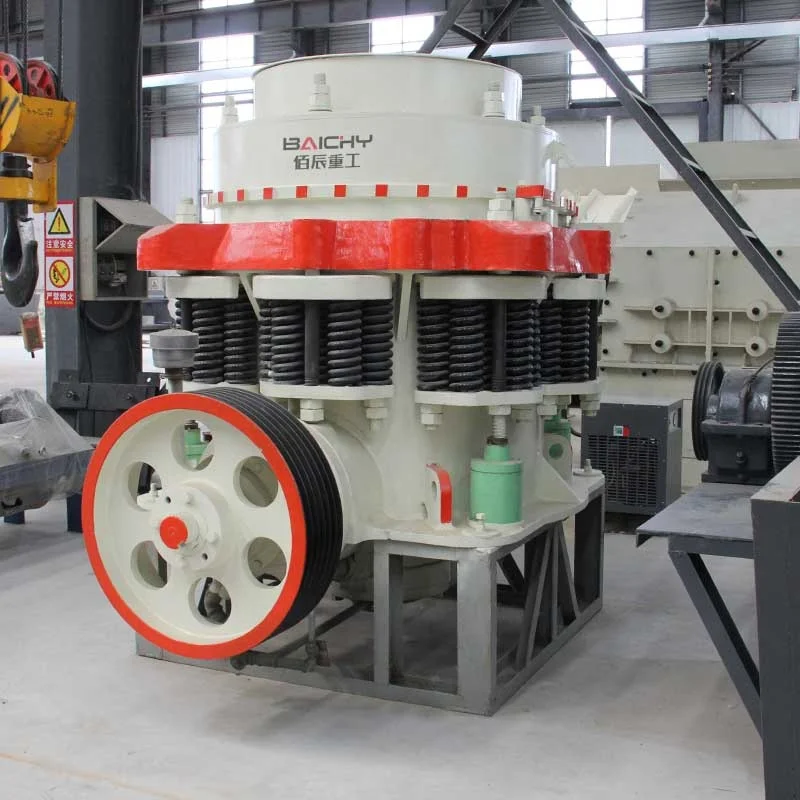

Pictures of cone crusher are displayed on site
It's applicable in crushing of various hardness ores or rocks. The crushers are grouped in 3 types, Coarse, medium, and fine types. The coarse type is used for medium crushing, medium for medium and fine crushing, fine for fine crushing
Jaw crusher
Impact crusher
Cone crusher
Ball mill
Grinding mill
Mobile crusher
Baichy headquarters is located in the industrial park in Jiaozuo City. It covers a total area of 200,000 square meters, including 150,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 500 workers, including more than 20 middle and senior technicians. Baichy is mainly focus on 4 series products: stone crusher machines, sand making equipment, powder grinding mills, mineral processing equipment and their spare parts. Every year, Baichy can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
1. Are you manufacture or trading company?
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
