220 В Вибрационный двигатель для машины
US $22.00-$45.00
3 в 0724 7 мм водонепроницаемый микро Вибрационный
- Категория: Vibration Motor >>>
- Поставщик: Yichang,Wingfong,Industry,&,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 1.80 $* | 1.59 $* |
| Jul-18-2025 | 1.21 $* | 1.95 $* |
| Jun-18-2025 | 1.77 $* | 1.10 $* |
| May-18-2025 | 1.83 $* | 1.96 $* |
| Apr-18-2025 | 1.3 $* | 1.61 $* |
| Mar-18-2025 | 1.42 $* | 1.51 $* |
| Feb-18-2025 | 1.44 $* | 1.94 $* |
| Jan-18-2025 | 1.71 $* | 1.40 $* |
Характеристики
Company Profile
Yichang Wingfong Industry & Trade Co., Ltd. is a national high-tech enterprise specializing in the research, development and manufacturing of hollow-core (coreless) permanent magnet DC micro motors and various core motors certified by SIRA and Rohs .
We provide professional design, stable quality, reasonable price, timely delivery and sincerely service to every customer!
Our Service
As the special and professional manufacturer of Micro Motor in China，
We Supply
Driving or Vibrating Micro Motors
&
Customized motors
Motor Paramenters
№ | Item | Specifications | Remark | ||
1 | Rated Voltage | 3V | |||
2 | Operating Voltage | 1.7~3.7V DC | |||
3 | Rotation Direction | CW | |||
4 | Operating Conditions | -10℃～60℃≤60%RH | |||
5 | No Load Current | / | |||
6 | No Load speed | / | |||
7 | Rated Current | 500 mA Max | Under the rated voltage motor operates on rated load | ||
8 | Rated Speed | 13000 ± 2500rpm/min | |||
9 | Rated Load | Counter-Weight | |||
10 | Counter- Weight Details | Material | Tungsten Alloy | ||
Size | R3.3*L5.4*D140 mm | 140 Degree | |||
Weight | 1.635 g | ||||
Center of gravity | 1.259 mm | ||||
11 | System Vibration | Acceleration | 38.1 m/s^2 | Using calculate method, (With 100g weight product) | |
Amplitude | 3.89 G | ||||
12 | Stall Current | 0.6 A | Under the rated voltage | ||
13 | Starting Voltage | 1V DC | In any one position, voltage slowly rises | ||
14 | Terminal Resistance | 5 ±5%Ω | Ohmmeter, Measure between two terminals | ||
15 | Insulation Resistance | 10MΩ | Ohmmeter, Measure between the wires and the shell | ||
16 | Appearance | No any damage | |||
17 | Motor Weight | About 4.1g | |||
18 | Clearance between shafts | 0.05~0.30mm | |||

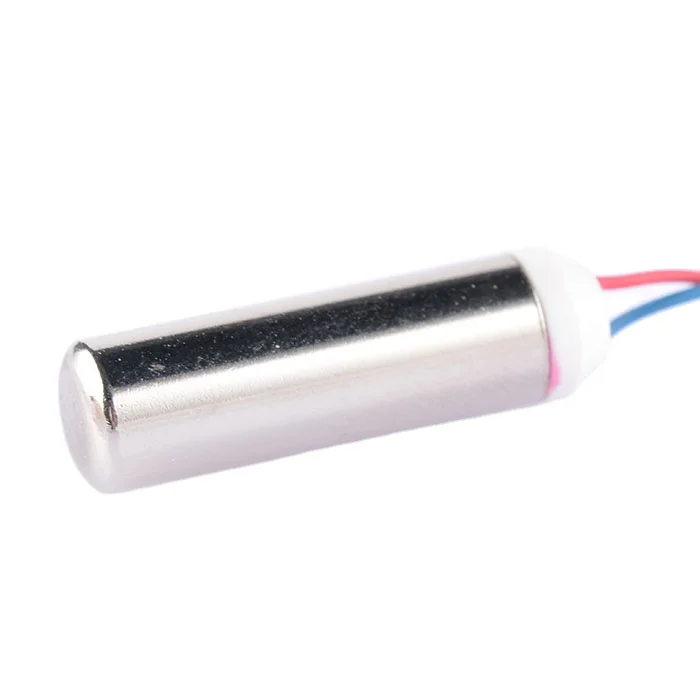

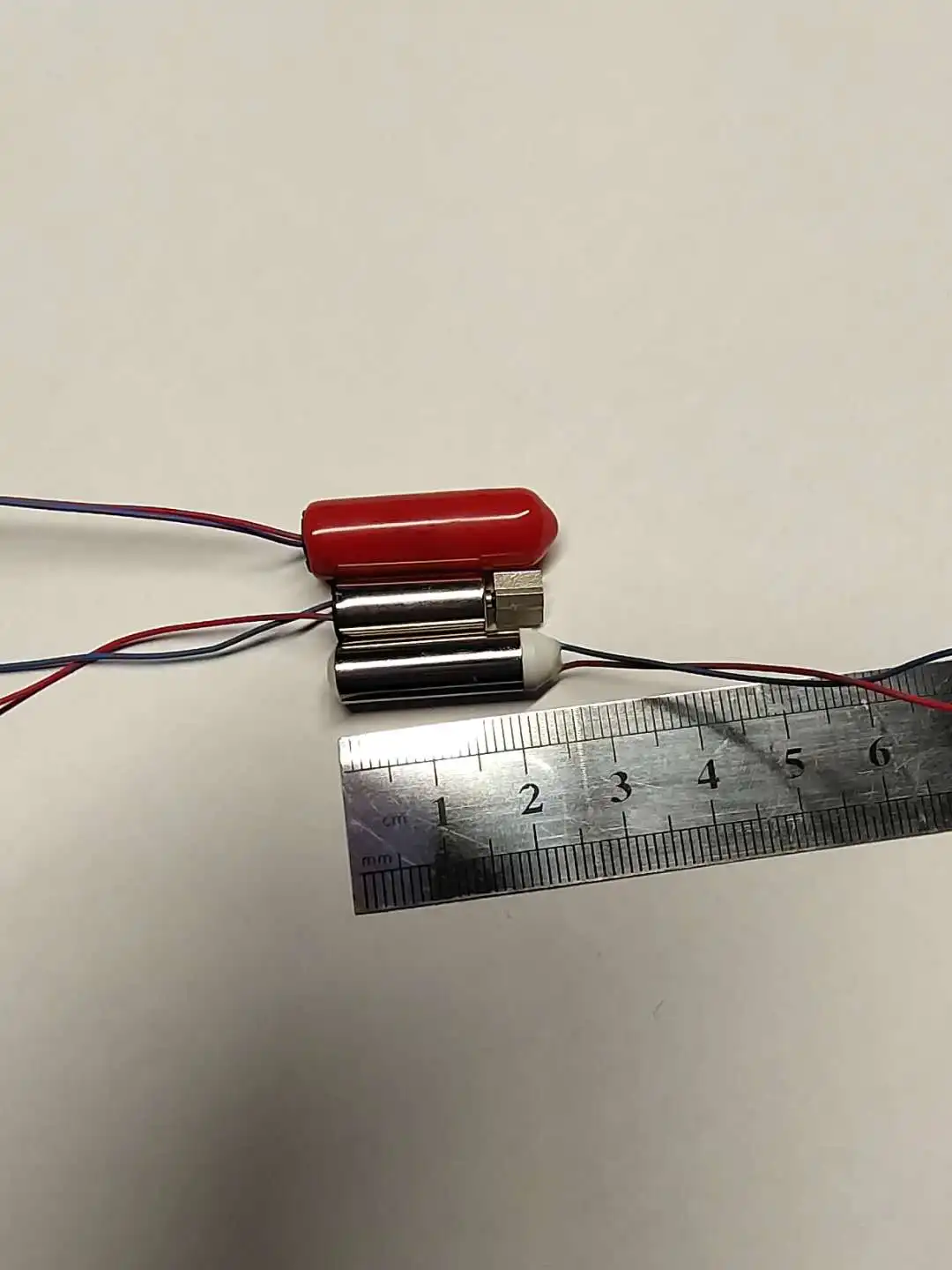

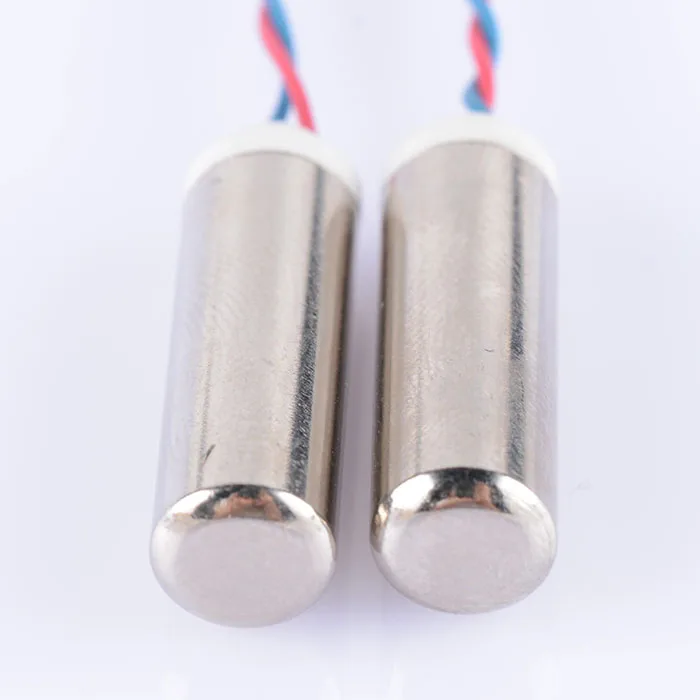

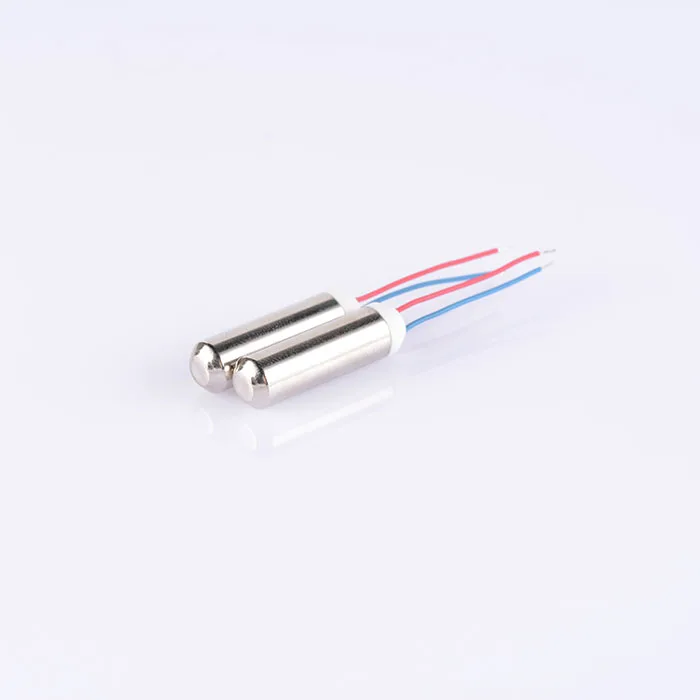

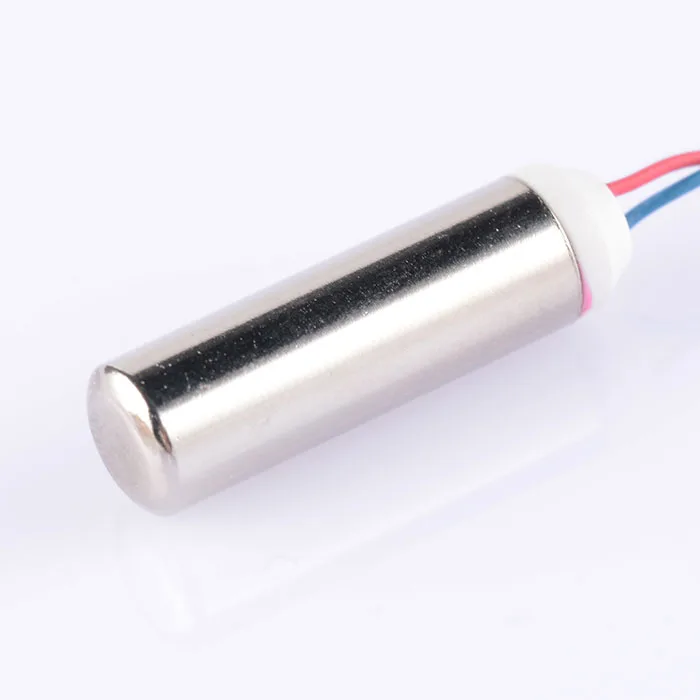

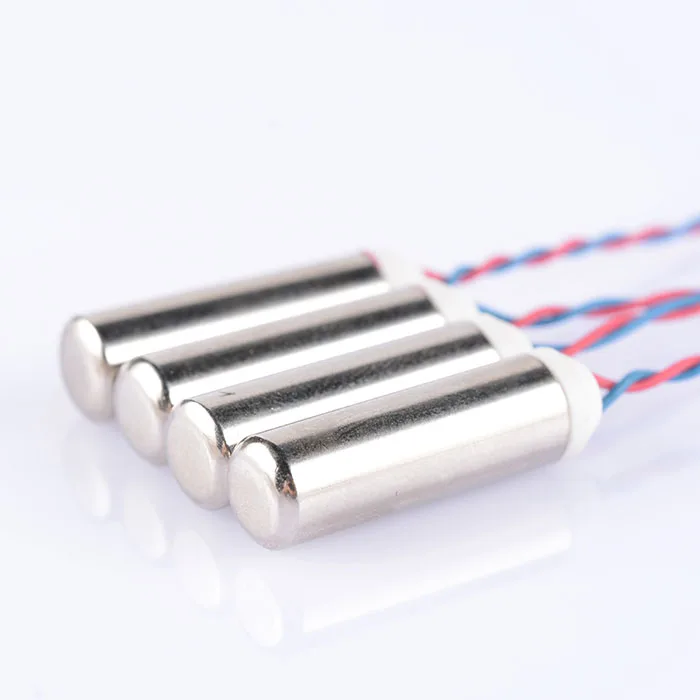

Product Show
Shipping & Packing
Packaging Details:
Polystyrene / Hard paper box / water proof layer
We have reliable resources to assure safe transportation to customers.
FAQ
Q: Sometimes I don't know the exact required parameter，how can I choose a suitable model?
A: We will make some suggestion if you provide your specific requirement on size and performance. Or send us samples or application directly. Then we will make full assessment accordingly.
Q: Can I get some samples first? How soon can I get the samples?
A: Yes, we can make samples, usually 3-10 days is possible to send out.
Q: Is it possible for you to develop new motors if we provide the tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation and confirm if we can arrange or not.
