Product Description

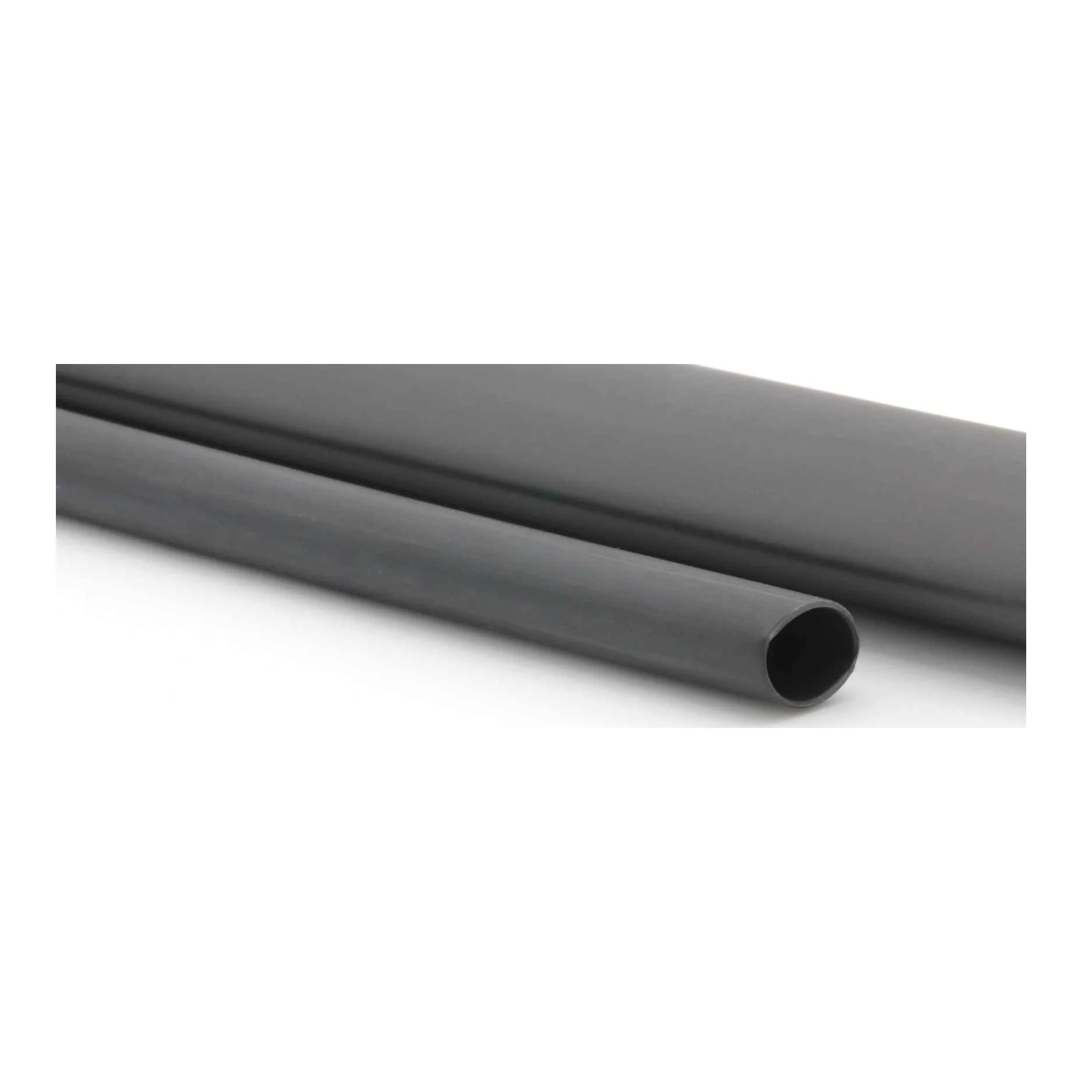

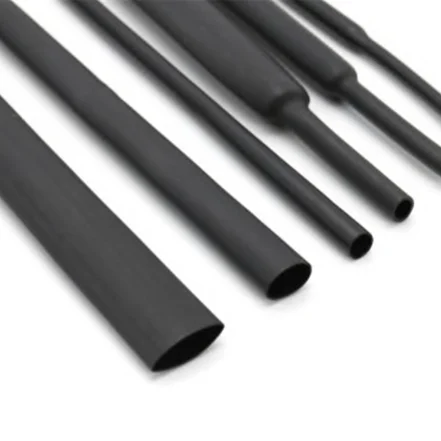

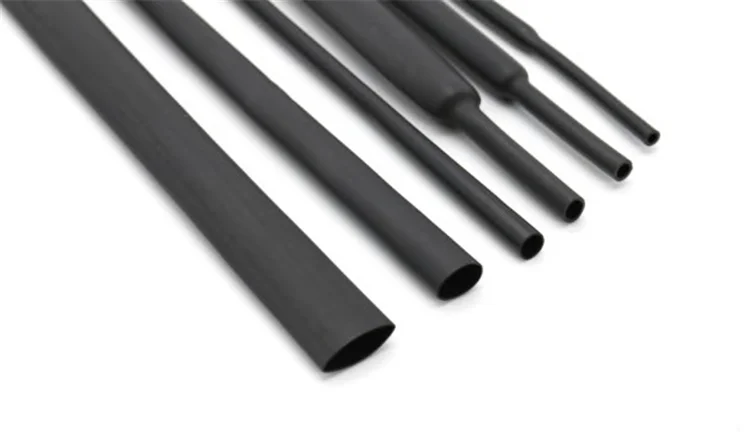

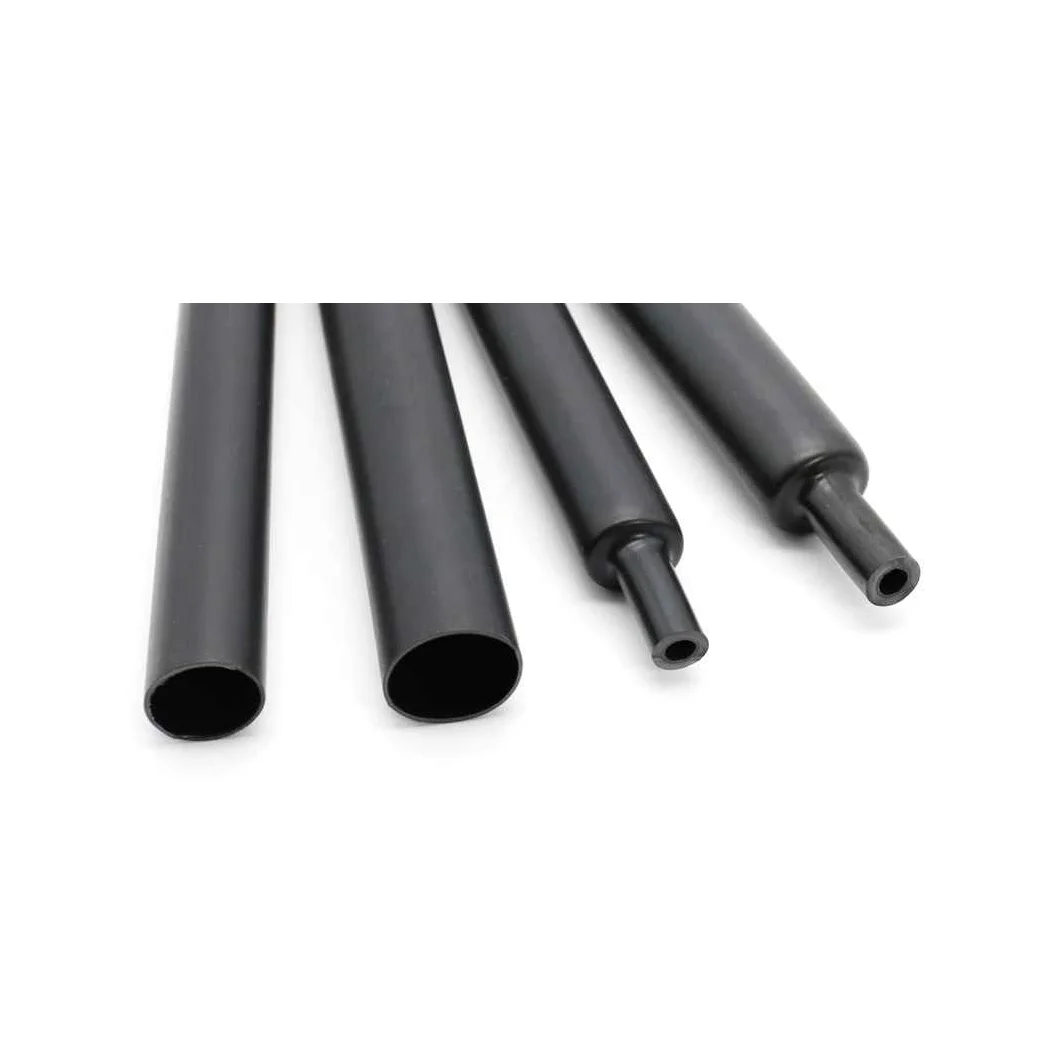

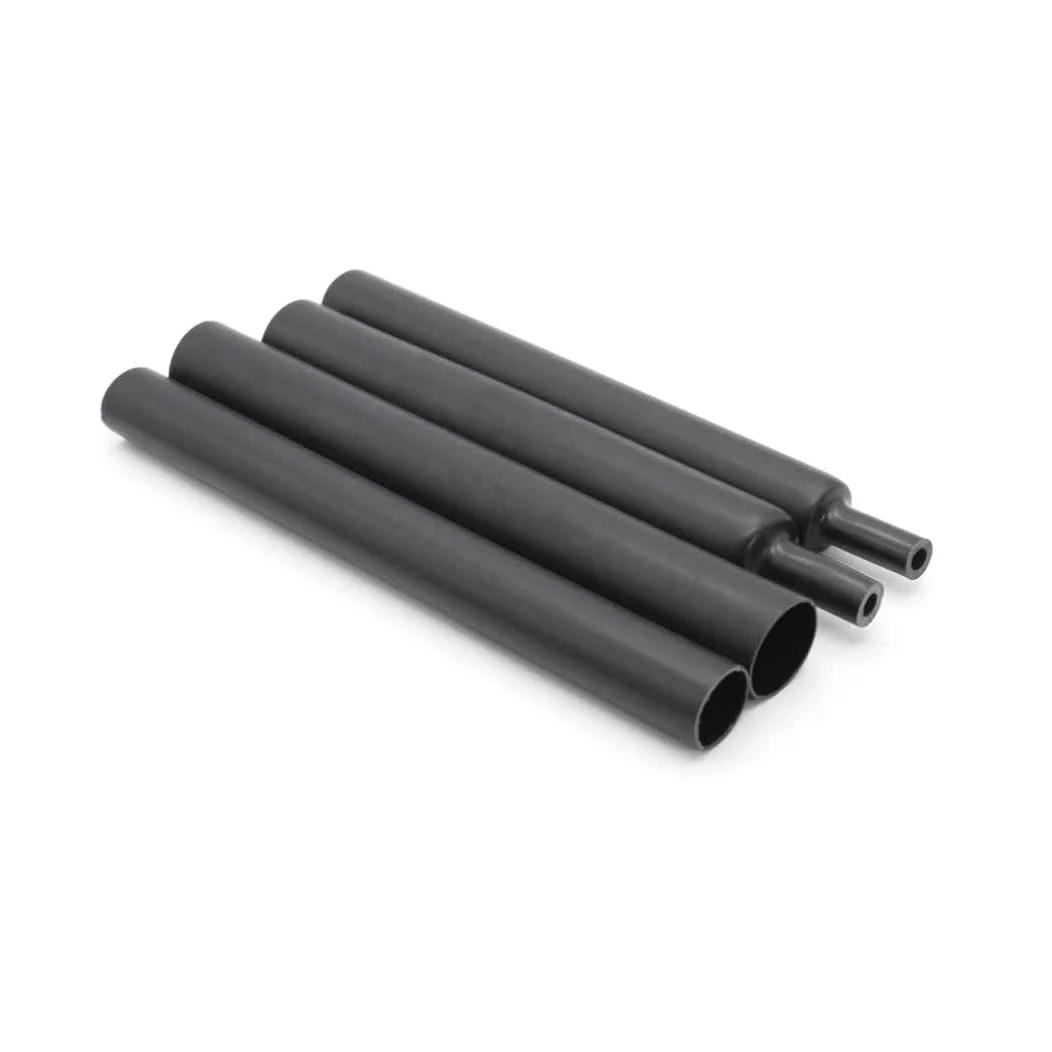

Thin Wall Fluoroelastomer Heat Shrink Tubing
Thin wall Viton fluoroelastomer heat shrink tubing suitable for use in electronic systems and components in automotive, military/ aerospace and industrial applications requiring outstanding heat and fluid resistance.
Features
2:1 shrink ratio
High withstand to corrosive fluids in extreme temperatures
Flame retardant
Very flexible
Easy to stamped
Continuous operating temperature:-55℃- 200℃
Shrink temperature:175℃
Meets 23053/ 13
Dimensions
Property | Test Method | Stantard | Typical Performance |
Tensile Strengtn(MPa) | ASTM D2671 | ≥8.5 | 10.0 |
Elongation(%) | ASTM D2671 | ≥250 | 300 |
Tensile Strengtn after aging (MPa) | UL224 158℃X168hr | ≥7.3 | 8.5 |
Elongation after aging(%) | UL224 158℃X168hr | ≥200 | 250 |
Dieletric strength(kv/mm) | IEC243 | ≥15 | 17.5 |
Volume resistivity(Ω.cm) | ASTM D876 | ≥1X109 | 2.5X109 |
Flammability | VW-1 | Pass | Pass |
